USER MANUAL HMS107575.3 Emerio

Product photo of a kitchen electric mixer with three kitchen utensils and a stand (no text or symbols visible)

3 in 1 Hand mixer set (EN)

3 in 1 Handmixer-set (DE)

3 in 1 Handmixerset (NL)

3 in 1 Sähkövatkain set (FI)

CE

English

IMPORTANT SAFEGUARDS

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
4. Children shall not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use
8. There is a potential risk of injuries from misuse.
9. Care is needed when handling cutting blades.
10. Make sure that the operating voltage indicated on the appliance is the same as supply voltage in your home.
11. To protect against the risk of electric shock, do not immerse any part of this appliance into water or any other liquid.
12. Unplug from outlet while not in use, before putting on or taking off parts and before cleaning.
13. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from

beaters, dough hooks, and blade of the blender foot during operation to reduce the risk of injury to person and/or damage to the hand mixer.

1. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions, or if it is dropped or damaged in any manner. You should contact an approved service centre.

2. Do not let the cord hang over edge of table or counter or touch hot surfaces, including the stove.

3. Never fit accessories with different functions at the same time (dough hooks and beaters etc.)

4. Do not use this appliance outdoors or for commercial purposes. This unit is intended for household use only.

5. Remove beaters from hand mixer before washing.

6. Do not allow the power cable to hang down within reach of children.

7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

8. The use of attachments or accessories not recommended or sold by the manufacturer may cause fire, electric shock or injury.

9. Do not attempt to repair or disassemble the appliance. There are no user serviceable parts.

10. Cleaning and user maintenance shall not be made by children without supervision.

11. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

12. This appliance is not designed for commercial use.

German

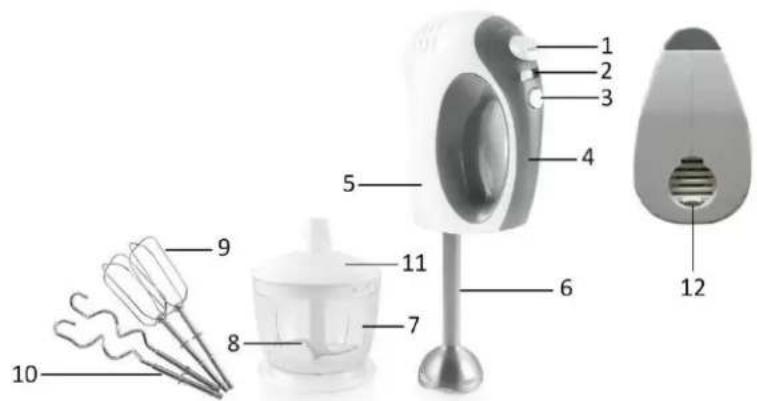

1. Eject button
2. Speed control knob
3. On/Off Switch
4. Handle
5. Housing
6. Stick mixer attachment
7. Chopper bowl
8. Blade
9. Beaters
10. Dough hooks
11. Chopper cover
12. Cover of the mounting hole

Labeled diagram of a kitchen blender with numbered parts for identification

BEFORE FIRST USE

1. Carefully unpack your hand mixer set and remove all packaging material.
2. Clean the various accessories of your appliance in warm soapy water, rinse and dry thoroughly before use.

USE

NOTE: The speed control knob should be in "0" position before using. After each use, firstly reset the speed control knob to "0" position and then unplug the appliance.

1. Chopping

1) Attach the blade on to blade support in the jar and pour in the food to be chopped. You can chop meat, cheese, onions, herbs, garlic, carrots almonds, prunes etc..
2) Fix chopper cover on the chopper bowl; place the motor unit onto the chopper cover by opening the cover of the mounting hole. Rotate the motor unit to fix completely. ATTENTION: make sure the motor unit is fixed to the bottom of the connector on the chopper cover. Otherwise, the on/off switch will not work.
3) Plug in. Turn the speed control knob to your desired setting. Press and hold the on/off switch to start working. During operation, hold the motor unit with one hand and another for chopper bowl.
4) After use, unplug the appliance and take the motor unit from the chopper. Open the cover and take out the blade carefully. Caution: Blade is every sharp, handle with care.
5) Remove the processed food from the chopper bowl.

Caution: For food like meat (quantity should be under 350g), do not operate the appliance more than 30 seconds for each time. For food like vegetables and fruit (do not over the “max” level on the bowl), do not operate the appliance more than 60 seconds for each time.

2. Mixing and kneading

1) Insert beaters or dough hooks into the left and right opening on the bottom of the motor unit. Make sure they are locked into position.
2) Turn the speed control knob to the position "0", and then plug in the appliance.
3) Place the ingredients in an appropriate container. Position the beaters or dough hooks into the container and choose the speed from "1" - "5". The appliance will start working. Please note for this function, no need to press the on/off switch to start working. The unit will be in operation by using the speed control knob directly.
4) When you have finished using it, reset the control knob to position "0".

5) Unplug the appliance. While pressing the eject button, pull out the beaters/dough hooks.

Caution:

• Do not continuously operate the mixer too long. The motor may overheat. After 5 minutes continuous use, allow the mixer to rest a few minutes before next use. Do not allow the mixer to operate more than 5 minutes at one time.
• To prevent spattering, keep the beaters in mixture and always switch the mixer off before lifting the beaters from the mixture.
• To avoid unnecessary strain on the motor, do not use mixer for any mixture in which the beaters /dough hooks do not revolve freely.

Operating hints:

Most recipes provide the required time and speed needed.

• SPEED 1-2: For mixing dry ingredients with liquids, folding whipped egg whites and cream into mixtures, stirring gravies and sauces and mashing vegetables.
• SPEED3-4: For mixing cake mixes, puddings or batters. For using the dough hooks when mixing dough or heavier cake mixes. For creaming together shortening and sugar.
• SPEED 5: For whipping cream, evaporated or powdered milk, egg whites or whole eggs. For mixing minced meat or kneading heavy dough.

3. Pureeing

1) Insert the stick mixer attachment into the motor unit by opening the cover of the mounting hole; turn until it locks. Plug in.
2) Turn the speed control knob to your desired setting. Press and hold the on/off switch to start working.
3) The appliance blends and mixes fast and easily. Use it to make sauces, soups, mayonnaise, purees, dietary and baby food, mixed drinks or cocktails; you can operate the appliance just as well in any bowl, and pan or other container too. If you want to blend directly in the saucepan, you should take the saucepan away from the stove first and let it cool down slightly.
4) To avoid splashing, insert the stick blender into the vessel first, and then choose the speed.

Caution: Do not continuously operate the appliance too long. The motor may overheat. Do not allow the appliance to operate more than 1 minute at one time. It should rest 30 seconds after 1 minute working.

Note: Never wash the motor unit in water. Make sure the cord is removed from electrical outlet before taking out accessories from the motor part.

CLEANING AND MAINTENANCE

1. Before cleaning switch off and unplug the cord from the electrical outlet.
2. Clean the motor unit with a damp cloth. Never immerse it in water for cleaning as electrical shock may occur.
3. Wash the chopper cover and bowl in warm soapy water. Wipe with a damp cloth. Take out blade, wash it under running water. Caution: Blade is every sharp, handle with care.
4. Clean the beaters / dough hooks and the shaft under running water or in a dishwasher. Rinse and dry. Don't touch the shape blades.

TECHNICAL DATA

Operation voltage: 220-240V \~ 50/60Hz

Power: 300W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

Emerio Deutschland GmbH (no service address)

Höfferweg 14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]
