TO-122830.3 - Toaster Emerio - Free user manual and instructions

Product Type	Toaster
Brand	Emerio
Model	TO-122830.3
Dimensions (W x D x H)	25 x 15 x 20 cm
Weight	1 kg
Power Supply	220-240 V, 50/60 Hz
Power	800 W
Capacity	2 slices
Main Functions	Toast, Defrost, Reheat, Stop
Browning Setting	7 levels
Removable Crumb Tray	Yes
Power Cord	Retractable
Automatic Shut-off	Yes
Overheat Protection	Yes
Cleaning	Removable and washable crumb tray
Maintenance	Clean the crumb tray regularly
Housing Material	Heat-resistant plastic
Color	White/black
Warranty	2 years

Frequently Asked Questions - TO-122830.3 Emerio

How to use the Emerio TO-122830.3 toaster?

Place the slices of bread in the slots, set the desired browning level (1-7), then lower the lever. The toaster stops automatically. You can interrupt the cycle by pressing the Stop button.

How to clean the crumb tray?

Unplug the appliance and wait for it to cool down. Remove the crumb tray from the bottom, empty it and wash it with soapy water. Dry it before putting it back.

What to do if the toaster does not turn on?

Check that the appliance is properly plugged in and that the outlet works. Make sure the lever is lowered. If the problem persists, contact customer service.

How to use the defrost function?

Select the browning level, then press the Defrost button before lowering the lever. The appliance adjusts the toasting time for frozen breads.

How to use the reheat function?

Press the Reheat button after lowering the lever. The appliance heats the bread without further browning.

What is the recommended browning level?

Levels 1-2 for light bread, 3-5 for medium golden bread, 6-7 for well-toasted bread. Start with a medium level (3-4) and adjust according to your taste.

The toaster emits smoke, is this normal?

During initial use, slight smoke may occur. If smoke persists, check that the crumb tray is not full and that crumbs are not burning at the bottom.

How to prevent bread from sticking?

Use standard-sized bread and do not force the lever. Clean the crumb tray regularly. Avoid using bread that is too thick or too sweet.

Is the toaster guaranteed?

Yes, the appliance has a 2-year warranty against manufacturing defects. Keep your proof of purchase.

Where to find spare parts?

Spare parts (crumb tray, lever spring) can be ordered through Emerio customer service or on the official website.

USER MANUAL TO-122830.3 Emerio

Toaster (EN)

Toaster (DE)

Grille-pain (FR)

Broodrooster (NL)

Toster (PL)

Content – Inhalt – Teneur – Inhoud – Treść

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system

8. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph “cleaning and maintenance” of the manual.

9. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

10. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

16. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use.

21. Do not use the appliance for other than intended use.

22. Do not wind the cord around the appliance and do not bend it.

23. Place the appliance at least 5cm off the wall or flammable objects (such as curtains, candles or towels).

24. Warning!! Should any pieces of toast or other items happen to get stuck in the toaster, never try to remove them with a knife or any other object, since contact with live parts can cause an electric shock. Let the appliance cool down and take the plug out of the socket before removing the bread.
25. If toaster starts to smoke, Press "Cancel" to stop toasting immediately.
26. Avoid toasting the food with extremely runny ingredients such as butter.
27. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

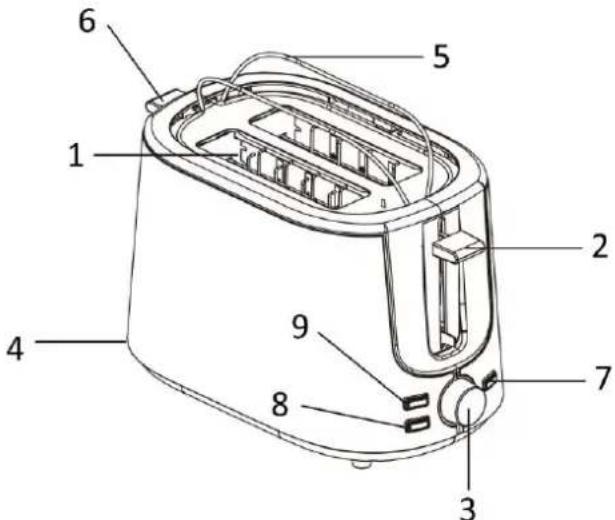

FUNCTIONAL CHARACTERISTICS

1. Toast aperture
2. Toasting lever
3. Electric browning control
4. Full-length crumb collector
5. Bun warmer
6. Bun warmer lever
7. Cancel button
8. Reheat button
9. Defrost button

INSTRUCTIONS FOR USE

Before initial use:

• Before using the toaster for the first time, clean your toaster (see Chapter "CLEANING AND MAINTENANCE"). Operate the toaster at least twice without bread and on the highest setting. Ventilate the room during this period.
• This appliance may emit a characteristic smell when you switch it on for the first time. This is normal, and no harm.
  • Make sure the crumb collector is completely positioned in place before using.

Use:

1. Insert the power plug and cable into the socket and the appliance is in standby mode.
2. Insert up to two slices of bread in the browning slot.
3. Use the browning control switch to select the desired degree of browning between 1 and 7 (1 = lightest; 7 = darkest degree of browning). No. 3 is recommended for first use. The degree of browning chosen depends on the type of bread and individual taste.
4. Press the toasting lever down until it engages. The toasting process starts automatically. The indicator light of cancel button "will illuminate.
5. Please remember that the toasting lever will not engage if the power plug is not inserted in the socket and the toaster is not switched on.
6. The toaster switches itself off automatically and the toasted bread is ejected when the desired degree of browning has been reached. The cancel button “▽” can always be used to cancel the browning process.

Bun warmer:

Press bun warmer lever down to lift up the bun warmer; raise the lever to reset it.

Only use browning degree 1 or 2 for the bun warmer.

Note:

1) Take care when removing bread as the bread and the top of the toaster will still be hot.
2) Do not change the browning selection during the toasting process. First press the "CANCEL" switch; then turn the browning control switch to adjust the browning degree.
3) Do not place any rolls, irregular bread, round bread, etc. directly on the toast aperture but place them on the bun warmer. If only toasting one side of the bread, please place it on the bun warmer.
4) Make sure if toasting on the bun warmer, do not insert bread into the toast aperture. A fire may occur.

5) The degree of browning for one slice is darker than that for two slices of bread at the same level.
6) 1 minute interval between each toasting can get the same degree of browning for different batch of toasted bread.

Reheat function:

Insert toasts into the appliance. Press down the toasting lever and then press the reheat button “III”. The button will illuminate.

Defrost function:

Press the defrost button “✗” to prolong the toasting time of frozen bread. The button will illuminate.

Setting 1-2: for refrigerated breads and thinner frozen items such as frozen pancakes.

Setting 3-4: for pastries, frozen waffles, thin French toast and refrigerated bagels.

Setting 5-7: for thicker frozen items such as bagels, hand cut bread and thick French toast.

CLEANING AND MAINTENANCE

1. Before cleaning, make sure that you have removed the power plug from the socket. Let the toaster cool down first.
2. Pull the crumbs collector out to clean it up, reset it before using the appliance again.
3. Clean the outside of the toaster with a slightly damp cloth and wipe dry with a soft cloth. Never dip the toaster in water to clean it!
4. To clean the inside, turn it upside down and shake it over the sink until any crumbs adhering to the inside fall out. Clean the crumb collector regularly to avoid crumbs accumulating inside.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio Deutschland GmbH

Höffer Weg 14, 51519 Odenthal Germany
