ST-109724.14 - Toaster Emerio - Free user manual and instructions

Brand	Emerio
Model	ST-109724.14
Product Type	Toaster
Number of Slots	2
Power	850 W
Voltage	220-240 V ~ 50/60 Hz
Color	White and black
Material	Plastic housing
Dimensions (approx.)	280 x 180 x 200 mm
Weight (approx.)	1.2 kg
Browning Control	6 levels
Functions	Cancel, Defrost, Reheat
Extra High Lift	Yes
Removable Crumb Tray	Yes
Self-Centering Racks	Yes
Cool-Touch Exterior	Yes
Non-Slip Feet	Yes
Auto Shut-Off	Yes
Overheat Protection	Yes
Cord Length	0.8 m
Cable Storage	Yes
Cleaning	Wipe with damp cloth; do not immerse in water
Spare Parts Availability	Contact Emerio service center
Repair	Professional repair only

Frequently Asked Questions - ST-109724.14 Emerio

How do I clean the toaster?

Unplug the toaster and let it cool. Remove the crumb tray and empty it. Wipe the exterior with a damp cloth. Do not immerse in water or use abrasive cleaners.

Why does the toaster turn off before the bread is toasted?

This may be due to a power interruption or the toaster's safety feature. Check the plug and circuit breaker. If it persists, contact support.

Can I toast frozen bread directly?

Yes, use the Defrost function. Place frozen bread in the slots, select the desired browning level, and press the Defrost button.

How do I use the Reheat function?

Place already toasted bread back in the toaster and press the Reheat button. It will warm the bread without further browning.

What does the Cancel button do?

The Cancel button immediately stops the toasting cycle and lifts the bread. Use it to interrupt toasting at any time.

Can I use metal utensils to remove stuck toast?

No, never use metal utensils as they can damage the heating elements and cause electric shock. Use the high lift lever to raise the toast.

Why does the toaster smoke?

First use may cause slight smoke as manufacturing residues burn off. If persistent, ensure the crumb tray is clean and bread is not touching the heating elements.

What is the warranty for this toaster?

Emerio offers a standard 2-year warranty. Check your purchase documents or contact Emerio support for details.

How do I adjust the browning level?

Turn the browning control knob to the desired level (1 = light, 6 = dark). The toaster will automatically adjust the toasting time.

Is the toaster safe to leave unattended?

No, never leave the toaster unattended while in use. It has auto shut-off and overheat protection, but supervision is recommended.

USER MANUAL ST-109724.14 Emerio

Black square griddle with a red and green button on top (no visible text or symbols)

Sandwich toaster (EN)

Smörgåsgrill (SE)

Voileipägrilli (FI)

Sandwichjern (NOR)

Instruction manual – English ...... - 2 -

Bruksanvisning – Swedish.... - 5 -

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
10. Always plug the appliance into an earthed plug socket.
11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.
23. Place the appliance on a stable, level surface from which it cannot fall off.
24. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The bread shall not stick out of the toasting surface!

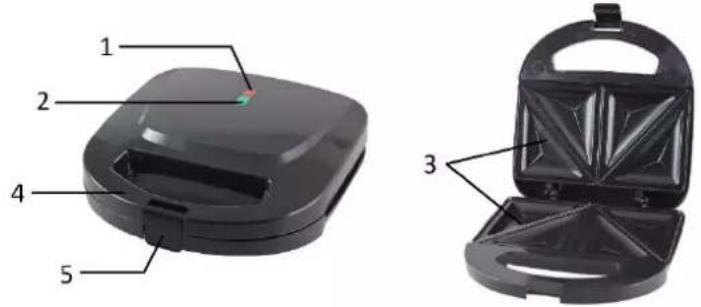

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle
5. Catch

BEFORE INTITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

NOTE: When your appliance is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety or your appliance.

OPERATING INSTRUCTIONS

1. Connect the appliance to an appropriate socket. The red power light will glow to indicate when the appliance is switched on.

2. The green control light will turn off during heating. Once the temperature is reached, then the green control light will turn on. This means the appliance is ready for use.

3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.

4. Open the appliance at the handle by unlocking the catch.

5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards. The bread shall not stick out of the toasting surface!

6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.

7. Close the appliance making sure the catch is engaged.

8. Caution: If the slices of bread have too much filling on them, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.

9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.

10. After completion of the toasting process (approx. 2-4 minutes) open the appliance and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.

11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently.

12. When the control light illuminates again you can repeat the toasting process as described above.
13. After completion of the toasting process disconnect the mains plug immediately. With the appliance open allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. All kinds of spiced butters and lards can be used.
4. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
5. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 650W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Bruksanvisning – Swedish

SÄKERHETSANVISNINGAR

1. Röd indikator lampa
2. Grön indikator lampa
3. Non stick bak platta
4. Handtag
5. Hake

INNAN FÖ RSTA ANVÄNDNING

TIPS FÖR GODA SMÖRGÅSAR
