USER MANUAL MO106981 Emerio

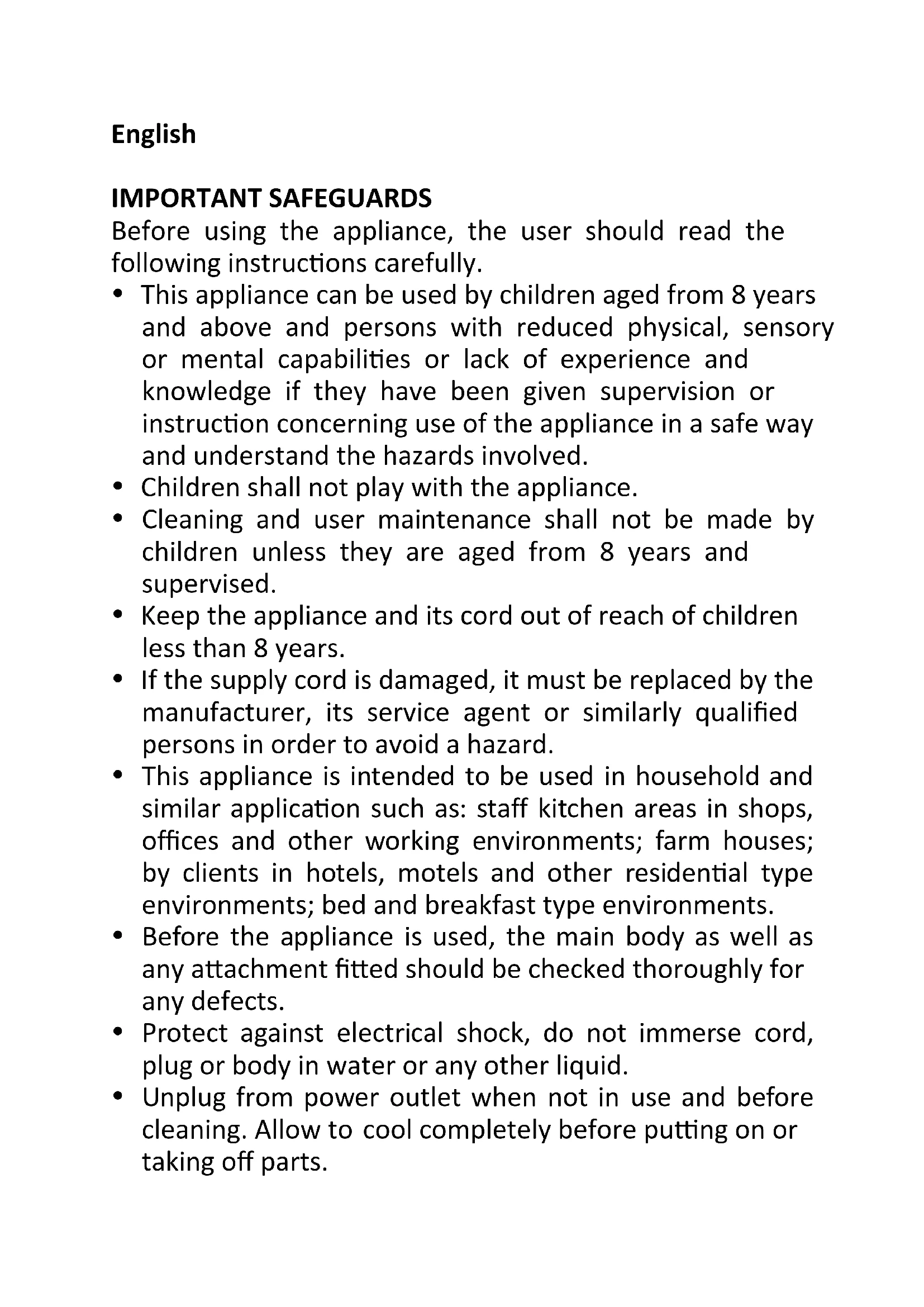

MO-106981 Pizza-/Toaster Oven (EN) Kleinkuche (DE) Four grille-pain (FR) Köksbordsugn (SE) Pizza-/Toaster Oven (NL) Toaster Uuni (FI)English IMPORTANT SAFEGUARDS Before using the appliance, the user should read the following instructions carefully. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and supervised. Keep the appliance and its cord out of reach of children less than 8 years. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance is intended to be used in household and similar application such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid. Unplug from power outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts. While using the oven, do not apply water to the glass door, otherwise the door may get broken. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for exami- nation, repair or adjustment. The use of accessory attachments not recommended by us may cause injuries. Do not use outdoors. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces. Do not place the appliance on or near heat sources such as a gas or electric burner. Caution must be taking hard when putting in or removing food out from appliance. Do not leave the appliance unattended while in use and remove the plug from wall socket after use. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

Warning: When in use, the oven is hot! Never touch the

hot surfaces and the glass door. Use handles or knobs. The oven can’t be put into the water or washed with water. This product is for household use only. The appliance should be stood on a level, stable, heat resistant and clean surface while it is in use. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control. Do not cover crumb tray or any part of the oven withmetal foil. This may cause the oven to overheat.

WARNING: If the door or door seals are damaged, the

1. Wash the appliance with soapy water and dry well.

2. Make sure the oven is unplugged and the Timer knob is at the “0” position.

1. Place food on the wire rack and slide it into the top rack position.

2. Put the backing tray at the bottom as a drip pan to catch oil drippings.

3. Turn the temperature control knob to the appropriate setting.

4. Turn the oven function knob to . Turn the timer knob to select desired cooking time.

5. When finished broiling, turn the oven function knob to “OFF” position.

Note: when the appliance is operating, only upper heating elements work, suitable for broiling fish, steak, poultry, pork, chops, etc.

1. Place food on the rack or backing tray and then slide it into the lower position.

2. Turn the temperature control knob to the appropriate setting.

3. Turn the oven function knob to . Turn the timer knob to select desired cooking time.

4. When finished baking, turn the oven function knob to “OFF” position.

Note: when the appliance is operating, only lower heating elements work, suitable for baking cakes, pies, cookies, etc. that don’t need browning or crispy surface.HOW TO TOAST

1. Place food on the wire rack and slide it into the middle rack position.

2. Turn the temperature control knob to the appropriate setting.

3. Turn the oven function knob to . Turn the timer knob to select desired cooking time.

4. When finish toasting, turn the oven function knob to “OFF” position.

Note: when the appliance is operating, the upper and lower heating elements work together, suitable for toasting bread, muffins, frozen waffles, pizza, etc. Reference heating table Food Time (minutes) Temp. (℃) Chicken wings

All toasting time is based on meats at refrigerator temperature. Frozen meat may take considerably longer. Therefore, use of a meat thermometer is highly recommended. NOTE: If you wish to keep the oven working, turn the timer knob to the “Stay on” position, select the heating function and then the desired temperature. The oven will keep working until you turn it off. TIPS

1. To prevent from fire hazards, it is recommended to wrap the food with aluminum foil.

2. Brush food with sauces or oil, as desired.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven. Always use an oven mitt when removing hot items from the oven. Note: The weight of the food which is put on the Food Tray/Wire rack can’t be over 1.5 kg. And you would better try your best to make the food put on the Food Tray/Wire rack evenly. The indicator light only indicates the power being on or off, it will not shut off once the desired temperature is reached.

1. Unplug the supply cord from the power outlet.

2. Let the appliance to cool down completely.

3. Use soft and/or dry cloth to clean the body. DO NOT IMMERSE THIS APPLIANCE INTO WATER.

4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.

5. All the accessories (rack, tray) can be cleaned with soapy water.

6. Wipe the walls with a damp cloth.

TECHNICAL DATA Operating voltage: 220-240V ~ 50Hz Power consumption: 1200WGUARANTEE AND CUSTOMER SERVICE Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.MO-106981 DE
