MO-122422 - Oven Emerio - Free user manual and instructions

Product Type	Multi-function Oven
Brand	Emerio
Model	MO-122422
Color	Black
Power Supply	220-240V ~ 50/60Hz
Power Consumption	2000W
Functions	Top heating, Bottom heating, Top and bottom heating, Top heating + fan (convection), Top and bottom heating + fan (convection)
Temperature Control	Yes, with temperature knob
Timer	Yes, with timer knob (bell ring when done)
Interior Light	Indicator light (not for interior)
Capacity	Approximately 30 liters (estimated)
Dimensions (approx.)	45 x 35 x 30 cm (estimated)
Weight (approx.)	8 kg (estimated)
Accessories Included	Baking tray, wire rack, tray handle
Construction Material	Metal housing, glass door
Cleaning	Wipe housing with damp cloth; wash wire rack and baking tray in hot soapy water (dishwasher safe)
Safety Features	Automatic shut-off via timer, indicator light, warning against touching hot surfaces
Minimum Clearance	4 inches (10 cm) on all sides except back
Preheating Recommended	Yes
Guarantee	2 years

Frequently Asked Questions - MO-122422 Emerio

What are the different heating functions of the Emerio MO-122422 oven?

The oven offers six functions: Off, Top heating, Bottom heating, Top and bottom heating, Top heating with fan (convection), and Top and bottom heating with fan (convection). Use the function knob to select.

How do I set the cooking time and temperature?

Turn the temperature knob to the desired temperature. Then turn the timer knob to set the cooking time. The indicator light will turn on. When the time is up, a bell will ring. You can also manually turn the timer to Off-0 to stop early.

Can I use the oven to cook both top and bottom simultaneously?

Yes, select the function 'Top and bottom heating' or 'Top and bottom heating with fan' for even cooking from both sides.

What is the maximum weight that can be placed on the baking tray or wire rack?

The maximum load is 3.5 kg. Do not exceed this weight to avoid damage.

How should I clean the oven?

Unplug and let it cool completely. Wipe the housing with a damp, lint-free cloth. Do not immerse in water. Clean the door and interior walls with a wet and dry cloth. Wash the wire rack and baking tray in hot soapy water; they are dishwasher safe.

Is it safe to leave the oven unattended while in use?

No, always monitor the oven during operation. Do not leave it unattended.

Can children use this oven?

Children aged 8 years and above can use it under supervision. Children under 8 must be kept away from the appliance and cord. Cleaning by children is not allowed unless supervised.

What safety precautions should I take when using the oven?

Ensure the oven is placed on a flat, heat-resistant surface with at least 4 inches of free space on all sides (except back). Do not cover with metal foil. Use oven mitts when handling hot items. Do not touch the glass door during use.

What should I do if the power cord is damaged?

Stop using immediately. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Is there a warranty on the Emerio MO-122422 oven?

Yes, a 2-year warranty from the date of sale covers manufacturing defects. Keep your receipt. Damage from improper use, unauthorized repairs, or normal wear is not covered.

USER MANUAL MO-122422 Emerio

Black hôws microwave oven with open lid and control knobs (no visible text or symbols on main body)

Multi-ovn (DK)

Multiovn (NO)

Bordsugn (SE)

Multi-Backofen (DE)

Multi oven (EN)

Indhold – Innhold – Innehåll – Inhalt – Content

Brugsanvisning – Danish ...... - 2 -

Brukermanual – Norwegian...... - 8 -

Bruksanvisning – Swedish....- 14 -

Instruction manual – English ...... - 26 -

VIGTIGE SIKKERHEDSFORANSTALTNINGER

Funktionsknap:

Sluk

Opvarmning foroven

Opvarmning forneden

Opvarmning foroven og forneden

Opvarmning foroven + ventilator (varmluftfunktion)

Opvarmning foroven og forneden + ventilator (varmluftfunktion)

SÅDAN RENG∅ RES PRODUKTET

Funksjonsknapp:

AV

Toppvarme

Bunnvarme

Topp- og bunnvarme

Funktionswähler:

AUS

Oberhitze

Unterhitze

Before using the appliance, the user should read the following instructions carefully.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar application such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. The door or the outer surface may get hot when the appliance is operating.
8. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects.
9. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid.
10. Always plug the appliance into an earthed plug socket.

11. Unplug from power outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts.

12. While using the oven, do not apply water to the glass door, otherwise the door may get broken.

13. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for examination, repair or adjustment.

14. The use of accessory attachments not recommended by us may cause injuries.

15. Do not use outdoors.

16. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces.

17. Do not place the appliance on or near heat sources such as a gas or electric burner.

18. Caution must be taking hard when putting in or removing food out from appliance.

19. Do not leave the appliance unattended while in use and remove the plug from wall socket after use.

20. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

21. Warning: When in use, the oven is hot! Never touch the hot surfaces and the glass door. Use handles or knobs.

22. The oven can't be put into the water or washed with water.

23. The appliance should be stood on a level, stable and clean surface while it is in use.

24. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

25. When operating the oven, keep at least four inches of free space on all sides (except back side) of the oven to allow for adequate air circulation. And the rear surface of appliances shall be placed against wall.

26. The oven must be placed against a wall. Regarding the information pertaining to the cleaning of the appliance, please refer to the below paragraph of the manual.

27. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.

2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

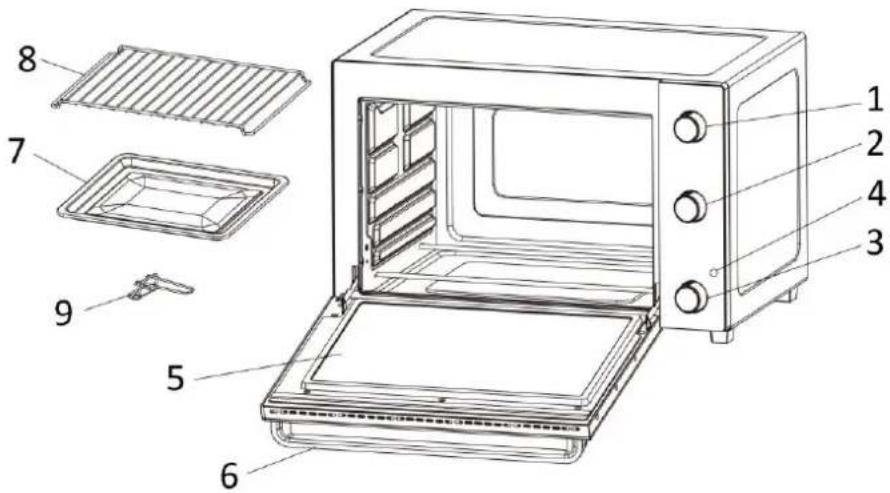

PARTS DESCRIPTION

1. Temperature knob
2. Function knob
3. Timer knob
4. Indicator light
5. Glass door
6. Door handle
7. Baking tray
8. Wire rack
9. Tray handle

Function knob:

OFF

Top heating

Bottom heating

Top and bottom heating

Top heating + fan (convection function)

Top and bottom heating + fan (convection function)

The fan (convection function) increases the heat cycle in the oven which makes the cooking more evenly.

BEFORE USE

• Remove all packaging materials from the appliance. Clean the appliance according to the section "How to clean" below.
  • Make sure the appliance is unplugged and the timer knob is set at position "Off-0".
• Before initial use, it is recommended that you run the oven with the function “☐” for approximately 15 minutes to eliminate the remaining packing residue and odor.

OPERATION

1. Place the appliance on a flat and heat resistant surface. Make sure that there is enough ventilation around the appliance.
2. Insert the power plug into the socket.

3. Slide the wire rack with food into the slot of the appliance. And then slide the baking tray under the wire rack to collect the dripping oils. You can also directly put food on the baking tray itself. Choose your desired rack position according to the food height and type.

4. Close the oven door, and turn the function knob to choose the desired function (

). Turn the temperature knob to choose the desired temperature.

1. Turn the timer knob to select desired cooking time. The indicator light will be on.

2. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "Off-0".

3. When finished cooking, turn the oven function knob back to position "OFF".

RECOMMENDED COOKING TABLE

MEAT	OVEN TEMP	COOKING TIME
RIB STEAK	230	20-25MIN
T-BONE STEAK	230	20-25MIN
HAMBURGER	230	15-25MIN
PORK CHOPS	230	25-35MIN
LAMB CHOPS	230	30-40MIN
CHICKEN LEGS	230	25-35MIN
FISH FILETS	200	15-25MIN
SALMON STEAKS	200	15-25MIN

WARNING: Food should not touch the heating elements. This table is for reference only, always keep an eye on the baking process.

Note:

1. For the best taste, preheating is recommended.
2. Try to place the food on the baking tray evenly.
3. Wire rack should be positioned with the indentations pointing down.
4. The weight of the food which is put on the baking tray/wire rack cannot be over 3.5kg.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven.

Always use an oven mitt when removing hot items from the oven.

HOW TO CLEAN

1. Unplug the supply cord from the power outlet.
2. Let the appliance cool down completely.
3. Clean the housing with a damp, lint-free cloth. DO NOT IMMERSE THIS APPLIANCE INTO WATER.
4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.
5. Wash the wire rack and baking tray in hot soapy water. Rinse and dry.
6. Wire rack and tray handle can be cleaned in a dishwasher.

SPECIFICATIONS

Supply Voltage: 220-240V\~50/60Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case

please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
