MO-122421 - Oven Emerio - Free user manual and instructions

Product Type	Multi-function oven
Brand	Emerio
Model	MO-122421
Power Consumption	1800W
Voltage	220-240V ~ 50/60Hz
Heating Functions	Top heating, bottom heating, top and bottom heating, top heating + fan (convection), top and bottom heating + fan (convection)
Temperature Control	Adjustable via temperature knob
Timer	60-minute mechanical timer with bell
Indicator Light	Yes (power on)
Accessories Included	Baking tray, wire rack, tray handle
Convection Fan	Yes
Door Type	Glass door with handle
Cleaning	Housing with damp cloth; wire rack and baking tray dishwasher safe
Safety Features	Auto shut-off via timer; keep away from children; do not immerse in water
Guarantee	2 years
Placement	Free-standing on level, heat-resistant surface, at least 4 inches clearance on sides
User Manual Languages	DA, DE, EN, NO, SV
Maximum Load on Baking Tray/Wire Rack	3.5 kg

Frequently Asked Questions - MO-122421 Emerio

How do I clean the Emerio MO-122421 oven?

Unplug the appliance and let it cool completely. Clean the housing with a damp, lint-free cloth. Do not immerse in water. Clean the door and interior walls with a wet and dry cloth. Wash the wire rack and baking tray in hot soapy water or in a dishwasher. Do not use abrasive detergents.

Can children use this oven?

Children aged 8 years and above can use the appliance if supervised and instructed on safe use. Children shall not play with the appliance. Cleaning and maintenance by children only if aged 8 and supervised. Keep the appliance and cord out of reach of children under 8 years.

What heating functions are available?

The function knob offers: OFF, top heating, bottom heating, top and bottom heating, top heating + fan (convection), and top and bottom heating + fan (convection). The fan circulates heat for even cooking.

How do I set the timer?

Turn the timer knob clockwise to the desired cooking time (up to 60 minutes). The indicator light turns on. When time is up, the bell rings. You can also manually turn the knob to OFF-0 to stop.

Can I use metal foil or plastic in the oven?

No. Do not cover any part of the oven with metal foil as it may cause overheating. Also, do not place cardboard, plastic, paper, or similar materials inside the oven.

What is the recommended preheating time?

For best taste, preheating is recommended. The manual suggests running the oven empty at the convection function for about 15 minutes before first use to eliminate packing residue and odor.

What are the cooking times for meat?

The manual provides a reference table: rib steak and T-bone steak at 230°C for 20-25 min, hamburger 230°C for 15-25 min, pork chops 230°C for 25-35 min, lamb chops 230°C for 30-40 min, chicken legs 230°C for 25-35 min, fish fillets and salmon steaks at 200°C for 15-25 min. Always monitor the baking process.

Is the oven dishwasher safe?

The wire rack and tray handle can be cleaned in a dishwasher. The baking tray can also be washed in hot soapy water. Do not immerse the main body.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. Do not use the appliance with a damaged cord.

How should I dispose of the oven at the end of its life?

This product should not be disposed with household waste. Recycle it responsibly according to the European Directive 2012/19/EU. Use return and collection systems or contact the retailer for environmentally safe recycling.

USER MANUAL MO-122421 Emerio

Black hôws microwave oven with open lid and control knobs (no visible text or symbols on main body)

Multi-ovn (DK)

Multiovn (NO)

Bordsugn (SE)

Multi-Backofen (DE)

Multi oven (EN)

Indhold – Innhold – Innehåll – Inhalt – Content

Instruction manual – English ...... - 26 -

VIGTIGE SIKKERHEDSFORANSTALTNINGER

Funktionsknap:

Sluk

Opvarmning foroven

Opvarmning forneden

Opvarmning foroven og forneden

Opvarmning foroven + ventilator (varmluftfunktion)

Opvarmning foroven og forneden + ventilator (varmluftfunktion)

SÅDAN RENG∅ RES PRODUKTET

Funksjonsknapp:

AV

Toppvarme

Bunnvarme

Topp- og bunnvarme

Funktionsknapp:

AV

Ö vervärme

Undervärme

Funktionswähler:

AUS

Oberhitze

Unterhitze

Before using the appliance, the user should read the following instructions carefully.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar application such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
7. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects.
8. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid.
9. Always plug the appliance into an earthed plug socket.
10. Unplug from power outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts.

11. While using the oven, do not apply water to the glass door, otherwise the door may get broken.

12. Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for examination, repair or adjustment.

13. The use of accessory attachments not recommended by us may cause injuries.

14. Do not use outdoors.

15. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces.

16. Do not place the appliance on or near heat sources such as a gas or electric burner.

17. Caution must be taking hard when putting in or removing food out from appliance.

18. Do not leave the appliance unattended while in use and remove the plug from wall socket after use.

19. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

20. Warning: When in use, the oven is hot! Never touch the hot surfaces and the glass door. Use handles or knobs.

21. The oven can't be put into the water or washed with water.

22. The appliance should be stood on a level, stable and clean surface while it is in use.

23. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

24. When operating the oven, keep at least four inches of free space on all sides (except back side) of the oven to allow for adequate air circulation. And the rear surface of appliances shall be placed against wall.

25. The oven must be placed against a wall. Regarding the information pertaining to the cleaning of the appliance, please refer to the below paragraph of the manual.

26. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.

2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

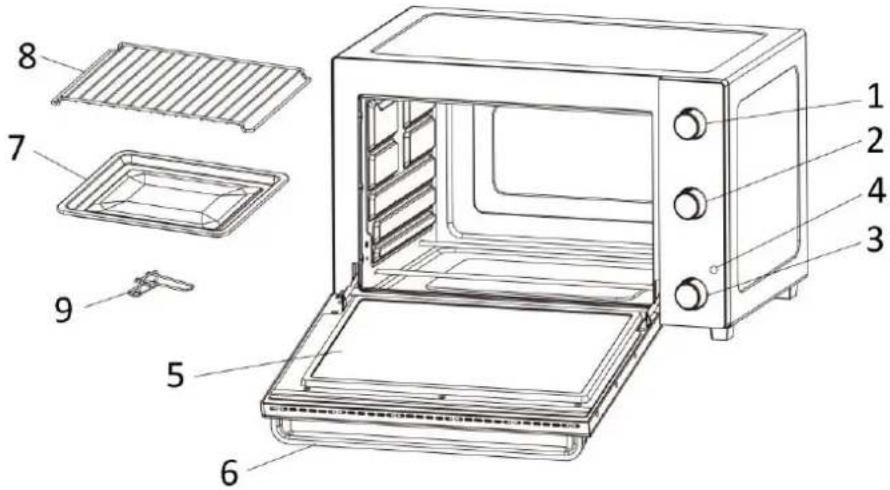

PARTS DESCRIPTION

1. Temperature knob
2. Function knob
3. Timer knob
4. Indicator light
5. Glass door
6. Door handle
7. Baking tray
8. Wire rack
9. Tray handle

Function knob:

OFF

Top heating

Bottom heating

Top and bottom heating

Top heating + fan (convection function)

Top and bottom heating + fan (convection function)

The fan (convection function) increases the heat cycle in the oven which makes the cooking more evenly.

BEFORE USE

• Remove all packaging materials from the appliance. Clean the appliance according to the section "How to clean" below.
  • Make sure the appliance is unplugged and the timer knob is set at position "Off-0".
• Before initial use, it is recommended that you run the oven with the function “☐” for approximately 15 minutes to eliminate the remaining packing residue and odor.

OPERATION

1. Place the appliance on a flat and heat resistant surface. Make sure that there is enough ventilation around the appliance.
2. Insert the power plug into the socket.

3. Slide the wire rack with food into the slot of the appliance. And then slide the baking tray under the wire rack to collect the dripping oils. You can also directly put food on the baking tray itself. Choose your desired rack position according to the food height and type.

4. Close the oven door, and turn the function knob to choose the desired function (

). Turn the temperature knob to choose the desired temperature.

1. Turn the timer knob to select desired cooking time. The indicator light will be on.

2. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "Off-0".

3. When finished cooking, turn the oven function knob back to position "OFF".

RECOMMENDED COOKING TABLE

MEAT	OVEN TEMP	COOKING TIME
RIB STEAK	230	20-25MIN
T-BONE STEAK	230	20-25MIN
HAMBURGER	230	15-25MIN
PORK CHOPS	230	25-35MIN
LAMB CHOPS	230	30-40MIN
CHICKEN LEGS	230	25-35MIN
FISH FILETS	200	15-25MIN
SALMON STEAKS	200	15-25MIN

WARNING: Food should not touch the heating elements. This table is for reference only, always keep an eye on the baking process.

Note:

1. For the best taste, preheating is recommended.
2. Try to place the food on the baking tray evenly.
3. Wire rack should be positioned with the indentations pointing down.
4. The weight of the food which is put on the baking tray/wire rack cannot be over 3.5kg.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven.

Always use an oven mitt when removing hot items from the oven.

HOW TO CLEAN

1. Unplug the supply cord from the power outlet.
2. Let the appliance cool down completely.
3. Clean the housing with a damp, lint-free cloth. DO NOT IMMERSE THIS APPLIANCE INTO WATER.
4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.
5. Wash the wire rack and baking tray in hot soapy water. Rinse and dry.
6. Wire rack and tray handle can be cleaned in a dishwasher.

SPECIFICATIONS

Supply Voltage: 220-240V\~50/60Hz

Power consumption: 1800W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case

please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Fun Nordic ApS

Egelund 8

6200 Aabenraa

Denmark

www.funnordic.dk
