Product Type	Multi Oven with Hotplates
Brand	Emerio
Model	MO-124723
Power Consumption	3200 W
Supply Voltage	220-240 V ~ 50/60 Hz
Temperature Range (Oven)	Up to 230 °C (based on recommended cooking table)
Oven Functions	Top heat, bottom heat, both top and bottom heat; hotplates (big and small)
Timer	Manual timer knob with bell signal
Controls	Knobs for function, temperature, timer, hotplate selection, hotplate temperature
Indicators	Oven indicator light, big and small hotplate indicator lights
Capacity (Max Food Weight)	3.5 kg on baking tray/wire rack
Accessories Included	Wire rack, baking tray, tray handle
Cleaning and Maintenance	Exterior: damp cloth; interior: wet/dry cloth; wire rack and tray: dishwasher safe; do not immerse
Safety Features	Warning: hot surfaces; keep away from flammable materials; automatic switch-off via timer; do not cover with metal foil
Guarantee	2 years from date of sale
Disposal	Recycle according to WEEE directive 2012/19/EU

Frequently Asked Questions - MO-124723 Emerio

How do I preheat the Emerio MO-124723 oven?

For best results, preheat the oven by setting the function knob to both top and bottom heat (☐ symbol), selecting the desired temperature, and letting it run for about 5-10 minutes without food. You can also run it empty for 15 minutes before first use to eliminate odors.

Can I use both hotplates and the oven at the same time?

Yes, the hotplates and oven operate independently. You can set the hotplate knob to select big, small, or both hotplates while using the oven simultaneously.

What is the maximum weight that can be placed on the wire rack or baking tray?

The maximum load for the baking tray or wire rack is 3.5 kg. Exceeding this may damage the appliance or cause uneven cooking.

How do I clean the oven and its accessories?

Unplug and let cool. Wipe the exterior with a damp lint-free cloth. Clean interior walls with a wet then dry cloth. Wash the wire rack and baking tray in hot soapy water (or dishwasher). Do not immerse the main unit in water.

Why does the oven produce smoke or smell during first use?

This is normal. The initial heating burns off protective substances from the heating elements. Run the oven empty at maximum temperature for 15 minutes with good ventilation.

Can I use metal foil or plastic containers in the oven?

No. Do not cover any part of the oven with metal foil as it may cause overheating. Also avoid placing cardboard, plastic, or paper inside.

What does the function knob symbol ☐ mean?

The symbol ☐ represents both top and bottom heating elements operating simultaneously. Other positions indicate only top or bottom heat.

Is the Emerio MO-124723 oven dishwasher safe?

Only the wire rack and tray handle are dishwasher safe. The baking tray and main body should be hand washed.

How long is the warranty period?

The device comes with a 2-year guarantee from the date of sale. Keep your receipt for warranty claims.

What should I do if the glass door cracks?

Immediately switch off the appliance and unplug it. Do not use the oven. Contact the manufacturer, service agent, or a qualified professional for replacement.

USER MANUAL MO-124723 Emerio

Black haws portable toaster oven with two top ovens and control knobs (no visible text or symbols on main body)

Multi-ovn (DK)

Multiovn (NO)

Bordsugn (SE)

Multi-Backofen (DE)

Multi oven (EN)

CE

Indhold – Innhold – Innehåll – Inhalt – Content

Brugsanvisning – Danish ...... - 2 -

Brukermanual – Norwegian...... - 8 -

Bruksanvisning – Swedish....- 14 -

SÅDAN RENG∅ RES PRODUKTET

1. Stor kokeplate
2. Liten kokeplate
3. Temperaturbryter
4. Stor kokeplate-indikator
5. Varmeplatehåndtak
6. Liten kokeplate-indikator
7. Funksjonsknott
8. Indikatorlampe for stekeovn
9. Tidtaker
10. Dørhåndtak
11. Glassdør
12. Skuffhåndtak
13. Stekebrett
14. Rist

F∅ R BRUK

Before using the appliance, the user should read the following instructions carefully.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. The door or the outer surface may get hot when the appliance is operating.
7. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
8. Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects.
9. Protect against electrical shock, do not immerse cord, plug or body in water or any other liquid.
10. Always plug the appliance into an earthed plug socket.
11. Unplug from power outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts.
12. While using the oven, do not apply water to the glass door, otherwise the door may get broken.
13. Do not operate the appliance with a damaged cord or plug

or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the distributor (or any authorized service facility) for examination, repair or adjustment.

1. The use of accessory attachments not recommended by us may cause injuries.

2. Do not use outdoors.

3. Do not let supply cord hang over edge of tables or counters, or touch hot surfaces.

4. Do not place the appliance on or near heat sources such as a gas or electric burner.

5. Caution must be taking hard when putting in or removing food out from appliance.

6. Do not leave the appliance unattended while in use and remove the plug from wall socket after use.

7. Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any inflammable materials, and do not position any objects on top of the appliance.

8. Warning: When in use, the oven is hot! Never touch the hot surfaces and the glass door. Use handles or knobs.

9. The oven can't be put into the water or washed with water.

10. This product is for household use only.

11. The appliance should be stood on a level, stable and clean surface while it is in use.

12. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

13. When operating the oven, keep at least four inches of free space on all sides (except back side) of the oven to allow for adequate air circulation. And the rear surface of appliances shall be placed against wall.

14. The oven must be placed against a wall. Regarding the information pertaining to the cleaning of the appliance, please refer to the below paragraph of the manual.

15. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Do not cover any part of the oven with metal foil. This may cause overheating of the oven.

2. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

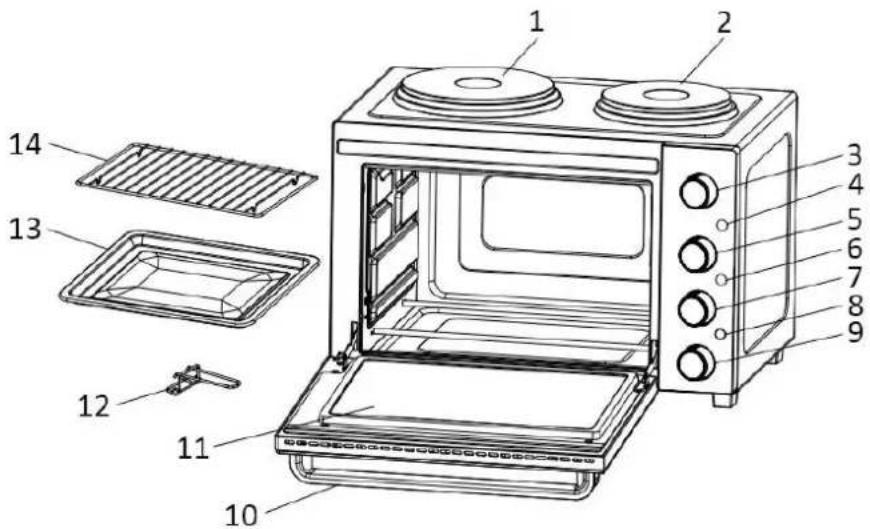

PARTS DESCRIPTION

1. Big hotplate
2. Small hotplate
3. Temperature knob
4. Big hotplate indicator light
5. Hotplate knob
6. Small hotplate indicator light
7. Function knob
8. Oven indicator light
9. Timer knob
10. Door handle
11. Glass door
12. Tray handle
13. Baking tray
14. Wire rack

BEFORE USE

• Remove all packaging materials from the appliance. Clean the appliance according to the section "How to clean" below.
  • Make sure the appliance is unplugged and the timer knob is set at position "Off-0".
• Before initial use, it is recommended that you run the oven with the function “☐” for approximately 15 minutes to eliminate the remaining packing residue and odor.

NOTE: Initial start-up operation may result in slight smell and smoke. It is due to the burning of protective substance applied to the heating elements. This is normal and harmless.

OPERATION

1. Place the appliance on a flat and heat resistant surface. Make sure that there is enough ventilation around the appliance.
2. Insert the power plug into the socket.
3. Slide the wire rack with food into the slot of the appliance. And then slide the baking tray under the wire rack to collect the dripping oils. You can also directly put food on the baking tray itself. Choose your desired

rack position according to the food height and type.

1. Close the oven door, and turn the function knob to choose the desired function “☐” (The top element will heat.), “☐” (The bottom element will heat.), or “☐” (Both top and bottom elements heat simultaneously.). Turn the temperature knob to choose the desired temperature.
2. Close the oven door, and turn the hotplate knob to choose the desired function “☐” (The big hotplate will work), “☐” (The small hotplate will work), “” (Both big and small hotplate will work).
3. Turn the timer knob to select desired cooking time. The indicator light will be on.
4. When the cooking is finished, you will hear the timer bell rings. You can also switch off the appliance manually by turning the timer knob to "Off-0".
5. When finished cooking, turn the oven function knob back to position "OFF".

RECOMMENDED COOKING TABLE

MEAT	OVEN TEMPERATURE (°C)	COOKING TIME(Minutes)
RIB STEAK	230	20-25
T-BONE STEAK	230	20-25
HAMBURGER	230	15-25
PORK CHOPS	230	25-35
LAMB CHOPS	230	30-40
CHICKEN LEGS	230	25-35
FISH FILETS	200	15-25
SALMON STEAKS	200	15-25

WARNING: Food should not touch the heating elements. This table is for reference only, always keep an eye on the baking process.

Note:

1. For the best taste, preheating is recommended.
2. Try to place the food on the backing tray evenly.
3. Wire rack should be positioned with the indentations pointing down.
4. The weight of the food which is put on the baking tray/wire rack cannot be over 3.5kg.

Caution: Always use extreme care when removing baking tray, wire rack or any hot container from a hot oven.

Always use an oven mitt when removing hot items from the oven.

HOW TO CLEAN

1. Unplug the supply cord from the power outlet.
2. Let the appliance cool down completely.
3. Clean the housing with a damp, lint-free cloth. DO NOT IMMERSE THIS APPLIANCE INTO WATER.
4. Clean the door, the inside walls with wet and dry cloth. Do not use abrasive detergents.
5. Wash the wire rack and backing tray in hot soapy water. Rinse and dry.
6. Only Wire rack and tray handle can be cleaned in a dishwasher.

SPECIFICATIONS

Supply Voltage: 220-240V\~50/60Hz

Power consumption: 3200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

FUN NORDIC ApS

Bjerggade 2

6200 Aabenraa

Danmark

www.funnordic.dk
