USER MANUAL Tea Joy Express W11.001 BEEM


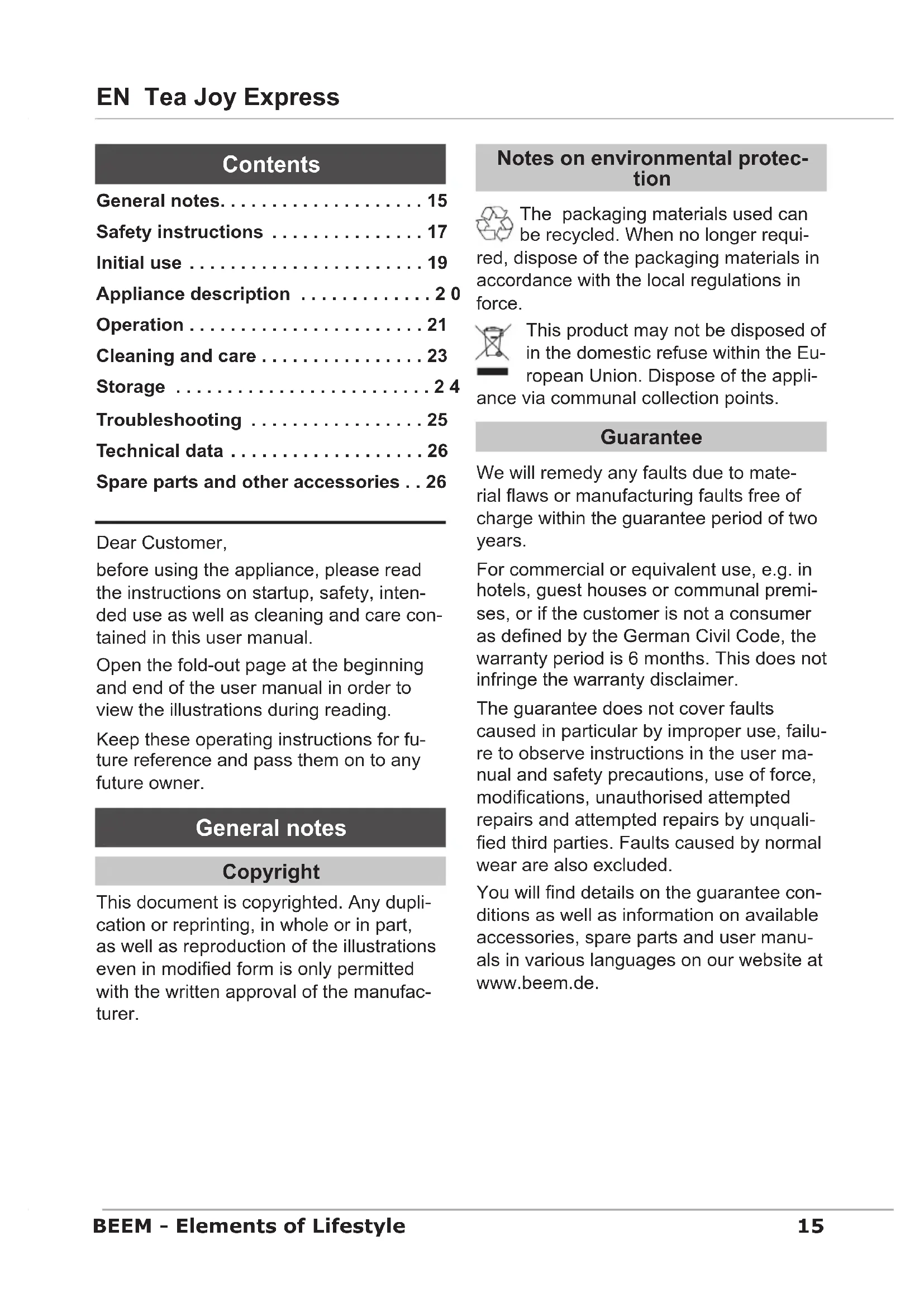

Safety instructions ..... 17
Initial use 19
Appliance description ..... 2 0
Operation 21
Cleaning and care 23
Storage 24
Troubleshooting 25
Technical data 26
Spare parts and other accessories .. 26
Dear Customer,
before using the appliance, please read the instructions on startup, safety, intended use as well as cleaning and care contained in this user manual.
Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.
Keep these operating instructions for future reference and pass them on to any future owner.
General notes
Copyright
This document is copyrighted. Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.
Notes on environmental protection
The packaging materials used can be recycled. When no longer requi-dispose of the packaging materials in accordance with the local regulations in
This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appli-via communal collection points.
Guarantee
We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period of two years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period is 6 months. This does not infringe the warranty disclaimer.
The guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
You will find details on the guarantee conditions as well as information on available accessories, spare parts and user manuals in various languages on our website at www.beem.de.
Symbols used
DANGER
This indicates to an imminent hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
WARNING
This indicates a possible hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
CAUTION
This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.
Follow these instructions to avoid danger.
NOTE
A note contains additional information to simplify the use of the appliance.
Intended use
This appliance is intended primarily for non-commercial use in closed rooms for heating water and brewing tea.
Any other use other than previously stated is considered as improper use.
WARNING
If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.
Only use the appliance for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the machine for other than its intended purpose.
The risk must be borne solely by the machine operator.
If used commercially, please pay attention to the modified warranty period.
Limitation of liability
All technical information, data and instructions on installation, operation and maintenance of the appliance contained in these operating instructions shall represent the latest status at the time of printing.
No claims can be derived from the information, illustrations and descriptions in this instruction manual.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the instruction manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts and/or consumables.
Declaration of Conformity
Herewith, BEEM Company declares that this unit is in conformity with the fundamental requirements and the other relevant stipulations of Directive 2206/95/EU and 2004/108/EU.A complete Declaration of Conformity is rendered under www.beem.de
Safety instructions
Inspect the appliance for visible signs of damagebefore use. Do not use a damaged appliance.
Keep the appliance out of the reach of children.
Do not leave the appliance unattended during use.
Do not pull the cable to remove the plug from the mains socket.
Persons who due to their physical, ■ mental or motor response abilities are unable to operate the device may only use the device under supervision or instruction by a responsible person.
Only allow repairs to the appliance to be carried out by an authorised specialist or by the works customer service; this particularly applies for replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.
Repairs to the appliance during the ■ guarantee period may only be carried out by service centres authorised by the manufacturer as the guarantee will otherwise be invalidated in the event of damage or subsequent damage.
Faulty parts must be replaced with original spare parts only. Only these parts guarantee that the safety requirements are satisfied.
Only operate the appliance with the cordless socket supplied.
Do not pour in any other liquids apart from water or put foodstuffs into the kettle.
Never operate the kettle without water and do not overfill. Pay attention to the MIN/MAX marks.
DANGER
Danger from electric current!
Do not use the appliance if the mains cable or mains plug is damaged.
Do not open the housing of the appliance. Danger from electric current if live connections are touched or the electrical and mechanical configuration is changed.
Never immerse the appliance or the mains plug in water or other liquids.
▶ Switch off the appliance and pull the plug out of the mains socket before beginning work.
Danger of suffocation!
▶ Never play with packaging material. Risk of suffocation.
WARNING
Danger of burns!
Only fill the kettle up the maximum mark. If overfilled, hot water can squirt out.
Keep all parts of your body away ▶ from escaping steam.
Only lift the kettle and the teapot with the handle.
Lift the teapot carefully. Hot steam can escape and lead to scalding.
Only use the kettle with the lid on or when the teapot is placed on top.
Do not open the lid of the kettle or teapot immediately after boiling is completed.
Remove the tea strainer carefully ▶ with the help of the handle.
Do not move the cordless socket ▶ when the appliance is in operation.
Before cleaning, allow the appliance to cool down.
Health risk from germs!
Always pour boiling water over ▶ herbal, fruit, rooibos and spice teas (loose and in tea bags) and allow to steep for at least 5 - 10 minutes! This is the only method for ensuring that the tea is safe to drink!
Do not allow prepared herbal tea to stand for several hours.
CAUTION
Do not pour in any other liquids apart from water or put foodstuffs into the kettle.
Never fill the kettle with water if it is standing on the cordless socket.
Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
Descale the kettle regularly.
Requirements for the place of use
For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:
■ Place the appliance on a dry, flat, waterproof and heat-resistant surface.
■ The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
■ Do not place the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.
Select a location that does not allow children to reach the hot surfaces of the appliance.
■ The plug socket used must be easily accessible in order to be able to disconnect the appliance from the electric circuit quickly in the event of an emergency.
Electrical connection
The following instructions must be observed for the electrical connection:
Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
The mains socket must be protected by at least a 10 A circuit breaker.
If the appliance is to be connected ■ to the power supply via an extension lead, the cable cross-section must be at least 1.5 mm ^4 .
Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.
The mains cable must not pulled tightly, bent or come into contact with the hot appliance or hot surfaces.
Place the cable in such a way as to avoid danger from tripping.
The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.
Protective equipment
The appliance is equipped with dry run protection.
NOTE
If the appliance is filled with too little water or switched on without any water at all, heating is switched off automatically by a safety switch.
See section Resetting the dry run protection.
Initial use
Unpacking
Remove the appliance, all accessory parts and the user manual from the box.
Remove all packaging materials and protective foils from the appliance and the accessories before using it for the first time.
NOTE
Do not remove the rating plate or any warning signs on the appliance.
Keep the original packaging, if ▶ possible, during the warranty period in order to be able to pack the appliance properly in the event of a warranty claim. Transport damage will invalidate the warranty.
Checking delivery contents
Check for visible signs of damage or missing items.
Report incomplete or damaged contents to your supplier immediately.
Before using for the first time
■ Clean the appliance as described in the section Cleaning and care.
- Fill the kettle (3) with fresh water up to the MAX mark and allow the water to boil in order to remove possible production residues.
- Place the lid (13) onto the kettle (3).
- Place the kettle (3) onto the cordless socket (1).
- Insert the plug into the mains socket.
- Turn the temperature selection switch (2) clockwise to the " heating function to boil the water.
- Wait until the water boils and then turn the temperature selection switch (2) to the "O" position.
- Pour out the water.
NOTE
During the initial period of use, odour may be produced by the materials used in the appliance. The odour will diminish after a short period of time.
- Repeat the process. - Clean the appliance as described in the section Cleaning and care.

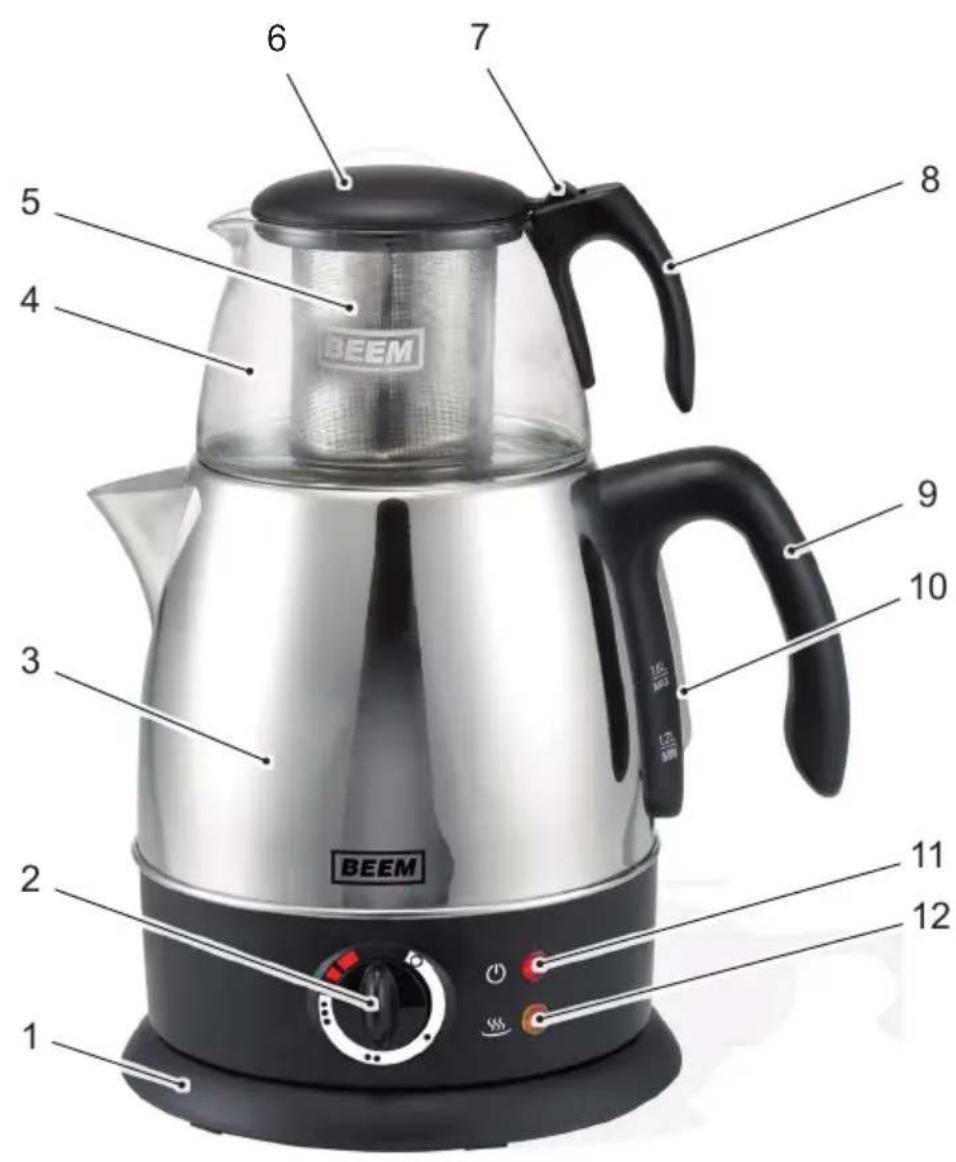

Appliance description
(refer to the left outlet flap for illustration)
Cordless socket with cable compartment
Temperature selection switch2
Kettle3
Teapot4

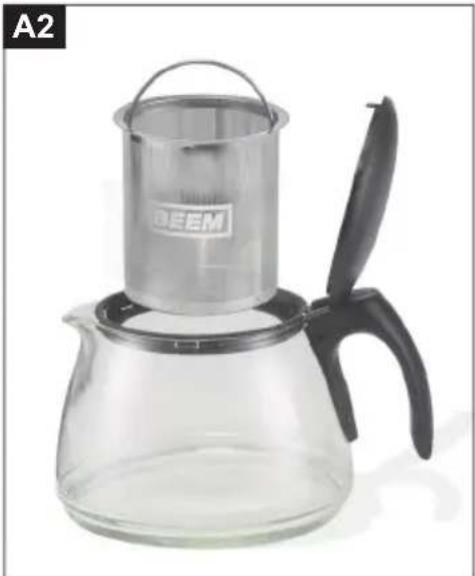

Tea strainer5
Lid, teapot6
Lid opener7
Teapot handle8
Kettle handle9
Level indicator with MIN-/MAX mark10
Power indicator light11
Heating indicator light12
Kettle lid (not illustrated)13
14 Operating instructions (not illustrated)

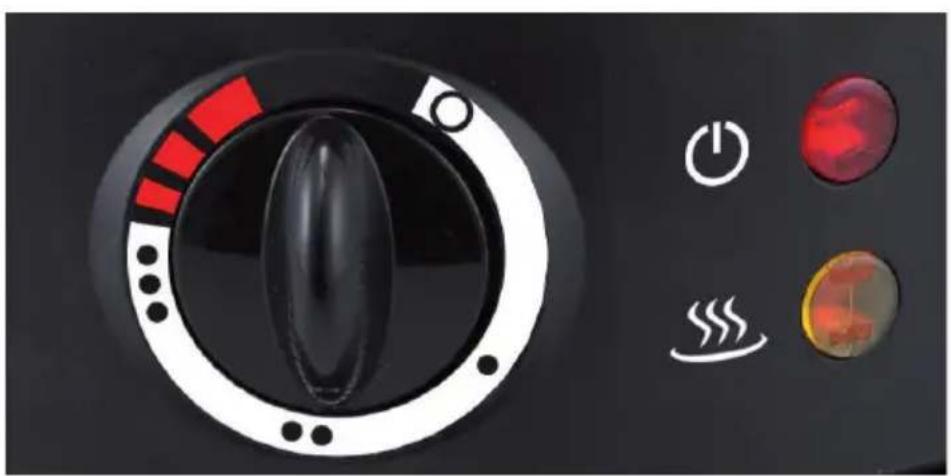

Operating elements
| Symbol | Meaning | |
 | Red power indicator light (11): appliance is ready for operation | |
 | Yellow indicator light Heating (12): Appliance is heating | |
 | No heating / standby | |
| SWHD | Warm water | Temperature approx. 35 °C - 45 °C |
 | Hot water | Temperature approx. 75 °C - 85 °C |
 | Boiling water | Temperature approx. 95 °C - 100 °C |
 | Continuous boiling | Temperature approx. 100 °C |
Operation
Switching on the appliance
NOTE
Make sure that the temperature selection switch (2) is turned clockwise to the "O" position until it stops.
Place the kettle onto the cordless socket (1).
Insert the plug into the mains socket. ◆ The power indicator light (11) indicates that the appliance is ready for operation.
Switch on the appliance by turning the temperature selection switch (2) clockwise to the desired position.
Setting the temperature
The temperature selection switch (2) enables stepless setting of the water temperature. You have the choice between the following settings: warm, hot and boil.
Warm/hot/boil
If you move the temperature selection switch (2) to the "●", "●●"" or "●●●" position, the water is heated to the corresponding temperature.
The heating indicator light (12) is switched on and indicates that the appliance is heating. After reaching the temperature, the thermostat switches off the heating and the heating indicator light (12) extinguishes. If the temperature of the water sinks, the thermostat switches on the heating again.
Continuous boiling
Fill the kettle (3) with the desired ◆ amount of fresh water.
NOTE
Observe the filling level indicator (10). Do not fill up over the MAX mark and not under the MIN mark (refer to illustration A1).
Place the lid (13) onto the kettle (3). ◆
Place the kettle (3) onto the cordless socket (1).
Insert the plug into the mains socket.
Turn the temperature selection switch (2) clockwise to the " heating function to boil the water.
NOTE
With this setting, the thermostat does not switch the heating off and the water continues to boil.
Switching off the appliance
To switch the appliance off, proceed as follows:
Turn the temperature selection switch (2) clockwise until it stops at the "O" position.
NOTE
The power indicator light (11) re-▶ mains lighted.
◆ Pull the plug out of the mains socket if the appliance is not used for prolonged periods.
Resetting the dry run protection
If you have filled the kettle with too little water or switched on an empty appliance, the dry run protection will switch of the appliance automatically. The power indicator light (11) extinguishes.
To reset the dry run protection, proceed as follows:
Pour fresh water into the kettle (3). ◆
Continue to use the appliance as usual.
Brewing tea according to the "Samovar principle"
Black tea
Fill the kettle (3) with the desired ◆ amount of fresh water.
NOTE
▶ Observe the filling level indicator (10). Do not fill up over the MAX mark and not under the MIN mark (refer to illustration A1).
◆ Fill the tea strainer (5) with tea leaves (approx. 1 tea spoon per cup)
◆ Put the tea strainer (5) into the teapot (4) or put the tea bag directly into the teapot (4) (1 tea bag for approx. 1-2 cups).
Place the teapot (4) onto the kettle (3). The teapot is then warmed up at the same time.
Allow the water in the kettle (3) to boil as described in the section Continuous boiling.
◆ Remove the teapot (4) from the kettle (3).
NOTE
Condensed water may drip off the teapot bottom.
Place the teapot (4) onto a heat-resistant surface.
Open the lid (6) of the teapot (4) with the lid opener (7).
Pour the boiling water from the kettle (3) over the tea.
NOTE
Fill the teapot with a maximum of 0.7 litre.
The more tea leaves or tea bags and the less water you use in the teapot, the stronger the tea concentrate will be (professionals enjoy the infusion with exactly 2.86 g of tea per cup). It is preferable to use slightly more tea so that a real concentrate is produced in the teapot.
Put the teapot (4) containing the tea concentrate back onto the kettle (3).
NOTE
The steam circulating in the water tank keeps the tea in the teapot at exactly the temperature it needs to "steep".
Pour the tea out of the teapot after ◆ the desired steeping time,. If you have used the tea strainer (5), remove the tea strainer containing the tea (see illustration A2).
Fill the kettle (3) again with fresh water and allow the water to heat up.
Turn the temperature selection switch (2) clockwise to the "●●●", position to keep the water hot.
Pour the concentrate out of the teapot (4) into your tea glass (as much as desired) and subsequently fill your glass with the water from the kettle. This allows you to vary the strength and taste of your tea.
NOTE
The teapot can be left standing on the water tank while the kettle is in operation so that hot tea and hot water can be poured out at any time.
Green tea
To prepare green tea, proceed as described in the chapter Black tea. Pay attention to the following differences:
Amount:
Fill the tea strainer (5) of the teapot (4) with tea leaves (roughly 1 g per 100 ml or roughly 1 level teaspoon for 200 ml of water) or put the tea bag directly into the teapot (4) (use the amount specified by the manufacture).
When the water has boiled:
Warm up the cups by filling with a little hot water. The teapot was already warmed up by placing it on the water tank during the boiling process.
turn the temperature selection switch (2) back to the "●●" position and allow the water to cool for approximately 5-6 minutes. Pour the warm water from the kettle over the tea.
Steeping time
Allow normal green tea to steep for 1-3 minutes and high-quality green tea for 1 - 1.5 minutes.
Notes on herbal tea
In rare cases, herbal tea mixtures may contain germs that are normally killed off when heated over a prolonged period. If not properly brewed, they can become a health risk for babies, small children and sick people.
Brewed tea must not be allowed to stand for several hours because although the germs are killed off by the boiling water, the spores in the tea can survive. These can germinate in the warm water.
Cleaning and care
Before beginning, pay attention to the safety instructions in the section Safety!
Cleaning
Kettle
Clean the inside of the kettle with a soft brush on a long stick and rinse it out.
Wipe the housing with a damp cloth. Use washing-up liquid to remove any stubborn stains. Subsequently dry off with a soft cloth.
Teapot
Clean the teapot (4) with the lid (6) ■ with washing-up liquid after each use and rinse afterwards with fresh water.
NOTE
The teapot can also be cleaned in the dishwasher.
Tea strainer
Clean the tea strainer (5) with a soft brush and warm water after each use.
NOTE
The tea strainer can not be cleaned in the dishwasher.
Care of stainless steel parts
We recommend using INOX-METAL-POLISH from Beem for regular maintenance and the removal of difficult stains from stainless steel surfaces. The polish restores appliances to their original shine. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminium, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel. You can obtain INOX-METAL-POLISH from your retailer or by phoning us or visiting our website at www.beem.de.
Descaling
In order not to decrease the service life of the kettle (3), it must be descaled at regular intervals.
The descaling intervals depend on the water hardness and the frequency of use. Calcium deposits can be recognized by the staining on the inside of the kettle (3).
NOTE
If the kettle (3) is strongly scaled, the dry run protection is triggered and the appliance is switched off.
To descale the kettle (3) proceed as follows:
Fill the kettle (3) up to the MAX mark with a mixture of fresh water and descaling solution.
NOTE
Refer to the instructions of the manufacturer for the dosage and contact time.
Empty the kettle (3), rinse with clear water and wipe the inside with a damp cloth.
Fill the kettle (3) with fresh water up to the MAX mark, allow the water to boil and pour it out.
Repeat the process.
Storage
If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and care. Store the appliance and all accessory parts in a dry, clean and frost-free place which is protected against direct sunlight.
Troubleshooting
The following table will help you locate and eliminate minor faults:
| Fault Possible cause Remedy | ||
| Not plugged in. Insert the mains plug. | ||
| No mains power. Check the fuse / socket. | ||
| The power indicator does not light up. | Kettle is not standing properly on the cordless socket | Place the kettle onto the cordless socket properly. |
| Appliance is defective. Contact customer service. | ||
| Dry run protection was triggered | Descale the appliance and reset the dry run protection as described in the section Resetting the dry run protection. | |
| Heating indicator lamp does not light up | Temperature selection switch is in the "O position | Set a higher temperature |
| Heating is defective Contact customer service. | ||
| The automatic circuit breaker in the fuse box trips. | Too many appliances connected to the same power circuit. | Reduce the number of appliances on the power circuit. |
| Appliance is defective. Contact customer service. | ||
NOTE
If you cannot resolve the problem with the steps described above, please contact after-sales service.
Technical data
| Model | Samowar / kettle & tea makerTea Joy Express |
| Type number W11.001 | |
| Water tank capacity | 1.8 l |
| Teapot capacity 0.7 l | |
| Operating voltage 230 V AC | |
| Mains frequency 50 Hz | |
| Power consumption 2000 W | |
| Dimensions (H x W x D) 32 x 26 x 20 cm | |
| Approximate weight 6.2 kg | |
| Protection class I | |
| Type of protection IPXO |
Spare parts and other accessories
| Item* Article No. Designation | ||
| 4 + 5 900 | 596 006 Teapot with tea strainer | |
| 5 | 900 596 011 | Tea strainer |
| 1 | 900 596 016 Cordless socket | |
* according to the drawing in the description of the appliance
Table des matières
For service in other countries contact your local dealer.
