| Product type | Electric kettle |
| Brand | BEEM |
| Model | Star Elements W9.001 |
| Dimensions (H x W x D) | 290 x 170 x 240 mm |
| Weight | 1.4 kg |
| Maximum capacity | 1.7 L |
| Power supply | 220-240 V ~ / 50 Hz / 2200 W |
| Protection class | I |
| Main material | Stainless steel |
| Main functions | Automatic shut-off, control light, cordless base, removable anti-limescale filter |
| Safety | Automatic shut-off when boiling, dry running protection, lockable lid |
| Care and cleaning | External cleaning with a damp cloth, regular descaling with descaling agent, filter cleaning |
| Spare parts | Anti-limescale filter (ref. 900 581 061) |
| Warranty | 2 years (domestic use) |
| General information | Intended use: heating water. Do not use without water. Supplied with base and manual. |
Frequently Asked Questions - Star Elements W9.001 BEEM
User questions about Star Elements W9.001 BEEM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual Star Elements W9.001 - BEEM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Star Elements W9.001 by BEEM.
USER MANUAL Star Elements W9.001 BEEM
Water heater
Bouilloire électrique
Waterkoker
Hand holding a stainless steel kettle with black handle and mesh grip (no visible text or symbols)natural_image
Close-up of a hand pressing down on a black kettle with a small inset showing a white object (no text or symbols visible)Information on this user manual 2
Copyright 29
Warnings 30
Intended use 31
Liability disclaimer 31
Safety 3
Fundamental safety precautions 32
Danger from electric current 33
Danger of burns 33
Startup 3
Safety instructions 34
Unpacking 34
Delivery contents and transport inspection 34
Disposing of the packaging 35
Requirements for the place of operation 35
Electrical connection 36
Appliance overview/delivery contents 37
Before using for the first time 38
Operation 3
Safety instructions 39
Using the appliance 40
Cleaning and care 4
Safety instructions 41
Cleaning 42
Descaling 43
Troubleshooting 4
Safety instructions 44
Fault causes and remedies 44
EN
Table of Contents
Information on storage/disposal 4
Storage 45
Disposal 45
Appendix 4
Technical data 45
Spare parts and other accessories 46
Certifications 46
Guarantee, service and repairs. 47
EU Declaration of Conformity 49
Index 5

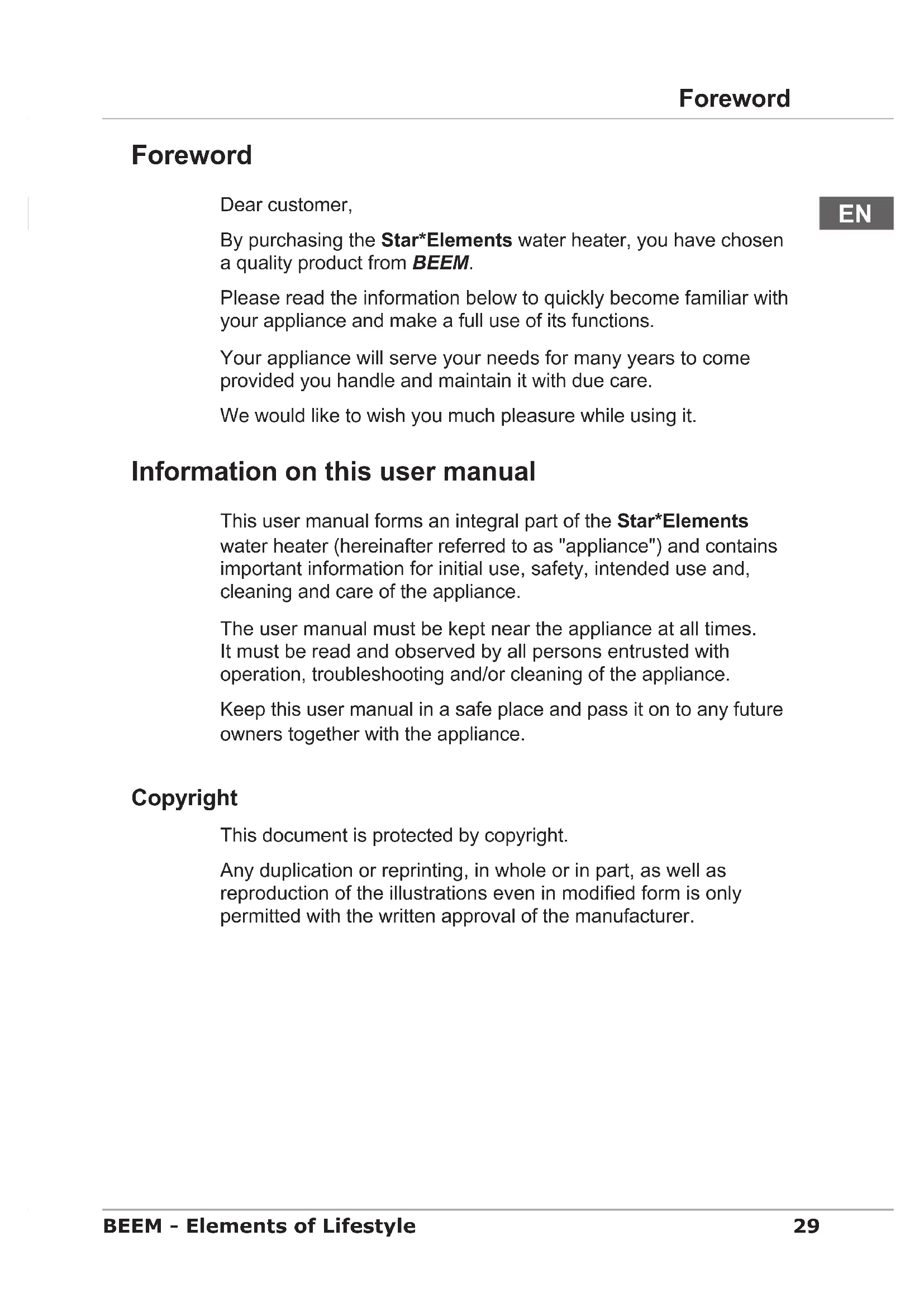

Foreword
Dear customer,
By purchasing the Star*Elements water heater, you have chosen a quality product from BEEM.
Please read the information below to quickly become familiar with your appliance and make a full use of its functions.
Your appliance will serve your needs for many years to come provided you handle and maintain it with due care.
We would like to wish you much pleasure while using it.
Information on this user manual
This user manual forms an integral part of the Star*Elements water heater (hereinafter referred to as "appliance") and contains important information for initial use, safety, intended use and, cleaning and care of the appliance.
The user manual must be kept near the appliance at all times. It must be read and observed by all persons entrusted with operation, troubleshooting and/or cleaning of the appliance.
Keep this user manual in a safe place and pass it on to any future owners together with the appliance.
Copyright
This document is protected by copyright.
Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.
Warnings
The following warnings are used in this user manual:
EN
DANGER
A warning of this category indicates a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to serious injury or even death.
Follow the instructions in this warning to avoid the danger of serious injury or even death.
WARNING
A warning of this category indicates a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to injuries.
Follow the instructions in the warning to prevent injuries to persons.
CAUTION
A warning of this category indicates potential material damage.
If the situation is not avoided, it may lead to material damage.
Follow the instructions in the warning message in order to prevent such damage.
NOTE
A note contains additional information to simplify the use of the appliance.
Intended use
This appliance is intended primarily for non-commercial use in closed rooms for heating water.
Any use other than previously stated is considered as improper use.
WARNING
Danger from use for other than the intended purpose!
If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.
Use the appliance only for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.
The risk must be borne solely by the user.
If used commercially, please observe the conditions of the modified guarantee period.
Liability disclaimer
All technical information, data and instructions on installation, operation and care of the appliance contained in this user manual represent the latest status at the time of printing.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
Safety
EN
This appliance complies with the prescribed safety regulations. Improper use can however result in personal injury and/or damage to the appliance.
For safe use of the appliance, observe the following fundamental safety precautions and the precautions described separately in the individual sections:
Fundamental safety precautions
Inspect the appliance for visible signs of damage before use. ■ Do not use a damaged appliance.
■ Do not allow children to use the appliance without supervision.
Do not leave the appliance unattended during operation. ■
Do not pull the mains cable to remove the plug from the mains socket.
Persons who due to their physical, mental or motor response abilities are unable to operate the appliance may only use the appliance under supervision or instruction by a responsible person.
Repairs to the appliance must only be carried out by an authorised specialist or by the works customer service. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.
Repairs to the appliance during the guarantee period may only be carried out by service centers authorised by the manufacturer as the guarantee will otherwise be invalidated in the event of damage or subsequent damage.
Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.
Never operate the appliance without water, otherwise it will be damaged.
■ Only operate the appliance with the cordless socket provided.
Do not pour in any other liquids apart from water or put foodstuffs into the appliance.
- Do not fill the appliance beyond the maximum mark. Brimming over can cause scalding.
Danger from electric current
DANGER
Danger from electric current!
Contact with live wires or components could lead to serious injury or even death!
Observe the following safety precautions to avoid any danger from electric current:
Do not use the appliance if the mains cable or mains plug is damaged.
Do not open the housing of the appliance. Danger from electric current if live connections are touched or the electrical and mechanical configuration is changed.
Never immerse the appliance or the mains plug in water or other liquids.
Danger of burns
WARNING
Hot steam may escape during operation.
Observe the following safety precautions to avoid burning yourself.
Keep all parts of your body away from escaping steam.
Do not open the lid during operation.
Before cleaning, allow the appliance to cool down.
Startup
Safety instructions
EN
WARNING
Damage to the appliance or to persons could occur when using the appliance for the first time!
Observe the following safety precautions to avoid any danger: Never play with packaging material. Risk of suffocation. Observe all information on the requirements for the place of operation and the electrical connection of the appliance to avoid personal injury and damage to property.
Unpacking
Remove the appliance, all accessory parts and the user manual from the box.
Before using for the first time, remove all packaging materials and the protective film from the appliance and accessories.
NOTE
Do not remove the rating plate or any warning signs on the appliance.
Delivery contents and transport inspection
By default, the appliance is supplied with the components stated in the overview.
NOTE
Check for visible signs of damage or missing items on delivery. Report incomplete or damaged items to your supplier/retailer immediately.
Disposing of the packaging
The packaging protects the appliance against damage during transit. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.
Recycling the packaging material for further use saves raw materials and reduces waste. When no longer required, dispose of the packaging materials in accordance with the local regulations.
NOTE
If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the guarantee.
Requirements for the place of operation
For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:
Place the appliance on a dry, flat, waterproof and heat-resistant surface.
The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
Do not put the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.
■ Select a location that does not allow children to reach the hot surfaces of the appliance.
The mains socket must be easily accessible to enable quick disconnection of the appliance from the electric circuit in the event of an emergency.
Electrical connection
For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:
■ Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
The mains socket must be protected by at least a 10 A circuit breaker.
If the appliance is to be connected to the power supply via an extension lead, the cable cross section must be at least 1.5 mm ^4 .
Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.
The mains cable must not pulled tightly, bent or come into ■ contact with the hot appliance or hot surfaces.
■ Place the cable in such a way as to avoid danger from tripping.
The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician.
The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.
Appliance overview/delivery contents
2 Lid release button
3 Level indicator
4 Handle
5 Control indicator
6 On/off switch
7 Cordless socket
8 Pouring spout
9 Calcium filter
10 User manual (not illustrated)
Before using for the first time
EN
- Clean the appliance as described in the section Cleaning and care.
◆ Fill the appliance with fresh water up to mark as described in the section Using the appliance.
Put the appliance onto the cordless socket (7).
Switch on the appliance by moving the ON/OFF switch (6) to ◆ "I".
◆ Wait until the water boils and the appliance switches itself off.
Pour out the water. ◆
Repeat the process. - Clean the appliance as described in the section Cleaning and care.
NOTE
During the initial period of use, odor may be produced by the materials used in the appliance. The odor will diminish after a short period of time.
Operation
This section contains important information on the operation of the appliance.
Safety instructions
WARNING
Danger of burning! Hot steam may escape during operation.
Observe the following safety precautions to avoid burning yourself.
Keep all parts of your body away from escaping steam.
Do not open the lid immediately after boiling is completed.
Do not fill the appliance beyond the maximum mark.
Brimming over can cause scalding.
Only lift the appliance by the handle.
CAUTION
Possible damage to the appliance!
Observe the following instructions to avoid damage:
Do not pour in any other liquids apart from water or put foodstuffs into the appliance.
Using the appliance
◆ Open the lid (1). Press the release button (2) for this purpose.
NOTE
Observe the filling level indicator (3). Do not overfill!

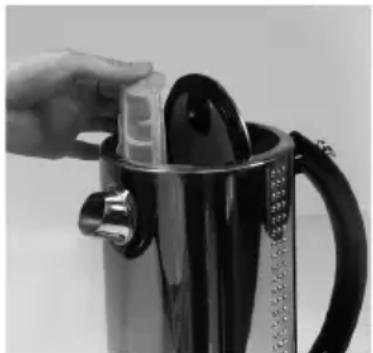

Insert the calcium filter into the holder.
Close the lid (1) until it snaps in. ◆
Put the appliance onto the cordless socket (7). ◆
Switch on the appliance by moving the ON/OFF switch (6) to "I". The control indicator (5) lights up and the water is heated. As soon as the water is boiled, the appliance switches itself off and the control indicator extinguishes.
NOTE
You can interrupt water boiling at any time by moving the ON/OFF switch (6) to the "O" position or lifting the appliance out of the cordless socket.
Cleaning and care
This section contains important information on cleaning and care of the appliance.
EN
Safety instructions
WARNING
Observe the following safety precautions before starting to clean the appliance:
Switch off the appliance and pull the plug out of the mains ▶ socket before starting cleaning.
Wait until the appliance has cooled down before you start to clean it.
Never immerse the appliance or the mains plug in water or other liquids.
CAUTION
Possible damage to the surface of the appliance!
Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
Cleaning
EN
Calcium filter
◆ Open the lid (1). Press the release button (2) for this purpose.
Remove the calcium filter (9) from the appliance.
Clean the calcium filter thoroughly.
NOTE
If the calcium filter is damaged, replace it with a new calcium filter.
Appliance
Wipe the housing with a damp cloth. Use washing-up liquid to remove any stubborn stains.
■ Clean the inside of the appliance using a soft brush with a long stick.
Care of stainless steel parts
We recommend using INOX-METAL-POLISH from Beem for regular care and the removal of difficult stains from stainless steel surfaces. This polish restores the original gloss to your appliances. INOX-METAL-POLISH is available in tubes and is suitable for pots as well as for other objects made of stainless steel, chromium, brass, copper, aluminum, silver and also hard plastics. INOX-METAL-POLISH is used in factories for polishing stainless steel. You can obtain INOX-METAL-POLISH from your retailer or by phoning us or visiting our website at www.beem.de.
Descaling
In order not to decrease the service life of the appliance, it must be descaled at regular intervals. The water hardness determines how often the appliance must be descaled. Calcium deposits can be recognized by the which staining on the inside of the appliance.
To descale your appliance, proceed as follows:
Fill the appliance up to the maximum mark with a mixture of fresh water and descaling solution.
NOTE
Observe the instructions of the manufacturer.
Allow the descaling solution to remain in the appliance ◆ over night.
Empty the appliance and wipe the inside with a damp cloth. ◆
Fill the appliance up to the mark with fresh water, boil the water and pour it out.
Repeat the process.
Troubleshooting
EN
Safety instructions
DANGER
Danger from electric current!
Disconnect the plug from the mains socket before starting ▶ troubleshooting.
WARNING
Danger from unqualified repairs!
Unqualified repairs can lead to considerable danger for the user and cause serious damage to the appliance.
Repairs to electrical appliances may only be carried out by specialists trained by the manufacturer.
Fault causes and remedies
| Fault Possible cause Remedy | ||
| The automatic circuit breaker in the fuse box trips. | Too many appliances connected to the same power circuit. | Reduce the number of appliances on the power circuit. |
| Appliance is defective | Contact customer service. | |
| Not plugged in. Insert the plug. | ||
| Appliance cannot be switched on | No mains power. | Check the fuse / socket. |
| Appliance is not standing properly in the cordless socket | Put the appliance onto the cordless socket | |
NOTE
If you cannot resolve the problem with the steps described above, please contact customer service.
Information on storage/disposal
Storage
If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and care. Store the appliance in a dry, clean and frost-free place which is protected against direct sunlight.
Disposal
This product may not be disposed of in the domestic refuse within the European Union.
Dispose of the appliance in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). Should you have any questions, please contact the local authority responsible for waste disposal.
Appendix
Technical data
| Model Star*Elements water heater | |
| Type number W9.001 | |
| Operating voltage 220 - 240 V AC | |
| Mains frequency 50 Hz | |
| Power consumption 2200 W | |
| Protection class I | |
| max. filling quantity 1.7 l | |
| Dimensions | 290 x 170 x 240 mm(H x W x D) |
| Approximate weight 1.4 kg | |
Spare parts and other accessories
EN
Item* Article No. Designation
9 900 581 061 Calcium filter
* according to the drawing in the description of the appliance
Certifications
| Symbol Meaning | |
 | The appliance has been tested and certified by Intertek. |
 | The appliance conforms to the relevant EU Directives (see Declaration of Con-formity). |
 | This appliance conforms to the Direc-tives on the Restriction of Hazardous Substances in Electrical and Electronic Devices (RoHS). |
 | This appliance conforms to the provi-sions of the Waste Electrical and Elec-tronic Equipment Directive (WEEE). |
Guarantee, service and repairs
This is a quality product from BEEM and was produced using the latest manufacturing methods.
We guarantee the perfect condition of this quality product. We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period.
The guarantee period for this product is 2 years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the guarantee is 6 months. This does not infringe the guarantee disclaimer.
Guarantee disclaimer: the guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
If we are obliged by law to provide a guarantee and will comply with such obligation – to the exclusion of the right to cancellation or price reduction – and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled to reduce the purchase price or to cancel the contract of purchase at his/her discretion. Claims under guarantee do not prolong the guarantee period. For exchange or return of the appliance (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the retailer from whom you purchased the product. This particularly applies to returning the appliance or the claim for reductions as these must be settled with respect to the purchase price. Refunding the purchase price or a credit note in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the appliance.
EN
Should faults nevertheless occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed appliance to your retailer or to the customer service address shown below. Please state your complete address, the type and model number and the serial number of the appliance. This information can be found on the rating plate of the appliance. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or an invoice. No services under guarantee can be provided for repairs, spare parts or other claims without a printed receipt of purchase or an invoice.
Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first. Information can be obtained – preferably by e-mail – from the customer service address indicated below.
Repairs not covered by the guarantee can also be performed against individual payment by customer service - outside Germany by the retailer from whom you purchased the appliance or by a service centre, if available.
Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please contact your dealer or the local distributor first if you live outside of Germany.
For product information, ordering accessories or questions on service handling, please contact your retailer or the stated customer service. Outside Germany and in particular in non-EU countries, please contact your retailer or the local distributor first.
You can also use the Internet. You will find accessories and spare parts, as well as user manuals in various languages on our website www.beem.de. Additional product information can also be found there.
EU Declaration of Conformity
| Name/address of manufacturer: | BEEM Blitz-Elektro-ErzeugnisseManufaktur Handels-GmbHDieselstraße 19-21D-61191 Rosbach v.d.H. |
| We hereby declare that the product | |
| Model: Star*Elements Water heater | |
| Type: W9.001 | |
| conforms to the following relevant regulations:EU Directive 2006/95/EU Electrical devices for use within certain voltage limits,EU Directive 2004/108/EU Electromagnetic Compatibility. | |
| EN50336:2003+A!:2006EN55014-1:2000+A1:2001+A2:2002EN55014-2:1997+A1:2001EN61000-3-2:2000+A2:2005EN61000-3-3:1995+A1:2001+A2:2005EN60335-2-15:2002+A1:05EN60335-1:2002+A11,A1:04+A12,A2:06 | |
| Rosbach, 19th May, 2011 |  Bijan Mehshat(Legally binding signature of the issuer) |
Index
EN
A
Appliance elements 37
B
Before using for the first time ..... 3 8
C
Certifications. 46
Checking contents 34
Cleaning 42
D
Damaged appliance .... 3 2
Danger of burns 33
Delivery contents 34, 37
Descaling 43
Disposal 35,45
E
Electrical connection....36
EU Declaration of Conformity.....4 9
G
Guarantee. 47
/
Intended use. 3 1
L
Liability disclaimer 31
N
New owner 29
O
Operation 39
P
Packaging....35
Place of use 35
R
Repairs 47
S
Safety 32
Service 47
Spare parts....46
Startup 34
Storage 45
T
Technical data....45
Troubleshooting 44
U
Unpacking. 34
W
Warnings. 30
Table des matières
Avant-propos 5
Hand holding a stainless steel kettle with black handle and lid, no visible text or symbolsnatural_image
Close-up of a hand pressing down on a metallic kettle with a small water dispenser (no text or symbols visible)text_image
Labeled diagram of a stainless steel kettle with numbered parts for identification1 Deksel
2 Toets dekselontgrendeling
3 Vulpeilweergave
4 Handgreep
5 Controlelampje
Close-up of a hand pressing down on a metallic kettle with a small water bottle (no text or symbols visible)Schuif de kalkfilter in de houder. ◆
