| Product type | Electric kettle with teapot (samovar principle) |
| Brand | BEEM |
| Model | Tea & Aqua Joy W12.001 |
| Water tank capacity | 1.5 L (max), 0.5 L (min) |
| Teapot capacity | 0.7 L |
| Supply voltage | 220-240 V ~, 50 Hz |
| Power consumption (boiling) | 1580-1880 W |
| Power consumption (keep warm) | 80 W |
| Protection class | I |
| Dimensions (H x W x D) | 50 x 40 x 41 cm |
| Net weight | Approx. 1.4 kg |
| Functions | Automatic boiling, keep warm (80-100 °C), dry boil protection, automatic shut-off |
| Included accessories | Teapot with lid, tea strainer, cordless base with cable compartment, instruction manual |
| Cleaning the kettle | Clean interior with soft brush, descale regularly with descaling agent |
| Cleaning the teapot | Hand wash or dishwasher safe |
| Cleaning the tea strainer | By hand, do not put in dishwasher |
| Recommended descaling | Regularly, depending on water hardness |
| Safety devices | Dry boil protection, automatic shut-off at end of boiling |
| Replacement parts available | Teapot with tea strainer (900 601 006), tea strainer alone (900 601 011), cordless base (900 601 016) |
| Warranty | 2 years (domestic use), 6 months (professional use) |
Frequently Asked Questions - Tea & Aqua Joy W12.001 BEEM
User questions about Tea & Aqua Joy W12.001 BEEM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual Tea & Aqua Joy W12.001 - BEEM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Tea & Aqua Joy W12.001 by BEEM.

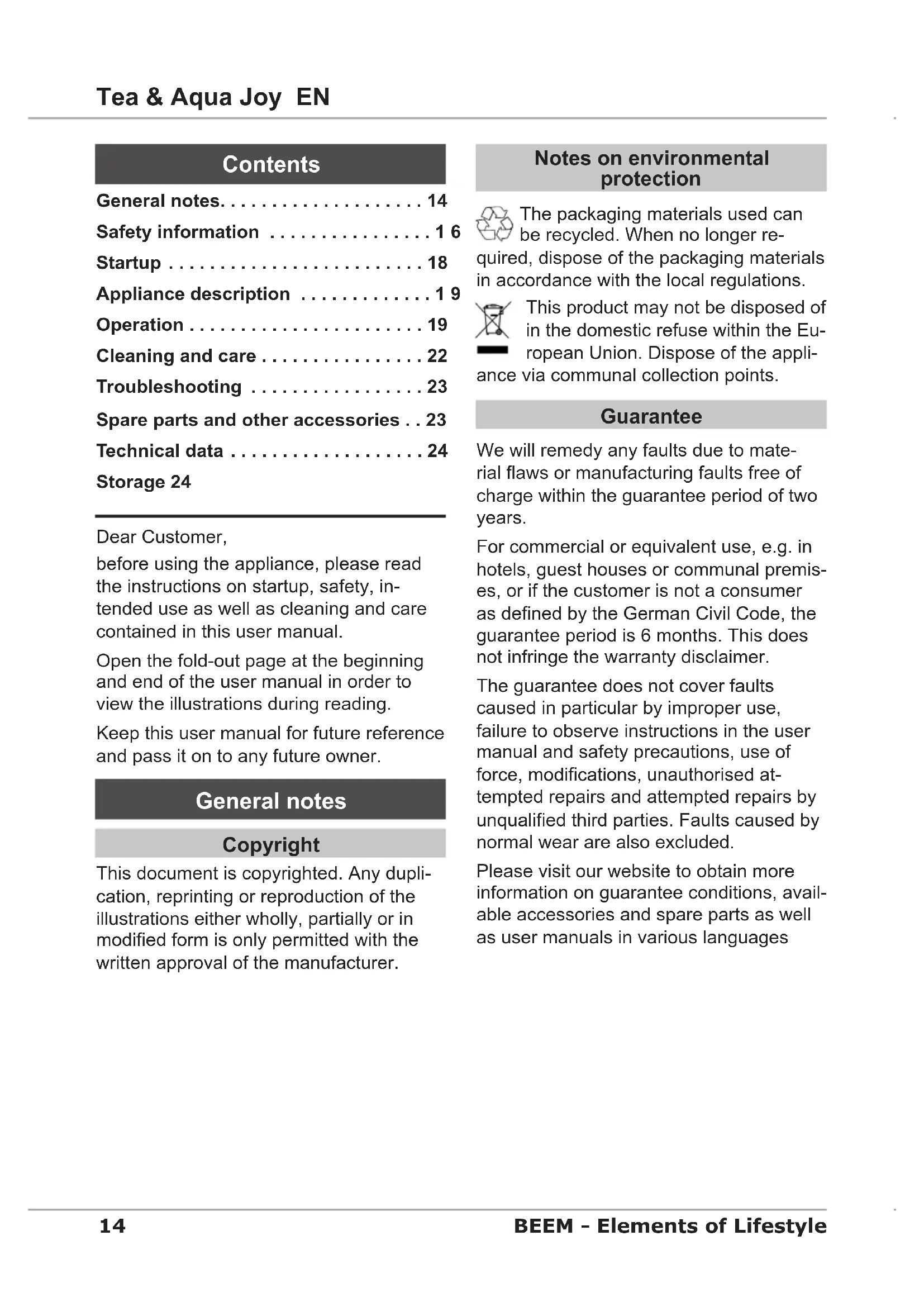

USER MANUAL Tea & Aqua Joy W12.001 BEEM
Cleaning and care 22
Troubleshooting 23
Spare parts and other accessories . . 23
Technical data 24
Storage 24
Dear Customer,
before using the appliance, please read the instructions on startup, safety, intended use as well as cleaning and care contained in this user manual.
Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.
Keep this user manual for future reference and pass it on to any future owner.
General notes
Copyright
This document is copyrighted. Any duplication, reprinting or reproduction of the illustrations either wholly, partially or in modified form is only permitted with the written approval of the manufacturer.
Notes on environmental protection
The packaging materials used can be recycled. When no longer required, dispose of the packaging materials in accordance with the local regulations.
This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appliance via communal collection points.
Guarantee
We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period of two years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the guarantee period is 6 months. This does not infringe the warranty disclaimer.
The guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
Please visit our website to obtain more information on guarantee conditions, available accessories and spare parts as well as user manuals in various languages
Symbols used
DANGER
This indicates a possible hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
WARNING
This indicates a potentially hazardous situation, which could lead to severe physical injury or death.
Follow these instructions to avoid danger.
CAUTION
This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.
Follow these instructions to avoid danger.
NOTE
A note contains additional information to simplify the use of the appliance.
Intended use
This appliance is intended primarily for non-commercial use in closed rooms for heating water and brewing tea.
Any use other than previously stated is considered as improper use.
WARNING
If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.
Only use the appliance for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.
The risk must be borne soley by the user. If used commercially, please pay attention to the extended guarantee period.
Limitation of liability
All technical information, data and instructions on installation, operation and maintenance of the appliance contained in this user manual represent the latest status at the time of printing.
No claims can be made based on the specifications, illustrations and descriptions in these instructions.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the instructions in this user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
Declaration of Conformity
BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC directives. The full declaration of conformity can be found under www.beem.de.
Safety information
Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.
Children should be supervised to ensure that they do not play with the appliance.
Do not leave the appliance unattended during operation.
Do not pull the cable to remove the plug from the mains socket.
Persons who due to their physical, mental or motor response abilities are unable to operate the appliance may only use the appliance under supervision or instruction by a responsible person.
Repairs to the appliance must only be carried out by an authorised specialist or by the works customer service; this particularly applies when replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.
Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer as the guarantee will otherwise be invalidated in the event of damage or subsequent damage.
Defective parts may only be replaced with original spare parts. Only these parts guarantee that the safety requirements are satisfied.
Only operate the appliance with the cordless socket supplied.
Do not pour in any other liquids apart from water or put foodstuffs into the kettle.
Never operate the kettle without water and do not overfill. Pay attention to the MIN/MAX marks.
DANGER
Danger from electric current!
Do not use the appliance if the mains cable or mains plug is damaged.
Do not open the housing of the appliance. Danger from electric current if live connections are touched or the electrical and mechanical configuration is changed.
Never immerse the appliance or the mains plug in water or other liquids.
When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
Danger of suffocation!
Never play with packaging material. Risk of suffocation.
WARNING
Danger of burning!
Only fill the kettle up the maximum mark. If overfilled, hot water can squirt out.
Keep all parts of your body away from escaping steam.
Only lift the kettle and the teapot with the handle.
Lift the teapot carefully. Hot steam can escape and lead to scalding.
Only use the kettle with the lid on or when the teapot is placed on top.
Do not open the lid of the kettle or teapot immediately after boiling is completed.
Remove the tea strainer carefully with the help of the handle.
Do not move the cordless socket when the appliance is in operation.
Before cleaning, allow the appliance to cool down.
Health risk from germs!
Always pour boiling water over herbal, fruit, rooibos and spice teas (loose and in tea bags) and allow to steep for at least 5 - 10 minutes! This is the only method for ensuring that the tea is safe to drink!
Do not allow prepared herbal tea to stand for several hours.
CAUTION
Do not pour in any other liquids apart from water or put foodstuffs into the kettle.
Never fill the kettle with water if it is standing on the cordless socket.
Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
Descale the kettle regularly.
Requirements for the place of use
For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:
- Place the appliance on a dry, flat, waterproof and heat-resistant surface.
- The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
- Do not put the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.
Select a location that does not allow children to reach the hot surfaces of the appliance.
The mains socket must be easily accessible to enable quick disconnection of the appliance from the electric circuit in the event of an emergency.
Electrical connection
The following instructions must be observed for the electrical connection:
Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
The mains socket must be protected by at least a 10 A circuit breaker.
If the appliance is to be connected to the power supply via an extension lead, the cable cross-section must be at least 1.5mm^2
Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.
The mains cable must not pulled tightly, bent or come into contact with the hot appliance or hot surfaces.
Place the cable in such a way as to avoid danger from tripping.
The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.
Protective equipment
The appliance is equipped with boil-dry safety protection.
NOTE
If the appliance is filled with too little water or switched on without any water at all, heating is switched off automatically by a safety switch. See section Resetting the boil-dry safety protection.
Startup
Unpacking
Remove the appliance, all accessory parts and the user manual from the box.
Remove all packaging materials and protective foils from the appliance and the accessories before using it for the first time.
NOTE
Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging throughout the warranty period so that the appliance can be duly packed in case of a warranty claim. Transport damage will invalidate the guarantee.
Check the delivery contents
Check for visible signs of damage or missing items.
Report incomplete or damaged contents to your supplier immediately.
Before using for the first time
Clean the appliance as described in the section Cleaning and care.
Boil fresh water in the appliance twice as described in the section Boiling water and subsequently pour out the water.
NOTE
Only use fresh water without additives.
During the initial period of use, odour may be produced by the materials used in the appliance. The odour will diminish after a short period of time.
Clean the appliance as described in the section Cleaning and care.
Appliance description
(refer to the left fold-out page for illustration)
1 Teapot handle
2 Kettle
3 Kettle handle
4 On/off switch for boiling function
5 On/off switch for reboil function
6 Boiling function indicator
7 Lid, kettle
8 Tea strainer
9 Cordless socket with cable compartment
10 Reboil function indicator
11 MIN mark (0.5 l)
12 MAXmark(1.5I)
13 Teapot
14 Lid, teapot
15 User manual (not illustrated)
Operating elements
Symbol Meaning
Switch on/off boiling function
Red indicator light: Boiling function switched on
Switch reboil function on/off
Blue indicator light: Reboil function switched on
Operation
Boiling water
Fill the kettle (2) with the desired amount of fresh water.
NOTE
Do not fill up over the MAX (12) mark or below the MIN (11) mark.
Place the kettle (2) onto the cordless socket (9).
Insert the plug into the mains socket.
Switch on the appliance by pressing down the on/off switch (4). The indicator light lights up. When the water boils, the appliance switches itself off automatically.
Reboil function
You can switch on the reboil function after the water has boiled, see section Boiling water.
Move the reboil function on/off switch (5) to the "I" position. The reboil function indicator (10) lights up. The water cools down to 80^ and is then heated back up to 100^ .
Switching off the appliance
Boiling function
The appliance switches off automatically when the water boils. If you wish to switch of the appliance prior to this:
Push up the boiling function on/off switch (4).
Reboil function
Move the reboil function on/off switch (5) to the "O" position.
NOTE
The indicator lights (6) and (10) extinguishes.
Pull the plug out of the mains socket if the appliance is not used for prolonged periods.
Resetting the boil-dry safety protection
If you fill the kettle with too little water or switch on an empty appliance, the boil-dry safety protection will switch of the appliance automatically.
To reset the boil-dry safety protection, proceed as follows:
Pour fresh water into the kettle (2).
Continue to use the appliance as usual.
Brewing tea according to the "Samovar principle"
Black tea
Fill the kettle (2) with the desired amount of fresh water.
NOTE
Do not fill up over the MAX (12) mark or below the MIN (11) mark.
Fill the tea strainer (8) with tea leaves (approx. 1 tea spoon per cup)
Put the tea strainer (8) into the teapot (13) or put the tea bag directly into the teapot (1 tea bag for approx. 1-2 cups).
Place the teapot (13) onto the kettle (2). The teapot is then warmed up at the same time.
Switch on the appliance by pressing down the on/off switch (4). The boiling function indicator (6) lights up. When the water boils, the appliance switches itself off automatically.
Remove the teapot (13) from the kettle (2).
NOTE
Condensation may drip off the bottom of the teapot.
Place the teapot (13) onto a heat-resistant surface.
Open the lid (14) of the teapot (13).
Pour the boiling water from the kettle (2) over the tea.
NOTE
Fill the teapot with a maximum of 0.7 litre.
The more tea leaves or tea bags and the less water you use in the teapot, the stronger the tea concentrate will be (professionals enjoy the infusion with exactly 2.86 g of tea per cup). It is preferable to use slightly more tea so that a real concentrate is produced in the teapot.
Put the teapot (12) containing the tea concentrate back onto the kettle (2).
NOTE
The steam circulating in the water tank keeps the tea in the teapot at exactly the temperature it needs to "steep".
Pour the tea out of the teapot after the desired steeping time. If you have used the tea strainer (8), remove the tea strainer containing the tea.
Fill the kettle (2) again with fresh water and allow the water to heat up.
Move the reboil function on/off switch (5) to the ^ , to keep the water hot.
Pour the concentrate from the teapot (13) into your tea glass (as much as desired) and subsequently fill your glass with the water from the kettle.
This allows you to vary the strength and taste of your tea.
NOTE
The teapot can be left standing on the water tank while the kettle is in operation so that hot tea and hot water can be poured out at any time.
Green tea
To prepare green tea, proceed as described in the section Black tea. Pay attention to the following differences:
Amount:
Fill the tea strainer (8) of the teapot (13) with tea leaves (roughly 1 g per 100ml or roughly 1 level teaspoon for 200ml of water) or put the tea bag directly into the teapot (13) (use the amount specified by the manufacture).
When the water has boiled:
Warm up the cups by filling with a lit- tle hot water. The teapot was already warmed up by placing it on the water tank during the boiling process.
Allow the water too cool for approx 5-6 minutes. Pour the warm water from the kettle over the tea.
Steeping time
Allow normal green tea to steep for 1-3 minutes and high-quality green tea for 1 - 1.5 minutes.
Notes on herbal tea
In rare cases, herbal tea mixtures may contain germs that are normally killed off when heated over a prolonged period. If not properly brewed, they can become a health risk for babies, small children and sick people.
Brewed tea must not be allowed to stand for several hours because although the germs are killed off by the boiling water, the spores in the tea can survive. These can germinate in the warm water.
Cleaning and care
Before beginning, pay attention to the safety instructions in the Safety section!
Cleaning
Kettle
Clean the inside of the kettle with a soft brush on a long stick and rinse it out.
Wipe the housing with a damp cloth. Use washing-up liquid to remove any stubborn stains. Subsequently dry off with a soft cloth.
Teapot
Clean the teapot (13) with the lid (14) with washing-up liquid after each use and rinse afterwards with fresh water.
NOTE
The teapot can also be cleaned in the dishwasher.
Tea strainer
Clean the tea strainer (8) with a soft brush and warm water after each use.
NOTE
The tea strainer can not be cleaned in the dishwasher.
Dscaling
In order not to decrease the service life of the kettle (2), it must be descaled at regular intervals.
The descending intervals depend on the water hardness and the frequency of use. Calcium deposits can be recognised by the staining on the inside of the kettle (2).
NOTE
If the kettle (2) is strongly scaled, the boil-dry safety protection is triggered and the appliance is switched off.
To descale the kettle (2), proceed as follows:
Fill the kettle (2) up to the MAX (11) mark with a mixture of fresh water and descending solution.
NOTE
Refer to the instructions of the manufacturer for the dosage and contact time.
Empty the kettle (2), rinse with clear water and wipe the inside with a damp cloth.
Fill the kettle (2) with fresh water up to the MAX mark (11), allow the water to boil and pour it out.
Repeat the process.
The following table will help you locate and eliminate minor faults:
Troubleshooting
| Fault Possible cause Remedy | ||
| Indicator lights do not light up. | Not plugged in. Insert the mains plug. | |
| No mains power. | Check the fuse/mains socket. | |
| Kettle is not standing properly on the cordless socket | Place the kettle onto the cordless socket properly. | |
| Appliance is defective. Contact customer service. | ||
| Boil-dry safety protection was triggered | Descale the appliance and reset the boil-dry safety protection as described in the section Resetting the boil-dry safety protection. | |
| Heating is defective Contact customer service. | ||
| The automatic circuit breaker in the fuse box trips. | Too many appliances connected to the same power circuit. | Reduce the number of appliances on the power circuit. |
| Appliance is defective. Contact customer service. | ||
NOTE
If you cannot resolve the problem with the steps described above, please contact customer service.
Spare parts and other accessories
| Item* Article No. Designation | |
| 13 + 8 900 601 006 Teapot with tea strainer | |
| 8 900 601 011 Tea strainer | |
| 9 900 601 016 Cordless socket with cable compartment |
- according to the drawing in the description of the appliance
Technical data
| Model | Samowar / kettle & tea maker Tea & Aqua Joy |
| Type number W12.001 | |
| Water tank capacity 1.5 l | |
| Teapot capacity 0.7 l | |
| Operating voltage 220-240 V AC | |
| Mains frequency 50 Hz | |
| Power consumption 1580-1880 W / 80 W | |
| Dimensions (H x W x D) 50 x 40 x 41 cm | |
| Approximate weight 1.4 kg | |
| Protection class I |
Storage
If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and care. Store the appliance in a dry, clean and frost-free place which is protected against direct sunlight.
Table des matieres
Indications generales 25
Indications relatives aux thes aux herbes
Subject to printing error.
For service in other countries contact your local dealer.
