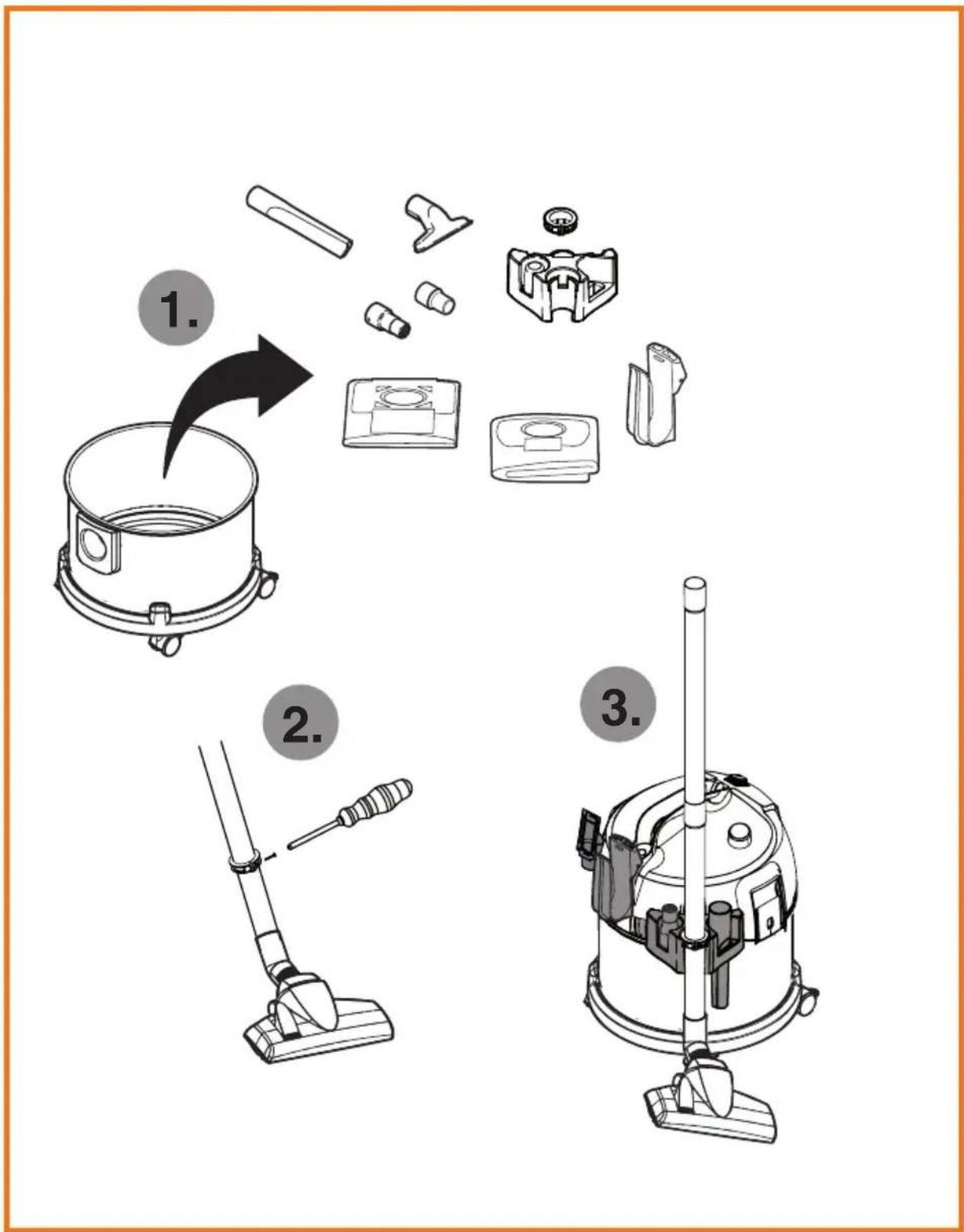

Exploded view diagram of a vacuum cleaner with labeled parts including cylinder, washers, and components

B

Two abstract diagrams showing directional arrows: one with a black arrow pointing upward, the other with black arrows pointing downward and to the right (no text or symbols)

2.

I O II I O

ON

Line drawing of a vacuum cleaner device with a black arrow pointing to the handle (no text or symbols present)

Line drawing of a mechanical device with no visible text or symbols

1.

Technical line drawing of a mechanical component with a paper clip and arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with arrows indicating motion or force direction, no text or symbols present

D

1.

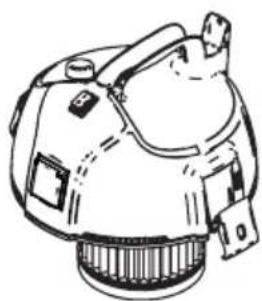

2. I 0 II / I 0

ON

3. + 3x

E

Simple line drawing of a mechanical component with a base and cable (no text or symbols)

2.

3.

ON 5. 4. AUTO 10 II

6.

F

Diagram of a cylindrical object with internal vertical lines and two curved arrows indicating rotation or flow (no text or symbols)

1.

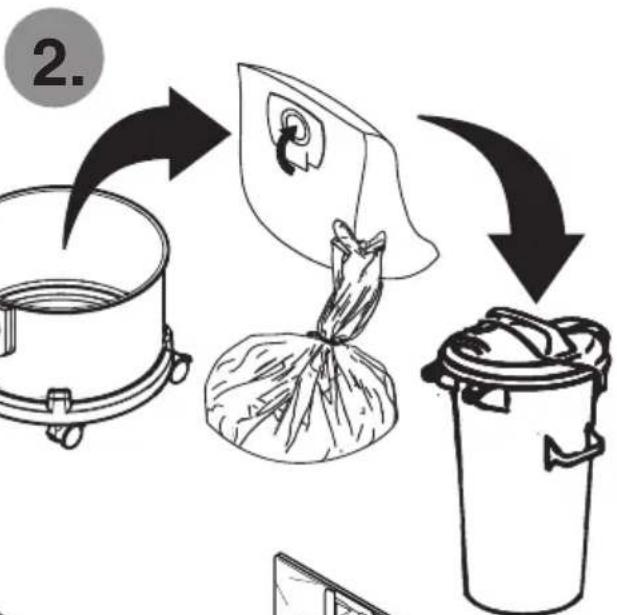

2.

Line drawing of a mechanical component with a rotating base and handle (no text or symbols)

Black curved arrow pointing downward (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a cylindrical trash bin with lid and handle (no text or symbols)

1.

F

Simple line drawing of a curved object with a circular opening and directional arrows indicating motion (no text or symbols)

1.

Line drawing of a mechanical component with no visible text or symbols

3.

F

Warning sign depicting a construction worker digging with a pile, symbolizing hazard or safety hazard.

Michigan Drive, Tongwell

Milton Keynes, Bucks MK15 8JD, England

1. April 2011

Tomoyasu Kato

Director

Makita Corporation, 3-11-8, Sumiyoshi-Cho, Anjo, Aichi, 446-8502 Japan

Technische Daten

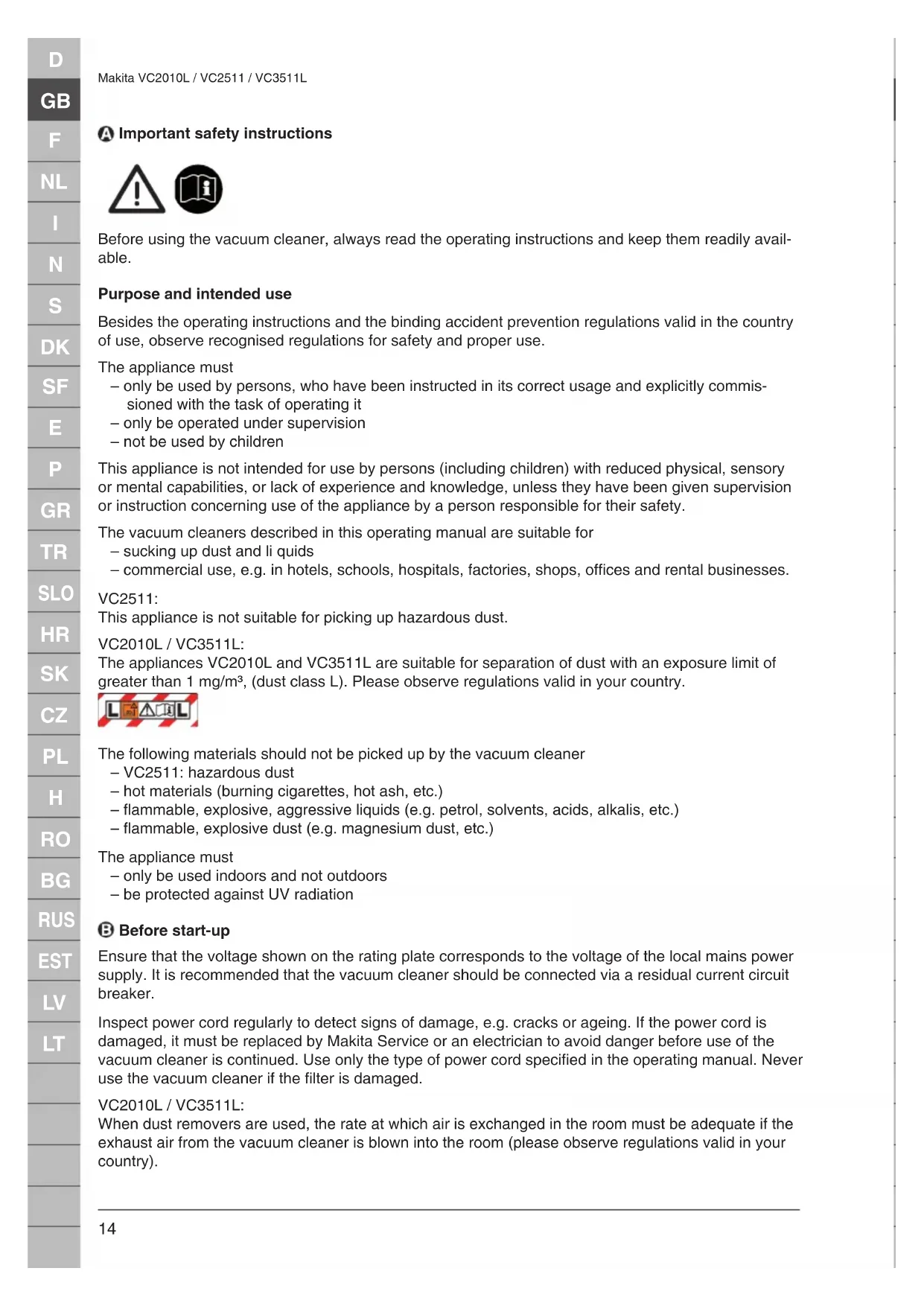

A Important safety instructions

Before using the vacuum cleaner, always read the operating instructions and keep them readily available.

Purpose and intended use

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

The appliance must

– only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it
– only be operated under supervision
– not be used by children

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

The vacuum cleaners described in this operating manual are suitable for

– sucking up dust and liquids
– commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices and rental businesses.

VC2511:

This appliance is not suitable for picking up hazardous dust.

VC2010L / VC3511L:

The appliances VC2010L and VC3511L are suitable for separation of dust with an exposure limit of greater than 1 mg/m^3 , (dust class L). Please observe regulations valid in your country.

The following materials should not be picked up by the vacuum cleaner

• VC2511: hazardous dust
  – hot materials (burning cigarettes, hot ash, etc.)
• flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
  – flammable, explosive dust (e.g. magnesium dust, etc.)

The appliance must

– only be used indoors and not outdoors
– be protected against UV radiation

B Before start-up

Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply. It is recommended that the vacuum cleaner should be connected via a residual current circuit breaker.

Inspect power cord regularly to detect signs of damage, e.g. cracks or ageing. If the power cord is damaged, it must be replaced by Makita Service or an electrician to avoid danger before use of the vacuum cleaner is continued. Use only the type of power cord specified in the operating manual. Never use the vacuum cleaner if the filter is damaged.

VC2010L / VC3511L:

When dust removers are used, the rate at which air is exchanged in the room must be adequate if the exhaust air from the vacuum cleaner is blown into the room (please observe regulations valid in your country).

Before starting work, the operating staff must be informed on

• use of the vacuum cleaner
• risks associated with the material to be picked up
• safe disposal of the picked up material

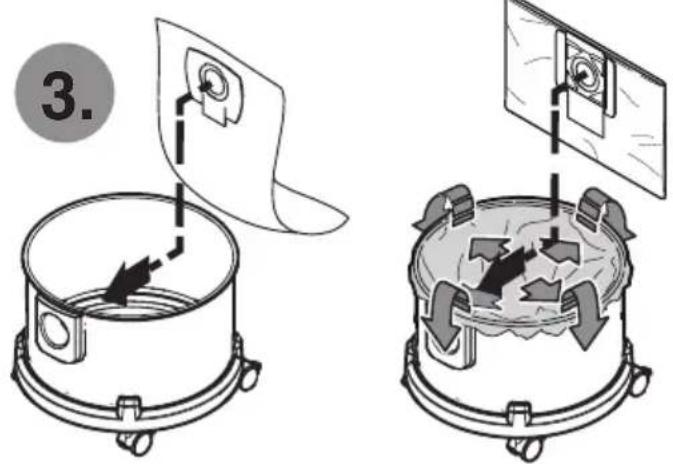

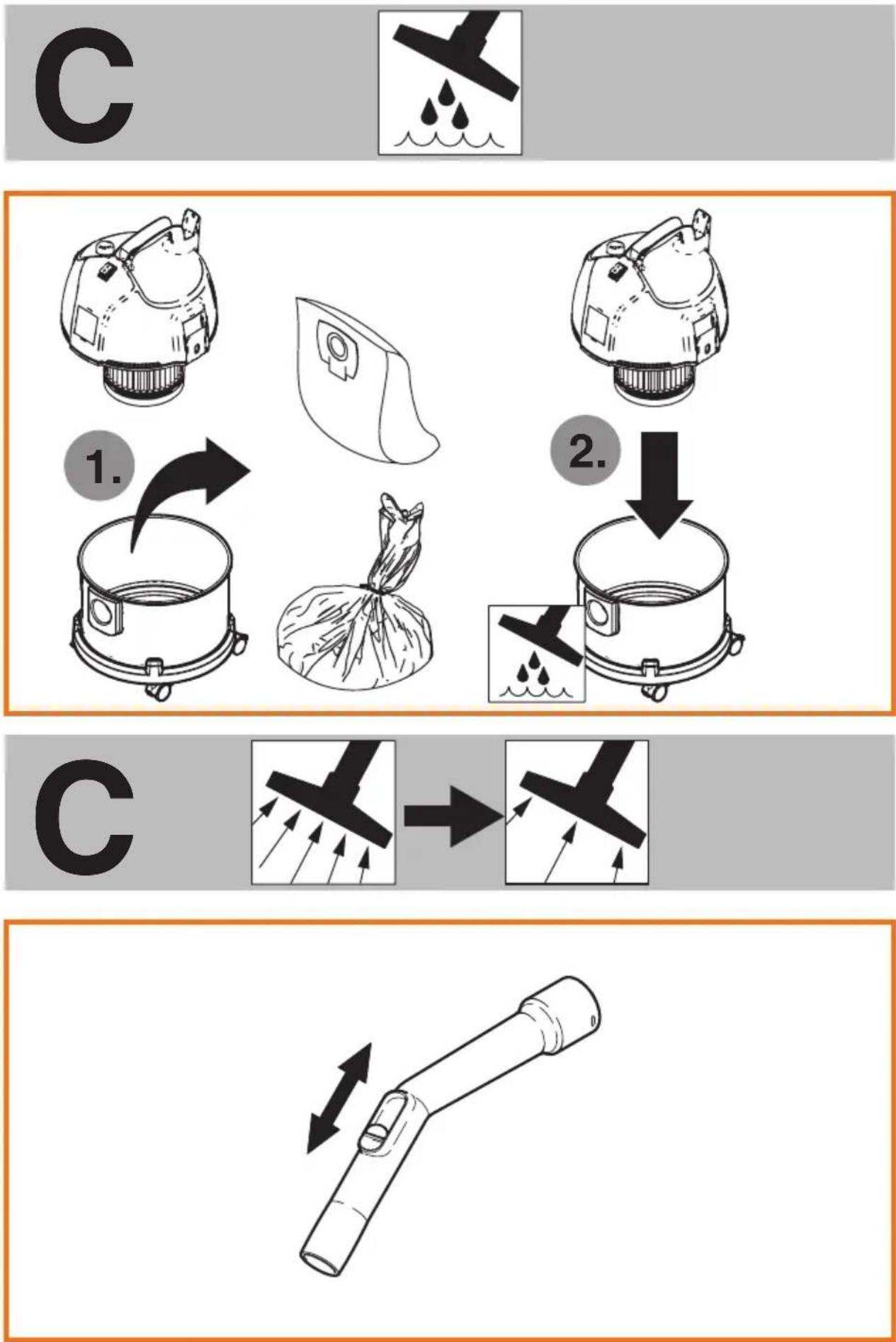

© Picking up liquids

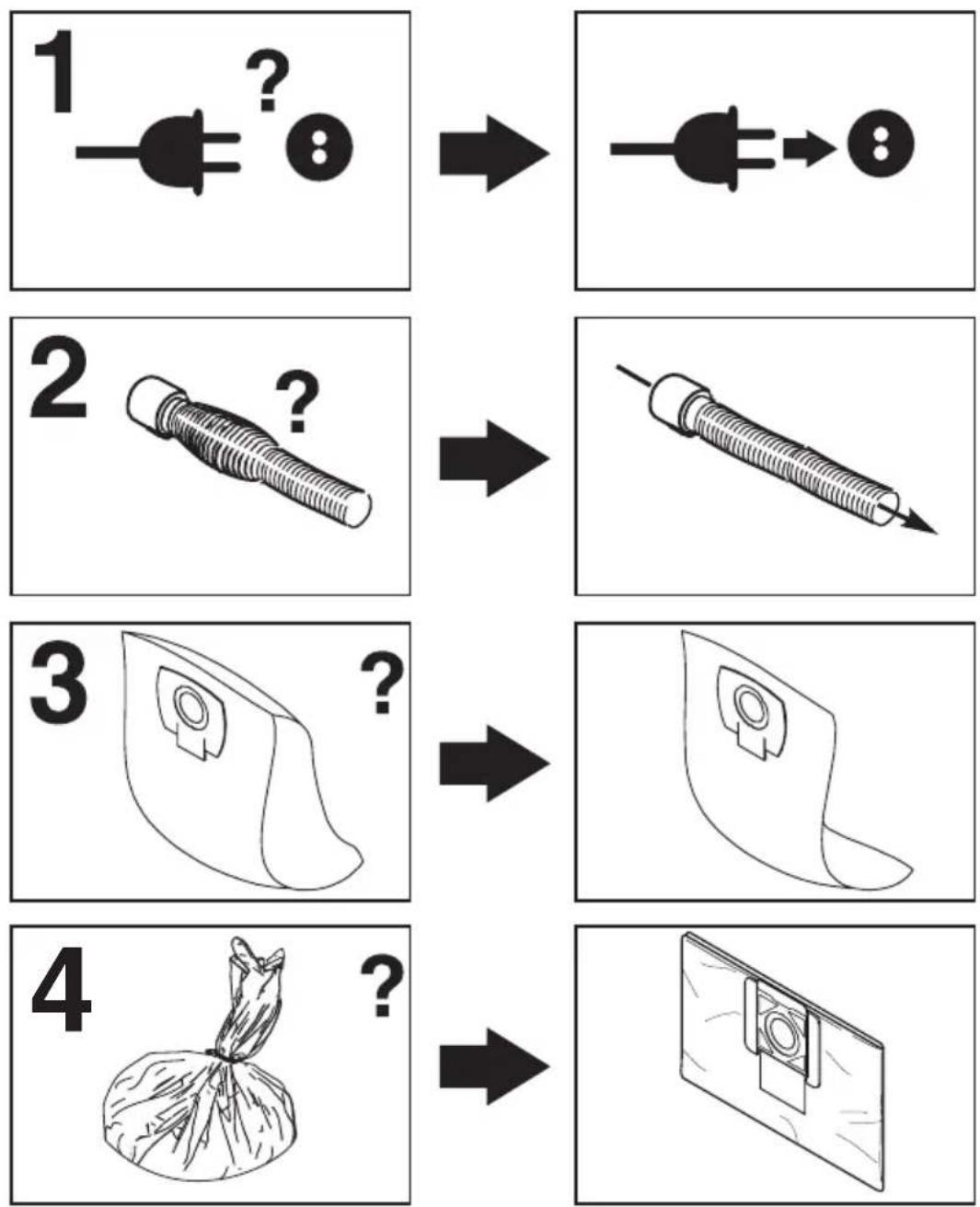

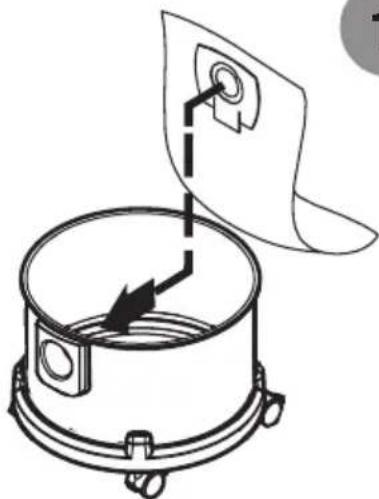

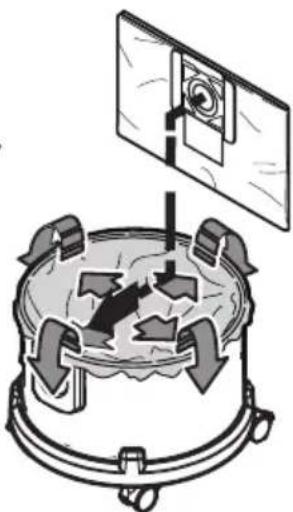

Before liquids are picked up, always remove the filter bag. Check that the float works properly. If foam develops or liquid emerges, stop work immediately and empty the dirt tank.

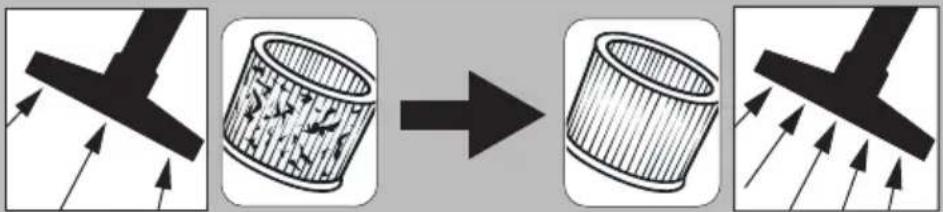

D Cleaning the filter element

If suction performance drops:

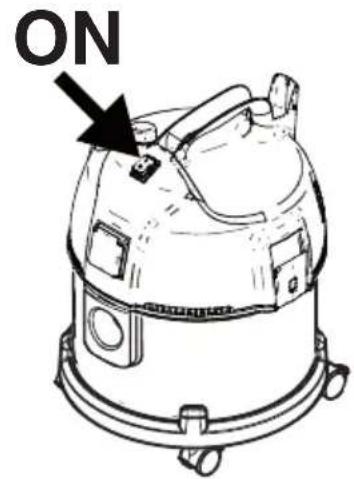

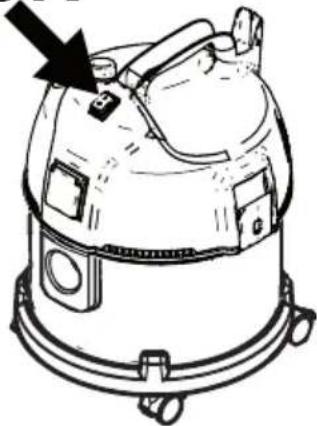

1. Switching on the vacuum cleaner.

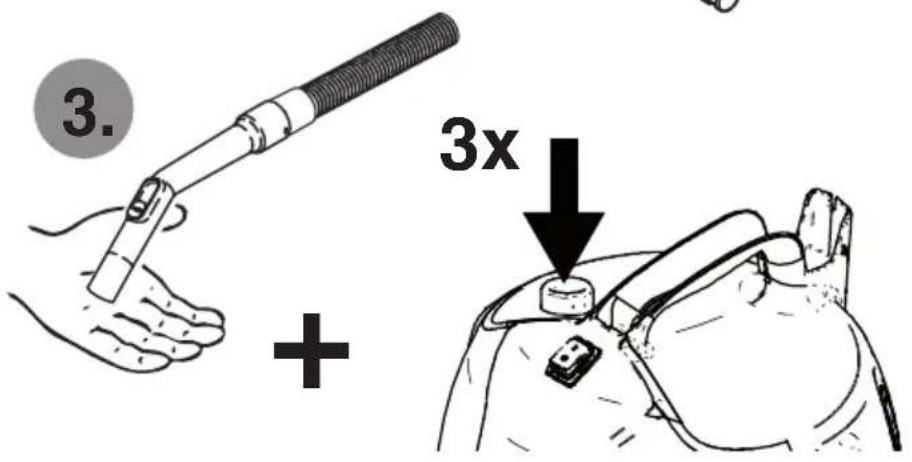

2. Close the nozzles or suction hose opening with the palm of your hand.
3. Press the button to start filter cleaning three times. The resulting stream of air removes attached dust from the slats of the filter elements.

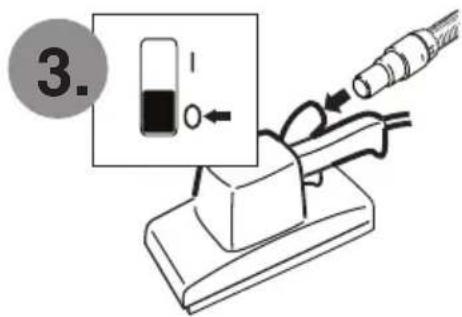

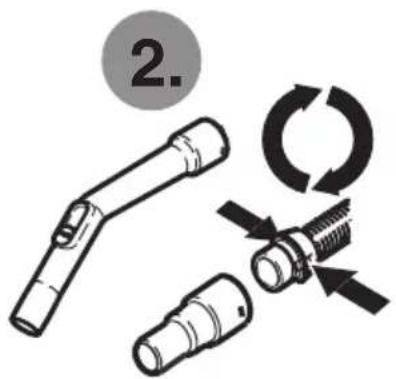

E Connecting electrical appliances

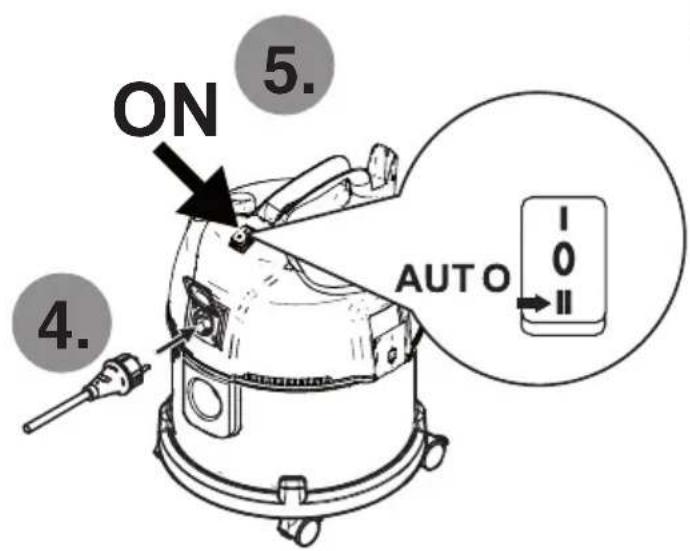

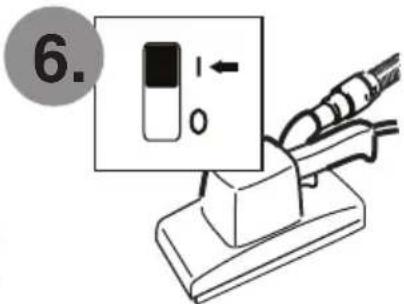

Use the socket on the vacuum cleaner for the purpose defined in the operating instructions only.

Before plugging an appliance into the appliance socket:

1. Switch off the vacuum cleaner.
2. Switch off the appliance to be connected.

CAUTION! Follow the operating instructions and safety instructions for appliances connected to the power tool socket.

F Maintenance, cleaning and repair

Only carry out maintenance work described in the operating instructions. Always pull out the mains plug before cleaning and maintenance of the vacuum cleaner. Never spray water on to the upper section of the vacuum cleaner. Danger for persons, risk or short-circuiting.

The use of non-genuine spare parts and accessories can impair the safety of the appliance. Only use spare parts and accessories from Makita.

VC2010L / VC3511L:

During maintenance and cleaning, handle the vacuum cleaner in such a manner that there is no danger for maintenance staff or other persons.

In the maintenance area

– use filtered compulsory ventilation
- wear protective clothing
– clean the maintenance are so that no harmful substances get into the surroundings

During maintenance and repair work all contaminated parts that could not be cleaned satisfactorily must be

• packed in well sealed bags
  – disposed of in a manner that complies with valid regulations for such waste removal

A dust test must be performed at least once every year by Makita service or a trained person. This test includes, for example, whether there is damage to the filter, the vacuum cleaner is sealed to the air and the control equipment works properly.

Transport

1. Before transporting the dirt tank, close all the locks.
2. Do not tilt the cleaner if there is liquid in the dirt tank.
3. Do not use a crane hook to lift the cleaner.

Storage

The appliance must be

– stored in a dry place and protected from frost

Recycling the vacuum cleaner

As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information.

Guarantee

Our general conditions of business are applicable with regard to the guarantee. Subject to change as a result of technical Altos.

Optional accessories

Description VC2010L VC2511 VC3511L
Filter element P-70219
Filter bag Set (5 pcs) P-72899 P-78293
Disposal bag (5 pcs) P-70297

EC declaration of conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita Machines(s)

Designation Vacuum Cleaner

Model No. / Type VC2010L, VC2511, VC3511L

are of series production and conformes to the following European Directives

2006/42/EC, 2004/108/EC

and are manufactured in accordance with the following standard or standardized documents

EN ISO 12100-1:2003 + A1:2009

EN 60335-1:2002 + A1:2004 + A2:2006 + A11:2004 + A12:2006 + A13:2008 + A14:2010

EN 60335-2-69:2009

EN 62233:2008

EN 55014-1:2006 + A1:2009

EN 55014-2:1997 + A1:2001 + A2:2008

EN 61000-3-2:2006 + A1:2009 + A2:2009

EN 61000-3-3:2008

The Technical Documentation is kept by our authorized representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell

Milton Keynes, Bucks MK15 8JD, England

10 ^th April 2011

Tomoyasu Kato

Director

Makita Corporation, 3-11-8, Sumiyoshi-Cho, Anjo, Aichi, 446-8502 Japan

Technical data

		VC2010L VC2511 VC3511L
Voltage V 110 (GB110) / 120 (US,CA) / 230 (EU,CH,GB) / 240 (AU)
Mains frequency Hz 50 (EU,CH,GB,GB) / 10,AU) / 60 (US,CA)
Fuse A 10 (CH,AU) / 13 (GB) / 15 (US,CA) / 16 (EU) / 25 (GB110)
Power consumption _IEC	Watt 900 (US,CA) / 1100 (EU,CH,GB, GB110,AU)
Connected load for appliance socket* W	Watt 540 (US,CA) / 1100 (GB110) / 1200 (CH) / 1300 (AU) / 1900 (EU,GB)
Total connected load P_z	Watt 1440 (US,CA) / 2200 (GB110) / 2300 (CH) / 2400 (AU) / 3000 (EU,GB)
Air flow rate m3/h (l/min)	127 cfm (US,CA) / 192(3200) (GB110) / 216(3600) (EU,CH,GB,AU)
Vacuum	hPa(mbar)	73 in (US,CA) / 180(180) (EU,CH,GB,GB110,AU)
Sound pressure level at a distance of 1 m, ISO 3744, EN 60704-2-1	dB(A)	70 ±3
Sound level	dB(A)	67 ±3
Power cord: Length	m	7,5 (EU,CH,GB110,AU)10,0 (GB)24,6 ft (US,CA)	5 (EU,CH,GB,AU)7,5 (GB110)19,7 ft (US,CA)	7,5 (EU,CH,GB110,AU)10,0 (GB)24,6 ft (US,CA)
Power cord: Type		H05RR-F 3G1,5 (EU,GB,AU)H05RR-F 3G1,0 (CH)H07BQ-F 3G2,5 (GB110)SJTW-A AWG 16/3 (US,CA)	H05VV-F 3G1,5 (EU,GB,AU)H05VV-F 3G1,0 (CH)H07BQ-F 3G2,5 (GB110)SJTW-A AWG 16/3 (US,CA)	H05RR-F 3G1,5 (EU,GB,AU)H05RR-F 3G1,0 (CH)H07BQ-F 3G2,5 (GB110)SJTW-A AWG 16/3 (US,CA)
Protection class		I
Type of protection (splash water protected)		IPX4
Radio interference level		EN 55014-1
Dust class		L (VC2510L,VC3511L)- (VC2511)
Tank volume	I	19,0 (5,0 gal)	23,0 (6,1 gal)	35,0 (9,2 gal)
Width	mm	375 mm (14,8 in)
Depth	mm	370 (14,6 in)	365 (14,4 in)	370 (14,6 in)
Height	mm	500 (19,7 in)	545 (21,5 in)	685 (27,0 in)
Weight (machine)**	kg	7,3 (16,1 lbs)	6,3 (13,8 lbs)	8,2 (18,1 lbs)
Weight incl. accessories (net, most common application)	kg	8,8 (19,4 lbs)	7,8 (17,2 lbs)	9,7 (21,4 lbs)

* Model variants
** Weight according to EPTA procedure 01/2003
