Bapi 900 Plus Inox - Mixer TAURUS - Free user manual and instructions

Brand	Taurus
Model	Bapi 900 Plus Stainless Steel
Product type	Mixer (immersion blender)
Body material	Stainless steel
Rated power	900 W
Power supply	220-240 V ~ 50/60 Hz
Speeds	Electronic variable speed + Turbo function
Included accessories	Whisk, chopper (bowl + lid + reduction unit), emulsifier mixer, measuring pitcher, measuring cup
Pitcher capacity	Not specified (approx. 600 ml)
Main functions	Blend, chop, beat, emulsify, whisk
Max recommended usage time	1 minute continuously (5 minutes max with 1 min rest)
Thermal protection	Yes, automatic shutdown in case of overheating; restart after 15 min cooling
Blade safety	Sharp blades, handle with care
Cleaning	Motor unit: damp cloth; accessories: warm soapy water or dishwasher (delicate mode)
Maintenance	Clean regularly, do not immerse motor unit, do not use solvents
Repairability	Authorized technical service only; do not disassemble yourself
Warranty	Manufacturer's standard (not specified)
Usage	Household only
Weight	Approx. 1.2 kg (estimated)
Dimensions (L x W x H)	Approx. 40 x 10 x 10 cm (estimated)
Certifications	CE (Low Voltage 2006/95/EC, EMC 2004/108/EC, RoHS 2011/65/EC)

Frequently Asked Questions - Bapi 900 Plus Inox TAURUS

How to use the whisk?

Attach the whisk to the motor unit by turning in the direction of the arrow. Insert the food into the pitcher, then start the appliance. To remove the whisk, turn in the opposite direction.

Can I chop frozen meat?

No, do not use the appliance with frozen foods or bones. Thaw the meat before chopping.

What is the maximum capacity of the pitcher?

Do not exceed the MAX mark (Fig. 3). For hot liquids, fill at most halfway and use the slowest speed.

The appliance stops on its own during use, what should I do?

This is normal: the thermal protector has triggered in case of overheating. Unplug the appliance and wait about 15 minutes before plugging it back in. If it does not restart, contact an authorized technical service.

How to clean the accessories?

The accessories (whisk, mixer, pitcher, measuring cup) can be washed in warm soapy water or dishwasher on delicate mode. The motor unit must be cleaned with a damp cloth without immersion.

Can I use the mixer at maximum speed?

No, do not use a too high speed or the Turbo function with the mixer, as this could damage the mixer (wire centrifugation).

What is the maximum recommended usage time?

Do not use the appliance for more than 1 minute at a time. If you need more time, limit to 5 minutes per cycle with at least 1 minute rest between cycles.

What to do if the cable is damaged?

Do not use the appliance. Have the cable replaced by an authorized technical service. Do not attempt to repair it yourself.

Can the appliance be used by children?

No, this appliance is not intended for use by children. Keep it out of reach of children and ensure they do not play with it.

How to use the Turbo function?

Press the Turbo button to use full power. This allows a finer texture, for example to chop dried apricots or crush ice.

USER MANUAL Bapi 900 Plus Inox TAURUS

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Fig.1

Line drawing of a hand using a pipette to dispense liquid into a glass (no text or symbols)

Fig.2 Fig.3

Line drawing of a hand pouring liquid into a glass mug (no text or symbols)

Line drawing of a hand pouring leaves from a glass mug into a cup with a small plant inside (no text or symbols)

Line drawing of a hand pouring liquid into a glass mug filled with rose petals (no text or symbols)

Line drawing of a mug with handle and small object inside, no text or symbols present

2.1 2.2 2.3

Line drawing of a hand using a handheld device to lift water from a glass container (no text or symbols)

2.4 2.5 2.6

Fig.4

Line drawing of a hand using a micrometer to lift a glass with a whisk, no text or symbols present

Fig.5

Line drawing of a cylindrical object resembling a lamp or stand with a flared base and three curved top surfaces (no text or symbols)

Español

Batidora-Picadora

Bapi 900 Inox

Bapi 900 Plus Inox

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

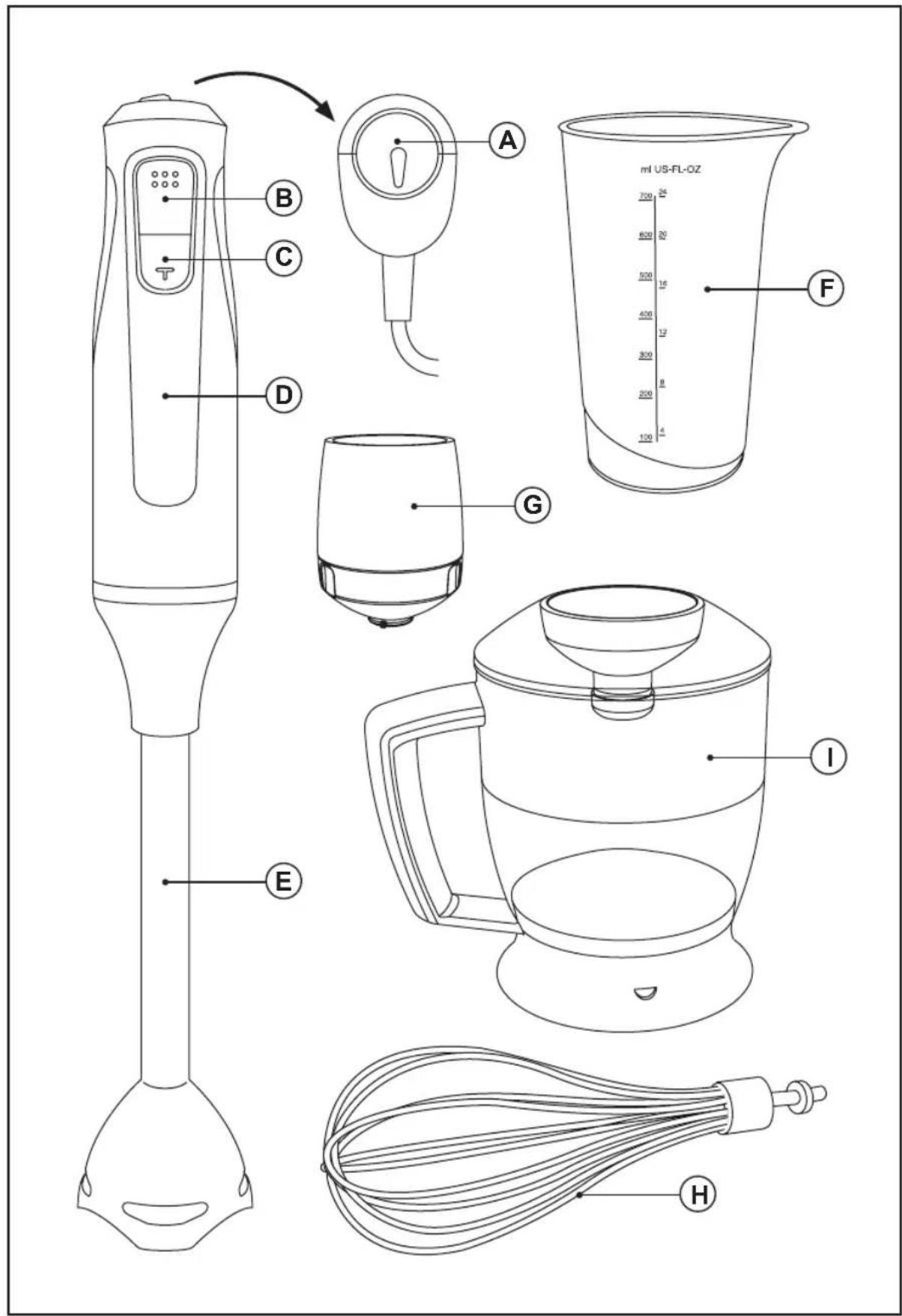

Description

A Speed control

B Button

C Turbo function button

D Driving motor

E Whisk

F Measuring cup

G Adapter fitting (*)

H Whisk (*)

I Goblet (*)

(*) Only available in the model Bapi 900 plus Inox

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident. Failure to follow and observe these instructions may result in an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

- This appliance must not be used by children. - Keep the appliance and its cable out of reach of children.

-- This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- The blades are sharp and there is a risk of being cut. Proceed with cau-

tion and avoid direct contact with their edges.

- Be especially careful when handling the blades during operations of assembly and dismantling, emptying the goblet and cleaning.

- Always disconnect the appliance from the mains if left unattended and before assembly, dismantling or cleaning.

- Disconnect the appliance and unplug the mains before changing the accessories or nearby moving parts that move during use.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Keep children and bystanders away when using this appliance.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the cable around the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not use or store the appliance outdoors.
• Do not touch the plug with wet hands.
• Take the necessary measures to avoid starting the appliance involuntarily.
• Do not touch any of the appliance's moving parts while it is operating.

Use and care:

• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if it is empty.
• Do not use the appliance if the on/off switch does not work.

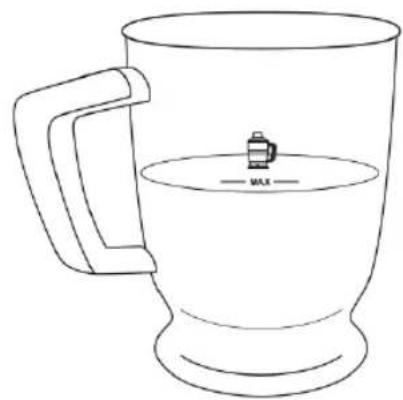

• Respect the MAX level indicator (Fig. 3)
  -Do not add a volume of hot liquid greater than half of the total capacity of the goblet, and whenever there are hot liquids inside the goblet ensure that only the slowest speed is used.
• Disconnect the appliance from the mains when not in use, before cleaning, making any adjustment, battery charge or accessory change.
• This appliance is for household use only, not professional or industrial use.
• This appliance should be stored out of reach of children and/or the disabled.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or locked and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

• Do not use the appliance for longer than 1 minute at a time, or to complete cycles lasting more than 5 minutes. In the latter case always ensure rest periods of at least 1 minute between cycles. Never keep the appliance working for longer than the required time.
• The table adjoined contains example recipes with ingredient quantities and operating times.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with frozen goods, ice or those containing bones.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Prepare the appliance according to the function you wish to use.

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on using the on/off switch.
• Select the desired speed.
• Work with the food you want to process.

Electronic speed control:

- The speed of the appliance can be regulated simply by using the speed regulator control. This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

Turbo function:

- The appliance has a Turbo function. By activating the Turbo function all the power of the motor becomes available, thus obtaining a finer finish in the final texture of the product.

Once you have finished using the appliance:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance to the mains.
• Clean the appliance

Accessories:

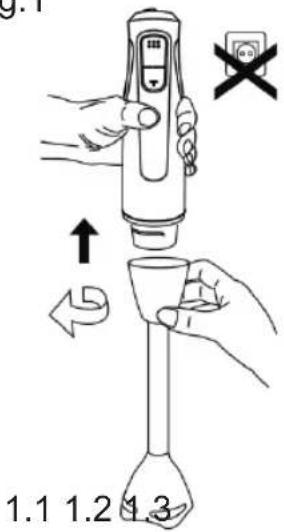

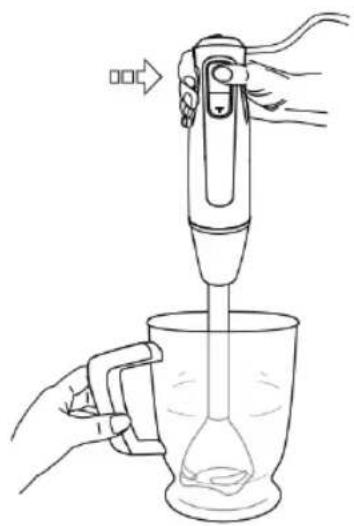

Stick blender accessory (Fig. 1):

- This accessory is used to make sauces, soups, mayonnaise, milkshakes, baby food, crushed ice, etc.

- Attach the stick blender to the motor body by turning it in the direction indicated by the arrow (Fig. 1.1).

- Pour the foodstuffs into the sieve and operate it by pressing the start button.

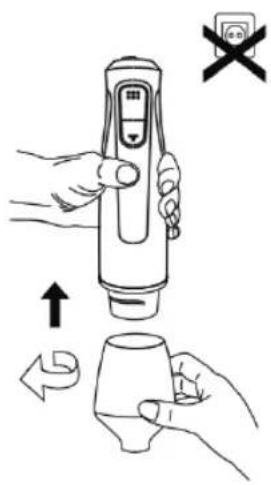

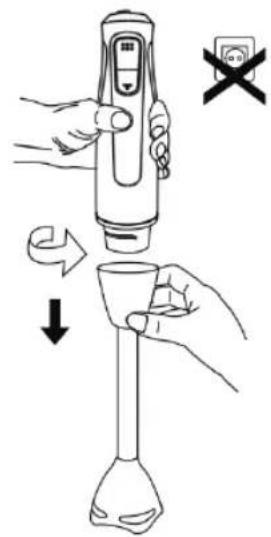

- Detach the stick blender by turning it in the opposite direction to the arrow and remove it for later cleaning.

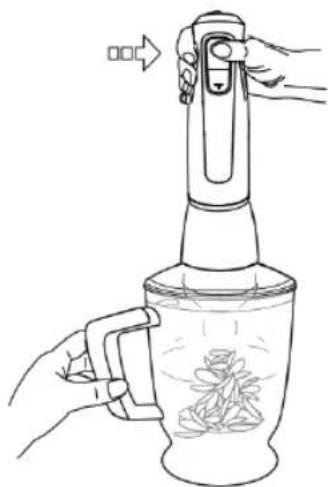

Chopping accessory (Fig. 2):

• This accessory is used to chop vegetables or meat..
• Put the food to be prepared in the chopping container and attach the cover firmly (Fig. 2.1 / 2.2 / 2.3).
• Fit the adapter fitting to the motor unit by turning it in the direction of the arrow (Fig. 2.4).
• Fit the assembly to the lid and start the appliance (Warning: do not start the appliance if the entire assembly is not properly seated and fitted (Fig. 2.5).
• Stop the appliance when the food reaches the desired texture.

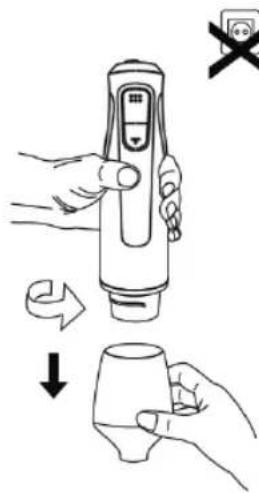

• Detach the unit from the lid, and release the adapter fitting (Fig. 2.6).

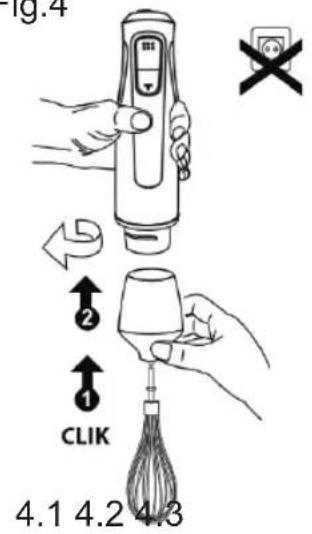

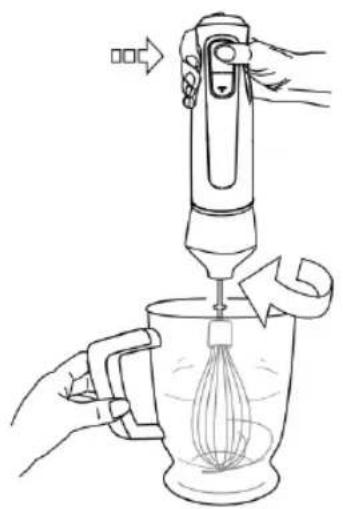

Whisk accessory (Fig. 4):

• This accessory is used to whip cream, beat egg whites...

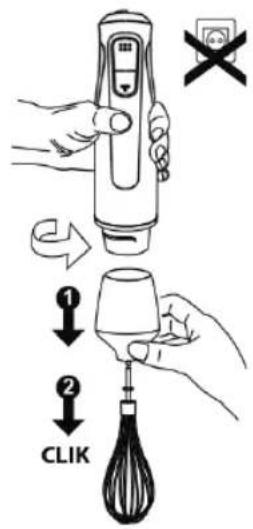

• Insert the whisk into the adapter fitting (Fig. 4.1). Fit the adapter fitting to the motor unit by turning it in the direction of the arrow (Fig. 4.1).
• Put the food into a recipient and start the appliance. For optimum results, move the whisk clockwise (Fig. 4.2).
• Remove the whisk accessory and release the adapter fitting (Fig. 4.3).
  Note 1: Do not work at high speeds even with the turbo function with this accessory attached, as this would cause defects in the whisk (spinning its wires).
• Note 2: To free the whisk from the adapter fitting, pull the ring on the whisk.

Safety thermal protector:

- The appliance has a safety device, which protects the appliance from overheating.

- If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

Cleaning

- Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.

- Clean the equipment using a damp cloth with a few drops of washing-up liquid and then dry.

• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The appliance is suitable for cleaning in hot soapy water or in a dishwasher (using a soft cleaning program):
• Whisk
• Liquidiser attachment.
• Goblet
• Measuring cup
• The draining/drying position for washable parts in dishwashers or after washing by hand in a sink must allow for water to drain easily (Fig 5).
• Next dry all the parts before fitting them together and storing.

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This appliance complies with Directive 2006/95/EC on Low Voltage, with Directive 2004/108/EC on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances.

Recipe Speed Quantity Preparation Time
Mayonnaise 5 250 ml Put 1 egg in the jug with a pinch of salt and some drops of vinegar or lemon.Add oil until the indicated level. Turn the appliance on without moving until the oil binds.20110704~101301				35 s
Fruit smoothies	15 - Add fruit and activate the blender until the mixture has a smooth consistency.			-
Béchamel sauce	10 600 ml Melt 30 gr. of butter in a pan on a slow heat.Add 100 gr. of flour and 30 gr. of fried onions (already cut up with the slicer). Slowly add 500 ml of milk.			15 s
Crushed ice 20 4/6 cubes Put the ice cubes in the jug and crush by exerting pressure on each ice cube				15 s
Whipped cream 250 ml Pour the very cold cream (0°C to 5°C) into a recipient and operate the blender by moving it clockwise. We recommend using minimum speed and when starts to take on consistency, going to the 2nd. Be careful, as if the time is exceeded the cream will turn into butter				1.2 min
Stiff egg whites 2 5 egg whites			Pour the egg whites into a jug and activate the blender. Mix in a vertical motion until the egg whites become stiff.	1.5 min
Mashed potato	20	400 g	The potatoes can be sliced by activating the blender directly in the saucepan directly.	30 s
Baby food: fruit and biscuit mush	20	300 g	Cut up and place 100 gr. of apple, 100 gr. of banana, 50 gr. of biscuits and the juice of one orange in the jug	25 s
Breadcrumbs	20	50 g	Cut up the stale bread before putting it in the jug. Blend until the desired texture is obtained.	50 s
Grated cheese 20 200 g Dice the cheese into 1 cm chunks and blend until the desired texture is obtained.20110704~101833				30 – 40 s
Chopped carrot	20	300 g	Dice the cheese into 1 cm chunks and blend until the desired texture is obtained.	20 s
Ground nuts	20	300 g	Remove the shells and grind until the desired texture is obtained	20 s
Chopped boiled egg	20 5 eggs Cut into quarters and chop until the desired texture is obtained.			10 s
Chopped meat (raw or cooked)	20 300 KG. Previously chop into 1 cm chunks Mince until the desired texture is obtained			30 s
Minced meat	20	40 g	Previously chop into 1 cm chunks Mince until the desired texture is obtained	3 s
Tomato juice	20	400 g	Cut the tomatoes into quarters, put them into the strainer and work them until the juice is left in the goblet	20 s
Chopped Spanish Serrano ham	20 60 g	Previously chop into 1 cm chunks Mince until the desired texture is obtained		3 s
Chopped dried apricots	TURBO	60 g	Previously chop into 1 cm chunks Mince until the desired texture is obtained	3 s

Français

Mixeur-Hachoir

Bapi 900 Inox

Bapi 900 Plus Inox

Cher Client,

Color calibration bar with grayscale and color swatches, no text or symbols present

ة فصو		ة عرسالا	ة يمكالا
ازينويا لملكة	250	----	وأُّل طَل قَظْعِهِ و لفَلِقِدَ حَا غية ب عضُوا وئُطْ أِي و تسَلِكُّتَبْ تَجَّاتِيَّا ضَلَّمِيٍ ١٠١١ وَتَيْرِنِّهُ مُحْلِيْ وَدِزْلِجِهِ ا نلِيَظَالْ لِيْكُهِ وَفَلَّاً لِيْتَةٍ فِ إِاضِاً	1 0
كَمْجِفَ الِيْكُو	600	مَعْمَةٍ	فِ اضِابًا وَلَعْمَةٍ عَمَيْرِ زَامُرْ ٥٢٣٤ إِذَا مَورْفُوْ مَحْلِيْ صَبْ ٤٠ لَقَّاطُلَا رَغْ ٥٢٩١ عَرَغٍ جَمْلِ لَحْلُ ٤٥٥٦ فِ اضِابًا فِيُسِكٍ	1 0
(٥)٢٨١٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٢٣١	4	325	شَكَّلَا يَلْقِيْعُ وَلَظْلِيْتَةٍ فِ اضِاً مَقْهِلْحَا و جَمْلِ فِيُسِكٍ (٥)٢٩١ رَابِ لَةٍ لَذَا اسْلَ اَقَّقٍ لِيْبِكَ تَحِ يَةٍ عَاسِلَ لِبْرَا هَمْجِيْتَرِيْقَالِ الِيْتَةٍ وَتَكِيمِيْتَقِيلِ وَحَدَةٍ لَأَيْلَّةٍ وَمُرْ لَخَابِبَتَ فَيْلِيْ لِيْلِتَنا جَوْتُى لِيْلِ إِنَةٍ عَرَسَلِ يُلْفِيٍ قَيْلِزِ إِقَّقٍ لِ الْقُوْدِ حَلَّفِيُ لِاٍ	1 0
قَيْعَ لَارِ يَجْضَ	1	ضَا يَبْ يَضْ	تَكَمْيُطَالِ لِشْتَعُولِيُ لِيْتَةٍ لِأَرْرَا يَسِكٍ N·m 1.5 مَعْمَةٍ فِ وَمَعٍ	1 0
صَابِصَيْيَقْ ١٠١١	400	اطِاطِبٍ لَا ق ٥٢٥٢٥ مَلْقِ وَحَسَمٍ لَا 20a	300	200
مَلْقِ وَحَسَمٍ لَا 20a	300	مَلْقِ وَحَسَمٍ لَا 20a	300	200
شَيْجِبٍ	0	مَلْقِ وَحَسَمٍ لَا 20a	0	200
شَيْجِبٍ	200	مَلْقِ وَحَسَمٍ لَا 20a	200	200
شَيْجِبٍ	200	مَلْقِ وَحَسَمٍ لَا 20a	200	200
شَيْجِبٍ	200	مَلْقِ وَحَسَمٍ لَا 20a	200	200

Color calibration bar with grayscale gradient and a central crosshair symbol (no text or labels)

1

(الجلا لة قحلأهاة)

مُظْلَانَقَالْهُمْ إِلَّامْتَ

The image contains a graphical icon (a droplet) and no textual content.

ظيف

لَيْعَّلِ الْبَرَاقِيْرِكَالِ وَتَزْلَهِلِجَلِطَدُ فَ- 1

Color calibration bar with grayscale gradient and a central crosshair (no text or symbols)

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Color palette bar with grayscale gradient and a crosshair symbol (no text or labels)

taurus

Avda. Barcelona, s/n

E 25790 Oliana

Spain

BAPI 900 INOX

Net weight: 0,87Kg aprox.

Gross weight: 0,97Kg aprox.

BAPI 900 PLUS INOX

Net weight: 1,50Kg aprox.

Gross weight: 1,70Kg aprox.
