Product type	Juice extractor
Brand	TEAM
Model	FE 5
Power supply	230 V ~ 50 Hz
Power	400 W (estimated)
Motor type	Asynchronous electric motor
Rotation speed	Approximately 12,000 rpm (centrifugal)
Juice container capacity	Approximately 500 ml
Pulp container capacity	Approximately 1 L
Dimensions (L x W x H)	Approximately 30 x 20 x 35 cm
Weight	Approximately 4 kg
Cable length	Approximately 1 m
Body material	Plastic and stainless steel
Main functions	Extraction of juice from fruits and vegetables
Safety	Safety device preventing start if improperly assembled; lid lock
Maximum continuous use	Refer to the rating plate (usually 10 to 15 minutes)
Recommended break	At least 10 minutes
Maintenance and cleaning	Clean removable parts under running water; do not put in dishwasher; use a soft brush for the grating disc and filter
Spare parts and repairability	Replaceable grating disc and filter; contact after-sales service for repairs

Frequently Asked Questions - FE 5 TEAM

How to clean the grating disc and filter?

Use a small soft brush under running water to clean the grating disc and filter. Never put them in the dishwasher.

Can you juice stone fruits?

No, you must remove the pits and seeds before juicing to avoid damaging the appliance.

What to do if the appliance does not start?

Check that the lid is properly closed and the locking clips are securely fastened. The appliance is equipped with a safety device that prevents starting if the assembly is incorrect.

Can you make banana juice?

No, bananas do not yield juice. Also avoid peaches, apricots, and other soft pulp fruits.

How long can I use the appliance continuously?

Refer to the rating plate of your appliance for the maximum continuous use time (usually 10 to 15 minutes). Respect a break of at least 10 minutes after each cycle.

How to properly assemble the appliance?

Place the separation unit on the motor block, insert the grating disc turning clockwise, then put the protective cover and secure it with the clips.

Can I wash the motor block with water?

No, never immerse the motor block in water. Clean it with a slightly damp cloth.

Are the parts dishwasher safe?

No, do not put any part of the appliance in the dishwasher. Wash them by hand under running water.

How to store the extracted juice?

Consume the juice quickly to enjoy maximum taste and vitamins. For storing a few hours, add a little lemon juice.

What to do if the grating disc or filter is worn out?

Replace the worn parts. Contact the manufacturer's after-sales service or a qualified repairer to obtain spare parts.

USER MANUAL FE 5 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Entsaffer

Juice Extractor

Cen trifugeuse

Sapcentrifuge

Licuadora

Liquidificador

Cenrifuga

CE

I/B Version

010115

TEAM FE 5

230V 300max.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

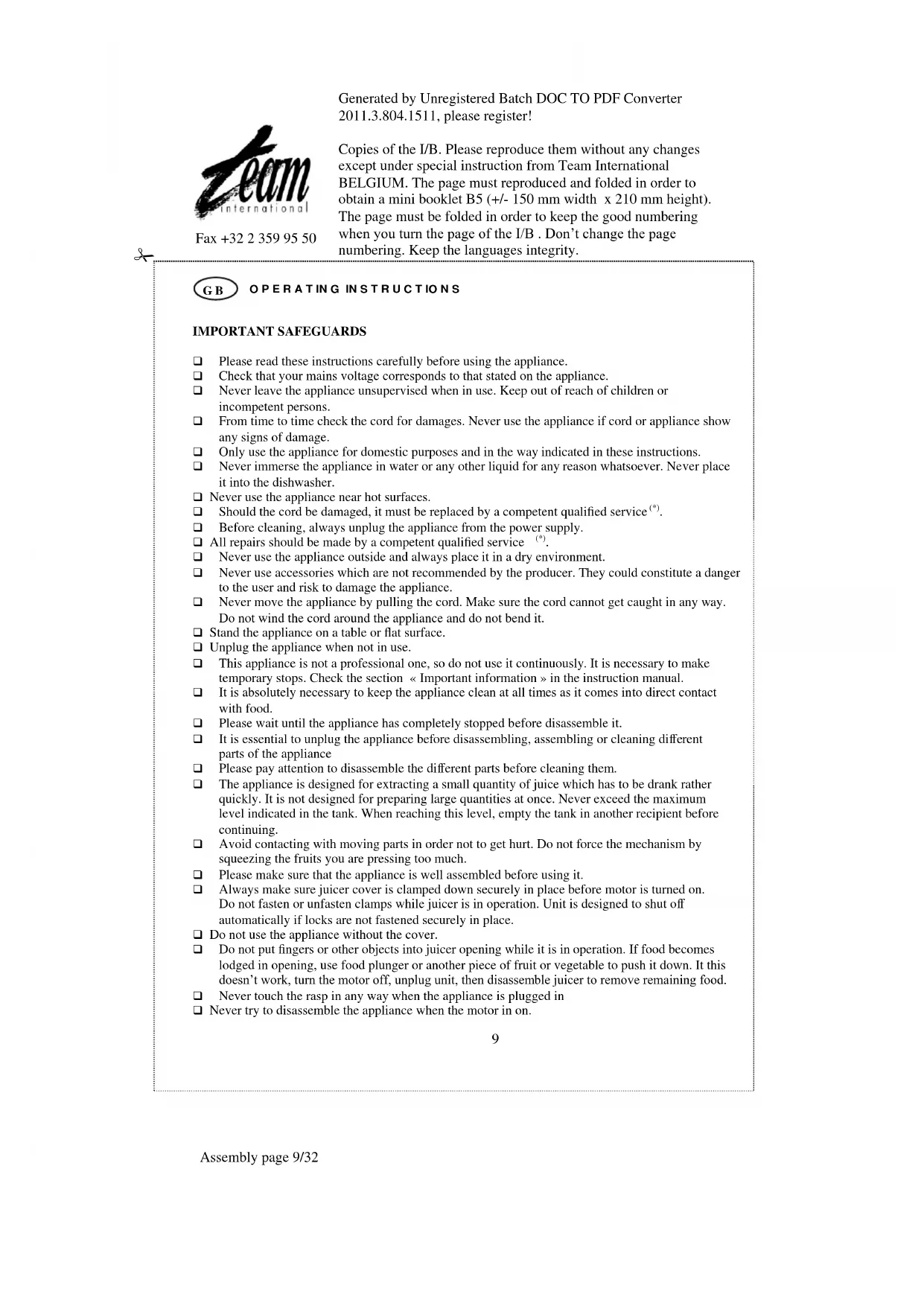

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified service (^)
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified service (^)
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Unplug the appliance when not in use.
This appliance is not a professional one, so do not use it continuously. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
It is absolutely necessary to keep the appliance clean at all times as it comes into direct contact with food.
Please wait until the appliance has completely stopped before disassemble it.
It is essential to unplug the appliance before disassembling, assembling or cleaning different parts of the appliance
Please pay attention to disassemble the different parts before cleaning them.
The appliance is designed for extracting a small quantity of juice which has to be drank rather quickly. It is not designed for preparing large quantities at once. Never exceed the maximum level indicated in the tank. When reaching this level, empty the tank in another recipient before continuing.
Avoid contacting with moving parts in order not to get hurt. Do not force the mechanism by squeezing the fruits you are pressing too much.
Please make sure that the appliance is well assembled before using it.
Always make sure juicer cover is clamped down securely in place before motor is turned on. Do not fasten or unfasten clamps while juicer is in operation. Unit is designed to shut off automatically if locks are not fastened securely in place.
Do not use the appliance without the cover.
Do not put fingers or other objects into juicer opening while it is in operation. If food becomes lodged in opening, use food plunger or another piece of fruit or vegetable to push it down. It this doesn't work, turn the motor off, unplug unit, then disassemble juicer to remove remaining food.
Never touch the rasp in any way when the appliance is plugged in
Never try to disassemble the appliance when the motor in on.

Please pay attention that the rasp is very sharp-edged when you clean it.
(^+) Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

BEFORE USING FOR THE FIRST TIME

• Wash the parts of the product which will come into contact with the fruit.

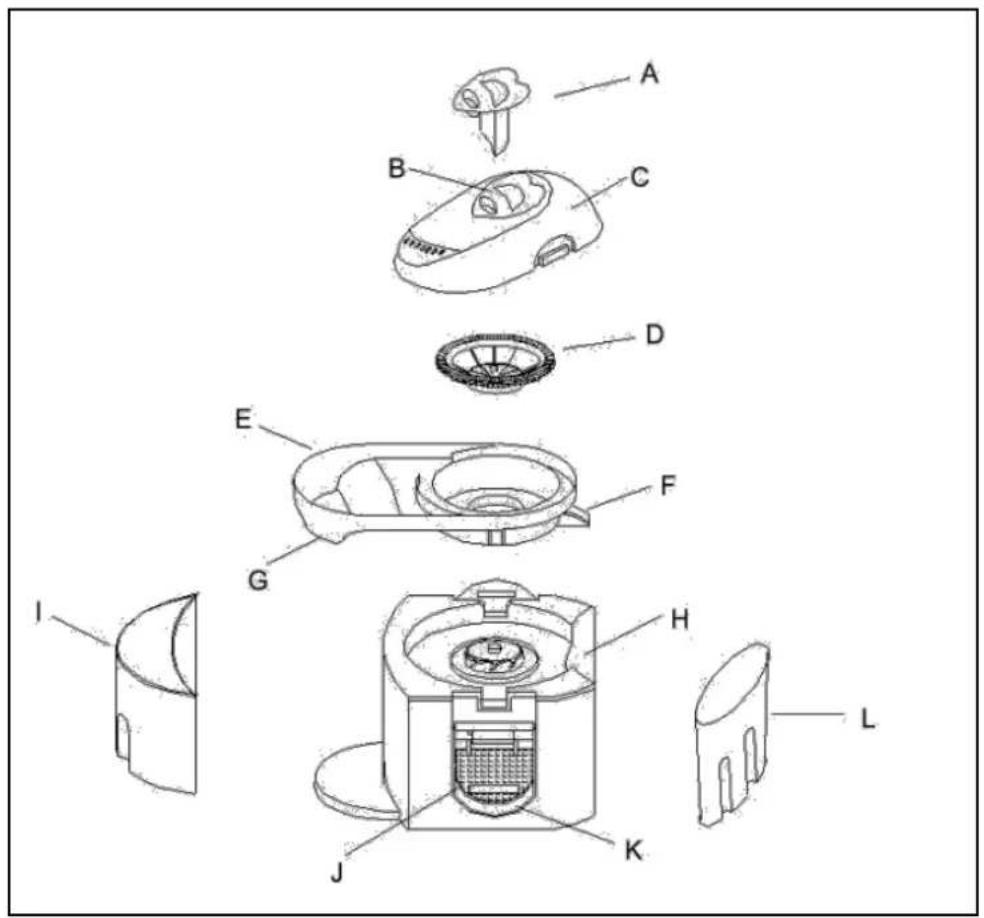

DISMANTLING AND ASSEMBLING

Be sure to remove plug from electrical outlet first.

• Turn off the switch, open the locks (J)
• Remove the protective cover (C)
• Push the motor casing (H) downwards and remove the separating unit (E) then pull the grater & filter unit upwards.
• Place the separating unit (E) on the motor housing (H), push with both hands on the separating unit it is clicked into place.
• Insert the grater, turn it clockwise until sits securely.
• Mount the protective cover and fasten the locks.
• Put the residue container (I) under the residue spout (G), then set the juice cup (L) under the juice spout (F).

OPEARATING INSTRUCTIONS

This appliance is equipped with a safety system. If the cover is not correctly in place or the locks unfastened, the appliance will not function.
Before plugging make sure the switch is OFF and the Locks are fastened correctly.
Cut fruits into small pieces so as to be fitted into the feeding funnel.
- Place a glass or jug under spout.
- Switch on.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Feed the pre-prepared fruits and vegetables into the juice extractor and press down gently with the plunger.
The motor must always be running when fruits or vegetables are fed into the appliance.
Fruits or vegetables can be fed in continually without stopping the appliance.
- To empty the pulp reservoir: stop the appliance, hold the reservoir by the handle and pull outwards. To put the reservoir back in place, reverse the operation.
The grater and filter unit must be replaced as soon as there are any signs of damage or wear and tear.

COMMENTS

• Fruit and vegetables of different types can be processed without cleaning the appliance after reach operation. The flavour will not mix.
• The natural juices must be drunk immediately after their preparation for maximum flavour and vitamin benefit. However, if you wish to keep the juice for several hours, lemon juice must be added as a natural preservative.

WARNING

• Do not press bananas, peaches, apricots, etc... as those fruits do not contain any juice.
• Do not press coconuts or hard fruits as this can damage the motor and the filter.
• Remove the stone or peel from those citrus fruits: peaches, prunes, apricots, cherries or oranges, lemons, melons etc...

CLEANING

• Stop the juice extractor and unplug the appliance.
• Remove the cover and the separator unit as well as the grater and filter unit.
• Remove the pulp from the reservoir and the cover and wash both parts.
• Wash the grater and filter unit in water using a soft brush.
• To clean the outside of the motor unit, use a damp sponge.
• Clean the grater and filter unit in water using a soft brush.
• Never clean the grater and filter unit in a dishwasher.
• Never use bleach or a souring pad.
• This unit must not be immersed in water.

MAINTENANCE

The grater & filter unit is a very fragile part and must be treated with care. Any mishandling of this part could cause damage.
