| Product Type | Infrared massaging foot bath |
| Brand | TEAM |
| Model | FM 4 |
| Power supply | Mains 220-240 V, 50/60 Hz (check compatibility) |
| Main functions | Vibration massage, bubbles, infrared, aroma diffuser, keep warm |
| Switch positions | Off (0), Bubbles+massage+infrared (1), Keep warm+diffuser (2), Massage+infrared (3) |
| Tank capacity | Up to the MAX mark (water level) |
| Included accessories | 4 massage rollers, pedicure set with 4 accessories (abrasive discs and brushes) |
| Pedicure set | Works with 2 AA/LR6 batteries |
| Usage intervals | Max continuous duration indicated on the rating plate, 10 min minimum break |
| Maintenance and cleaning | Clean exterior with a dry cloth; never immerse the appliance |
| Safety | Disconnect before cleaning; do not use without supervision; do not use near heat sources |
| Use | Household use only, do not use professionally |
| Important instructions | Do not stand in the tub; do not use while sleeping or tired |
| Material | Plastic |
| Dimensions | Approximately 40 x 35 x 20 cm (estimate) |
| Weight | Approximately 2.5 kg (estimate) |
Frequently Asked Questions - FM 4 TEAM
User questions about FM 4 TEAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Juicer in PDF format for free! Find your manual FM 4 - TEAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FM 4 by TEAM.
USER MANUAL FM 4 TEAM
Generated by Unregistered Batch DOCTO PDF Converter 2011.3.804.1511, please register!

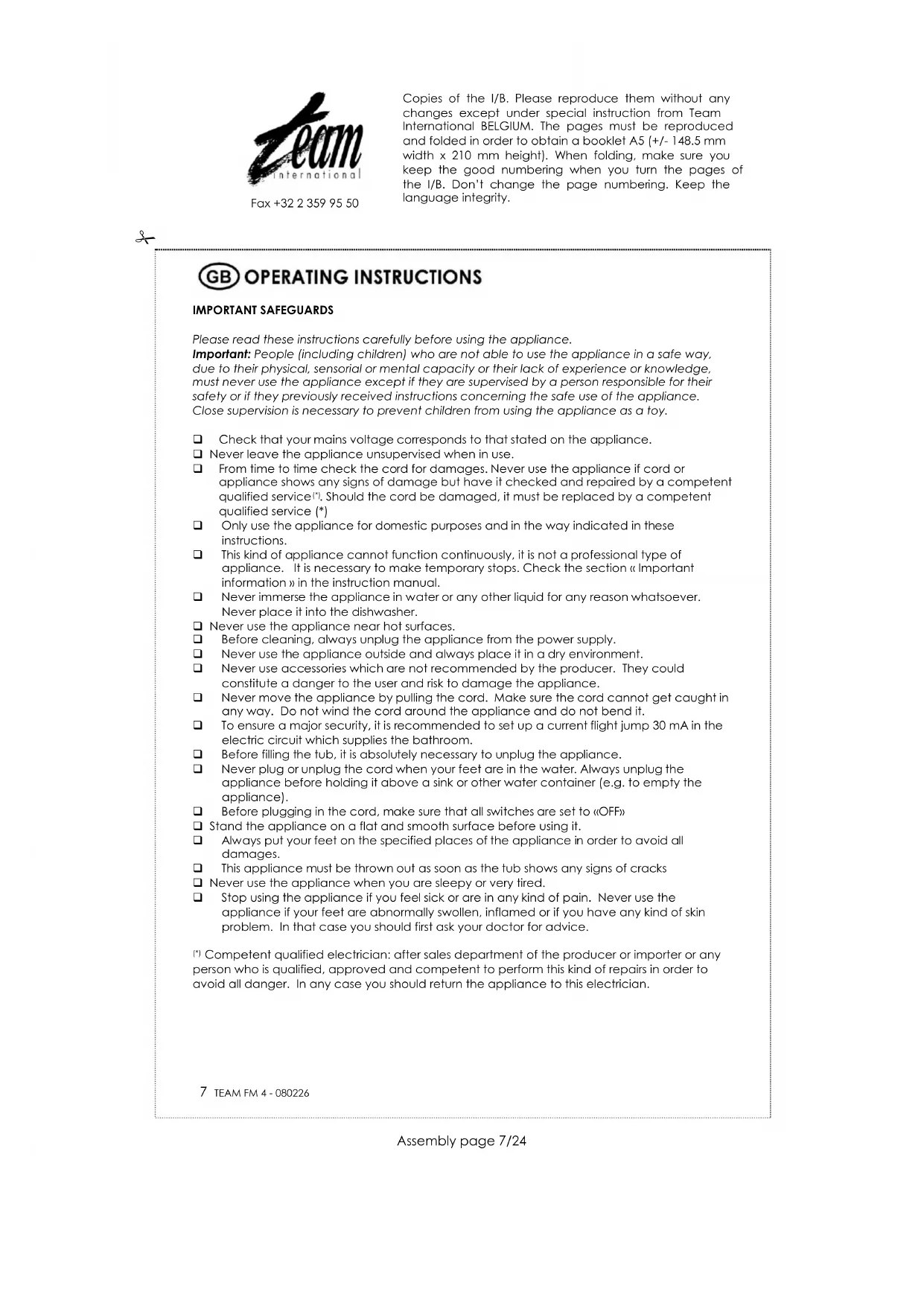

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet AS (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.
- Stimulating nodes
- Infrared
- Drain spout
- Air nozzle
- Control switch
- Aroma diffuser
- Cover
- Foot care appliance
- Attachments for the feet
F
Please read these instructions carefully before using the appliance.
Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.
Close supervision is necessary to prevent children from using the appliance as a toy.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service (*)
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ To ensure a major security, it is recommended to set up a current flight jump 30 mA in the electric circuit which supplies the bathroom.
Before filling the tub, it is absolutely necessary to unplug the appliance.
☐ Never plug or unplug the cord when your feet are in the water. Always unplug the appliance before holding it above a sink or other water container (e.g. to empty the appliance).
Before plugging in the cord, make sure that all switches are set to «OFF»
☐ Stand the appliance on a flat and smooth surface before using it.
□ Always put your feet on the specified places of the appliance in order to avoid all damages.
☐ This appliance must be thrown out as soon as the tub shows any signs of cracks
☐ Never use the appliance when you are sleepy or very tired.
☐ Stop using the appliance if you feel sick or are in any kind of pain. Never use the appliance if your feet are abnormally swollen, inflamed or if you have any kind of skin problem. In that case you should first ask your doctor for advice.
1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
7 TEAM FM 4 - 080226
IMPORTANT INFORMATION
This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.
USE
- Your appliance is delivered with 4 massage rollers. To place them on the appliance, you just have to put them on the housing foreseen to that end and push gently on them.
- Fill the tub of the unit with warm or lukewarm water (attention, your appliance is not foreseen to heat water but rather to keep it warm enough during the treatment).
- The mark 'MAX' shows the maximum fill level. If you want to fill the unit with less water, please make sure that there is a sufficient amount of water over the foot rest surface.
- Place the unit on the floor (on a flat and even surface), in front of a chair (the rubber feet prevent the appliance from sliding).
• Plug in the power cord and set the switch to the desired application. - Please sit down before putting your feet in the tub. There is no way you can stand in the tub!
- Relax and enjoy the gently stimulating foot massage and the refreshingly bubbling water. You can enhance the effect with non-foaming bath oils.
- After 10-15 minutes you can end the foot massage bath and switch off the unit. Unplug the power cord necessarily before emptying the tub.
• Empty the tub by leaning it in the opposite way from the protection against splashes. - We recommend resting afterward for an extended period of time (bed or couch) with your legs covered.
• To achieve long-term results, regular use (once or twice daily) is required.
Off (0)
Turns the unit off
Bubble + massage + infrared (1)
Set switch to this mark if you want to massage your feet in bubble cold water bath. A foot vibration massage with infrared is also possible with this setting.
Warm water + aroma diffuser (2)
Set switch to this mark if you want to massage your feet in warm water and aroma diffuser. To use the aroma diffuser (6), take it out from its housing, pour a few drops of aromatized oil on the cotton pad and put the diffuser back into its housing.
Massage + infrared (3)
Set switch to this mark if you want to massage your feet in cold water. A foot vibration massage with infrared is also possible with this setting.
PHYSIOLOGICAL EFFECTS
Proper use produces a measurable increase in blood circulation in the skin of the feet and then in the legs, which manifests itself in a pleasant and lasting feeling of warmth (rise in skin temperature) and in a relief in case of tiredness. Foot massage baths at regular intervals can produce improved blood circulation in the feet and indirectly in the entire leg area as well.
AREAS OF APPLICATION
- Chronically cold feet as a result of a disorder in the circulation in the legs caused by the autonomic nervous system.
• Tired and painful feet after long hours working in a sitting or standing position. - For preventing colds. With foot muscle or joint tension/limited freedom of movement of the feet.
• To soften skin and blisters in preparation of further foot care. - If you have inflamed leg veins, consult your physician before use.
CLEANING
- Disconnect wall plug before emptying water from unit and allow appliance to cool down.
- Wipe tank with soft cloth.
- Never use abrasive products because this could damage the inner and outer side of the appliance.
• Never immerse the appliance in water or any other liquid.
PEDICURE SET
Your foot massager is delivered with a pedicure set and 4 attachments (1 fine shaping disc, 1 rough shaping disc and two small brushes) for taking care of your feet.
BEFORE USE
• This appliance runs on 2 AA/LR6 batteries.
- Open the battery housing by sliding it according to the arrow on the housing.
- Insert the batteries respecting the polarities.
- Close the battery housing.
Insert one of the four attachments on the appliance. Make sure you insert it completely and correctly. You can choose between two rotation speeds.
Batteries
If your appliance does not work properly, it is probably because the battery is discharged. In that case, replace it by a new one of the same type (cf. Before use). Please eliminate the old battery in an environmentally friendly way.
PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
