FP 12 - Juicer TEAM - Free user manual and instructions

Product type	Juice extractor (citrus press)
Brand	Team
Model	FP 12
Use	Extraction of citrus juice (oranges, lemons, grapefruits)
Power supply	230 V ~ 50 Hz
Rated power	30 W (estimated)
Dimensions (L x l x h)	15 x 15 x 20 cm (estimated)
Weight	1 kg (estimated)
Juice container capacity	500 ml (max)
Materials	Food-grade plastic, stainless steel (strainer)
Main function	Rotation of the cone to press fruits
Automatic stop function	Yes, as soon as pressure is released
Max continuous use time	20 minutes (see rating plate)
Mandatory pause	At least 10 minutes
Care and cleaning	Manual disassembly, wash with soapy water, motor unit wiped with a damp cloth
Dishwasher safe	No, all parts must be hand washed
Spare parts	Strainer, cone, juice container, drive shaft
Repairability	Repair by a qualified competent service
Safety	Do not immerse the motor unit, do not use near heat sources, unplug before cleaning
Recommended accessories	Only those supplied by the manufacturer
Domestic use	Yes, for small amounts of juice
Warranty	Not specified

Frequently Asked Questions - FP 12 TEAM

What types of fruit can I use with the FP 12?

The FP 12 is designed for soft fruits like oranges, lemons, grapefruits. Do not try to extract juice from hard fruits (pineapple, mango) or overly large ones.

Can I put the parts of the appliance in the dishwasher?

No, never put the parts in the dishwasher. Wash them by hand in soapy water.

How do I clean the motor unit?

Clean the motor unit with a damp cloth. Never immerse it in water.

What is the maximum continuous use time?

Check the rating plate of the appliance for the time noted 'KB xx min'. Generally, it is 20 minutes. Respect a pause of at least 10 minutes.

What should I do if the power cord is damaged?

Stop using the appliance immediately. Have the cord replaced by a qualified competent service.

Can I use the appliance for large quantities of juice?

No, this appliance is intended for small quantities. Do not exceed the Max level of the container (about 500 ml). Empty the container before continuing.

How do I assemble and use the FP 12?

Place the container on the shaft and fix it by turning clockwise. Add the strainer and the cone. Cut the fruits horizontally, then press by exerting pressure on the cone. Release to stop.

Does the appliance stop automatically?

Yes, the rotating motion stops as soon as you release pressure on the fruit.

Can I use accessories not supplied by Team?

No, using non-recommended accessories can be dangerous and damage the appliance.

Where can I find the complete manual?

You can download the manual for free in PDF format from notice-facile.com.

USER MANUAL FP 12 TEAM

White ceramic teapot with lid and spout, no visible text or symbols

team international

Fruchtpresse

Fruitjuicer

Presse-Fruits

Sapcentrifuge

Exprimidor

Espremedor De Citrinos

Spremiagrumi

CE

I/B Version

000611

TEAM FP 12 A

230 V \~ 27 W

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Front cover page (first page)

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

ZUSAMMENSETZEN UND GEBRAUCH

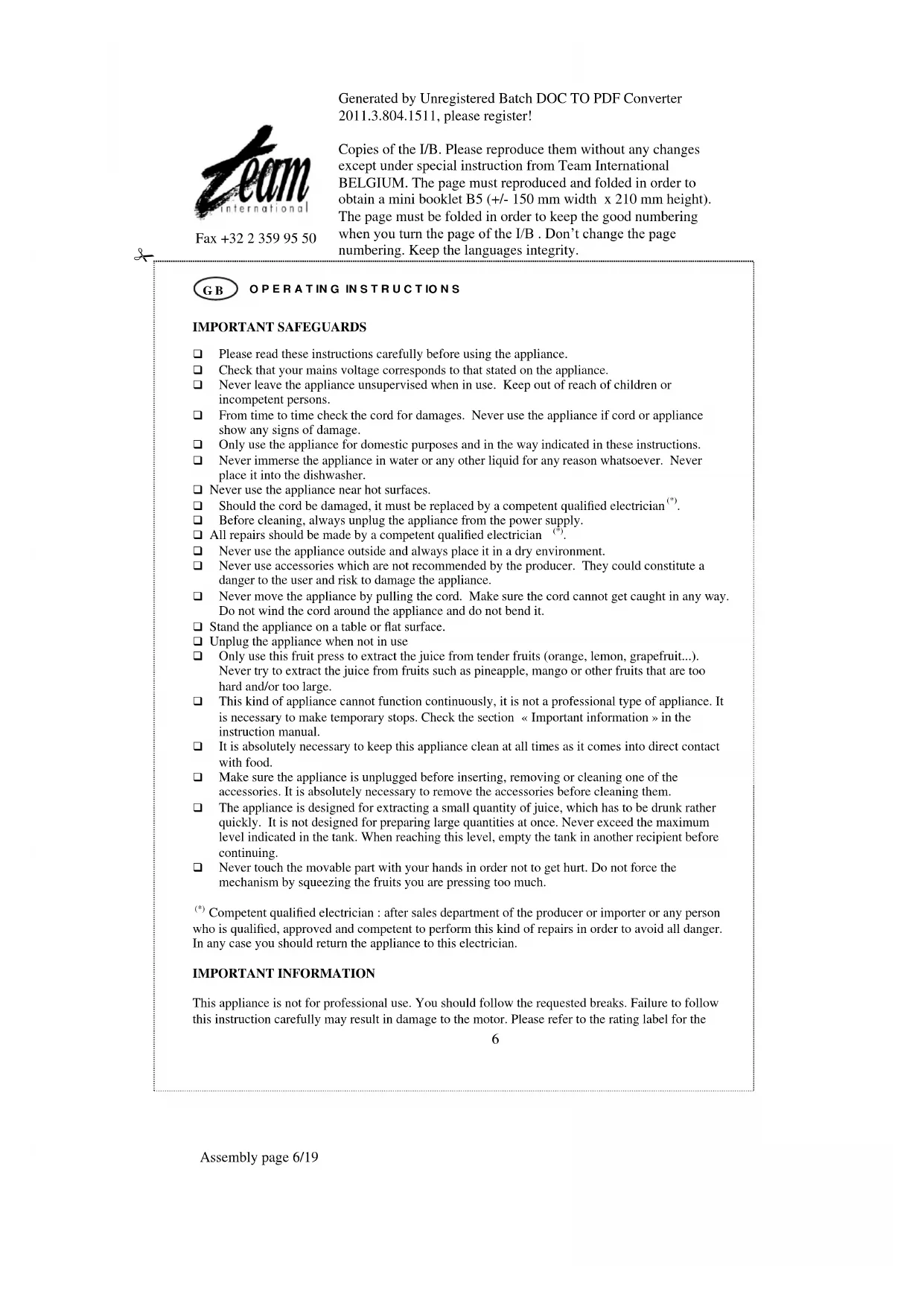

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified electrician ^() .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified electrician ^() .
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Stand the appliance on a table or flat surface.
□ Unplug the appliance when not in use
☐ Only use this fruit press to extract the juice from tender fruits (orange, lemon, grapefruit...). Never try to extract the juice from fruits such as pineapple, mango or other fruits that are too hard and/or too large.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
☐ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ Make sure the appliance is unplugged before inserting, removing or cleaning one of the accessories. It is absolutely necessary to remove the accessories before cleaning them.
☐ The appliance is designed for extracting a small quantity of juice, which has to be drunk rather quickly. It is not designed for preparing large quantities at once. Never exceed the maximum level indicated in the tank. When reaching this level, empty the tank in another recipient before continuing.
☐ Never touch the movable part with your hands in order not to get hurt. Do not force the mechanism by squeezing the fruits you are pressing too much.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

ASSEMBLING & USE

• Place juice container on shaft protruding from cabinet and fix it while turning clockwise.
  • Fit the filter with extractor lone over shaft inside juicer container.
• Cut citrus fruit in half, cutting across sections.
• Simply push down on extractor cone with fruit to start the juicing action automatically... lift the fruit shell off the extractor lone and action stops.
  • On completion of extraction, pull the filter with extractor cone from the central shaft.
• Now you can remove the juice container with the juice.

CARE & CLEANING

• Put juice container straight up and disassemble parts.
• Wash in warm soapy water. To clean juicer parts.
  • Disassemble carefully and wash in hot, soapy water.
• Do not wash in automatic dishwasher.
  • To clean cabinet, wipe with damp cloth.
• Do not immerse cabinet in water or any liquid. Motor and internal gears are permanently lubricated.

MODE D'EMPLOI

POUR VOTRE SECURITE
