FP 11 - Juicer TEAM - Free user manual and instructions

Product type	Electric citrus juicer
Brand	TEAM
Model	FP 11
Use	Household use only
Power supply	Mains 220-240 V ~ 50/60 Hz
Housing material	Plastic
Accessory material	Plastic
Tank capacity	Approximately 500 ml
Main functions	Juicing citrus fruits (orange, lemon, grapefruit)
Mechanism type	Fruit-activated rotating cone
Included accessories	Juice container, sieve, cone
Care and cleaning	Accessories washable by hand in soapy water; wipe motor unit with damp cloth
Dishwasher	Do not put in dishwasher
Safety	Unplug before assembling, disassembling or cleaning; never immerse in water; do not use outdoors
Continuous operation time	Check rating plate (e.g., 10-15 min); mandatory pause of at least 10 minutes after each use
Dimensions (approx.)	Height 25 cm, Width 20 cm, Depth 20 cm
Weight (approx.)	1.2 kg
Cable length	Approximately 1 m
Repairability	All repairs must be carried out by qualified service; damaged cable must be replaced by a professional
Fruit compatibility	Soft fruits (citrus) only; do not use for pineapple, mango, etc.
Instruction manual	Included (20 pages, French)

Frequently Asked Questions - FP 11 TEAM

How to assemble the appliance?

Place the juice container on the motor unit shaft turning clockwise. Then fit the sieve and cone onto the shaft inside the container.

Which fruits can I use with this juicer?

This appliance is designed for soft fruits such as oranges, lemons and grapefruits. Do not attempt to juice hard fruits like pineapple or mango, as this could damage the appliance.

Can I wash the parts in the dishwasher?

No, never put the accessories in the dishwasher. Wash them by hand in soapy water.

How to clean the motor unit?

Use a damp cloth to clean the motor unit. Never immerse the appliance in water and do not put it in the dishwasher.

What is the continuous operation time?

Check the appliance rating plate for the maximum time (marked KB xx min). After each use, take a break of at least 10 minutes before using the appliance again.

What to do if the power cord is damaged?

If the cable is damaged, it must be replaced by a qualified service. Do not use the appliance with a damaged cable.

Can I use the appliance for hard fruits?

No, this juicer is designed only for citrus and other soft fruits. Hard fruits may damage the mechanism and the motor.

Can the appliance operate continuously?

This appliance is not professional grade. It cannot operate continuously. Observe pauses of at least 10 minutes between each use to avoid damaging the motor.

How to disassemble the appliance for cleaning?

First unplug the appliance. Separate the sieve and cone from the shaft, then remove the juice container by turning counterclockwise. Wash the parts separately.

What to do if the appliance does not work?

Check that the appliance is properly plugged in and that the mains voltage matches that of the appliance. If the problem persists, contact a qualified service. Do not attempt to repair it yourself.

USER MANUAL FP 11 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fruchtprése

Citrus Press

Presse-Fruits

Fruitpers

Exprimidor

Espremedor de Citrinos

Spremiagrumi

CE

I/B Version

010306

TEAM FP 11

230 V ~ 40 W

GEBRAUCHSANLEITUNG

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

ZUSAMMENSETZEN UND GEBRAUCH

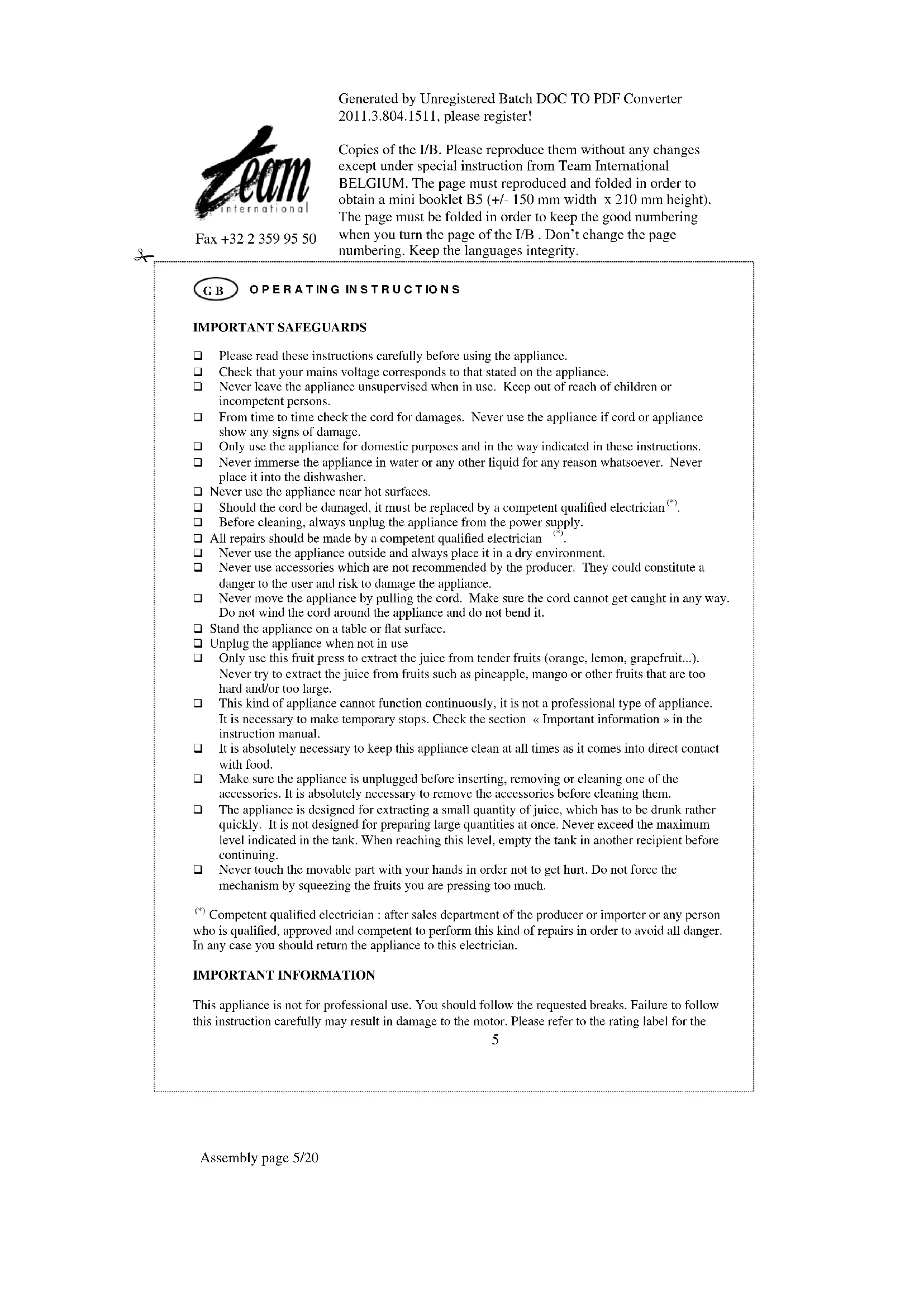

Please read these instructions carefully before using the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.

From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Should the cord be damaged, it must be replaced by a competent qualified electrician (^*)

Before cleaning, always unplug the appliance from the power supply.

□ All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment.

• Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Stand the appliance on a table or flat surface.

Unplug the appliance when not in use

Only use this fruit press to extract the juice from tender fruits (orange, lemon, grapefruit...). Never try to extract the juice from fruits such as pineapple, mango or other fruits that are too hard and/or too large.

This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.

It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

Make sure the appliance is unplugged before inserting, removing or cleaning one of the accessories. It is absolutely necessary to remove the accessories before cleaning them.

The appliance is designed for extracting a small quantity of juice, which has to be drunk rather quickly. It is not designed for preparing large quantities at once. Never exceed the maximum level indicated in the tank. When reaching this level, empty the tank in another recipient before continuing.

Never touch the movable part with your hands in order not to get hurt. Do not force the mechanism by squeezing the fruits you are pressing too much.

(^*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

ASSEMBLING & USE

• Place juice container on shaft protruding from cabinet and fix it while turning clockwise.
• Fit the filter with extractor lone over shaft inside juicer container.
• Cut citrus fruit in half, cutting across sections.
• Simply push down on extractor cone with fruit to start the juicing action automatically... lift the fruit shell off the extractor lone and action stops.
• On completion of extraction, pull the filter with extractor cone from the central shaft.
• Now you can remove the juice container with the juice.

CARE & CLEANING

• Put juice container straight up and disassemble parts.
• Wash in warm soapy water. To clean juicer parts.
• Disassemble carefully and wash in hot, soapy water.
• Do not wash in automatic dishwasher.
  To clean the body, wipe with damp cloth.
• Do not immerse the body in water or any liquid. Motor and internal gears are permanently lubricated.

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

INTERVALLES D'UTILISATION

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GEBRUIKSINTERVAL
