FP 19 - Juicer TEAM - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Team
Model	FP 19
Power supply	220-240 V ~ 50/60 Hz
Power	Approx. 100 W
Dimensions (L x W x H)	Approx. 20 x 20 x 30 cm
Weight	Approx. 1.5 kg
Juice reservoir capacity	Approx. 500 ml (Max level)
Number of cones	2 (small and large)
Automatic on/off function	Yes, by pressing the fruit
Reverse rotation (anti-jam)	Yes, in case of excessive pressure
Pulp and seed filter	Yes, built-in
Cord storage	Yes, cord wrap under base
Material of food contact parts	Food-grade plastic
Cleaning of accessories	Hand wash with soapy water (not dishwasher safe)
Cleaning of motor unit	Damp cloth, do not immerse
Maximum continuous operating time	Approx. 5 minutes (see rating plate)
Minimum rest between cycles	10 minutes
Suitable fruits	Citrus fruits (orange, lemon, grapefruit...)
Warranty	2 years (parts and labor)

Frequently Asked Questions - FP 19 TEAM

Which fruits can I use with the Team FP 19?

The appliance is designed for soft fruits like oranges, lemons, grapefruits. Do not try to extract juice from hard fruits (pineapple, mango) or overly large ones.

How to assemble the FP 19 citrus juicer?

Place the juice container on the motor shaft and turn it a quarter turn clockwise. Then insert the filter and then the small cone. For the large cone, simply snap it onto the small one.

What to do if the cone rotation reverses?

This indicates too much pressure or a fruit that is too hard. Slightly release the pressure; if rotation returns to normal, continue. Otherwise, the juice is extracted or the fruit is unsuitable.

How to clean the Team FP 19?

Disassemble the container, filter, and cones. Wash them with soapy water and rinse with clear water. Do not put them in the dishwasher. The motor unit is cleaned with a damp cloth, never immerse it.

Can I use the appliance continuously?

No, the appliance is not professional. Respect the continuous operating time indicated on the rating plate (usually 5 minutes) and take a break of at least 10 minutes between each cycle.

The power cord is damaged. What to do?

Do not use it. The cord must be replaced by a qualified competent service (manufacturer or importer after-sales service) to avoid any danger.

How to extract juice correctly?

Cut the fruit in half, place the flesh against the cone, and apply gradual pressure. The appliance starts automatically. Release to stop. Do not force to avoid reversal.

Can I use the juicer for large quantities?

No, the appliance is intended for small quantities. Do not exceed the Max level of the tank. Empty it into another container before continuing if necessary.

How to store the appliance?

Wrap the cord around the base in the designated compartment. Store clean and dry accessories in a dry place, out of reach of children.

What to do if the appliance no longer works?

First check the power supply and safety instructions. If the problem persists, contact a qualified competent service for diagnosis and repair. Do not attempt to repair it yourself.

USER MANUAL FP 19 TEAM

Exterior view of a modern glass coffee maker with a spout and handle (no text or symbols visible)

Zitruspresse

Citrus press

Presse-Fruits

Fruitpers

Exprimidor

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Exploded view diagram of a coffee maker with a griddle and lid, showing internal structure and cleaning steps (no text or symbols)

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the rating plate of the appliance.
☐ Never leave the appliance unsupervised when under tension. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, all repairs should be made by a competent qualified electrician ^* .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the base of your appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
☐ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Stand the appliance on a table or flat surface.
☐ Unplug the appliance when not in use.
☐ Only use this citrus press to extract the juice from tender fruits (orange, lemon, grapefruit...). Never try to extract the juice from fruits such as pineapple, mango or other fruits that are too hard and/or too large.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ Make sure the appliance is unplugged before inserting, removing or cleaning one of the accessories. It is absolutely necessary to remove the accessories before cleaning them.
☐ The appliance is designed for extracting a small quantity of juice, which has to be drunk rather quickly. It is not designed for preparing large quantities at once. Never exceed the maximum level indicated in the tank. When reaching this level, empty the tank in another recipient before continuing.
☐ Never touch the movable part with your hands in order not to get hurt. Do not force the mechanism by squeezing the fruits you are pressing too much. There is a device that prevents if the press hold too firm is. So the cone rotation will reverse itself, which means that you have to release the pressure on the fruit lightly before continuing to prepare.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the allowed maximum usage time). The breaks should last at least 10 minutes.

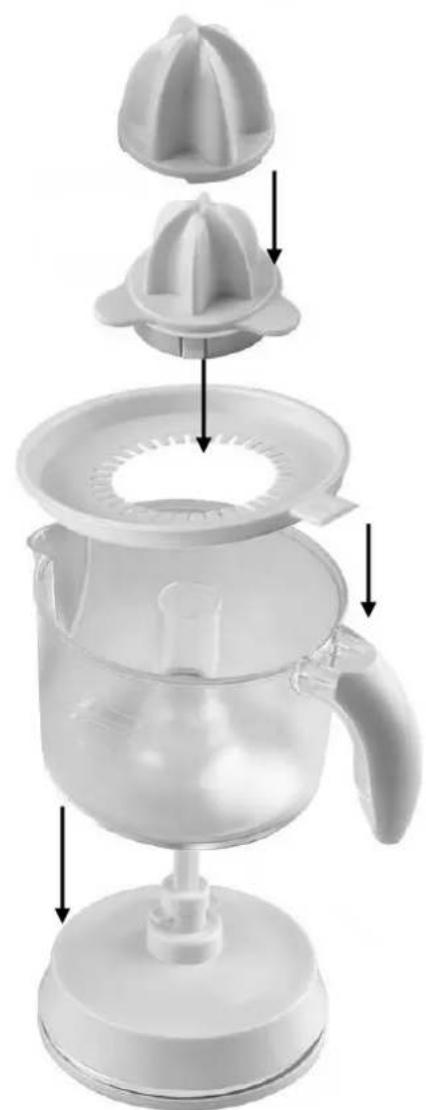

ASSEMBLY (SEE PAGE 2) & USE

• Place the juice container on shaft protruding from the motor block.
  • Therefore rotate it from a quarter clockwise until it stops.
• Then fit the sieve and then the small cone over shaft inside juicer container.
• The appliance is provided with 2 pressing cones of different diameter (a small one and a big one) that you can use following the fruit dimensions. Only the small cone can be fitted to the sieve. To use the big cone, just put it over the small cone.
  • Cut citrus fruit in half, cutting across sections. Place the inner side of the fruit on the cone.
• Simply push down on the extractor cone with fruit to start the juicing action automatically.
• If the rotation reverses itself, this means that the pressure on the cone is too hard and or the fruit is too hard (lightly release the pressure to check if the rotation becomes normal again or stop the action), or the juice has been completely extracted and you have to stop. When you stop pressing on the cone, the rotation stops automatically.
• To serve the extracted fruit juice, take the container by the handle and turn it from a quarter anti-clockwise and remove the cone and the sieve from the container. Only the fruit juice remains in the container because the pulp and the pips will get in the sieve.
  • After cleaning you can also roll the cord around the base in the cord storage.

CARE & CLEANING

• Disassemble parts (container, sieve, cone) in the way indicated before.
- Clean the accessories of the appliance in warm soapy water and rinse them with clear water. Do not put the accessories in the dishwasher.
- Never put the motor block in the dishwasher. To clean the motor housing, wipe with damp cloth, only when necessary. Never immerse the motor housing in water or any other liquid.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

TEAM FP 19 (Y)

Deutsch	3
English	5
Français	7
Nederlands	9
Español	11
Português	13
Italiano	15
