ST 32 C - Vacuum Cleaner TEAM - Free user manual and instructions

Product type	Canister vacuum with dust container
Brand	TEAM
Model	ST 32 C
Suction power	Variable electronic (MIN...MAX adjustment)
Power supply	Mains, voltage to check on rating plate
Cord length	With automatic cord rewinder, yellow and red markings for limits
Filtration system	4 levels: centrifugal, nylon filter, accordion filter, air outlet filter
Filtration efficiency	Greater than 99%
Dust container capacity	Not specified, empty after each use
Included accessories	Combined nozzle 2 positions, small brush, flat nozzle, telescopic tube
Special features	Automatic cord rewinder, electronic power control, carrying handle
Filter maintenance	Washable with warm water, dry completely before reassembly
Container maintenance	Easy emptying by unlocking the bottom
Use	Domestic, for floors, carpets, rugs, smooth surfaces
Safety	Do not vacuum liquids or hot ashes, unplug before maintenance
Repairability	Contact a qualified service technician for any repairs
Environmental protection	Do not dispose with household waste, comply with WEEE directive

Frequently Asked Questions - ST 32 C TEAM

How to assemble the TEAM ST 32 C vacuum cleaner?

Connect the hose into the opening on the front of the device until it clicks. Attach the telescopic tube to the hose handle, then mount the brush at the end of the tube.

How to adjust the suction power?

Slide the electronic power control (7) located on the device body. Use low power for curtains and delicate surfaces, maximum for carpets and floors.

How to empty the dust container?

Press the release button (13) to remove the container. Open the bottom by pressing button (15) and empty it. For a thorough cleaning, separate the cover via button (14) and wash the filters in warm water.

How to clean the filters?

Remove the nylon filter (16) and the filter assembly (17) by turning and pulling. Wash them under warm running water. Dry completely before reinstalling. The air outlet filter at the back is also washable.

What to do if the cord does not retract completely?

Unwind about 50 cm of additional cord, then press the rewinder button again. If the problem persists, have it checked by a qualified service.

What accessories are supplied with the vacuum?

The device comes with a 2-position combined nozzle, a small brush, a flat nozzle, and a telescopic tube.

Can I vacuum liquids with this vacuum?

No, never vacuum liquids, especially flammable ones. The device is designed only for dry cleaning.

How to replace a worn filter?

Filters should be changed regularly. Contact your after-sales service to purchase replacement filters suitable for the ST 32 C model.

What do the yellow and red markings on the cord mean?

The yellow mark indicates that you have almost fully unwound the cord. The red mark is the maximum limit not to exceed to avoid damaging the cable.

How to respect the environment at the end of the device's life?

Do not throw the vacuum in a household waste bin. Dispose of it at a selective collection point for electrical and electronic waste (WEEE) in accordance with directive 2002/96/EC.

USER MANUAL ST 32 C TEAM

Bagless vacuum cleaner

Aspirateur sans sac

1. Floor brush
2. Telescopic tube
3. Handle
4. Flexible hose
5. Dust container
6. Automatic cord rewind
7. Power regulator MIN...MAX
8. Carrying handle
9. ON/OFF switch
10. Rear wheel
11. Body
12. Hose connector
13. Release button of dust container
14. Release of the lid of the dust container
15. Release of the bottom of the dust container

FR

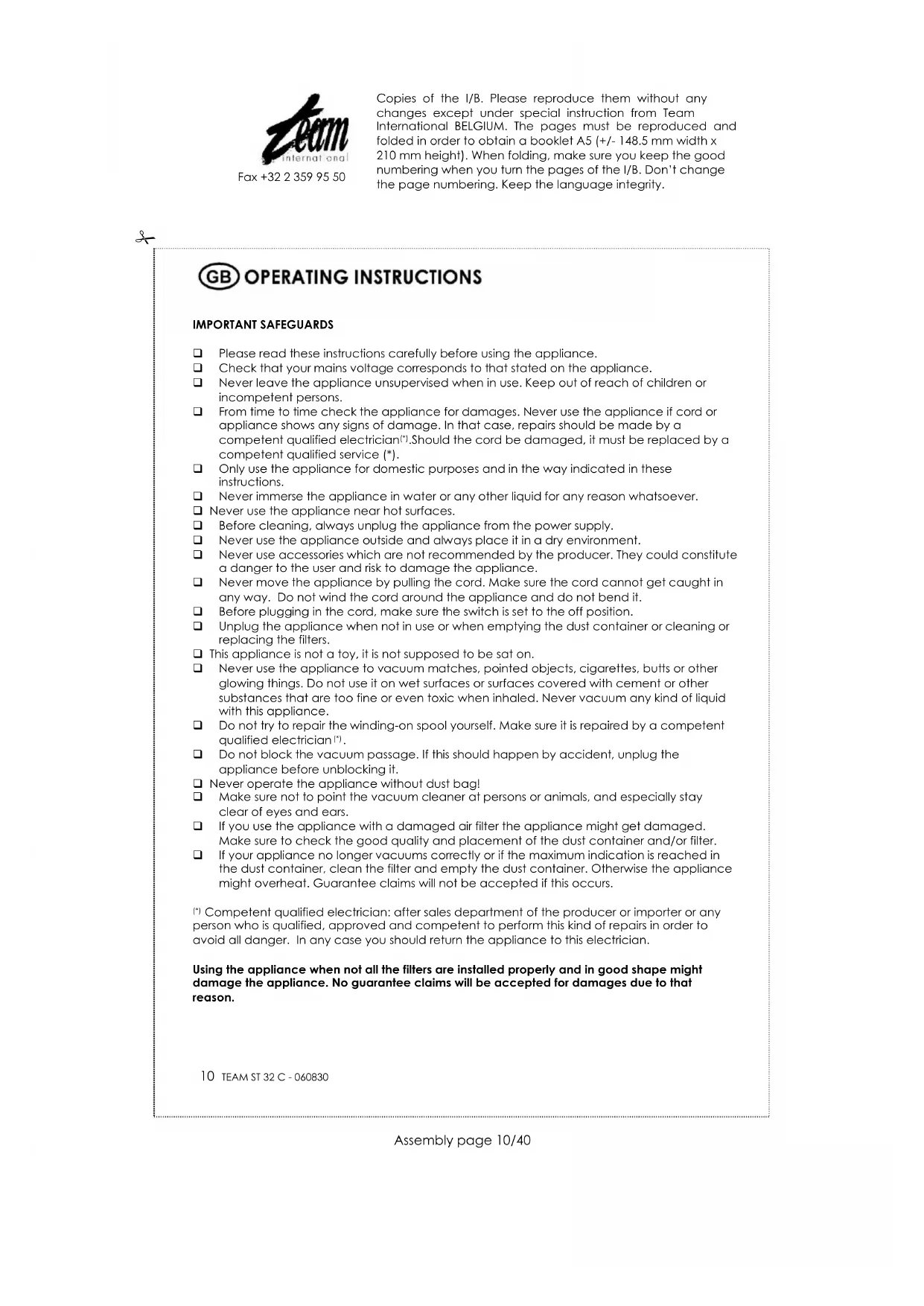

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician! Should the cord be damaged, it must be replaced by a competent qualified service (^*)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the off position.
Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.
This appliance is not a toy, it is not supposed to be sat on.
Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance.
Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician.
Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
Never operate the appliance without dust bag!
Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
If you use the appliance with a damaged air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filter.
If your appliance no longer vacuums correctly or if the maximum indication is reached in the dust container, clean the filter and empty the dust container. Otherwise the appliance might overheat. Guarantee claims will not be accepted if this occurs.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.

ASSEMBLING THE VACUUM CLEANER

• Unpack the appliance and its accessories.
• Insert the connection piece of the flexible hose into hose connection inlet on the front part of the appliance. Press until it clicks.

• To remove the hose, unplug the appliance first. Press the release button on top of the hose connection piece and pull the hose out of the connection inlet.
• Fit the handle to the telescopic tube

• Fit the floor brush to the other end of the telescopic tube.

The floor brush possesses two positions. It is ideal for the daily cleaning of carpets and hard floors.

11 TEAM ST 32 C -060830

The vacuum cleaner is delivered with the following accessories:

1 small brush

1 crevice tool

USE

Pull out a sufficient length of power cord. A yellow mark on the power cord shows the ideal cable length. Do not extend the cable beyond the red mark. Insert the plug into the power socket and switch on the appliance by pressing the ON/OFF switch.
- The suction power can be adjusted steplessly by sliding the power regulator [7]. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

AFTER USE

• Stop the vacuum cleaner by pressing the ON/OFF switch (9).
• Unplug the appliance from the power supply and press the cable rewind button (6) to rewind the cable automatically. Should the cable block, pull it out 50~cm and try again.
• For hygienic reasons, empty the dust container after each use if possible (see cleaning section)
  If you do not use the appliance any longer, place it vertically. You can park the telescopic tube thanks to its bracket (which must be attached to the groove situated at the bottom of the appliance).

CLEANING THE DUST CONTAINER AND THE FILTERS

The filters guarantee you fresh air when vacuum cleaning. Filters that are maintained properly will allow your appliance to keep its maximum suction power. The dirtier the filters, the weaker the suction power will be. It is necessary to clean the filters regularly to avoid operation problems. The vacuum cleaner has a quadruple filtration system, which allows a filtration rate of more than 99% . The filtration system consists of the following elements:

A centrifugal filtration generated by the movement of the air in the dust container. Therefore it is necessary to empty the dust container regularly.
- A nylon filter (16) that filters the bigger dust particles
- An accordion filter (17) that filters the smaller dust particles
A supplementary air filter that filters the dust particles coming from the motor.

Each filter should be checked, cleaned or replaced respecting the following instructions:

1. Take the dust container out of the appliance by pressing the upper release button (13).
2. Open the bottom of the container by pressing the lower release button (15) and empty the container.

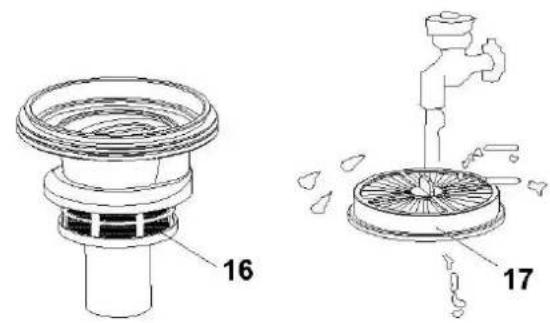

1. Separate the cover from the dust container by pressing the release button (14), remove the nylon filter (16) and the filter assembly (17) by turning and pulling at them.
2. You can clean the dust container and the filter under lukewarm running water.

1. Dry all the parts thoroughly and reassemble them.

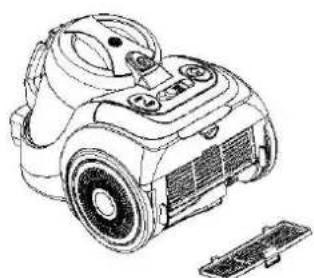

2. From time to time also clean the air filter situated in the back of the appliance. To do so, open the grid and remove the filter, clean it and reinsert it with the grid. Only reassemble the filter when it is fully dry.

13 TEAM ST 32 C -060830

After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
