USER MANUAL ST 9 ET TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/28

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

3. Cord rewind mechanism

4. Air outlet grid with HEPA-filter

5. Lid of the accessory compartment

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

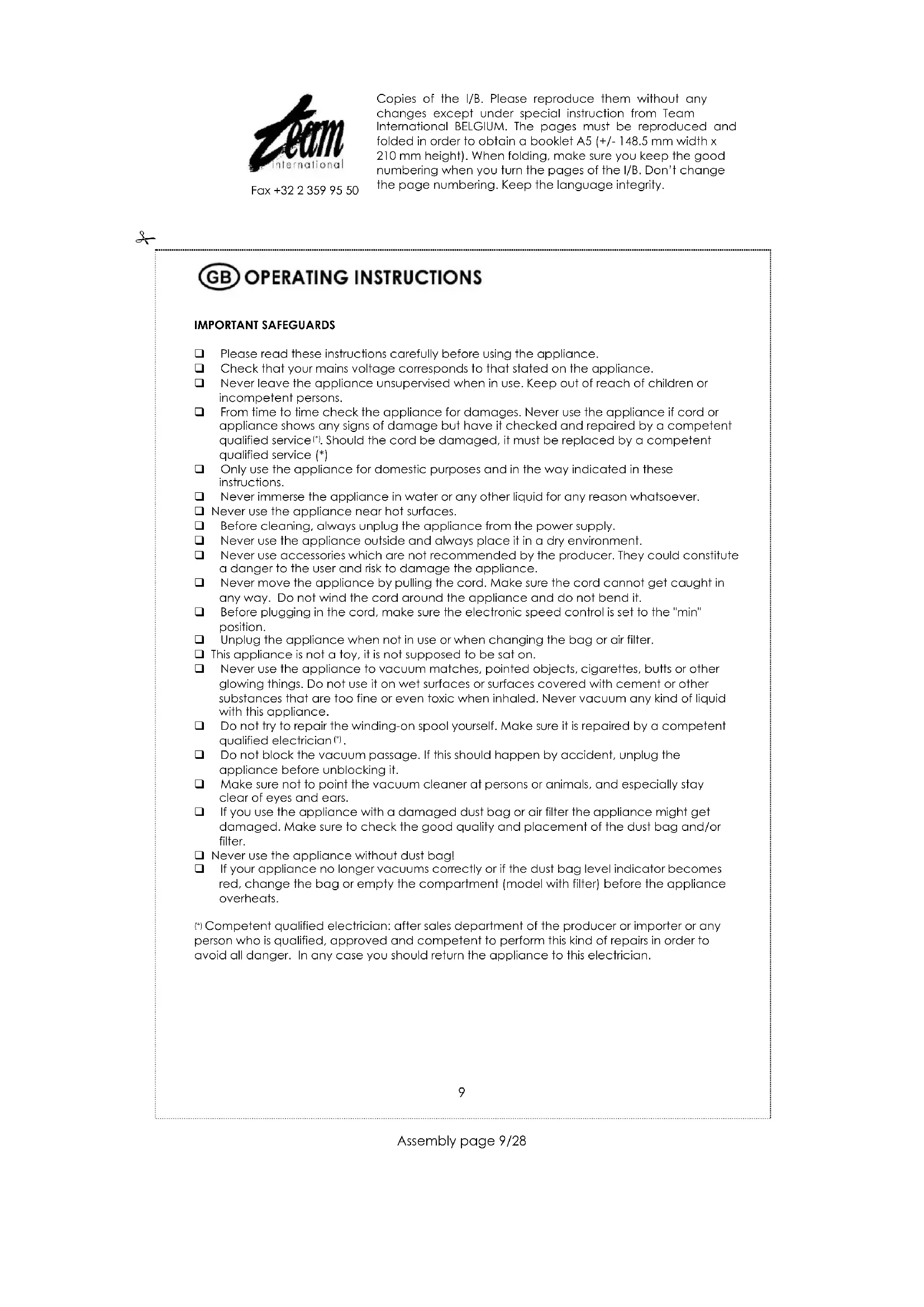

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*) Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Before plugging in the cord, make sure the electronic speed control is set to the "min" position. Unplug the appliance when not in use or when changing the bag or air filter. This appliance is not a toy, it is not supposed to be sat on. Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance. Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it. Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears. If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter. Never use the appliance without dust bag! If your appliance no longer vacuums correctly or if the dust bag level indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Always remove the plug from the power socket before fitting or removing accessories! Insert the connection piece [8] of the flexible hose into hose connection inlet on top the appliance. Press until it clicks. To remove the flexible hose, press on the two release buttons of the connection piece and pull it out of the appliance. Attach handle of the hose to the telescopic tube [7]. Fit the desired brush or accessory to the other end of the telescopic tube. You can adjust the length of telescopic tube according to your own size. To do so, slide the release button in the direction of the telescopic tube and set the desired length. The tube will then block itself automatically in the desired position. The floor brush [10] is ideal for the daily cleaning of carpets and hard floors. There are two settings on the floor brush. Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors. The vacuum cleaner is delivered with the following accessories: - Crevice tool - Upholstery brush. OPERATIONS When your appliance is assembled, you just need to pull out the power cord up to the desired length. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark, as this would damage the cord rewind mechanism. Should you exceed the red mark, no guarantee claims will be accepted. Put the plug in the power socket and switch on the appliance by pressing the ON/OFF switch [1] with your foot. Whatever the chosen power, when switching on the appliance, the appliance will start progressively. As a result, there might be a short time-lag (1 or 2 seconds) between the moment you press the on/off switch and the moment the appliance really starts. This is normal. You can adjust the suction power with the electronic power regulator [2]or you can also adjust the suction power by using the wind-force adjuster on the handle. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors. AFTER USE Stop the vacuum cleaner by pressing the ON/OFF switch. Unplug the appliance from the power supply. Simply press the cord rewind button [3] down to activate the cable rewind mechanism. Guide the power word in order to prevent it from becoming entangled. REPLACING THE DUST BAG AND CLEANING THE FILTERS The filter system consists of: 1 double Motor filter 1 HEPA air filter, to vacuum the smallest particles It is necessary to clean the filters regularly to avoid operating problems. Paper dust bag The dust bag level indicator indicates when the dust bag should be replaced. The hose might get blocked by a larger object. In this case the dust bag level indicator will be red. However this does not mean that you have to replace the dust bag. Just Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.

Fax [phone] remove the object, which blocks your tube or flexible hose, and your appliance will function properly again. Do not forget to unplug the appliance before removing the blocking object. Replace the dust bag when the dust bag level indicator is completely red. Disconnect the flexible hose and open the front cover by pressing the release button situated between the hose connection inlet and the handle. Remove the dust bag and throw it in the dustbin. To put a new dust bag in the appliance, proceed the other way around, taking the direction indicated on the dust bag into consideration. Make sure to put it correctly in the appliance, i.e. make sure that the hole in the dust bag carton is right across the hose connection inlet. Close the front cover by pressing it slightly, check if the hole of the carton matches the hole of the front cover and connect the flexible hose. Motor filter To clean the motor filter, remove it and wash it in soapsuds. (approximately every 3 months). Let it dry completely before putting it back in the appliance. Air Filter This HEPA-filter guarantees fresh air during cleaning. It should be rinsed clean at least three times a year or when it becomes visibly solid. Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result. Unplug the appliance, open the filter supporting grate situated at the back of the appliance and pull the filter upwards. Check the state of the filter. If the filter is not dirty, put it back in the appliance. The rubber seal must face the motor. If the filter is dirty, it must be replaced. Close the grate back after having replaced the filter. PRACTICAL HINTS When cleaning stairs, we advise you to keep the unit in a vertical orientation. The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere. On the bottom of this appliance, there is a holder on which you can attach the telescopic tube. Put the appliance in vertical position to be able to attach the tube to the holder. If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

SPARE DUST BAGS / FILTERS

In order to get new dust bags or motor filters, please contact first of all the shop where you bought your vacuum cleaner, or, our customer service. You can order new HEPA filters from our customer service. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don‟t change the page numbering. Keep the language integrity.
