ST 19 - Vacuum Cleaner TEAM - Free user manual and instructions

Product type	Canister vacuum cleaner with bag
Brand	TEAM
Model	ST 19
Dimensions (L x W x H)	35 x 25 x 25 cm (estimate)
Weight	4.5 kg (estimate)
Power supply	Mains, attached power cable
Cable length	Approximately 5 meters
Tank capacity	2 liters (paper bag, estimate)
Filter type	Motor protection filter (washable) + air filter (washable)
Suction power	Manually adjustable on handle (low position for delicate surfaces, high for carpets)
Main functions	Bag full indicator, automatic cord rewinder, adjustable suction, 2-position combination nozzle
Included accessories	Combination nozzle (2 positions), crevice tool, upholstery brush
Maintenance	Empty paper bag, clean filters every 3 months approximately
Safety	Unplug before maintenance, do not vacuum liquids, do not use near heat sources, supervise children
Repairability	Have repairs done only by qualified service (manufacturer or importer after-sales service)
Usage	Household use only, indoors on dry floors

Frequently Asked Questions - ST 19 TEAM

How to assemble the ST 19 vacuum cleaner?

Unpack the appliance and its accessories. Connect the hose end into the front opening until it clicks. Assemble the tube onto the hose handle, then attach the combination nozzle or other accessory to the other end of the tube. The combination nozzle allows cleaning all surfaces by changing the brush position: brush retracted for carpets and rugs, brush extended for hard floors.

How to use the combination nozzle for different surfaces?

The combination nozzle has two positions: brush retracted position for carpets and rugs, and brush extended position for tiles or parquet (hard floors). Simply switch the brush according to the surface to be cleaned.

When should the dust bag be changed?

The bag full indicator turns red when the bag is full and needs to be replaced. Note: if suction is blocked by an object, the indicator may also turn red; in that case, remove the object before changing the bag. If the indicator remains red after lifting the brush from the surface, the bag is full.

What to do if the bag full indicator turns red even though the bag is not full?

This can happen if suction is blocked by a large debris or if you are vacuuming a thick carpet. In that case, remove the blocking object or lift the brush from the surface. If the indicator stays red, the bag is full; otherwise, you can continue using the vacuum cleaner.

How to clean the filters of the ST 19 vacuum cleaner?

The appliance has two filters: a motor protection filter (in the dust compartment) and an air filter (at the rear). To clean them (every 3 months approximately), open the compartment, remove the filter, clean it with water and detergent, rinse and let dry completely before replacing. Close properly.

What to do if suction decreases or the appliance makes an abnormal noise?

First check for blockages in the tube or hose. If suction is obstructed, unplug the appliance and clear the duct. If the problem persists (reduced power, abnormal noise, complete stop), take the appliance to an authorized center for inspection or repair.

How to use the cord rewinder?

Pull the plug to obtain the desired cord length. A yellow mark indicates that you have almost fully unwound the cord, and a red mark is the maximum limit not to exceed. To rewind the cord after use, turn off the appliance, unplug it, then press the rewinder button; the cord will rewind automatically.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry floors. Never vacuum liquids, especially flammable liquids. This could damage the appliance and pose a danger.

How to store the vacuum cleaner after use?

Turn off the appliance by pressing the ON/OFF switch. Unplug it. Press the rewinder button to store the cord. Store the appliance in a dry place away from heat and humidity. You can place it vertically to save space.

Where to find replacement bags for the ST 19 vacuum cleaner?

For any replacement of bags or motor protection filter, contact the store where you purchased the vacuum cleaner or the TEAM after-sales service. Use only paper bags recommended by the manufacturer.

USER MANUAL ST 19 TEAM

Staubsauger

Vacuum cleaner

Aspirateur

Stofzuiger

Aspirador

Aspirador

Aspirapolvere

Aspirator

Прахосмукачка

CE

I/B Version 091123

TEAM ST 19

230V\~ 50Hz 1400Wmax

D

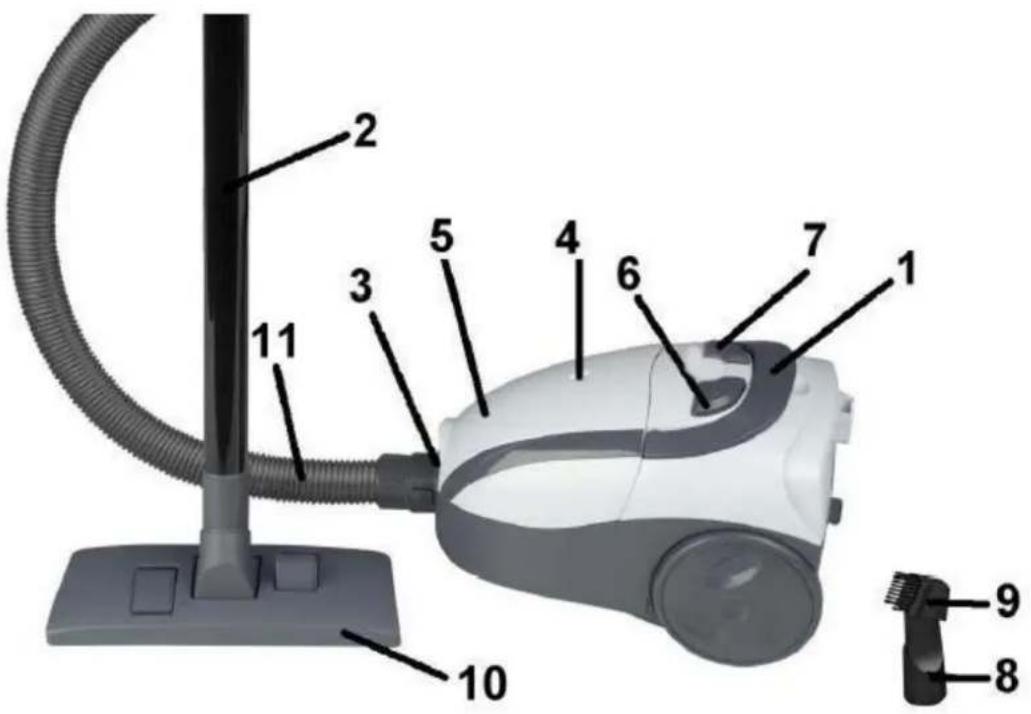

1. Handle
2. Tube
3. Hose connection inlet
4. Dust bag level indicator
5. Cover
6. Cable rewind button
7. On/off switch
8. Crevice tool
9. Upholstery brush
10. Floor brush
11. Flexible hose

F

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Before use, check that your network mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use or when plugged to the electric network.
☐ Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service ^[2] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever.
☐ Never use the appliance near hot surfaces.
☐ Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the off-position.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ^(*) .
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.
☐ If your appliance no longer vacuums correctly or if the dust container is full, clean the filter and empty the dust container in order to prevent the appliance from overheating.

ASSEMBLING THE VACUUM CLEANER

• Always remove the plug from the power socket before fitting or removing accessories!
- Insert the hose connector into the hose connection inlet until it locks. To remove the hose, press the sides of the hose connector and pull at the hose.
- Fit the tube to the handle.
• Fit the tube to the floor brush.
- Removing tube and accessories: to remove the accessories, pull firmly apart.
• The floor brush is ideal for the daily cleaning of carpets and hard floors.
Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors.
- The appliance is delivered with the following accessories:
- a crevice tool: for radiators, crevices, corners, baseboards and between cushions.
✿ an upholstery brush: for curtains, cushions, edges, doors, mattresses etc.

OPERATION

• Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark. Switch on the appliance by pressing the ON/OFF switch with your foot.
• You can adjust the suction power by using the wind-force adjuster on the handle. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

AFTER USE

• Stop the vacuum cleaner by pressing the ON/OFF switch.
• Unplug the appliance from the power supply.
  • Simply press the cable rewind button to activate the cable rewind mechanism.

REPLACING THE DUST BAG AND CLEANING THE FILTERS

Filters

The filter system consists of: 1 motor filter (in front of the motor in the dust compartment) 1 air filter, to vacuum the smallest particles (at the back of the appliance)

It is necessary to clean the filters regularly to avoid operating problems.

Paper dust bag

• The dust bag level indicator indicates when the dust bag should be replaced.
- The hose might get blocked by a larger object. In this case the dust bag level indicator will be red. However this does not mean that you have to replace the dust bag. Just remove the object which blocks your tube or flexible hose, and your appliance will function properly again. Do not forget to unplug the appliance before removing the blocking object. Replace the dust bag when the dust bag level indicator is completely red.
- Disconnect the hose.
- Open the dust compartment.
- Remove the dust bag from its holder and throw it in the dustbin.
- Put a new dust bag in its holder.

8 TEAM ST 19 - 091123

• Close the dust compartment by slightly pressing on the front cover.
• Connect the hose again to the appliance.

Motor filter

To clean the motor filter (filter situated in front of the motor), switch off the appliance, open the dust compartment and remove the filter to wash it in soapsuds (approximately every 3 months). When it is completely dry, put it back in the appliance.

Air Filter

• This air filter (situated behind the grid at the back of the appliance) guarantees fresh air during cleaning. It should be replaced approximately every 3 months (depending on the operating frequency).
• Switch off the appliance, open the grid, remove the filter and clean it in soapsuds. When it is dry, put it back and close back the grid.

PRACTICAL HINTS

• When cleaning stairs, we advise you to keep the unit in a vertical position.
• The vacuum cleaner requires no regular maintenance other than the filter cleaning and bag replacement tasks as detailed here above.
• If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

SPARE DUST BAGS

In order to get new dust bags or motor filters, please contact the shop where you bought your vacuum cleaner, or contact our customer service.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
