| Product type | Steam iron with spray |
| Brand | TEAM |
| Model | DAI 26 |
| Power supply | Mains 220-240 V ~ 50/60 Hz (according to European standards) |
| Main functions | Dry ironing, steam, spray, double steam |
| Temperature setting | 3 positions: MIN (synthetic), ● (silk/wool), MAX (cotton/linen) |
| Steam setting | 3 positions: (1) minimum, (2) medium, (3) maximum |
| Heating indicator | Yes, turns off when temperature is reached |
| Soleplate type | Metal soleplate (estimate) |
| Water tank capacity | Approximately 200 ml (estimate) |
| Recommended water type | Demineralised water |
| Care and cleaning | Unplug and allow to cool; clean plastic parts with a soft slightly damp cloth; soleplate with special non-abrasive cleaners |
| Safety | Do not leave unattended; do not immerse in water; do not use if cable is damaged |
| Spare parts and repairability | Repairs by a qualified competent service (manufacturer or importer after-sales service) |
| General information | Compliant with directive 2002/96/EC for recycling |
Frequently Asked Questions - DAI 26 TEAM
User questions about DAI 26 TEAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Iron in PDF format for free! Find your manual DAI 26 - TEAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DAI 26 by TEAM.
USER MANUAL DAI 26 TEAM
- Fill Opening
- Spray nozzle
- Double steamjet button
- Variable steam/dry dial
- Spray button
- Temperature indicator
- Temperature dial
- Soleplate
F
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
EINFULLEN DES WASSERS

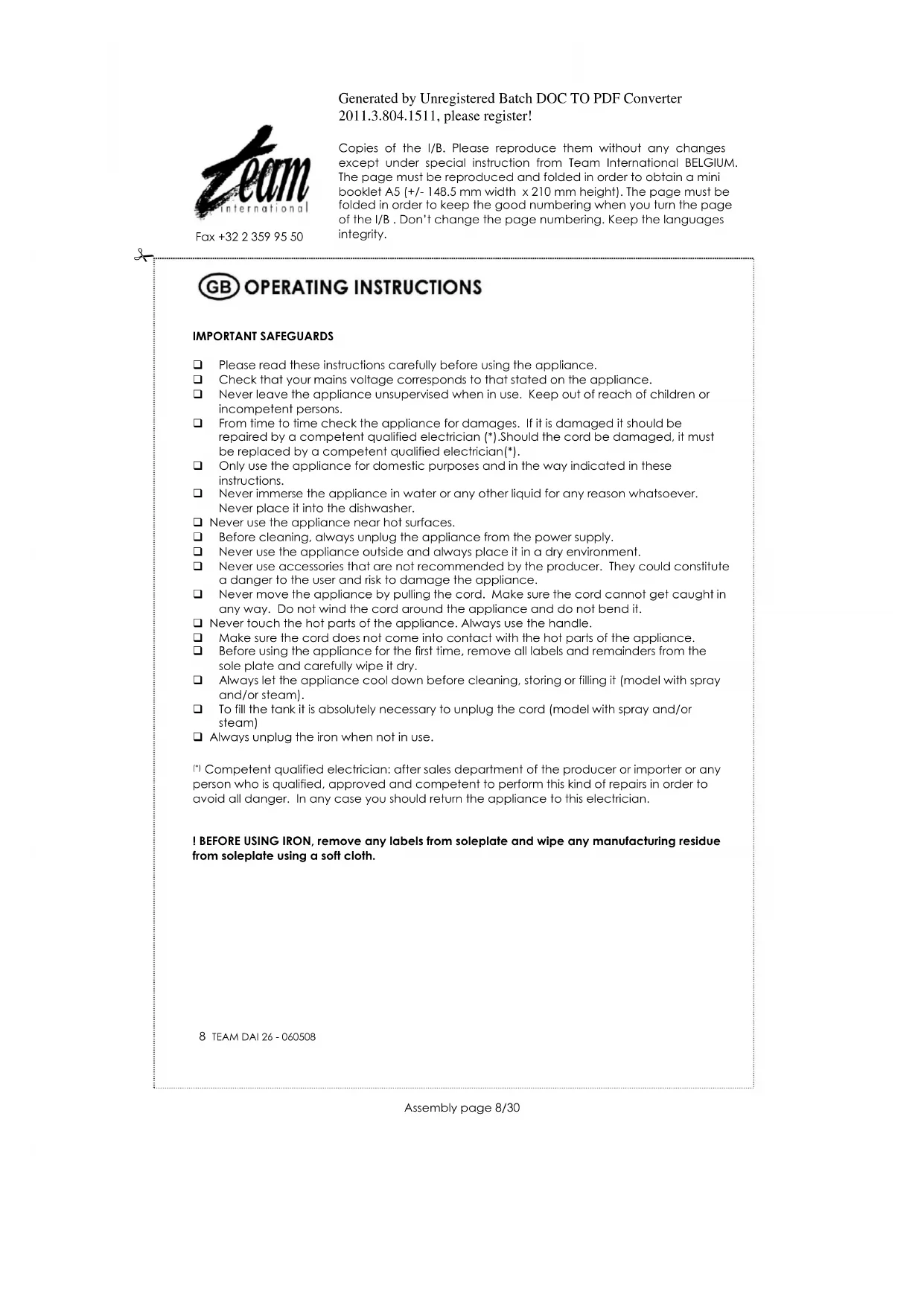

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance for damages. If it is damaged it should be repaired by a competent qualified electrician (^) . Should the cord be damaged, it must be replaced by a competent qualified electrician (^)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Never touch the hot parts of the appliance. Always use the handle.
Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam)
Always unplug the iron when not in use.
Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.
Fox +32 2 359 95 50
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
FILLING THE WATER TANK
Only use demineralised water. If you want to use the steam/dry dial fill the water tank as follows:
1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.
2) Turn the temperature dial to "MIN" and variable steam/dry dial to the (1) setting.
3) Using the measuring cup supplied or another adequate measuring cup and fill the water tank through the fill opening. Make sure not to exceed the "Max" mark. NOTE: never fill with anything but water.
TEMPERATURE SETTINGS
You can chose the temperature setting in function with the cloth to iron.
In order to turn the iron on, please turn the temperature knob clockwise into the required position.
DRY PRESSING
.
- Put the steam/dry dial on position (1).
- Plug in the iron.
- Set temperature dial for the desired fabric. Always check the label of the garment before choosing the temperature setting.
- Set iron on heel rest and wait until temperature indicator light goes out.
STEAM PRESSING
| Kind of textile | Temperature dial | Steam ironing |
| Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester, ...) | MIN | (1) |
| ● | ||
| | | ||
| Silk Wool | | | (2) |
| ●● | ||
| | | ||
| Cotton Linen | | | (3) |
| ●●● | ||
| | | ||
| MAX |
- Fill the water tank (variable steam/dry dial on position (1)).
- Plug in the iron.
- Turn the temperature dial clockwise into the required position.
- Turn variable steam/dry dial on (1) for minimum steam or on the positions (2) or (3) for a larger amount of steam.
- Set the iron on its heel and wait until the temperature indicator goes out.
9 TEAM DAI 26-060508
! Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate.
! Check the garment label before ironing because some coths may be damaged when exposed to steam or water.
SPRAY
- Produces a mist for removing stubborn creases.
Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray.
! Be sure to check the garment label for care instructions. Some fabrics may be damaged when exposed to steam or water.
STEAMJET
The steamjet feature provides additional steam for removing stubborn creases.
CARE AND CLEANING
Always unplug the appliance and let it cool down before cleaning.
To clean the plastic parts of the iron, use a damp cloth.
To clean the soleplate, make sure you use a product made especially for this purpose. Never use abrasive products.
WHEN YOU HAVE FINISHED IRONING
- Turn temperature dial to "MIN" and unplug iron from electrical outlet.
With soleplate facing away from you, turn iron upside down to empty water. - Then store the hot iron on its heel rest so that any remaining moisture will evaporate.
PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
FR MODE D'EMPLOI
POUR VOTRE SECURITE
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
POUR REMPLIR LE RESERVOIR
REPASSAGE AVEC VAPEUR
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
VULLEN VAN HET WATERRESERVOIR
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
PARALLENARELDEPOSITO
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
PER RIEMPIRE IL SERBATOIO
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
FYLLNING AV VATTENBEHÄLLARE
Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.
- Koppla på strykjärnet.
Vrid temperaturforvalsnappen medsols till det onskade laget.
Vrid den reglerbara angeffekt/forvalsnappen for torstrykning till (1) for minimal anga ell. till lage (2) aller (3) for en storre mangd anga.
