Brand	US Blaster
Model	USB 7007
Product type	DJ equipment (amplifier/mixer)
Format	Stereo and mono (switchable)
Input channels	2 x 4 unbalanced channels
Output channels	2 balanced channels
Volume control	Independent per channel
Power supply	Built-in 9V battery or external source
Battery life	≥ 12 hours continuous operation
Amplification gain	24 dB
Frequency response	20 Hz ~ 20 kHz ± 0.5 dB
Bandwidth (-3 dB)	10 Hz ~ 100 kHz
Total harmonic distortion (THD)	≤ 0.05% (20 Hz ~ 20 kHz)
Signal-to-noise ratio	≥ 80 dB
Dimensions (W x D x H)	152 x 95 x 58 mm
Care and cleaning	Clean with a soft, dry cloth. Avoid moisture.
Safety	Observe polarity and voltage of external power supply (see rating plate).
Main functions	Audio amplification, multi-channel mixing, stereo/mono switching.
Included accessories	Not specified in the manual.

Frequently Asked Questions - USB 7007 US Blaster

How to turn on the USB 7007?

Connect the built-in battery or external power supply. The device turns on automatically. Use the switch on the front panel if present.

What is the battery life?

The battery life is at least 12 hours in continuous operation with a new 9V battery.

How to connect microphones or instruments?

Connect your sources to the unbalanced inputs (6.35 mm jack) of channels 1 to 4. Adjust the volume of each channel with the corresponding potentiometers.

Can I use the device in stereo?

Yes, the device has a stereo/mono switch. In stereo position, the left and right outputs are independent.

How to adjust the master volume?

Use the main volume potentiometer on the front panel. Each channel also has an individual adjustment.

What to do if sound distorts?

Check that input levels are not too high. Reduce the gain of each channel or the main volume. Make sure the battery is not weak.

How to recharge the built-in battery?

The standard 9V battery is not rechargeable. Replace it with a new one. Some versions may accept a rechargeable battery, check the polarity.

What are the output specifications?

The balanced outputs deliver a maximum signal of 16 dB. The output impedance is suitable for connection to speakers or mixing desks.

The device makes background noise, what to do?

Check cables and connections. Move the device away from electromagnetic interference sources. The signal-to-noise ratio is ≥80 dB, so normally very low.

Where to find the rating plate?

It is located on the rear panel, near the external power supply socket. It indicates the required voltage and polarity.

USER MANUAL USB 7007 US Blaster

Mono work module, four unbalanced input channels and one balanced output channel. Seperate volume control, built-in battery and external power supply. Total gain is 24 dB, frequency response is 10 Hz-100 KHz. Total harmonic distortion is less than 0.05% . Maximum output level is 16dB (balanced output). Continuous working for more than 20 hours.

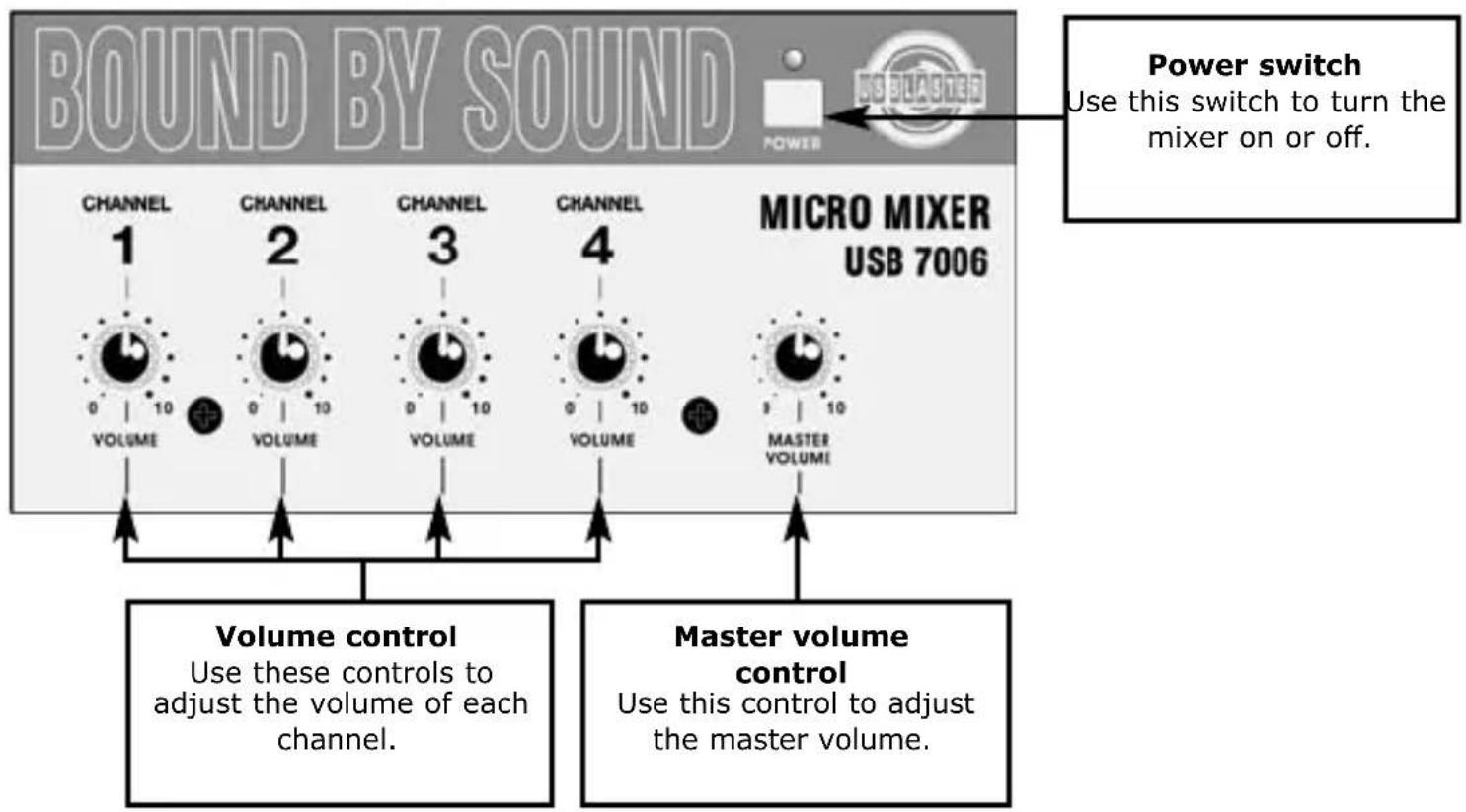

USB 7006 FRONT PANEL

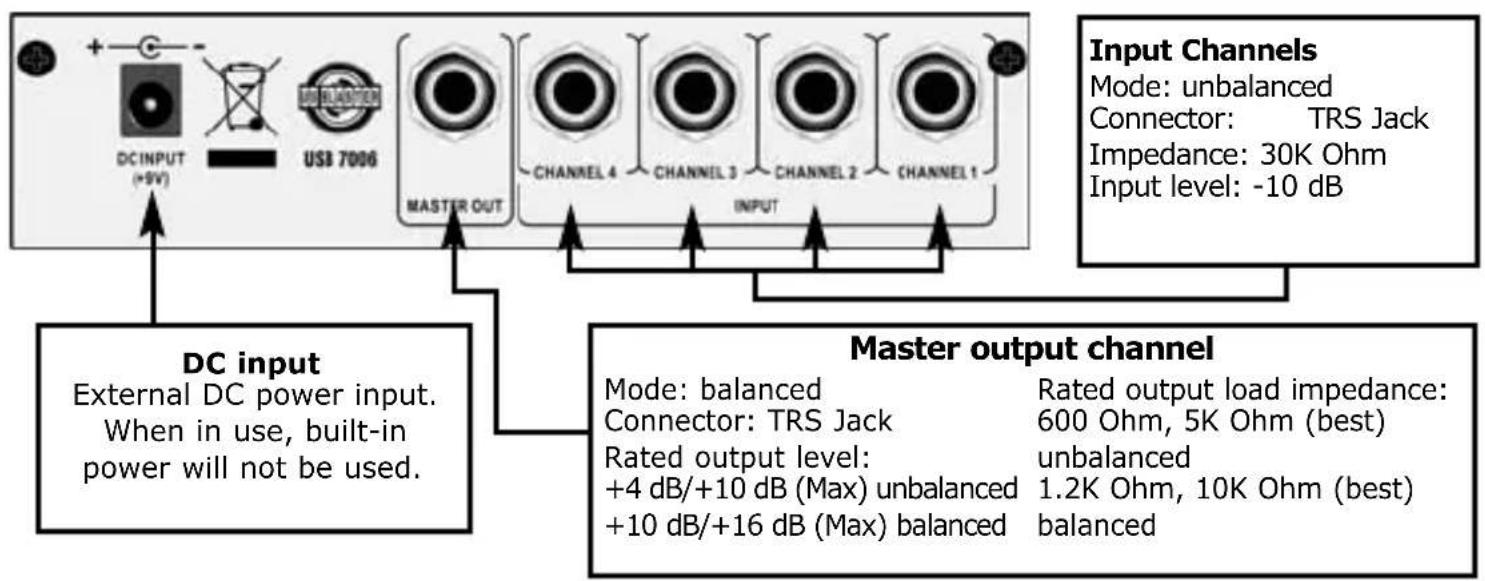

USB 7006 BACK PANEL

USB 7007 FEATURES

Stereo/mono work module, controlled by module switch. 2x4 unbalanced input channels and two balanced output channels. Seperate volume control, built-in battery and external power supply. Total gain is 24 dB, frequency response is 10 Hz-100 KHz. Total harmonic distortion is less than 0.05% . Maximum output level is 16dB (balanced output). Continuous working for more than 12 hours.

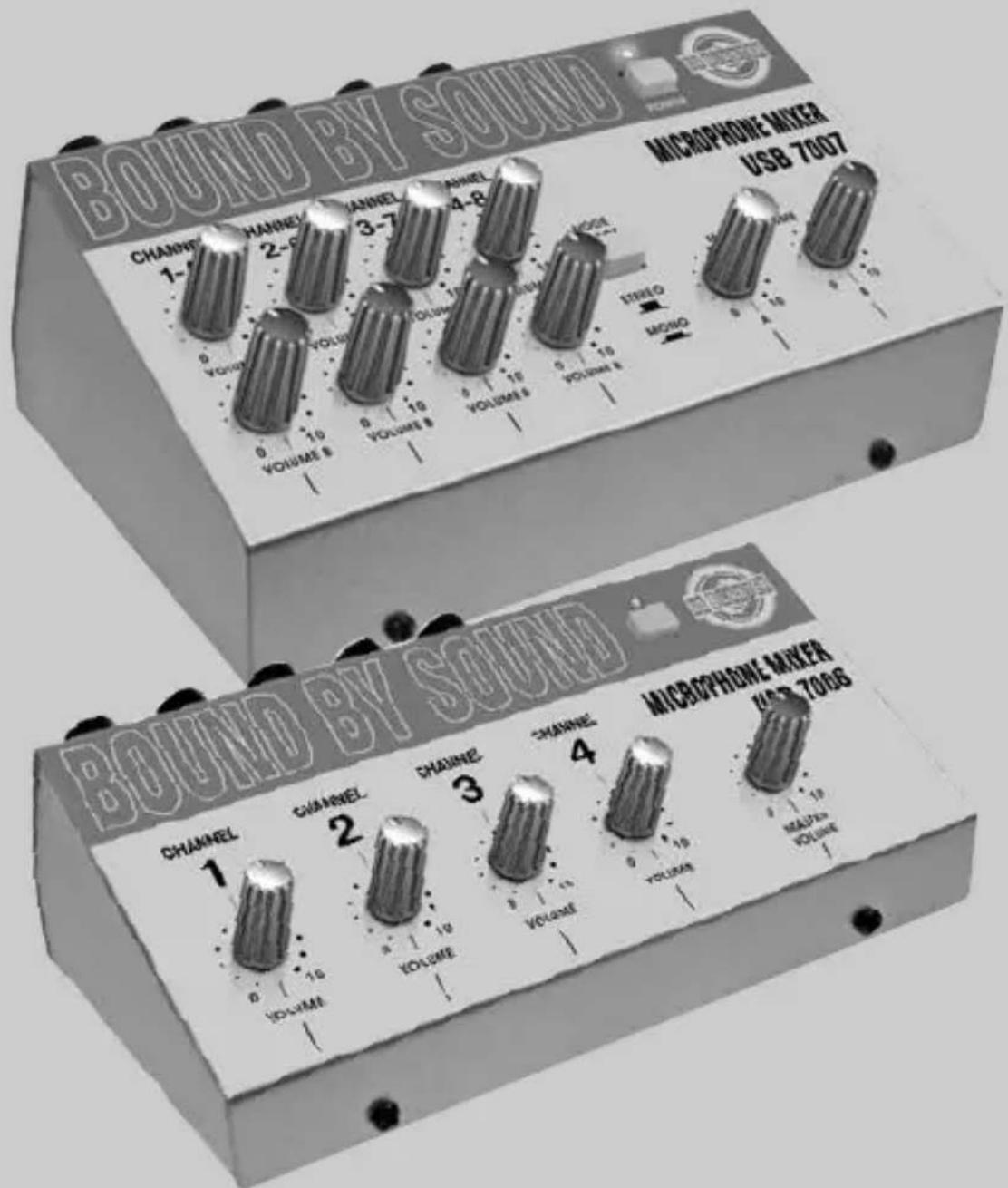

USB 7007 FRONT PANEL

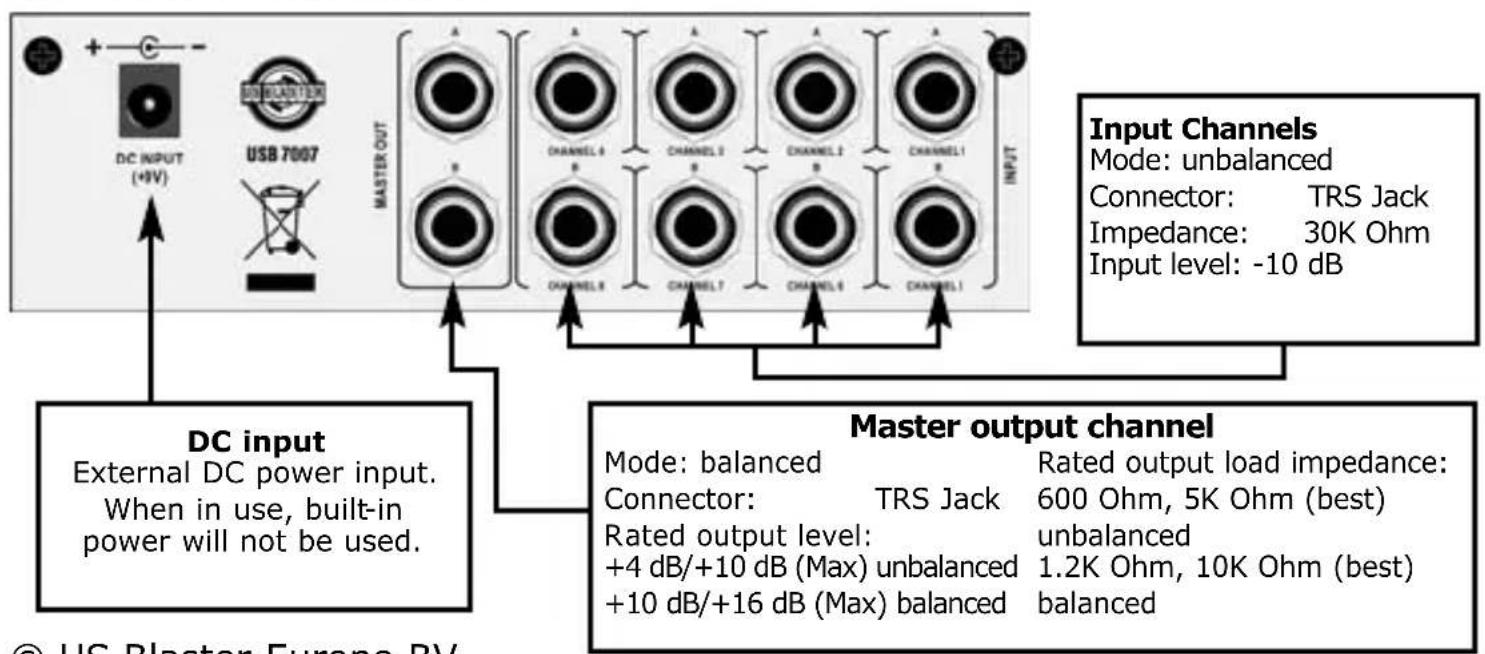

USB 7007 BACK PANEL

USB 7006 SPECIFICATIONS

• Gain: 24 dB
• Freq. Resp.: 20 Hz 20KHz ± 0.5 dB, - 3 dB bandwith: 10 Hz 100KHz
  Total harmonic distortion: 20Hz 20KHz≤ 0.05%
• Signal to nooise ratio: ≥80 dB (broadband measuring)
  Built-in power: 9V battery
• Continuous working time: ≥ 20 hours (with built-in battery)
• Dimensions: 152 × 84 × 52 mm

USB 7007 SPECIFICATIONS

Gain: 24 dB
- Freq. Resp.: 20 Hz 20KHz ± 0.5 dB, - 3 dB bandwith: 10 Hz 100KHz
Total harmonic distortion: 20Hz 20KHz≤ 0.05%
- Signal to noise ratio: ≥80 dB (broadband measuring)
Built-in power:
- Continuous working time: ≥ 12 hours (with built-in battery)
- Dimensions: 152 × 95 × 58 mm

9V battery

WARNING!!

When you use an external DC power source, please notice the polarity and the level (refer the label on the rear panel near the power socket).

USB 7006 - USB 7007
