| Product type | MP3 player |
| Brand | Difrnce |
| Model | MP2000 |
| Storage capacity | 128 MB and more (built-in) |
| Screen type | LCD TFT 5 cm |
| Supported audio formats | MP3, WMA, DRM-WMA |
| Supported video formats | AVI (XviD) |
| Supported photo formats | JPEG |
| Maximum image resolution | 3520 x 2816 pixels |
| Voice recording formats | WAV (High: 16 kbps/16 kHz; Standard: 16 kbps/8 kHz) |
| Signal-to-noise ratio (SNR) | >90 dB |
| Headphone power | 5 mW + 5 mW |
| Connectivity | USB 2.0 |
| Power | Built-in rechargeable lithium battery, charging via USB |
| Battery life | Approximately 7 hours |
| Main functions | Audio, video, photo player, FM radio, voice recorder, e-book reader (TXT), games (Tetris), folder navigation |
| Operating temperature | 0 °C to +55 °C |
| Storage temperature | -20 °C to +55 °C |
| Operating relative humidity | 20% to 90% (40 °C) |
| Storage relative humidity | 20% to 93% (40 °C) |
| Compatible operating systems | Windows 98/SE, Me, 2000, XP |
| Maintenance and cleaning | Clean with a dry cloth, avoid water and chemical solvents |
| Safety | Do not expose to shocks, excessive heat, humidity; do not disassemble |
| Spare parts and repairability | Not user-serviceable, warranty void if opened |
Frequently Asked Questions - MP2000 Difrnce
User questions about MP2000 Difrnce
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mp3 player in PDF format for free! Find your manual MP2000 - Difrnce and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MP2000 by Difrnce.
USER MANUAL MP2000 Difrnce


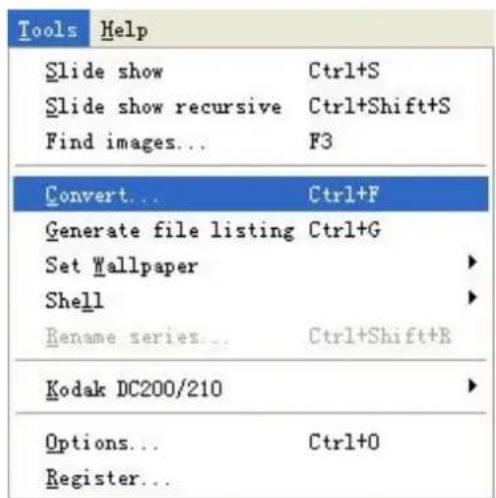

Tools Help Slide show Ctrl+S Slide show recursive Ctrl+Shift+S Find images... F3 Convert... Ctrl+F Generate file listing Ctrl+G Set Wallpaper Shell Rename series... Ctrl+Shift+R Kodak DC200/210 Options... Ctrl+O Register...② Kies de optie "JPG JPEG JFIF Format" en klik dan op "Options".


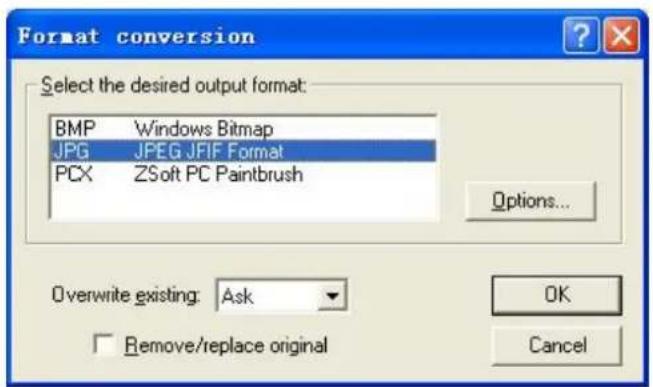

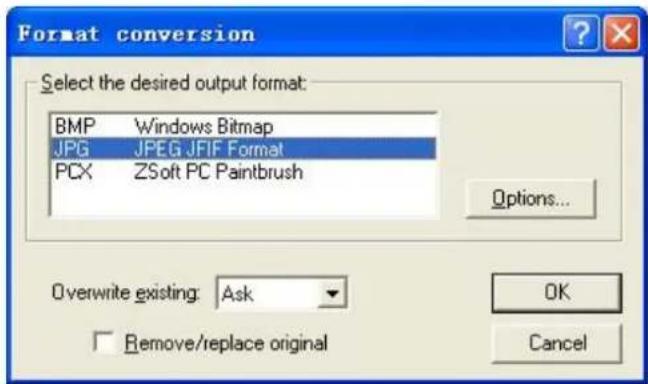

Format conversion Select the desired output format: BMP Windows Bitmap JPG JPEG.JFIF Format PCX ZSoft PC Paintbrush Options... Overwrite existing: Ask Remove/replace original OK Canceltext_image

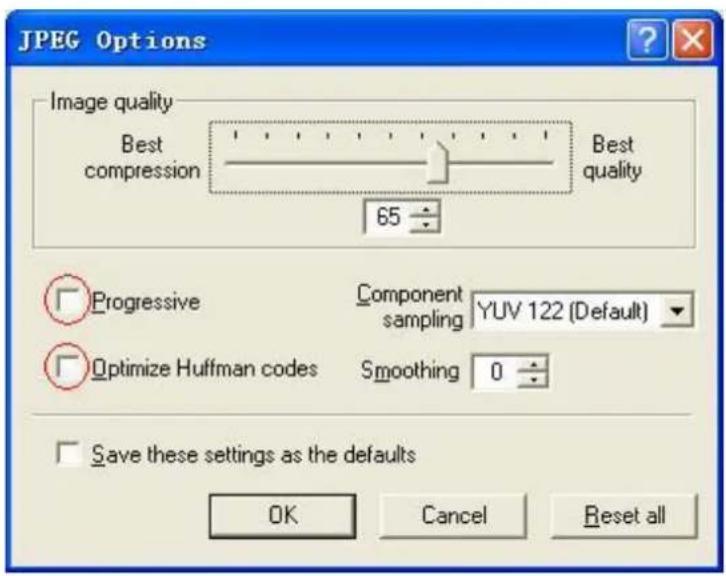

JPEG Options Image quality Best compression Best quality 65 Progressive Component sampling YUV 122 (Default) Optimize Huffman codes Smoothing 0 Save these settings as the defaults OK Cancel Reset allCautions

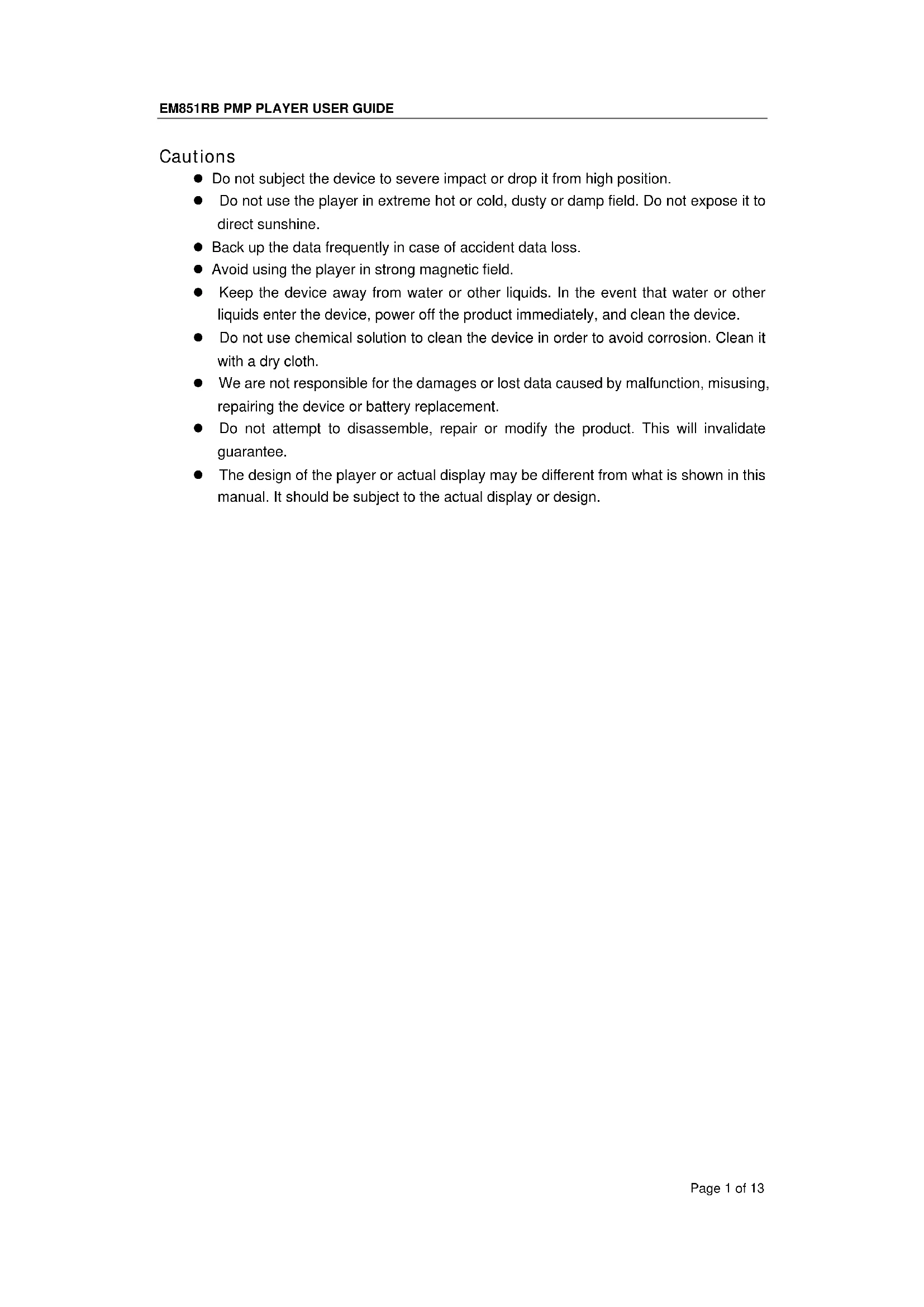

- Do not subject the device to severe impact or drop it from high position.
- Do not use the player in extreme hot or cold, dusty or damp field. Do not expose it to direct sunshine.
● Back up the data frequently in case of accident data loss. - Avoid using the player in strong magnetic field.
- Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device.
- Do not use chemical solution to clean the device in order to avoid corrosion. Clean it with a dry cloth.
- We are not responsible for the damages or lost data caused by malfunction, misusing, repairing the device or battery replacement.
- Do not attempt to disassemble, repair or modify the product. This will invalidate guarantee.
- The design of the player or actual display may be different from what is shown in this manual. It should be subject to the actual display or design.
1 Key Features
- MP3&WMA Player
● AVI Video player - JPEG image viewer
- Folder Navigation
- Voice Recorder
- FM Tuner
- FM Encoding
● Removable Storage Device - Funny games
● Built-in rechargeable lithium-ion battery - Customized settings
2 System Requirements
● Hardware: IBM PC & Compatible PC, Notebook with USB interface
● Operating System: Windows98/SE, Windows Me, Windows2000/XP
3 Package Content
Please check the package for the following items. If any one of them is missing, please contact the vendor:
- Main Unit
- Stereo earphones
- USB cable
- User Manual
- Driver CD
4 Before Using
4.1 Connect to a PC and download audio files
This player is plug & play for WIN2000/XP/ME OS. But for Windows98/SE, you are required to install a driver before connection (See "Driver Installation" section for details). To connect it with PC for transferring files,
(1) Plug the larger end of the USB cable to the USB port of the PC, and plug the smaller end to the USB port of the player.
(2) When the “💡” icon appear at the right bottom of the PC screen, double click “My Computer” on the desktop, you see a removable disk which indicates the player. Just use the removable disk as a regular local disk, copying files from or to it.
4.2 Removing the player from the PC safely
For Windows2000/XP:
(1) Left click the 📋 icon at the right hand corner of the taskbar.
(2) Click the pop-up mini-window with message of "Stop the USB Mass Storage Device – Drive (X)".
(3) When you are prompted to remove the device, pull out the player.
For Win98, please make sure the data transfer is completed before unplugging the MP3
player.
4.3 Charge the battery
The device has a built-in lithium-icon rechargeable battery. It is charged via USB connection. You are required to charge it when you use it for the first time. It takes about 3 hours to fully charge the battery.
To charge the battery, connect the larger end of the USB cable to the USB interface of PC, and connect the other smaller end of the USB cable to the USB interface of this player. The device is connected to PC and being charged. If you want to know the charge progress, disconnect the device safely by clicking the “💡” icon. You see an animating battery icon indicating charge progress. When the icon becomes green, the battery is fully charge.
Notice: The device is not available during charging.

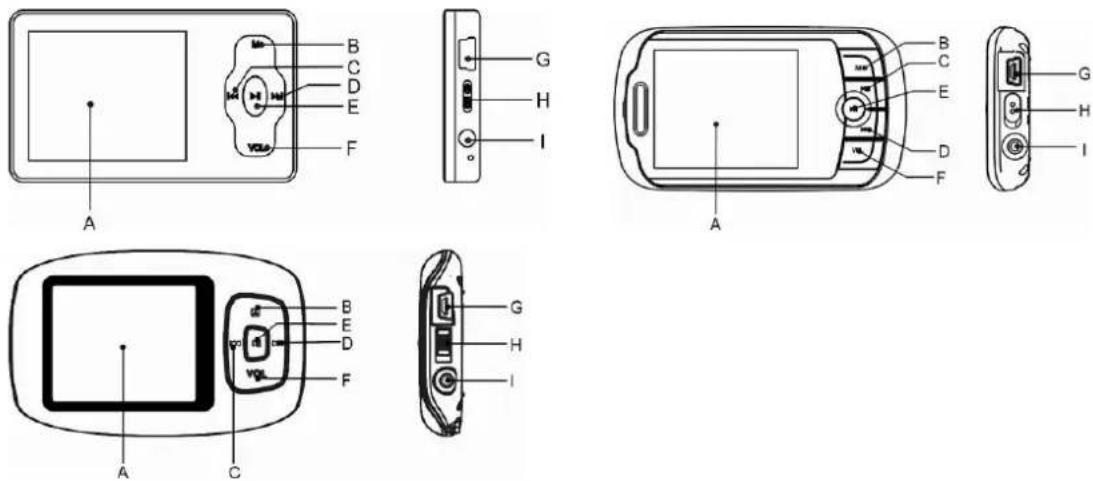

5 Keys Description
A. LCD Display
B. MENU - Hold for a few seconds to display the main menu.
Shortly press to confirm selection.
C. PREVIOUS - Move to the previous file or item.
D. NEXT - Move to the next file or item.
E. PLAY/PAUSE - Hold for a few seconds to turn on/off the device
F. VOL - Increase or decrease the volume.
G. USB port - Connect to a PC.
H. POWER SWITCH - Switch on/off the power.
I. Earphone Jack
6 Power On/Off
To power on,
(1) Switch on the POWER button.
(2) Press and hold the ▶II key until you see prompt on the display.
To power off,
(1) Press and hold the ▶II key until you see prompt on the display.
(2) Switch off the POWER button.
Note: This player has a power-saving feature which enables the device to power off automatically if it is idle for about 3 minutes.
7 Basic operation
| Function | Operation |
| Play/Pause | Press the PLAY/PAUSE button to play or pause. |
| Adjust Volume | (1) Shortly press the VOL button to see a volume adjustment icon animating.(2) Press the PREVIOUS/NEXT button to decrease or increase volume.(3) Press the VOL button to confirm. |
| Move to the previous file | Shortly press the PREVIOUS button. |
| Move to the next file | Shortly press the NEXT button. |
| Fast Forward | Press and hold the NEXT button. |
| Rewind | Press and hold the PREVIOUS button. |
| Lock/unlock buttons | Hold down the Play/Pause and VOL button simultaneously. |
| A-B Repeat To repeat | at a specified section of a track,(1) During playing, shortly press the VOL button to enter A-B repeat mode.(2) Press the MENU button again to select the start point.(3) Press the MENU button again to select the end point.To stop A-B repeat, press the MENU button, and press the VOL button to exit. |
8 Playing music
8.1 Enter the music mode
Press and hold the MENU button to display the main menu. Use the PREVIOUS/NEXT button to select "Music" menu, and press the MENU button to confirm selection. Now you are in the MUSIC mode, refer music playing to the basic operations.
8.2 Folder navigation
To navigate through folders:
(1) In the MUSIC mode, shortly press the MENU button to enter folder navigation mode.
(2) Press the PREVIOUS/NEXT button to select a folder or track, and press the MENU button to confirm selection.
9 Playing videos
(1) Press and hold the MENU button to display the main menu.
(2) Use the PREVIOUS/NEXT button to select "Video" menu, and press the MENU button to enter the video player mode.
(3) Press the PREVIOUS/NEXT button to search a video file that you want to play, and press the PLAY/PAUSE button to play. For detail information about playing, see the "Basic Operation" section.(Note: During playing, you can shortly press the MENU button to enter folder navigation mode.)
Note: This player can only play AVI videos. For other formats, you need to use the converting tool included on the driver CD to convert them. For detail information about the converter, see AVI Converter Quick User Guide on the CD.
10 Viewing photos
To view photos,
(1) Press and hold the MENU button to display the main menu.
(2) Select "Photo" and press the MENU button to confirm.
(3) Press the PREVIOUS/NEXT button to select a folder or image, and press the MENU to confirm.
(4) Select the photo that you want to display and press the MENU button to enlarge it to full screen.
(5) In the full screen mode, you can press the PREVIOUS/NEXT button to display the previous or the next photo, press the PLAY/PAUSE to start auto slide show, or press the MENU button to enter folder navigation mode.
Note: Some images may not be displayed. Try to use an image viewer (ACDSee for example) to convert them. See "Appendix – Convert image file" for details.
11 Reading E-book
11.1 Reading
(1) Press and hold the MENU button to display the main menu.
(2) Select "E-book" and press the MENU button to confirm.
(3) Press the PREVIOUS/NEXT button to select a .txt file, and press the MENU button to open the selected file.
(4) Press the PREVIOUS/NEXT button to page up/down, or press the PLAY/PAUSE button to page up/down automatically (by setting the time interval between 1 and 5 in Settings/Auto Slide show/Text).
(5) During reading, you can use the bookmark to mark the page for resuming reading later. For information about bookmark, see "Using bookmark" section.
Note: You can save up to 9 bookmarks in total. Bookmarks for all text files are listed in one sheet. Selecting bookmark on the list enables you to jump from one text file or page to another freely.
11.2 Using bookmark
(1) Go to the page that you want to mark.
(2) Press and hold the VOL button to show up a "Save Bookmark" window for saving bookmark.
(3) Press the PREVIOUS/NEXT button to select one line on the menu and press the MENU button to confirm. The bookmark is saved. It starts from the first line of current page.
(4) To read the page that you marked, shortly press the VOL button to show up the "Load Bookmark" window. Select the bookmark and press the MENU button to confirm. You will be guided to that page.
Note: Some TXT file may not be read. This may because its format is not supported. Skip it or reload another file.
12 Browsing all files
To browse all files stored in the player,
(1) Press and hold the MENU button to display the main menu.
(2) Select"Explorer", and press the MENU button to enter the browser mode.
(3) Press PREVIOUS/NEXT button to select a file that you want to view, and press the MENU button to play or display it.
13 Voice Recording
- Record
(1) Press and hold the MENU button to display the main menu.
(2) Select"Record", and press the MENU button to enter the recorder mode.
(3) Shortly press the PLAY/PAUSE button to start recording. During recording, you can press the PLAY/PAUSE button to pause/resume recording.
(4) Shortly press the MENU button to stop and save recording.
- Play recordings
To play the recording, switch to the MUSIC mode, enter folder navigate mode, search and play the recording file.
14 Deleting file
To delete a file,
(1) In the folder navigation mode, select the file that you want to delete.
(2) Press and hold the VOL button until a dialogue box shows up.
(3) Use the PREVIOUS/NEXT button to select "YES" and press the MENU button to confirm.
15 FM Radio
On the main menu, select "FM Tuner" and press the MENU button to turn on the FM radio.
- Search Station
(1) Shortly press the MENU key to show the submenus. You see the menu items displayed on upper left and right corner. Menu in red is highlighted and selected, while menu in black is not. You can press the PREVIOUS/NEXT button to switch highlighted menu.
(2) Switch to the "Auto" or "Manual", and press the MENU button to activate auto-search or manual-search mode. In the Manual mode, press the PREVIOUS/NEXT button to tune in stations.
- Save station
To save the found station,
(1) Shortly press the MENU button to activate the submenus.
(2) Press the PREVIOUS/NEXT button to switch to the "Save" and press the MENU button to confirm.
(3) Press the PREVIOUS/NEXT button to select an empty location for the station, and press the PLAY/PAUSE button to continue.
(4) Press the PREVIOUS/NEXT button to select "YES" or "NO", and press the PLAY/PAUSE button to confirm.
(5) Press the MENU button to hide the channel list.
- Listen to Station
To listen to saved station,
(1) Shortly press the MENU button to activate submenus.
(2) Press the PREVIOUS/NEXT button to switch to the "Preset" menu and press the MENU button to enter the PRESET mode.
(3) In the PRESET mode, press the PREVIOUS/NEXT button to select a saved station for listening.
- Delete station
(1) Shortly press the MENU button to activate submenus.
(2) Press the PREVIOUS/NEXT button to switch to the "Delete Station" menu and press the MENU button to continue.
(3) Press the PREVIOUS/NEXT button to select the station that you want to delete, and press the PLAY/PASUE button to continue.
(4) Press the PREVIOUS/NEXT button to select "YES" or "NO", and press the PLAY/PAUSE to confirm.
- Record FM program
When you are listening to a station, you can press and hold the VOL button to record your favourite programs. For detail information about recording, see "Record" section.
16 Playing game
This player provides a popular and funny game - Tetris World. To activate the game, on the main menu, select "Game" and press the MENU button to enter the gaming mode. Basic operation is as follows:
Start game
Press the PLAY/PAUSE button
Move the block left and right
Press VOL and MENU button
Rotate the block
Press the PREVIOUS button
Insert the block
Press the NEXT button
17 Customizing Settings
To customize the player settings:
(1) On the main menu, select the "Settings" item and press the MENU button to enter the system settings mode.
(2) Press the PREVIOUS/NEXT button to select setting item and press the MENU button to confirm or press the VOL button to cancel/return.
| Music | Repeat | modeOnce (Play current track once and then stop) |
| Repeat One (Repeat current track) | ||
| Folder (Play all audio files in the current folder and stop after playing) | ||
| Folder Rep. (Repeat all audio files in the current folder) | ||
| Normal (Play all audio files stored in the player and stop after playing all) | ||
| Repeat All (Repeat all audio files stored in the player) | ||
| Intro (Play the first 10 seconds of every audio file) | ||
| Play mode | Order (Play audio files in order) | |
| Shuffle (Play audio files randomly) | ||
| Preset EQ Normal, 3D, Rock, Pop, Classical, Bass, Jazz, User EQ | ||
| User EQ(User-defined equalizer setting) | (1) Press the VOL button to switch EQ column.(2) Press the PREVIOUS/NEXT button to adjust value.(3) Repeat pressing the VOL button until the cursor is on the YES button, and then press the MENU button to confirm.(4) Go to the EQ Select menu, and select User EQ to enable the equalizer setting. | |
| Stereo SW(Enable or disable stereo effect) | On, Off FM Radio | |
| FM region China, Europe, Japan, America | ||
| REC Quality High | Quality, General Quality Record | |
| REC Volume | +1、+2、+3、+4、+5 | |
| Auto slide show | TEXT (Set interval between the previous and the next page when the device is in auto page up/down mode.) | |
| Photo (Set interval between the previous and the next slide in auto slide show mode.) | ||
| Display | Backlight 5 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds, Always On. | |
| Brightness (Set the brightness of the screen) | ||
| Backlight mode NormalPower Save (Turn off the screen when there is no activity within a certain time) | ||
| System | About - Information about the product | |
| Upgrade - Upgrade the firmware | ||
| Load Default - Restore the player to default setting | ||
| Sleep Timer(Set the continuous playing | Off, 10 minutes, 15minutes, 30 minutes, 60 minutes, 120 minutes | |
| time before the player is turned off automatically.) | ||
| Language( Select language in which the on-screen text is displayed) | Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Spanish, French, German, Italian, Portuguese, Russian | |
18 Troubleshooting
| Problem | Possible | Cause | Solution |
| The LCD displays nothing when the device is started. | Battery is too low. Charge the | battery. | |
| The keys are locked. | Unlock the Hold switch by holding down the PLAY/PAUSE and VOL button. | ||
| The player has no response when the Play button is pressed to play an audio. | The keys are locked by Hold switch | Unlock the Hold switch by holding down the PLAY/PAUSE and VOL button. | |
| audio file. | The volume is too low. Adjust | the volume. No sound when playing an | |
| Bad audio file. Delete or skip | the file. | ||
| The player cannot be connected to the PC. | The USB interface is not supported by PC's motherboard. | Update or replace the PC's motherboard. | |
| The displayed time is changing constantly. | The bit rate of the MP3 file is changing during playback. | Try to use fixed bit rate to compress the MP3 file. | |
| The PC has error when you plug and unplug the player. | The player is disconnected from the PC abruptly while transferring files. | Do not disconnect the player from the PC when transferring files. | |
| Total memory displayed on the player is not in accordance with the marked amount. | Part of memory is used to store programs and display characters. | ||
| Some of MP3 files cannot be played properly. | The MP3 file is compressed by a standard, such as MPEG I Layer 1 or Layer 2 that the player does not support. | 1. Delete the unsupported MP3 files.2. Use MPEG I Layer 3 standard to compress the unsupported MP3 files. | |
| The video cannot be played. | The file format is not supported. | Make sure the video is in AVI format. If not, use the provided converting tool to convert it. |
| The video data is corrupted S | Skip it or reload another file | |
| The photo cannot be displayed | The file format is not supported | Try to use an image editor (ACDSee for example) to convert it. See “Appendix – Converting image file” for details. |
| The image resolution is beyond limitation of the device. | The device supports a maximum resolution of 3520 X 2816. Make sure resolution of the image does not excess this limitation. | |
| The TXT file cannot be read | The file format is not supported. | Skip it or reload another file. |
19 Technical Specifications
| Item | Specification |
| Capacity 128MB or above | |
| Battery Type Rechargeable Lithium Battery | |
| Battery Life Approx. 7 Hours | |
| LCD Display 2.0-inch TFT screen | |
| Earphone Power 5mW+5Mw | |
| Video Format AVI (XviD) | |
| Audio Format MP3, WMA, DRM-WMA | |
| Photo Format JPEG | |
| Image Resolution 3520 X 2816 (Max.) | |
| Record Format WAV (High: 16kbps/16KHz; General: 16kbps/8KHz) | |
| Bit Rate MP3: 8-448kbps; WMA: 32-384kbps | |
| SNR | >90dB |
| USB Port USB2.0 | |
| Operational Temperature | 0°C ~ +55°C |
| Storage Temperature | -20°C ~ +55°C |
| Operational Relative Humidity * | 20% ~ 90% (40°C) |
| Storage Relative Humidity * | 20% ~ 93% (40°C) |
20 Notice
- Make sure all keys are enabled before operation. If they are locked, hold down the PLAY/PAUSE and VOL button to unlock them.
- Please charge the battery immediately when the display indicates low battery, or the device will be powered off automatically.
- Please disconnect the player from PC properly to avoid data loss.
- The transfer rate displayed on the PC may be different depending on the operating system. Exact transfer rate should be subject to the player's indication.
- When the recorded voice file is too large, the response of the device may be slow.
Appendix – Converting image file
Converting steps:
① Run the ACDSee program, select the image that you want to convert, and click "Tool"
→"Convert".

