USER MANUAL SM22 ROADSTAR

Electric Slicer and Greater

SM-22

Instruction manual

Bedienungsanleitung

is a registered Trademark of Roadstar S.A. - Switzerland All rights reserved

Roadsrar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)

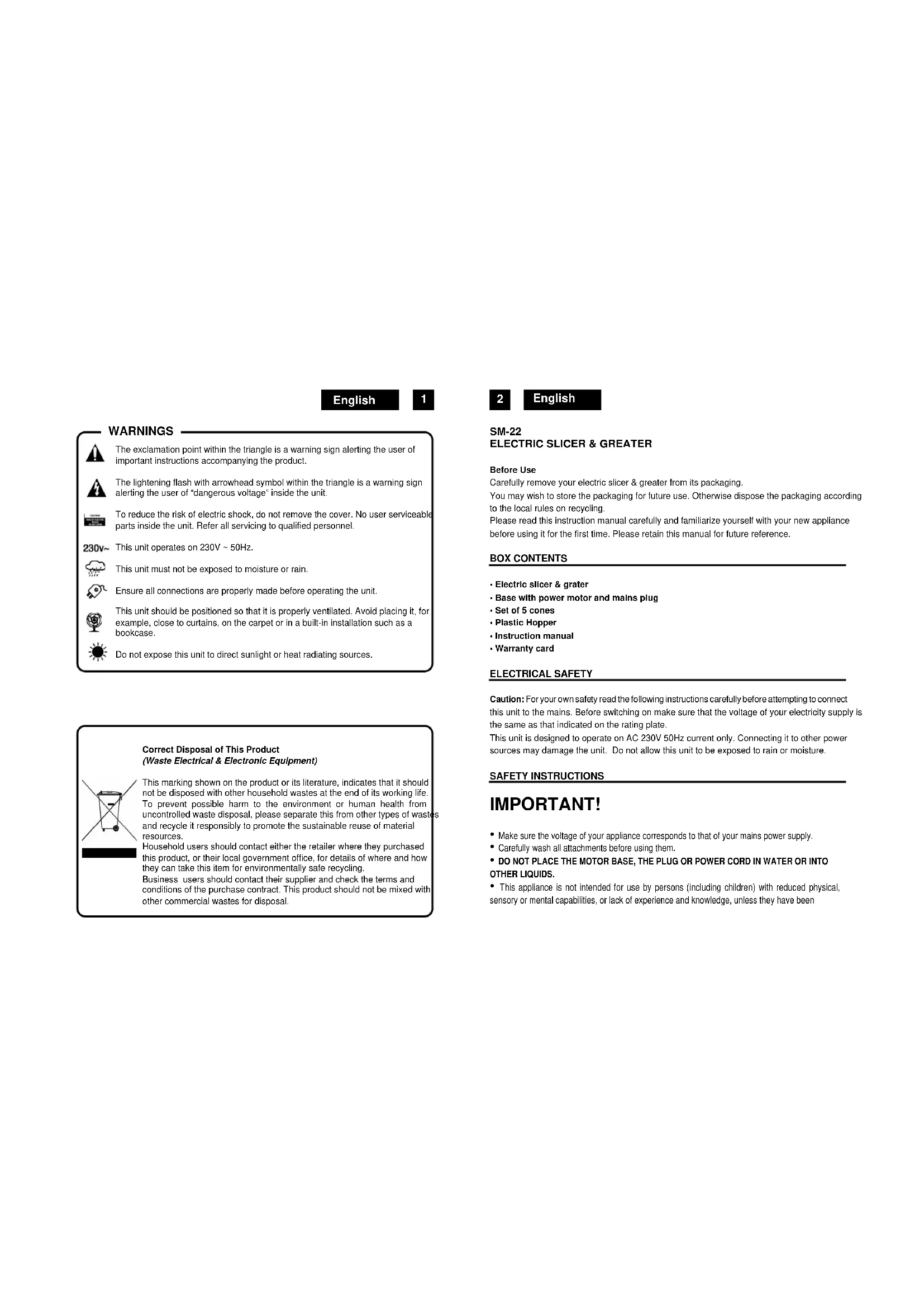

English

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz

This unit must not be exposed to moisture or rain.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

English

SM-22

ELECTRIC SLICER & GREATER

Before Use

Carefully remove your electric slicer & greater from its packaging.

You may wish to store the packaging for future use. Otherwise dispose the packaging according to the local rules on recycling.

Please read this instruction manual carefully and familiarize yourself with your new appliance before using it for the first time. Please retain this manual for future reference.

BOX CONTENTS

Electric slicer & grater
- Base with power motor and mains plug
- Set of 5 cones
- Plastic Hopper
- Instruction manual
Warranty card

ELECTRICAL SAFETY

Caution: For your own safety read the following instructions carefully before attempting to connect this unit to the mains. Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other power sources may damage the unit. Do not allow this unit to be exposed to rain or moisture.

SAFETY INSTRUCTIONS

IMPORTANT!

Make sure the voltage of your appliance corresponds to that of your mains power supply.
- Carefully wash all attachments before using them.
DO NOT PLACE THE MOTOR BASE, THE PLUG OR POWER CORD IN WATER OR INTO OTHER LIQUIDS.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been

English Eng h3

- NEVER TOUCH THE PARTS WHEN THEY ARE STILL ROTATING OR IN USE.

given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
- Do not use the appliance if the blades are damaged.
Do not leave the appliance exposed to the weather (rain, sun, etc.).
Always place the appliance on a flat, level surface during use.
- Remove the plug from the socket when the appliance is not in use and prior to cleaning and fitting or removing all parts and attachments.
- Do not pull the power cord in order to disconnect the appliance.
- Never use the appliance if the power cord or plug are damaged or if the appliance is faulty; in this case, take it to your nearest Authorised Assistance Centre.
In the event that you decide to dispose of the appliance, we advise you to make it inoperative
by cutting off the power cord. We also recommend that any parts that could be dangerous be
- Packaging must never be left within the reach of children since it is potentially dangerous.
To eliminate all possible risks, if the power cord is damaged it must be replaced by the manufacturer, a technical assistance centre or in any case by a similarly qualified person.
The power cord must not be left hanging from a table or any other surface. Also make sure the power cord does not come into contact with any hot surfaces.
This appliance has been designed for HOME USE ONLY and must not be used for
commercial or industrial purposes.
- The use of attachments not advised by the instructions booklet may lead to fire hazard and personal injury.
- Do not place the appliance on top of or near sources of heat or electrical elements. Do not place it on top of other appliances.
- Do not use the appliance when empty.
- Do not use the appliance outside.
- To prevent personal accidents or injuries and to avoid damaging the appliance always keep your hands and cooking utensils away from rotating blades and rollers.
- The blades of the rollers are extremely sharp and must be handled with precaution and always by grasping their plastic part.
- To prevent accidents never insert the rollers onto the base before fitting the hopper in place.
- Make sure the hopper and the roller on its clutch have been correctly fitted as well as the conveyor and the shredding attachment before plugging in and starting up the appliance.
- Never insert food by pushing it in by hand but always utilise the provided food presser.
Do not leave the appliance unattended when in use.
- Do not leave the appliance unattended when connected to the mains power; disconnect it after each use.

4

To prevent the appliance from overheating RESPECT THE MAXIMUM CONTINUOUS

• Never remove the roller when the appliance is in use.
• Do not overfill the hopper: never insert more than one piece at a time.
  USE TIME OF 2 MINUTES; always halt the appliance and make sure it has cooled before restarting if you must use it more than once at a time.
• Do not use the appliance to chop overly hard food (such as ice cubes for instance).
• This appliance must be used solely for chopping vegetables and/or fruit.
• This appliance conforms to the 2006/95/EC and EMC2004/108/EEC directives.

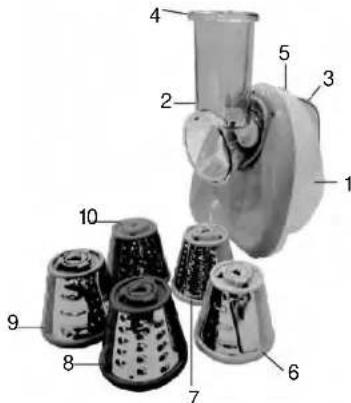

1)Motorized base
2) Hopper
3) Handle
4) Presser
5) ON/OFF Switch
6) Thick slicer cone
7) Medium grating cone
8) Coarse grating cone
9) Thin slicing cone
10) Fine grating cone

BEFORE USING THE ELECTRIC SLICER & GREATER

• Check that the correct voltage is marked on the data panel on the base of the appliance.
  Before using rinse the parts which will come into contact with food under running water.
• Do not put the base containing the motor into water or into other liquids. To clean this part use a damp cloth and then dry.
• Before assembling and/or disassembling the appliance check that the plug has not been inserted into the socket.
• Handle the rollers with care because they are sharp and could cause injury.

English

5

USING THE ELECTRIC SLICER & GREATER

• Assemble the hopper (2) onto the base (1) containing the motor.

Then fit the desired cone onto the hopper (2) and, while pressing it onto the clutch, rotate it counter clockwise 1/4 of a turn until it stops (fig. C).

Depending on the kind of food you wish to cut or grater, insert a suitable cone for the slicing or grating task.

Insert the plug into the power point. press the on/off switch (5) to switch on the appliance.

Always use the provided presser (4) to push the food into the hopper.
This appliance can be used either standalone positioned in a solid base or directly over the bowl by holding strong the handle.

WARNING: never use your hands or any objects other than the provided presser (4).

IMPORTANT: do not press the pressor too hard (4) to prevent the motor from slowing down and/or the rollers from getting mixed.

6

English

IMPORTANT SUGGESTION

Before to put the food into the hopper cut it in a smaller size.
To obtain small pieces insert the food vertically (not more than one piece at a time).
To obtain longer and thinner pieces or slices insert the food horizontally.
- Best results are obtained with food of a certain hardness. In case the food is not hard enough it is advisable to place it in the freezer until it becomes hard.
- Do not use the appliance to chop food which is too hard (for example: ice cubes).
- The motor may stop or the rollers may get mixed if food which is too soft is used or if there is too much pressure or the appliance is used for too long.
- In the event that this happens immediately switch the appliance off by pressing the switch (5), disconnect the plug from the socket, remove the funnel and the roller and clean perfectly.

AFTER THE USE

• Disconnect the plug from the power outlet.
  Disassemble the appliance by rotating the food hopper (E) counter clockwise and then remove it.
• Remove the cone and pull out the hopper outwards (fig. 4).

CARE & MAINTENANCE

• Disconnect the plug from the power outlet.

Disassemble the appliance by rotating the food hopper (E) counter clockwise and then remove it.

To make cleaning easier wash attachments and parts immediately after using them.

All the attachments except the motor base (1) can be washed in water or in the upper part of a dishwasher. The motor base must be cleaned with a damp cloth and then perfectly dried off. In case the appliance should be stained after using, cleaning it with vegetable oil or mayonnaise is advisable.

TECHNICAL SPECIFICATIONS

Power source: AC-230V, 50 Hz

Power consumption: 150 Watts

Max continue use: 2 minutes

Specifications and design subject to changes without prior notice.
