USER MANUAL MPB12000 PRESIDENT

4.3 in. (H) x 3.7 in (L). x 1.8 in. (P)

MISE AU REBUT DU BOOSTER MPB-12000

4.3 in. (A) x 3.7 in (L). x 1.8 in. (P)

ELIMINACION DEL BOOSTER MPB-12000

• Booster MPB-12000
• Compact tire inflator with 2 air needle accessories
• 2-1 USB cord (micro, mini)
• Jumper cable with 2 clamps
  DC power cord : 12 ~ 15 V with cigarette lighter plug
• AC power cord : wall charger 100 ~ 240 V

FEATURES

Supports Engines : gasoline < 5.0 L / diesel < 3.0 L
12V cable
USB Port 5 V/2,1Ah
- LED Flashlight
Max. pressure for compact tire inflator: 80 PSI / 5.5 bar
- AC Charger : Input 100 ~240 V AC - 50/60 Hz - 0.6 A max. / Output : 15 V DC - 1.0 A
- Resting Discharge: 12% Loss/Year
- Carrying case

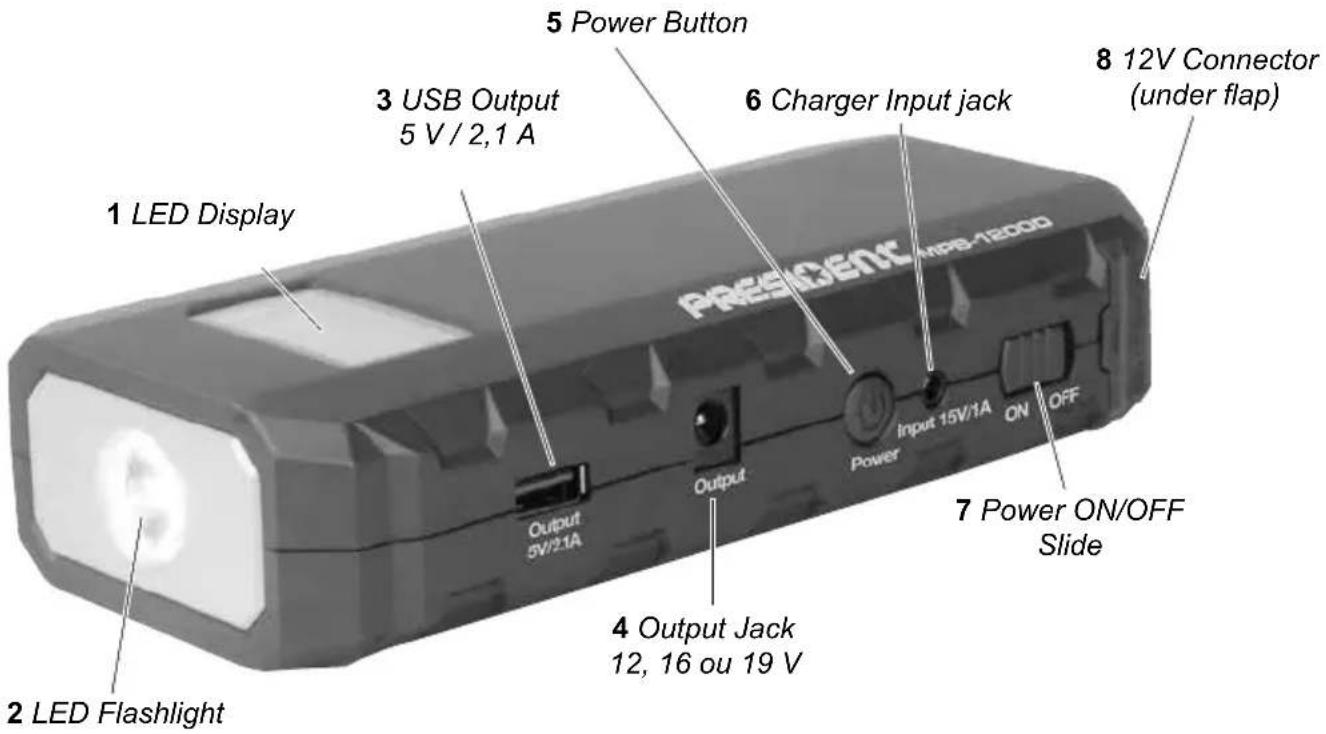

BOOSTER MPB-12000

USING THE MPB-12000

CHARGING THE BOOSTER MPB-12000

1. Use the 120 240V AC wall charger to connect the booster MPB-12000 to an AC home outlet or the 13.8V vehicle charger to connect to the cigarette lighter charger.
2. Turn on the booster MPB-12000, slide ON/OFF (7) to "ON".
3. The display (1) shows 100% with 5 bars when charging is complete.
4. Disconnect the MPB-12000 from the power adapter.
5. Turn off the booster MPB-12000, slide ON/OFF (7) to "OFF".

For best results, fully charge the power pack every three months.

CHECK BATTERY CAPACITY

1. Turn on the booster MPB-12000, slide ON/OFF (7) to "ON".
2. Press POWER (5) without any devices connected to the charger.
3. The number of bars in the battery icon on the display (1) indicate how much power is in the MPB-12000.
4. Turn off the booster MPB-12000, slide ON/OFF (7) to "OFF".

JUMP START A VEHICLE

1. Make sure the booster MPB-12000 is fully charged.
2. Turn off all accessories on the vehicle (radio, air conditioner, etc.)
3. Connect the jumper cable's RED clamp to the POSITIVE (+) post of the vehicle battery.
4. Connect the jumper cable's BLACK clamp to the NEGATIVE (-) post of the vehicle battery.
5. Insert the jumper cable connector into the 12 V connector (8) of the booster MPB-12000. Be sure the connection is solid.
6. Turn on the booster MPB-12000, slide ON/OFF (7) to "ON".
7. Turn the vehicle ignition key for 3 seconds maximum.

If the vehicle starts:

• Disconnect the jumper cables from the MPB-12000 first (8), then disconnect the clamps from the battery.

If the vehicle does not start:

• Wait 1 minute and try again.

• Turn off the booster MPB-12000, slide ON/OFF (7) to "OFF".

CHARGING A 5 V USB DEVICE (TABLET, CELL PHONE, ETC.)

1. Turn on the booster MPB-12000, slide ON/OFF (7) to "ON".
2. Connect the 2-1 USB cord to the USB output (3) of the booster MPB-12000
3. Connect your device to either the mini USB or micro USB cable.
4. The MPB-12000 begins to charge your device. It will put on standby at the end of the charge.
5. Turn off the booster MPB-12000, slide ON/OFF (7) to "OFF".

TURN ON FLASHLIGHT

1. Turn on the booster MPB-12000, slide ON/OFF (7) to "ON".
2. Press and hold POWER (5) to turn on the LED flashlight.
3. Short press POWER (5) again to cycle through the 4 modes: Steady / Strobe S.O.S / Fast Strobe / OFF.
4. Turn off the booster MPB-12000, slide ON/OFF (7) to “OFF”.

POWER / CHARGE 12, 16 OR 19 V DC DEVICES

1. Turn on the booster MPB-12000, slide ON/OFF (7) to "ON".
2. Short press POWER (5) to cycle through the 3 DC voltage values: 12V / 16V / 19V . See "OUT2" in the display (1).
3. Insert the connector cable (not included) into the output jack (4) of the booster MPB-12000 to power / charge the electronics device.

The voltage value cannot be change while a cable is connected to the output jack (4).

1. When finished, turn off the booster MPB-12000, slide ON/OFF (7) to "OFF".

COMPACT TIRE INFLATOR

• This is not a toy. Please keep out of reach of children
• Do NOT leave the compressor unattended when in use
• Make sure to stay safe and away from traffic if you have to inflate tires at roadside
• Do not use the compressor in explosive atmospheres, in the presence of flammable liquids, gases or dust
• Do not expose the compressor to rain or wet conditions
• In case of electrical or mechanical malfunction, immediately switch off the compressor and unplug it
  Over-inflation may cause items to burst which could cause injury. Do NOT attempt to over-inflate.
• The compact tire inflator cannot be serviced by the user.

This compact tire inflator is intended for short run use. Maximum running time should not exceed 15 minutes and a 15 minute cool-down period is recommended before running the compressor again.

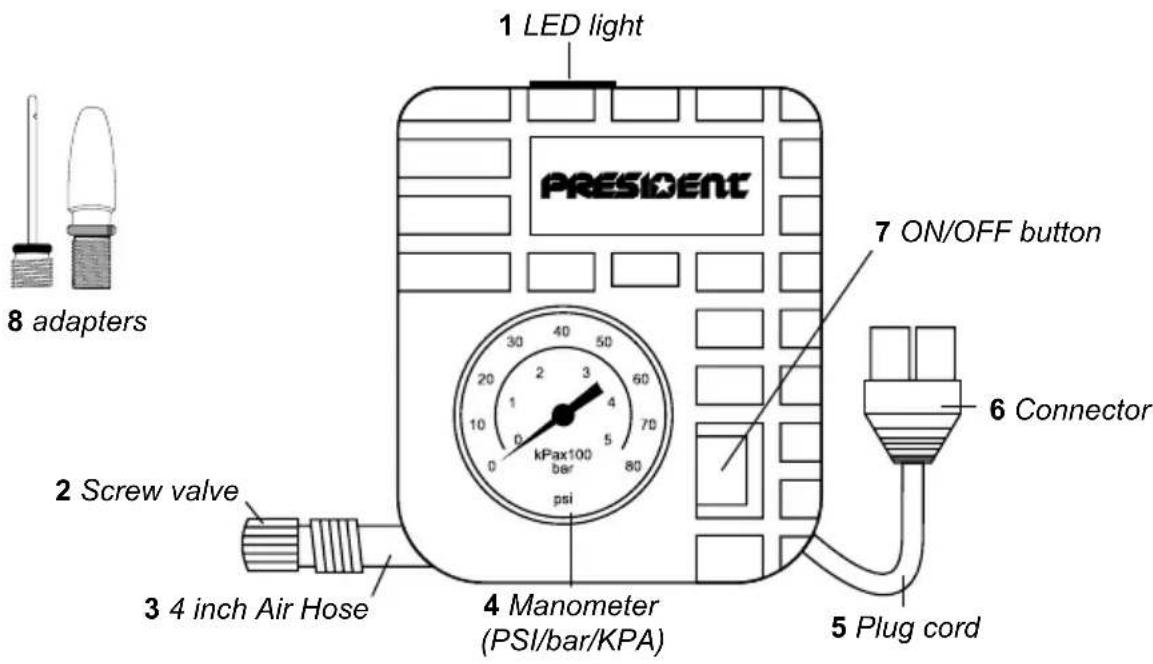

USING THE COMPACT TIRE INFLATOR

The compact tire inflator comes equipped to add air to car tires. It also includes air needle adapters for adding air to bicycle tires, sports balls, etc.

1. Connect the connector (6) of then compact tire inflator to the 12 V connector (8) of then booster MPB-12000.
2. Connect the appropriate air needle adapter (8) to the compact tire inflator if needed.
3. Connect the screw valve (2) of the compact tire inflator to item to inflate.
4. Press the ON/OFF button (7) on the compact tire inflator.
5. Stop inflating occasionally to check the air pressure on the manometer and to be sure not to overin-
6. Press the ON/OFF button (7) again when the item is inflated to turn off the compact tire inflator.

The tire inflator works even if the slide ON/OFF (7) of the booster MPB-12000 is not "ON".

TROUBLESHOOTING

IF...	TRY THIS...
My items are not recharging or the compact tire inflator is not inflating.	Recharge the booster MPB-12000.Verify that your items are correctly connect-ed
I haven’t used my booster MPB-12000 in a while, and now the unit is completely drained.	You may have accidentally put it away with it powered on. Recharge it.

MAINTENANCE

Use common sense when caring for your MPB-12000. Be sure the connectors and jacks remain clean and free of debris. Unplug the MPB-12000 after charging. Store the MPB-12000 and its accessories in the carrying case provided.

SPECIFICATIONS

BOOSTER MPB-12000

• Size : 1.6 in. (H) x 3.1 in (W). x 7.0 in. (D)
  40 mm( H) × 80 mm( W) × 170 mm( D)
• Operating Temperature : - 4° F to + 140° F / - 20°C to + 60°C
• Start Current : 200 A
• Peak Current : 400 A
• Power : 44,4 Wh
• Cycle life : 1,000 charges
• Charge mode : CC/CV 15 V / 1.0 A
• USB output : 5 V / 2,1 A
• DC Output : 12, 16 and 19 V

COMPACT TIRE INFLATOR

• Power Input : 12 V DC
• Maximum Pressure : 80 PSI / 5.5 bar
• Maximum Current : 4 A
• Unloaded Current : < 2.5 A
• Inflating Speed : Less than 10 minutes to inflate tire from 0 to 30 PSI (0 to 2.7 bar) based on tire size 195/55R15.
• Working Temperature : 14^ to 140^ / -10^ to +60^
• Dimensions : 4.3 in. (H) x 3.7 in (W). x 1.8 in. (D)

108 mm (H) x 95 mm (W) x 47 cm (D)

BATTERY DISPOSAL

The booster MPB-12000 is self-contained and not consumer replaceable. It must be disposed of properly when it no longer holds a charge. Proper charging practices will increase the life of the unit.

WARRANTY

In case of failure, the warranty applies during a term of 2 years for the products (excluding cables, power cords and cigarette lighter) and comes into effect from the invoice date. The invoice sent with your order, holds as a legal document for the warranty.

Any defective product requiring a repair under warranty must absolutely be returned with a purchase proof to our PRESIDENT after-sales department. The After-sales laboratory of PRESIDENT is the only empowered organization to decide about the application of the warranty clauses.

If the Product failure is proven and not related to a cause of exclusion as listed below, PRESIDENT commits to repair the product as soon as possible.

Exclusions: the normal wear and tear of the product, the non-respect of the installation and use specifications, negligence, bad maintenance, the non compliant use, external damages caused by accident (such as shocks, fall, fire), all products which have been modified or repaired by the user, defects due to intervention made by third parties not approved by PRESIDENT.

A quotation will be done when the warranty clauses cannot be applied. In this case the shipping costs and risks are the responsibility of the user. However, in case of application of the warranty, the return delivery costs will be at the expense of PRESIDENT.

The product must be returned to PRESIDENT possibly in its original packing or in a suitable packaging to ensure optimum protection.

Warning! Please check carefully your packing before sending. PRESIDENT will not accept devices or accessories damaged during transit.

Beyond the warranty period, you will still have the possibility to inspect or repair your device. In this case, an estimate will be communicated. If you accept the quote, the repair and shipping charges must be paid in advance.

ZAWARTOŚC OPAKOWANIA

4.3 in. (W) x 3.7 in (S). x 1.8 in. (G)

UTYLIZACJA BATERII

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 - 34540 Balaruc - FRANCE, declare, on our own responsibility that the Auto mobile power supply

Brand: PRESIDENT

Model: MPB-12000

is in conformity with EMC Council Directive of 2004/108/EC :

EN 55022: 2010

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2013

EN 55024: 2010

It is possible to use CE marking to demonstrate the conformity with EMC Directive.

Balaruc, the 2015-03-09

Jean-Gilbert MULLER

General Manager
