Product Type	Jump starter with compressor and USB ports
Brand	President
Model	MPB8800
Jump starter dimensions	25 mm (H) x 76 mm (W) x 123 mm (D)
Compressor dimensions	108 mm (H) x 95 mm (W) x 47 mm (D)
Weight	Not specified (estimate: ~500 g)
Power supply	Rechargeable lithium battery 29.6 Wh; recharge via mains (100-240 V, 15 V/1 A) or cigarette lighter (12-15 V)
Starting current	200 A (peak 400 A)
USB outputs	1 x 5 V / 2.1 A; 1 x 5 V / 1 A
Compressor	Max pressure 5.5 bar (80 PSI); tire inflation (<10 min from 0 to 2.7 bar)
LED light	Continuous light, fast flash, SOS
Operating temperature	Jump starter: -20°C to +60°C; Compressor: -10°C to +60°C
Battery life cycle	Up to 1000 recharges
Standby autonomy	12% loss per year
Included accessories	Storage case, jumper cable with clamps, mains charger, cigarette lighter charger, USB 2-in-1 cable (Mini/Micro USB), compressor adapters (bicycle, ball)
Maintenance	Keep connectors clean; fully recharge every 3 months; store in case
Safety	Do not use in explosive environment; do not leave compressor unattended; do not overinflate; max continuous operation time 15 min
Repairability	Contains no user-serviceable parts; 2-year warranty
Warranty	2 years on the product (excluding cables, cords and cigarette lighter plug)

Frequently Asked Questions - MPB8800 PRESIDENT

How to recharge the MPB8800 jump starter?

Use the wall charger (input 100-240 V, output 15 V/1 A) or the cigarette lighter charger (12-15 V). Plug the connector into the jump starter, the device turns on automatically and displays "IN". Once at 100%, the jump starter turns off. Recharge it fully every 3 months for optimal lifespan.

How to start a vehicle with the jump starter?

Ensure the jump starter is charged and all vehicle accessories are off. Connect the RED clamp to the POSITIVE (+) terminal, the BLACK clamp to the NEGATIVE (-) terminal. Insert the connector into the 12 V port of the jump starter. Turn on the jump starter with POWER, then start the vehicle (max 3 seconds). If the engine does not start, wait one minute before trying again.

How to use the built-in compressor?

Connect the compressor connector to port 7 of the jump starter. Screw the appropriate adapter onto the valve of the item to inflate (tire, ball, etc.). Turn on the compressor with the green ON/OFF button. Monitor the pressure gauge to avoid over-inflation. The compressor works even if the jump starter is off. Do not use it for more than 15 minutes at a time.

How to turn on the LED light and change its modes?

Turn on the jump starter with POWER. Press and hold POWER (3 s) to turn on the LED in continuous mode. Short presses cycle between: continuous light, fast flash, and SOS. A long press turns off the LED.

Can I charge my phone or tablet with the jump starter?

Yes, the jump starter has two USB ports: one 5 V/2.1 A (port 3) and one 5 V/1 A (port 4). Connect your device via the USB 2-in-1 cable (Mini USB or Micro USB). The screen displays "OUT" and voltage. The jump starter turns off automatically at the end of charging.

What type of battery can the jump starter start?

The MPB8800 is compatible with gasoline engines up to 4.0 liters and diesel engines up to 2.5 liters. It provides a starting current of 200 A (400 A peak).

Can the compressor inflate a car tire?

Yes, the compressor reaches a maximum pressure of 5.5 bar (80 PSI). For a tire size 195/55R15, it takes less than 10 minutes to go from 0 to 2.7 bar (30 PSI). Use the appropriate adapter nozzle.

How to check the charge level of the jump starter?

Press POWER to turn on the jump starter without connecting anything. The screen displays the charge percentage (e.g. "85%"). Press POWER again to turn off.

What to do if the jump starter does not turn on or work?

First recharge it. Check that the connections are correct. If the battery is completely discharged, you might have stored it without turning it off; recharge it for several hours. If the problem persists, contact customer service.

How to maintain the MPB8800 jump starter?

Keep the connectors and ports clean and dry. Disconnect the jump starter after charging. Always turn it off after use. Store it in the provided case. Recharge it fully every 3 months even if not used.

USER MANUAL MPB8800 PRESIDENT

4.3 in. (H) x 3.7 in (L). x 1.8 in. (P)

MISE AU REBUT DU BOOSTER MPB-8800

4.3 in. (A) x 3.7 in (L). x 1.8 in. (P)

ELIMINACION DEL BOOSTER MPB-8800

• Booster MPB-8800
• Compact tire inflator with 2 air needle accessories
• 2-1 USB cord (Mini USB, Micro USB)
• Jumper cable with 2 clamps
  DC power cord : 12 ~ 15 V with cigarette lighter plug
• AC power cord : wall charger 100 ~ 240 V

FEATURES

Supports Engines : gasoline < 4.0 L / diesel < 2.5 L
12V cable
USB Port 5 V/2,1Ah
USB Port 5 V/1Ah
- LED Flashlight
Max. pressure for compact tire inflator: 80 PSI / 5.5 bar
- AC Charger : Input 100 ~240 V AC - 50/60 Hz - 0.6 A max. / Output : 15 V DC - 1.0 A
- Resting Discharge: 12% Loss/Year
- Carrying case

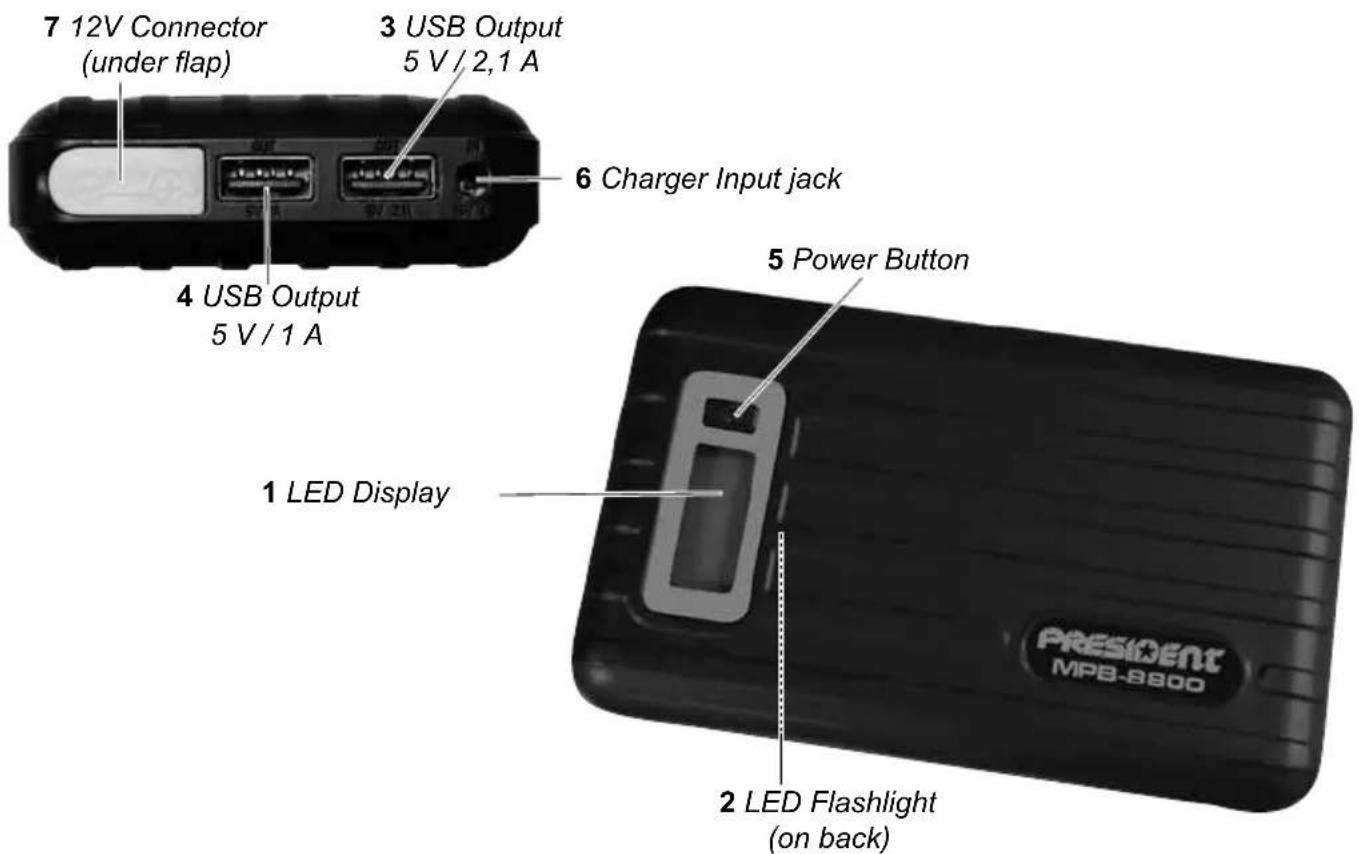

BOOSTER MPB-8800

USING THE MPB-8800

CHARGING THE BOOSTER MPB-8800

1. Use the 120 240V AC wall charger to connect the booster MPB-8800 to an AC home outlet or the 13.8V vehicle charger to connect to the cigarette lighter charger.
2. The booster MPB-8800 turns on automatically, "IN" appears in the LCD display and the last digit of the charge value is flashing (1).
3. The display (1) shows 100% when charging is complete.
4. The booster MPB-8800 will turn off automatically at the end of the charge
5. Disconnect the MPB-8800 from the power adapter.

For best results, fully charge the power pack every three months.

CHECK BATTERY CAPACITY

1. Press POWER (5) to turn on the booster MPB-8800 without any devices connected.
2. The battery capacity appears in the LCD display (1).
3. Turn off the booster MPB-8800, press POWER (5)

JUMP START A VEHICLE

1. Make sure the booster MPB-8800 is fully charged.
2. Turn off all accessories on the vehicle (radio, air conditioner, etc.)
3. Connect the jumper cable's RED clamp to the POSITIVE (+) post of the vehicle battery.
4. Connect the jumper cable's BLACK clamp to the NEGATIVE (-) post of the vehicle battery.
5. Insert the jumper cable connector into the 12 V connector (7) of the booster MPB-8800. Be sure the connection is solid.
6. Press POWER (5) to turn on the booster MPB-8800.
7. Turn the vehicle ignition key for 3 seconds maximum.

If the vehicle starts:

• Disconnect the jumper cables from the MPB-8800 first (7), then disconnect the clamps from the battery.

If the vehicle does not start:

• Wait 1 minute and try again.

• Turn off the booster MPB-8800, press POWER (5)

CHARGING A 5 V USB DEVICE (TABLET, CELL PHONE, ETC.)

1. Press POWER (5) to turn on the booster MPB-8800.
2. Connect the USB plug of the 2-1 cable to the USB output (3) or (4) of the booster MPB-8800 according to consuming of the device.
3. Connect your device to either the Mini USB or Micro USB input.
4. The MPB-8800 begins to charge your device, "OUT" and "5.0V 2.1A" or "5.0V 1.0A" appears in the LCD display (1), according the used USB output.
5. It will turns off automatically at the end of the charge of the device.

TURN ON FLASHLIGHT

1. Press POWER (5) to turn on the booster MPB-8800.
2. Press and hold (3 seconds) POWER (5) to turn on the LED flashlight in steady mode.
3. Short press POWER (5) again to cycle through the 3 modes: Strobe S.O.S / Fast Strobe / Steady.
4. Press and hold POWER (5) to turn off the LED flashlight.
5. Turn off the booster MPB-8800, press POWER (5)

COMPACT TIRE INFLATOR

• This is not a toy. Please keep out of reach of children
• Do NOT leave the compressor unattended when in use
• Make sure to stay safe and away from traffic if you have to inflate tires at roadside
• Do not use the compressor in explosive atmospheres, in the presence of flammable liquids, gases or dust
• Do not expose the compressor to rain or wet conditions
• In case of electrical or mechanical malfunction, immediately switch off the compressor and unplug it
  Over-inflation may cause items to burst which could cause injury. Do NOT attempt to over-inflate.
• The compact tire inflator cannot be serviced by the user.

This compact tire inflator is intended for short run use. Maximum running time should not exceed 15 minutes and a 15 minute cool-down period is recommended before running the compressor again.

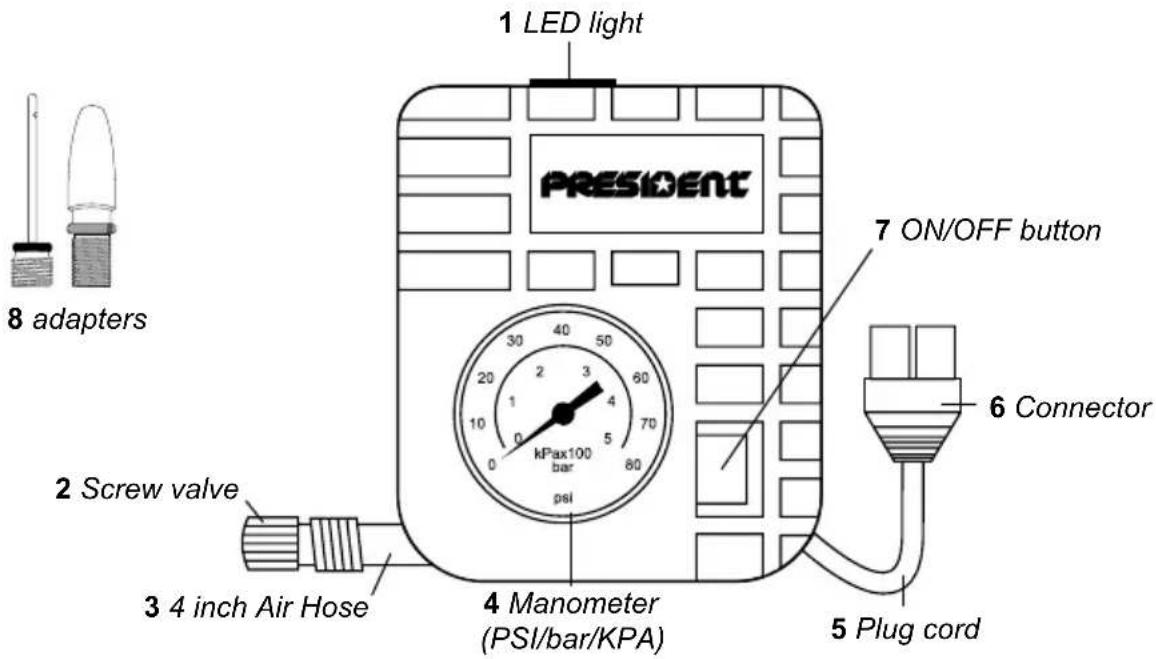

USING THE COMPACT TIRE INFLATOR

The compact tire inflator comes equipped to add air to car tires. It also includes air needle adapters for adding air to bicycle tires, sports balls, etc.

1. Connect the connector (6) of then compact tire inflator to the 12 V connector (7) of then booster MPB-8800.
2. Connect the appropriate air needle adapter (8) to the compact tire inflator if needed.
3. Connect the screw valve (2) of the compact tire inflator to item to inflate.
4. Press the ON/OFF button (7) on the compact tire inflator.
5. Stop inflating occasionally to check the air pressure on the manometer and to be sure not to overinflate your item.
6. Press the ON/OFF button (7) again when the item is inflated to turn off the compact tire inflator.

The tire inflator works even if the booster MPB-8800 is off (5).

TROUBLESHOOTING

IF...	TRY THIS...
My items are not recharging or the compact tire inflator is not inflating.	Recharge the booster MPB-8800.Verify that your items are correctly connect-ed
I haven’t used my booster MPB-8800 in a while, and now the unit is completely drained.	You may have accidentally put it away with it powered on (5). Recharge it.

MAINTENANCE

Use common sense when caring for your MPB-8800. Be sure the connectors and jacks remain clean and free of debris. Unplug the MPB-8800 after charging. Turn off (5) and store the MPB-8800 and its accessories in the carrying case provided.

SPECIFICATIONS

BOOSTER MPB-8800

• Size : 0.9 in. (H) x 3.0 in (W). x 4.8 in. (D)
  25 mm (H) × 76 mm (W) × 123 mm (D)
• Operating Temperature : - 4° F to + 140° F / - 20°C to + 60°C
• Start Current : 200 A
• Peak Current : 400 A
• Power : 29.6 Wh
• Cycle life : 1,000 charges
• Charge mode : CC/CV 15 V / 1.0 A
• USB output : 5 V / 2,1 A
• USB output : 5 V / 1 A

COMPACT TIRE INFLATOR

• Power Input : 12 V DC
• Maximum Pressure : 80 PSI / 5.5 bar
• Maximum Current : 4 A
• Unloaded Current : < 2.5A
• Inflating Speed : Less than 10 minutes to inflate tire from 0 to 30 PSI (0 to 2.7 bar) based on tire size 195/55R15.
• Working Temperature : 14^ to 140^ / -10^ to +60^
• Dimensions : 4.3 in. (H) x 3.7 in (W). x 1.8 in. (D)

108 mm (H) x 95 mm (W) x 47 cm (D)

BATTERY DISPOSAL

The booster MPB-8800 is self-contained and not consumer replaceable. It must be disposed of properly when it no longer holds a charge. Proper charging practices will increase the life of the unit.

WARRANTY

In case of failure, the warranty applies during a term of 2 years for the products (excluding cables, power cords and cigarette lighter) and comes into effect from the invoice date. The invoice sent with your order, holds as a legal document for the warranty.

Any defective product requiring a repair under warranty must absolutely be returned with a purchase proof to our PRESIDENT after-sales department. The After-sales laboratory of PRESIDENT is the only empowered organization to decide about the application of the warranty clauses.

If the Product failure is proven and not related to a cause of exclusion as listed below, PRESIDENT commits to repair the product as soon as possible.

Exclusions: the normal wear and tear of the product, the non-respect of the installation and use specifications, negligence, bad maintenance, the non compliant use, external damages caused by accident (such as shocks, fall, fire), all products which have been modified or repaired by the user, defects due to intervention made by third parties not approved by PRESIDENT.

A quotation will be done when the warranty clauses cannot be applied. In this case the shipping costs and risks are the responsibility of the user. However, in case of application of the warranty, the return delivery costs will be at the expense of PRESIDENT.

The product must be returned to PRESIDENT possibly in its original packing or in a suitable packaging to ensure optimum protection.

Warning! Please check carefully your packing before sending. PRESIDENT will not accept devices or accessories damaged during transit.

Beyond the warranty period, you will still have the possibility to inspect or repair your device. In this case, an estimate will be communicated. If you accept the quote, the repair and shipping charges must be paid in advance.

ZAWARTOŚC OPAKOWANIA

4.3 in. (W) x 3.7 in (S). x 1.8 in. (G)

UTYLIZACJA BATERII

We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100-34540 Balaruc - FRANCE, declare, on our own responsibility that the Auto mobile power supply

Brand: PRESIDENT

Model: MPB-8800

is in conformity with EMC Council Directive of 2004/108/EC :

EN 55022: 2010

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2013

EN 55024: 2010

It is possible to use CE marking to demonstrate the conformity with EMC Directive.

Balaruc, the 2015-03-09

Jean-Gilbert MULLER

General Manager
