USER MANUAL TTK 1500 TROTEC

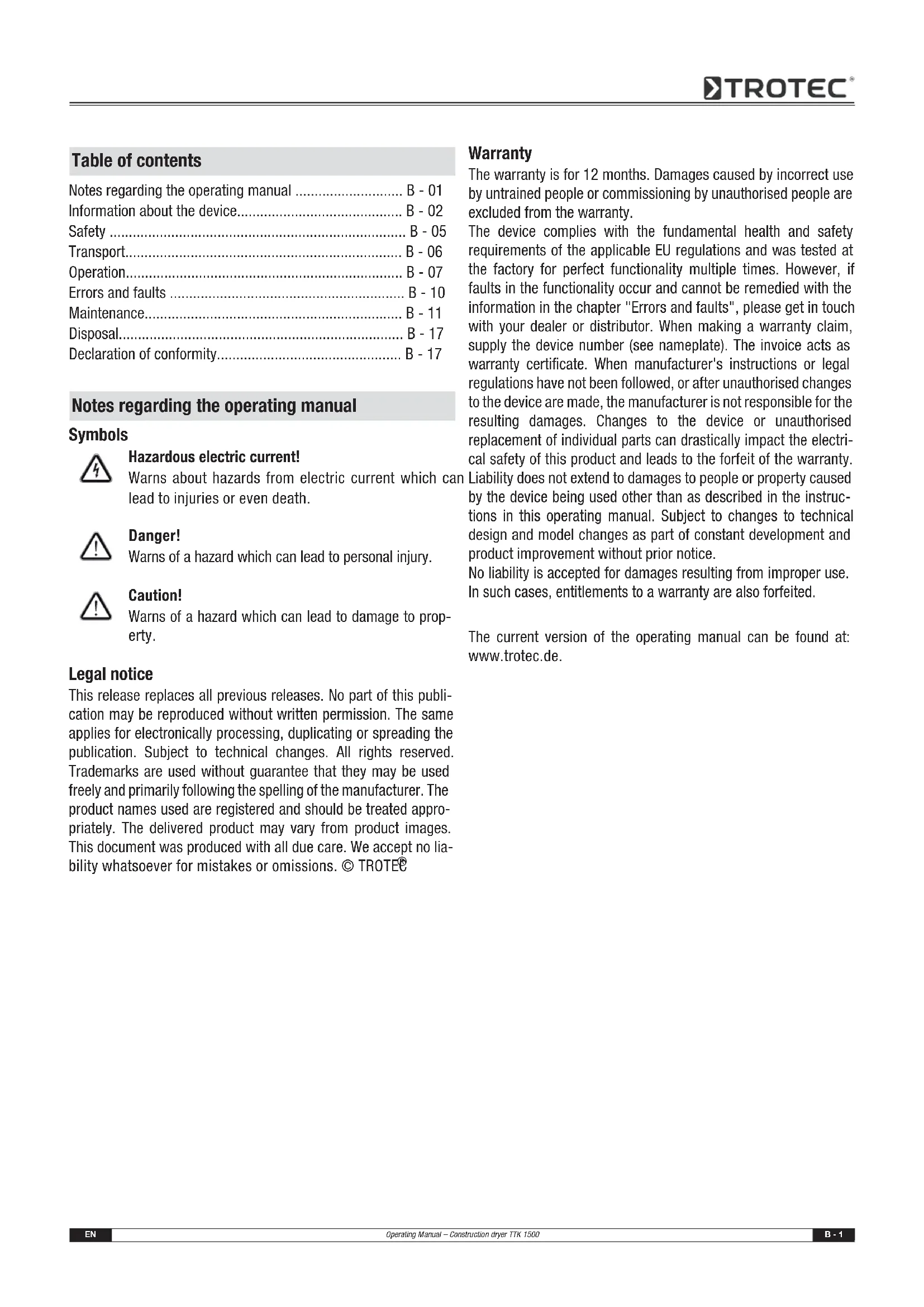

Notes regarding the operating manual B-01

Information about the device. B-02

Safety B-05

Transport. B-06

Operation. B-07

Errors and faults B-10

Maintenance. B-11

Disposal. B-17

Declaration of conformity. B-17

Notes regarding the operating manual

Symbols

Hazardous electric current!

Warns about hazards from electric current which can lead to injuries or even death.

Danger!

Warns of a hazard which can lead to personal injury.

Caution!

Warns of a hazard which can lead to damage to property.

Legal notice

This release replaces all previous releases. No part of this publication may be reproduced without written permission. The same applies for electronically processing, duplicating or spreading the publication. Subject to technical changes. All rights reserved. Trademarks are used without guarantee that they may be used freely and primarily following the spelling of the manufacturer. The product names used are registered and should be treated appropriately. The delivered product may vary from product images. This document was produced with all due care. We accept no liability whatsoever for mistakes or omissions. © TROTEC

Warranty

The warranty is for 12 months. Damages caused by incorrect use by untrained people or commissioning by unauthorised people are excluded from the warranty.

The device complies with the fundamental health and safety requirements of the applicable EU regulations and was tested at the factory for perfect functionality multiple times. However, if faults in the functionality occur and cannot be remedied with the information in the chapter "Errors and faults", please get in touch with your dealer or distributor. When making a warranty claim, supply the device number (see nameplate). The invoice acts as warranty certificate. When manufacturer's instructions or legal regulations have not been followed, or after unauthorised changes to the device are made, the manufacturer is not responsible for the resulting damages. Changes to the device or unauthorised replacement of individual parts can drastically impact the electrical safety of this product and leads to the forfeiture of the warranty. Liability does not extend to damages to people or property caused by the device being used other than as described in the instructions in this operating manual. Subject to changes to technical design and model changes as part of constant development and product improvement without prior notice.

No liability is accepted for damages resulting from improper use. In such cases, entitlements to a warranty are also forfeited.

The current version of the operating manual can be found at: www.trotec.de.

Information about the device

Description of the device

This device uses the principle of condensation to automatically dehumidify rooms. To do so, the device can be used in continuous operation.

The fan sucks damp room air through the air inlet (5), the air filter (7), the evaporator and to the condenser located behind it. The air is cooled at the cold evaporator until it is below the dew point. Water vapour contained in the room air precipitates on the evaporator fins as either condensation or frost. The dehumidified, cooled air is warmed again and blown out from the air outlet (6). The drier air which is prepared in this way mixes with the air in the room. The humidity in the room where the device is positioned is reduced as air constantly circulates through the device. Depending on the air temperature and the relative humidity, the condensed water either drops continuously or only during the defrost phase into the condensation tray. The condensation is fed through a pressure-resistant pipe connection and out of the device at a preinstalled condensation drain hose (4).

The condensed water can be diverted by retrofitting a condensation pump.

For easy operation, the device is fitted with a control panel (2) and for easy transport, it is fitted with a bar handle (1) and wheels (3).

The device can reduce the relative humidity of a room by up to approx. 35% . Because of the heat radiation which is tied up in operation, the room temperature can rise by approx. 1 - 3^

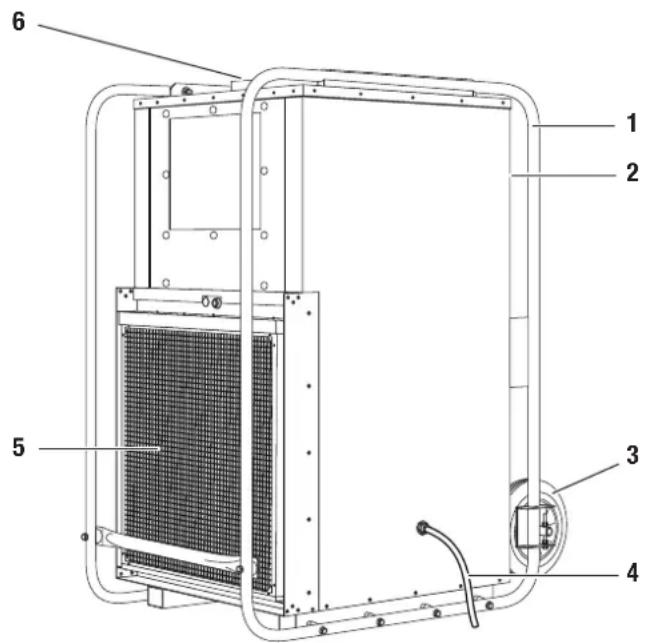

Device depiction and operating elements

No.	Operating element
1 bar	handle
2 control panel
3	w h e e l s
4 condensation drain hose
5 air inlet
6 air outlet
7 air filter

Scope of supply (standard)

• construction dryer TTK 1500
• air filter
• condensation drain hose
• operating manual

Optional accessories

• humidistat
• condensation pump
  energy cost gauge

Technical data

Parameters Values
Model TTK 1500
Dehumidifying capacity, max. 400 l / 24 h
Dehumidifying capacity (20 °C / 60 % relative humidity) 100 l / 24 h
Suitable for room dimensions up to: construction drying or clearing water damages maintaining dryness	1700 m33400 m3
Operating temperature 0-40 °C
Working range for relative humidity 35-100 %
Volume of airflow, max. 2200 m3/h
Electric connection 400 V / 50 Hz / 6.75 A
Power consumption, max. 2.7 kW
Power consumption, average 1.7 kW
Fuse (home)	10 A
Compressor	Reciprocating
Refrigerant	R407c
Amount of refrigerant	2.5 kg
Weight	141 kg
Dimensions (HxDxW)	660 x 660 x 1313 mm
Minimum distance from walls of other objects	A: Above: 50 cmB: Behind: 50 cmC: Side: 50 cmD: Front: 50 cm
Sound pressure level LpA (3 m; complies with DIN 45635-01-KL3)	58 dB(A)

Power consumption

The device's power consumption depends on the current room temperature and relative humidity.

Multiply the operating hours (see operating hours counter (12)) by a consumption value of one kilowatt per hour to determine the approximate power consumption.

To determine the precise power consumption, a separate energy cost gauge can be set between the construction dryer and the power source. Contact TROTEC ^® customer service if you want this alternative version.

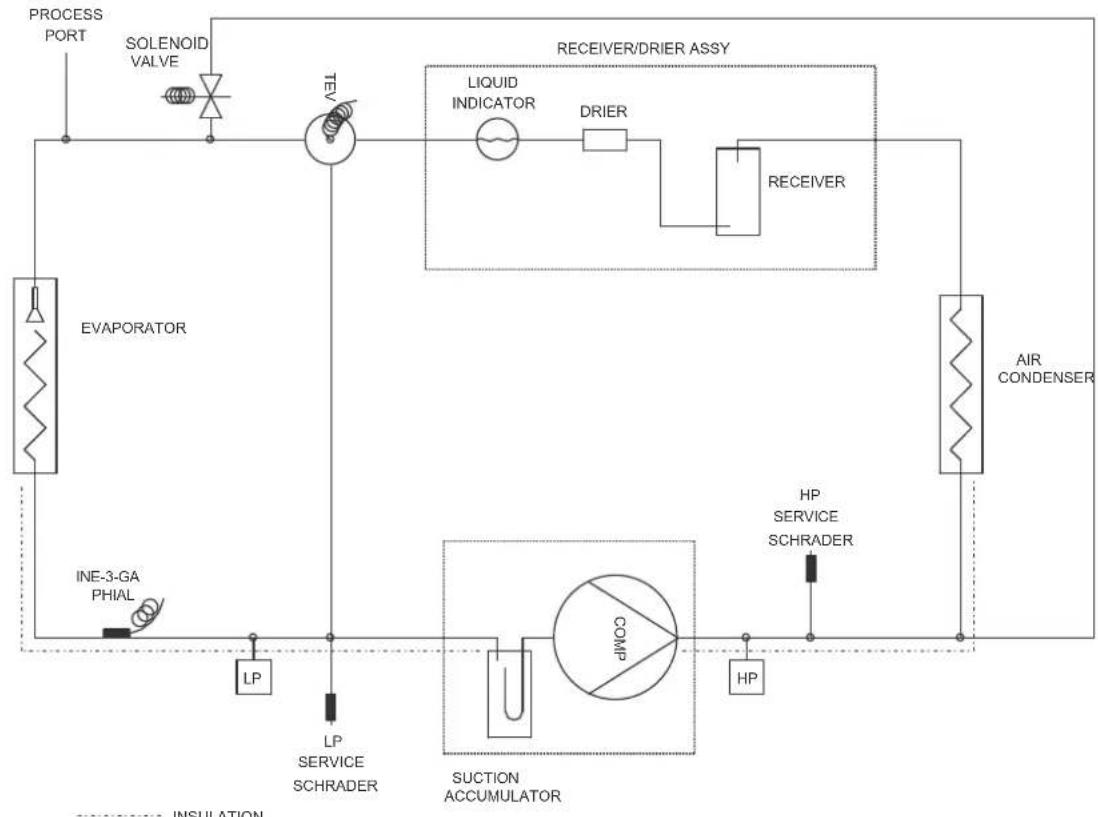

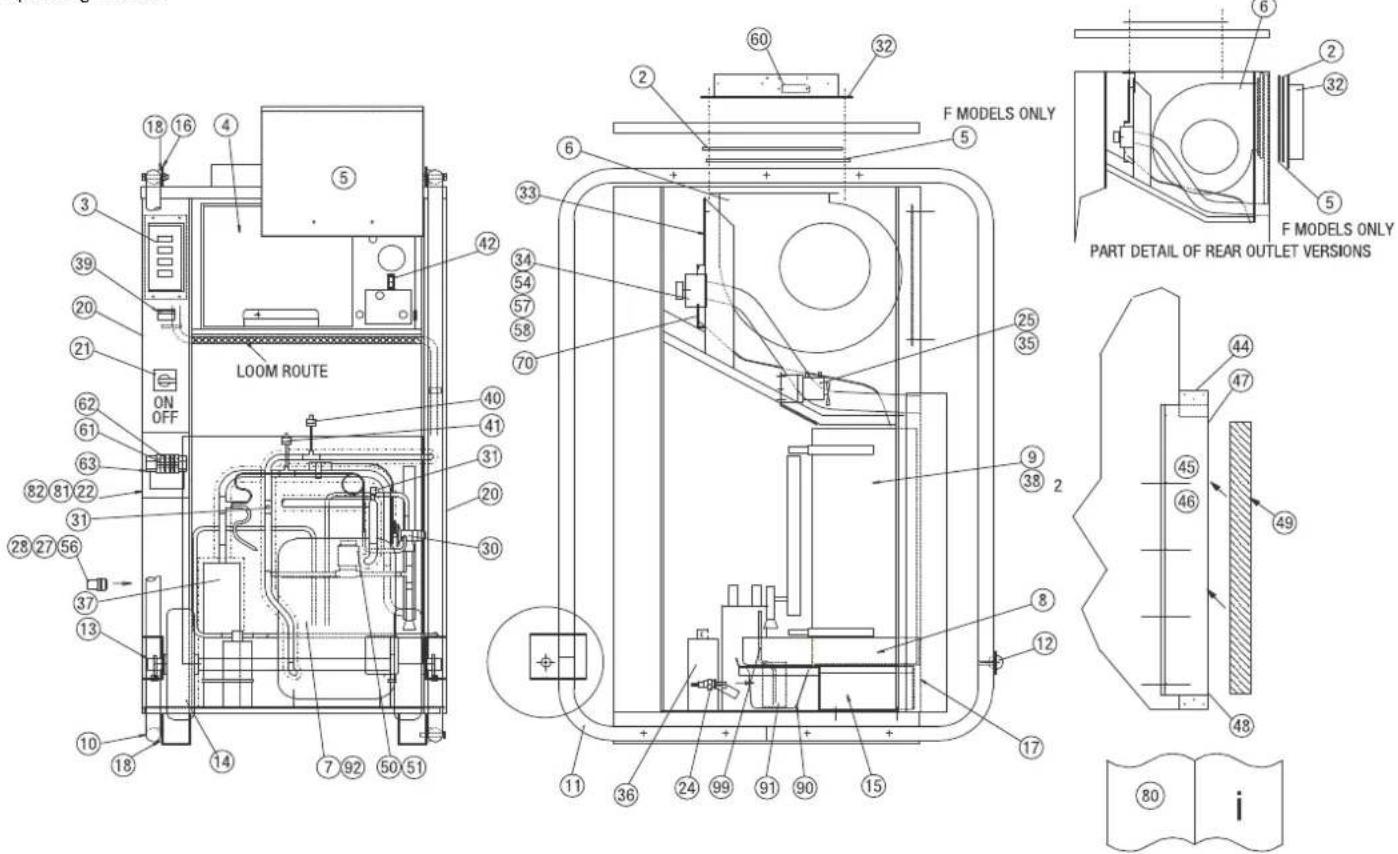

Cooling circuit diagram

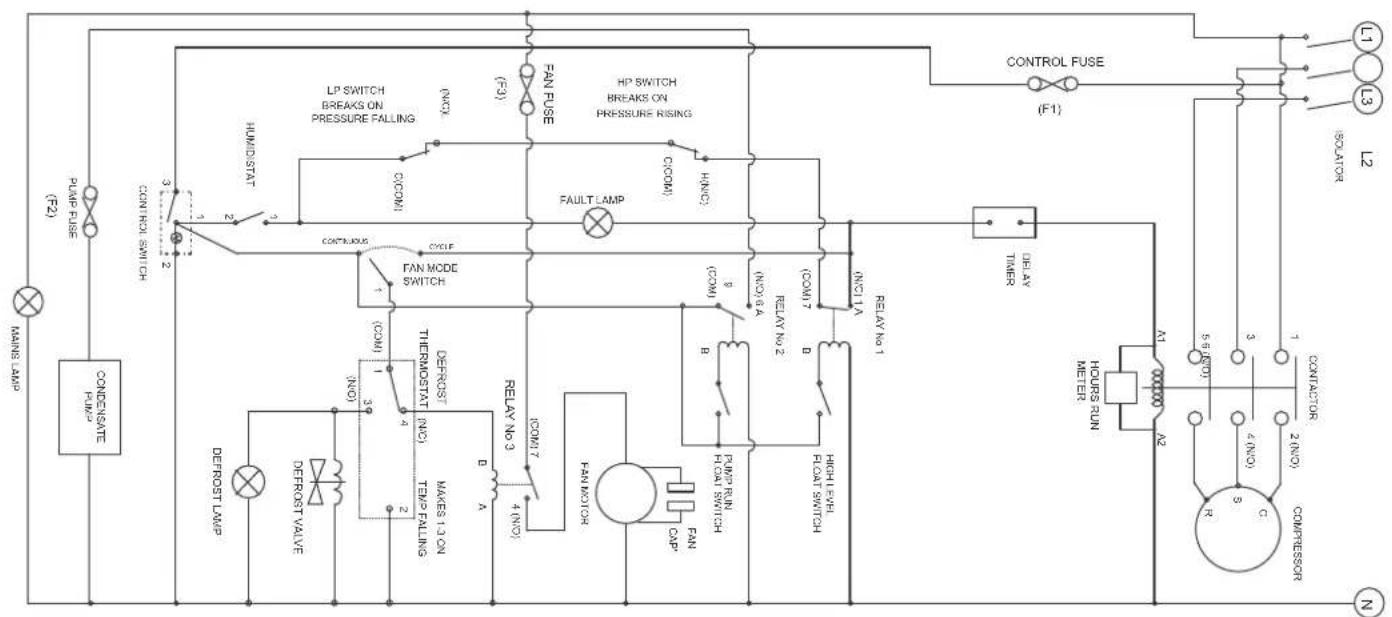

Circuit diagram

Safety

Read this manual carefully before starting or using the device. Store the manual near the device or its site of use!

• Do not use the device in potentially explosive rooms.
• Do not use the device in atmospheres containing oil, sulphur, chlorine, acid or salt.
• Do not operate the device in rooms which are pressurised with acetone, undiluted acids or solvents.
• Set the device in an upright and stable position.
• Do not expose the device to directly squirting water during operation.
• Ensure that the air inlet and outlet are not obstructed.
• Ensure that the side of the device where the air inlet is found is kept free of dirt and loose objects.
• Never insert objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• Ensure that all electric cables outside of the device are protected from damage (e.g. from animals).
• Only use extensions to the electric cable which are appropriate to the device power consumption, the length of its cable and its use. Avoid electrical overload.
• Only transport the device in an upright position with an emptied condensation pump and tray.
• Dispose of the collected condensation. Do not drink it. There is a risk of infection!

Intended use

Only use the device TTK 1500 as a mobile industrial dryer for drying and dehumidifying room air, while adhering to and following the technical data.

Intended use encapsulates:

• drying and dehumidifying:

production plants, underground rooms
- store rooms, archives, laboratories
- rooms and areas after water damages from burst pipes or flooding

• maintaining the dryness of:

instruments, devices and files
- electric control devices, boiler plants, turbines and pipe systems in power plants
- moisture-sensitive loads etc.

Improper use

Do not place the device on flooded ground. Do not use the device outdoors. Do not lay any objects, e.g. wet clothing, on the device for drying. Any changes, modifications or alterations to the device which have not been authorised by TROTEC are forbidden.

Personnel qualifications

People who use this device must:

• be aware of the dangers that occur when working with electric devices in damp areas.
• take measures to protect themselves from direct contact with live parts.
  have read and understood the operating manual, especially the "Safety" chapter.

Maintenance tasks at the electrical equipment or the air-conditioning technology must only be carried out by specialist companies for cooling and air-conditioning or by TROTEC.

Residual risks

Hazardous electric current!

Work on the electrical components must only be carried out by an authorised specialist company!

Hazardous electric current!

Before any work on the device, remove the mains plug from the mains socket!

Caution!

To avoid damages to the device, never operate the device without an air filter inserted!

Danger!

Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications!

Danger!

A toppling device can cause you injuries! Only slightly tilt the device and move it carefully. If necessary, ask another person to help. For longer distances, transport the device with a fork lift or elevating truck. Never stand below the device when suspended in the air.

Behaviour in the event of an emergency

1. Disconnect the device from the mains power in an emergency.
2. Do not reconnect a defective device to the mains power.

Transport

To make the device easier to transport, it is fitted with wheels and side bar handles. If necessary, transport the device with the help of another person. To lift the device, use a fork lift or an elevating truck.

Before transporting the device, proceed as follows:

1. Switch off the device at the mains switch (see chapter "Operating elements").
2. Remove the mains plug from the mains socket. Do not use the power cable to drag the device!
3. Empty the condensation drain hose or the condensation pump (optional). Check for dripping condensation.
4. Hold the bar handles in both hands and carefully tilt the device.
5. Transport the device on its wheels.

After transporting the device, proceed as follows:

1. Set the device in an upright position after transport.
2. Ensure that the device sits flat on the floor. The wheels are then raised and the device cannot roll away.

Storage

When out of use, store the device as follows:

·dry，
with a roof overhead,
- in an upright position where it is protected from dust and direct sunlight,
- with a plastic cover to protect it from invasive dust, if necessary.
- The storage temperature is the same as the range given for the operating temperature in the chapter "Technical data".

Operation

After being switched on, the device operates fully automatically.
- Avoid open doors and windows.

Positioning

When positioning the device, observe the minimum distance from walls of other objects as described in chapter "Technical data".

• Set the device in a level and stable position.
• When positioning the device, keep a sufficient distance away from sources of heat.
• If possible, set the device in the middle of a room. If using multiple devices, ensure that the spaces between devices is equal.
• When positioning the device in wet areas, secure the device locally with an RCD (Residual Current protective Device) which complies with the appropriate regulations.
• Ensure that extension cords are completely unrolled.
• Ensure that power supply's voltage and current comply with the specifications on the device's nameplate.
• When using a generator, ensure that the generator supplies at least 4kW of power (device starting current can exceed the nominal current by four or five times. Also note this fact when using several devices at one generator).

Notes regarding the dehumidifying capacity

The dehumidifying capacity depends on:

• the spatial composition of the room
• the room temperature
  the relative humidity

The higher the room temperature and relative humidity, the higher the dehumidifying capacity.

For using in living rooms, a relative humidity of approx. 50 - 60% is sufficient. In store rooms and archives, the humidity should not exceed approx. 50% .

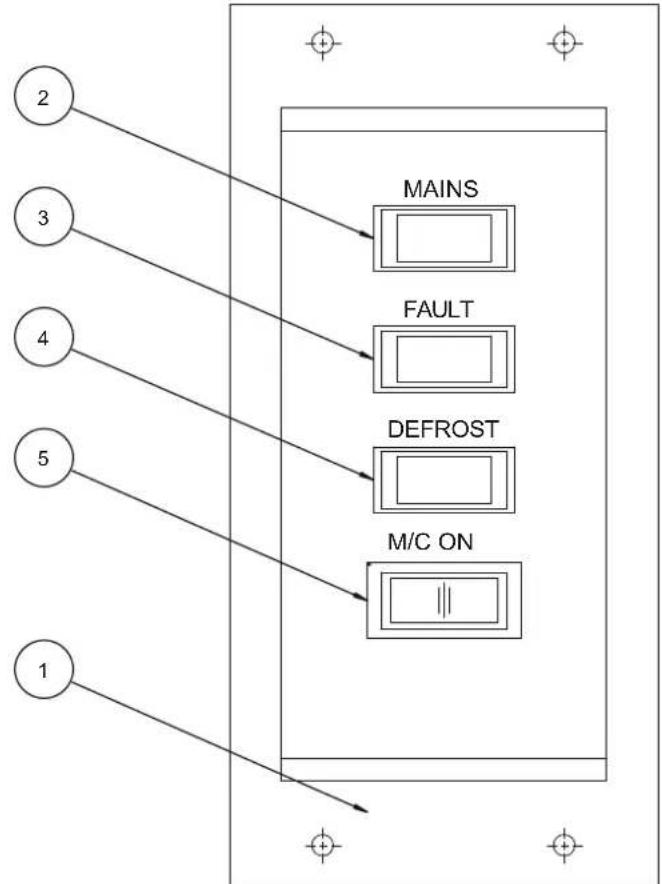

Operating elements

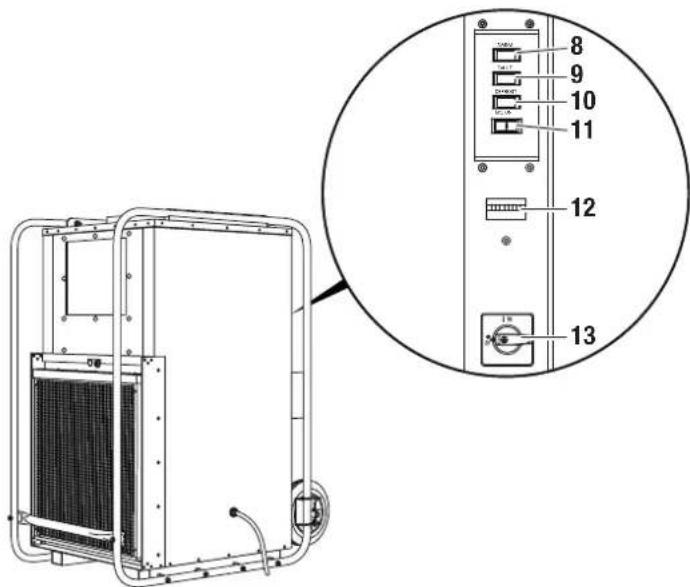

No.	Operating element
8	Operation indicator light:Lights when the device is switched on at the mains switch.
9	"Fault" indicator light:Lights when there is a fault.
10	"Automatic defrost" indicator light:Lights when the automatic defrost is active.
11	Control on/off
12	Operating hours counter
13	Mains switch:"ON": Device is switched on."OFF": Device is switched off.

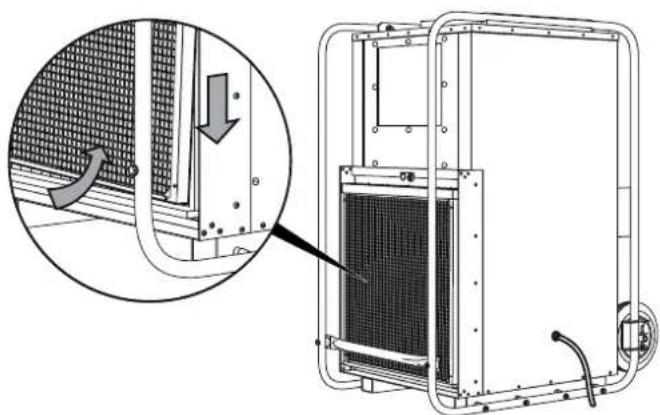

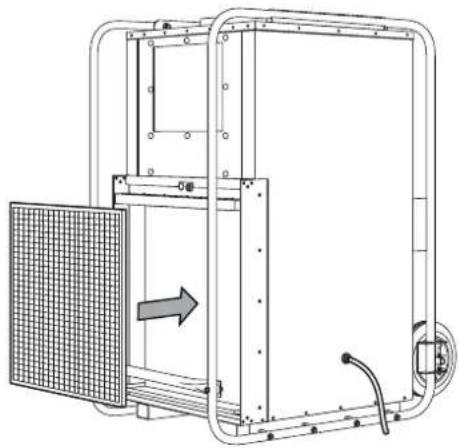

Start procedure Insert air filter

A.

B.

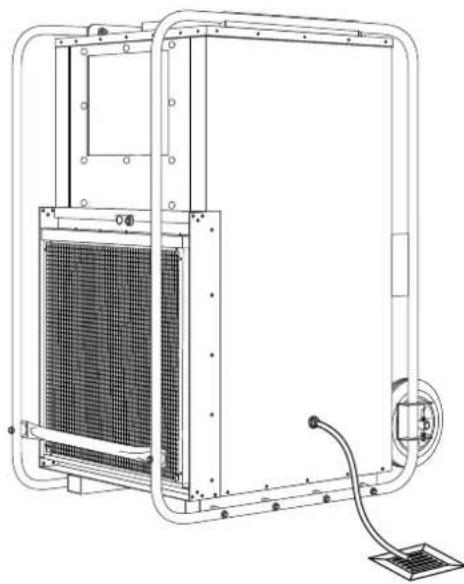

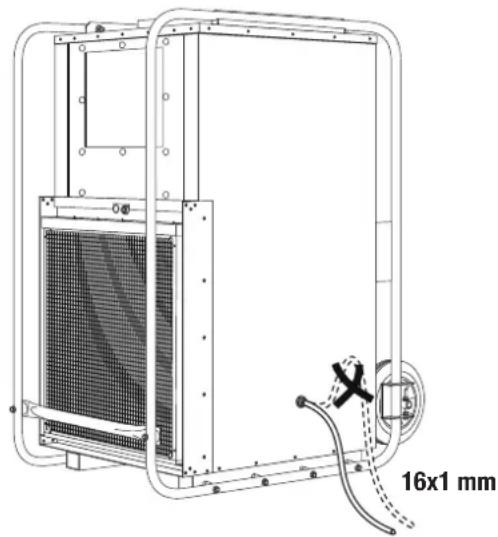

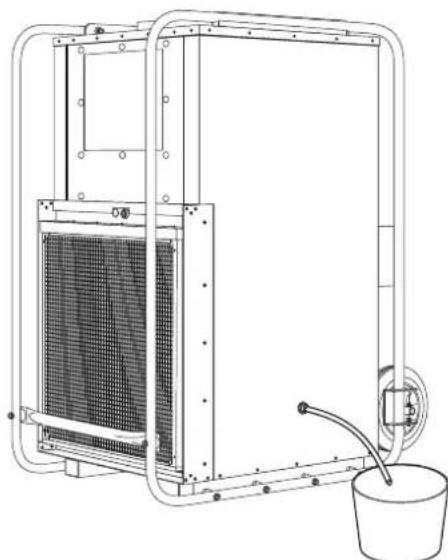

Positioning the condensation drain hose Note:

The condensation drain hose is already installed when the device is delivered.

1. Ensure that the condensation drain hose is properly connected to the device and is free of damage.

2. Depending on use, position the end of the condensation drain hose as follows:

3. Position a sufficiently large container (at least 90 litres) beside the device and insert the hose end. Check the fill level of the container regularly.

• Position the end of the condensation drain hose above a water drain. For larger distances, a longer hose of the same type can also be used.

• The device can also be operated with a condensation pump. Contact TROTEC® customer service if you want this alternative version.

• Ensure that the condensation drain hose always descends.

Switching on the device

1. Ensure that the condensation drain hose (4) has been laid and connected properly. Do not create tripping hazards.
2. Ensure that the condensation drain hose (4) is not bent or jammed and that there are no objects on the condensation drain hose (4).
3. Ensure that the condensation can run off properly.
4. Insert the mains plug into a properly secured mains power socket. Do not create tripping hazards.
5. Empty any condensation from the device by pressing the button for draining residual water from the condensation pump (optional).
6. Switch on the device at the mains switch (13).

"Continuous" operation mode

In continuous operation mode, the device dehumidifies the air constantly, regardless of the humidity in the air.

"Humidistat" operation mode (optional)

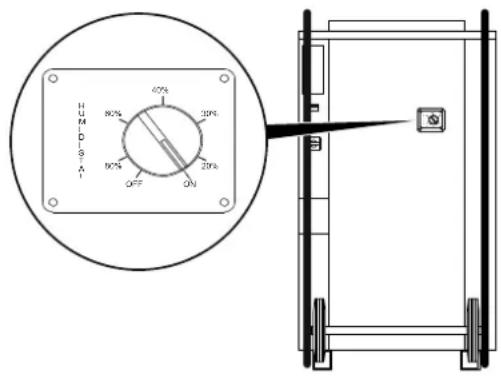

The device can also be operated with a humidistat.

The humidistat switches the device on or off depending on the humidity.

If you choose to operate the device with an optional humidistat, set the desired humidity at the humidistat (see operating manual of the optional humidistat).

Automatic defrost

Depending on the air temperature and the relative humidity, the evaporator fins may become covered in frost. The hot gas automatic defrost which is installed in the device switches back on as needed. Dehumidify mode is briefly interrupted during defrosting.

Shut down procedure

1. Switch off the device at the mains switch (13).
2. Empty any condensation from the device by pressing the button for draining residual water from the condensation pump (optional).
3. Do not touch the mains plug with wet or damp hands.
4. Remove the mains plug from the mains socket.
5. Remove the condensation drain hose (4) and any residual fluid from it.
6. Clean the device, and especially the air filter, according to chapter "Maintenance".
7. Store the device according to chapter "Storage".

Errors and faults

The accurate functionality of the device was tested during production a number of times. However, if functionality faults do occur, then check the device according to the following list.

Caution!

To prevent damages to the device and to prevent the fuse or motor protection switch from tripping, ensure the device is switched off and wait at least 5 minutes before switching the device back on.

The device does not start:

• Check the mains power (400 V/3~/50 Hz).
• Check the mains plug for damages.
• Check whether the mains switch (13) is in the "ON" position.
• Check the fuse (home).
• If you operate the device with a humidistat, check the desired humidity. The humidity in the room must be above the selected range. Reduce that the selected humidity.
• Have the electrics checked by a specialist company for cooling and air-conditioning or by TROTEC®.

The device runs but forms no condensation:

• Check the condensation drain hose is positioned correctly.
• Check that the condensation pump functions properly. Check for abnormal vibrations and sounds. Remove external dirt.
• Check the room temperature. Check the device's permissible working range complies with the technical data.
• Ensure that the relative humidity complies with the technical data.
• If you operate the device with a humidistat, check the desired humidity. The humidity in the room must be above the selected range. Reduce that the selected humidity.
• Check the air filter is not dirty. If necessary, clean or replace the air filter.

The device is loud or vibrates; condensation leaks:

• Check whether the device is standing upright and on an even surface.

The device gets very warm, is loud or is losing performance:

• Check the air inlets and air filter are not dirty. Remove external dirt.
• Check the inside of the device for dirt (see chapter "Maintenance"). Clean the inside of the device as described in the chapter "Cleaning the inside with compressed air".

Does your device still not operate correctly after these checks?

Bring the device to a specialist company for cooling and air-conditioning or to TROTEC® for repairs.

Maintenance

Maintenance intervals
Maintenance and care log

Maintenance and care interval before every start		when neces- sary	at least every 2 weeks	at least every 4 weeks	at least every 6 months	at least annu- ally
empty the condensation pump, condensation tray and/or construction dryer		X

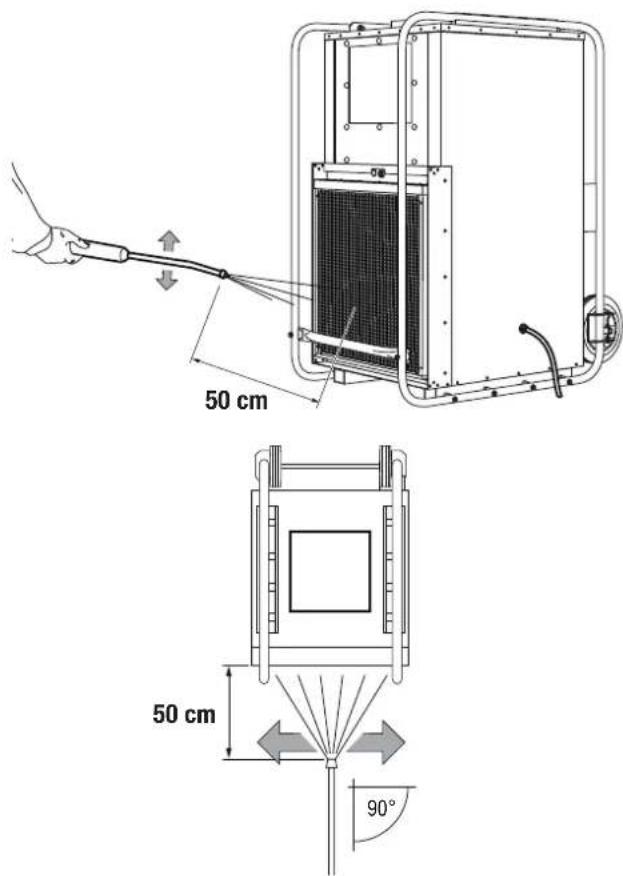

check air inlets and outlets for dirt and foreign objects and clean if necessary	X	X		X

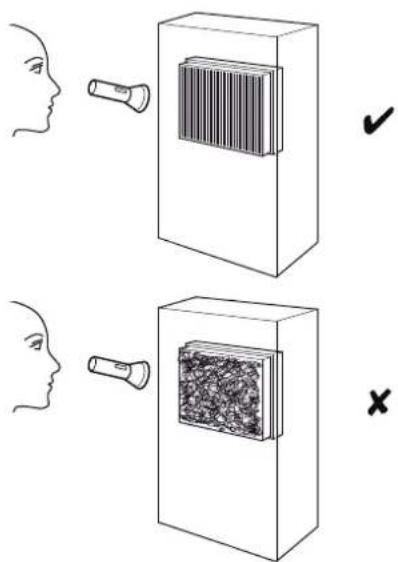

visually check whether the inside of the device is dirty X X

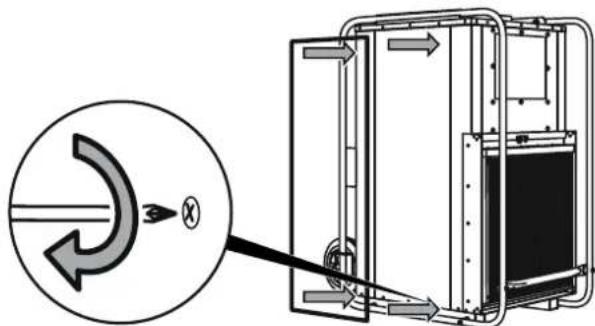

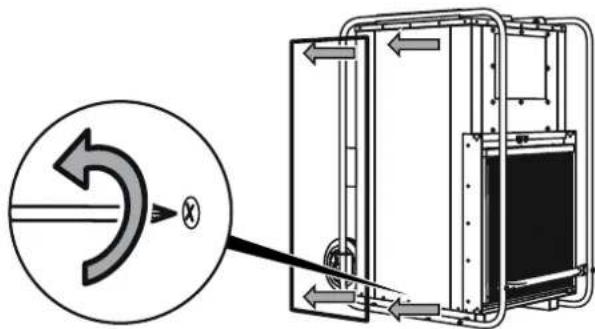

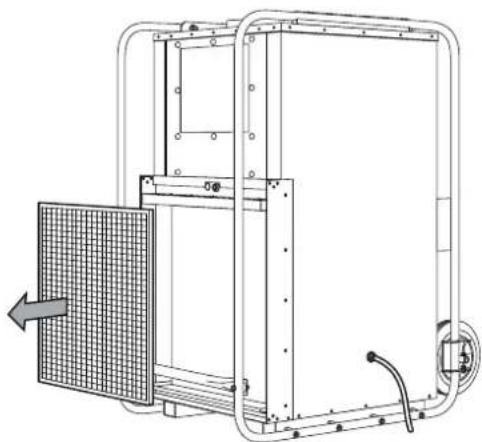

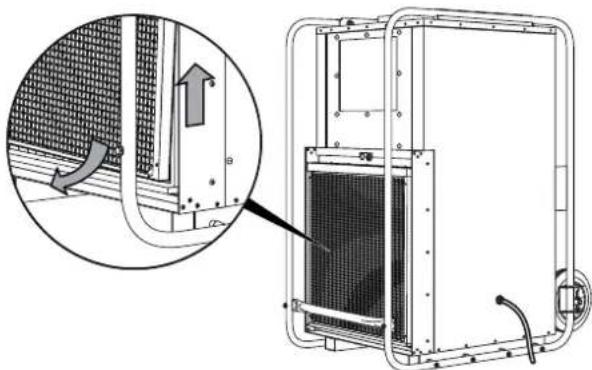

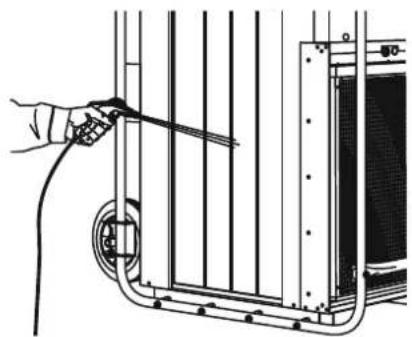

clean the inside with compressed air X X

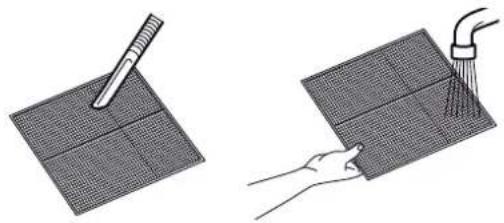

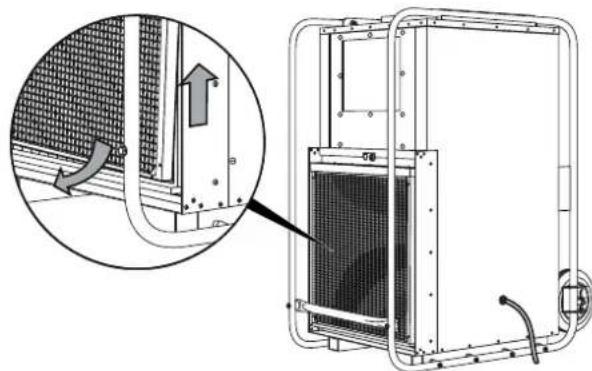

check air inlet grid and air filter for dirt and foreign objects and clean or replace if necessary	X		X
replace air filter X
check for damages X
check attachment screws X X
carry out a test run X

Device type: Device number:

Maintenance and care interval	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
check air inlets and outlets for dirt and foreign objects and clean if necessary
clean housing
visually check whether the inside of the device is dirty
clean the inside with compressed air
check air inlet grid and air filter for dirt and foreign objects and clean or replace if necessary
replace air filter
check for damages
check attachment screws
carry out a test run
Remarks:

1. Date: Signature:	2. Date: Signature:	3. Date: Signature:	4. Date: Signature:
5. Date: Signature:	6. Date: Signature:	7. Date: Signature:	8. Date: Signature:
9. Date: Signature:	10. Date: Signature:	11. Date: Signature:	12. Date: Signature:
13. Date: Signature:	14. Date: Signature:	15. Date: Signature:	16. Date: Signature:

Activities for before the start of maintenance

1. Do not touch the mains plug with wet or damp hands.
2. Before any work, detach the mains plug!

Maintenance tasks at the electrical equipment or the air-conditioning technology must only be carried out by specialist companies for cooling and air-conditioning or by TROTEC®.

Visual check for dirt in the inside of the device

1. Remove the air filter (see chapter "Cleaning the air inlets and the air filter").
2. Shine a torch through the opening of the device.
3. Check the inside of the device for dirt.
4. If you find dirt, use a high pressure cleaner to clean the device according to "Cleaning the air inlets and the air filter".
5. Put the air filter back in.

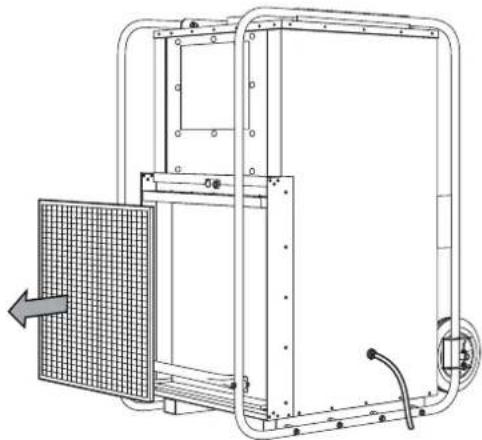

Cleaning the air inlets and the air filter

A.
B.

C.

D.

Caution!

After you have cleaned the device with a high pressure cleaner, check the air filter, which you have already removed, for damages. The corners and edges must not be rounded or misshaped.

Before reinserting the air filter, ensure that it is dry and is not damaged!

Read the chapter "Maintenance intervals" and replace the air filter punctually!

Cleaning the inside with compressed air

A.
B.

C.
D.

E.

Caution!

When cleaning the inside, take care not to bend the fins of the condenser and evaporator. Do not damage the insulation.

Overview and list of spare parts

Main components

Note!

The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.

No. Item	number Spare part	No. Item number Spare part
1 SD062	150 electric box lid 30	SD086951 TEV INE-3-GA
2 SD071	750 outlet grille 31 SP	066350 Schrader valve
3 SA205	501 console assembly	32 SD071650 duct flange
4 SA582	501 electric box assembly	33 SD086350 support bkt
6	7150001210	fan assembly (drilled)	34	SD080650	component box ABS drilled
7 71610	00283 compressor	35 SD300550 pump bracket
8 73100	00886 drip tray	36 SD149650 receiver/drier
9	SD141553	evaporator	37	7140000899	operating hours counter (panel mount)
10 SD28	9750 frame (left side)	38 SD097250 evaporator spacer
11 SD28	9751 frame (right side)	40 SD266450 HP switch ACB-DB88 400 psi
12 SD29	1850 crash bar	41 SD266550 LP switch LCB-DA15 7 psi
13 SD28	9850 axle	42 SD188950 rocker switch 1 pole c/o
14 7600	000080 wheel	44 SD085150 duct flange top and bottom
15 SD28	8750 support bracket	45 SD085250 duct flange side
16 SD29	0150 bracket	46 SD085251 duct flange side
17 SD28	8850 blanking panel	47 SD175750 filter bracket
18 SD28	9550 saddle washer 48	SD175850 filter bracket
19	SD520851	spacer mounting tube 42 mm long	49	7710000911	filter washable
20 SD01	1450 side panel	50 SD166250 solenoid valve 3/8
21	SD232150	isolator switch	51	SD166550	solenoid coil 230 V, 50 Hz
22 7242	000887 mains in box	54 SP 152150 M20 plastic gland back nut
24	7130000912	float switch (62-00-554)	56	7310000349	tube insert (62-00-094)
25	7170000191	peristaltic pump 11 litre per hr.	57	SD062350	humidistat
27 SD29	4650 bulkhead connector	58 SD041450 control knob
28 7310	000348 locking collet	60 SD293050 damper plate

No. Item	number Spare part	No.	Item number Spare part
61 SD09	8950 terminal block earth EK4 82 SD188450 locknut M25
62 SD09	9050 terminal block SAK6N 90 SD304501 drip tray
63 SD12	0550 din rail 91 SD306050 water filter
70 SD11	7950 bracket 92 SP182554 refrigerant R407c
80 SD20	8052 user manual 99 $D295550 water suction
81 SD18	8550 M25 bush

Components - Electrical equipment

Note!

The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.

No.	Item number	Spare part
1 SD062001 electrical box steel plated
5 SD403950 end bracket EW35 (8.5)
6 7140000196 relay c/o 2 pole		16 A 230 V AC coil
10	7140000203 contactor 9	A 3+1 N/0 aux
11	7140000164 delay timer	7 sec to 9 min
12	SD216550	fuse holder
14	SD271250	capacitor 8 μF
15	SD072650	terminal block 6 way
16	SA582601	loom assembly
17	7140000928 defrost stat/timer
18	SD035353	fuse 1/4 x 1 1/4, 1 A
28	SD035350	fuse 3 A
29	SD035352	fuse 1/4 x 1 1/4, 7 A

Control panel

Note!

The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual.

No. Item number Spare part
1	7310001153 console moulding
2	7141000891 pilot light red rectangular 250 V
3	7141000889 pilot light amber rectangular
4	7141000890 pilot light white rectangular
5	7130000892 rocker switch illuminated red

Disposal Declaration of conformity

In the European Union, electronic equipment must not be treated as domestic waste, but must be disposed of professionally in accordance with Directive 2002/96/EC of the European Parliament and Council of 27th

January 2003 concerning old electrical and electronic equipment. At the end of its life, please dispose of this instrument in a manner appropriate to the relevant legal requirements.

The device uses an environmentally friendly and ozone-neutral refrigerant (see chapter "Technical data"). Dispose of the refrigerant/oil mixture appropriately and according to the national regulations.

in accordance with the EC Low Voltage Directive 2006/95/EC and the EC Directive 2004/108/EC about electromagnetic compatibility.

Herewith, we declare that the condenser dryer TTK 1500 was developed, constructed and produced in compliance with the named EC directives.

Applied harmonised standards:

IEC 60335-1:2001/A2:2006

IEC 60335-2-40:2002/A1:2005

IEC 62233:2005

The marking is found on the device nameplate.

Manufacturer:

Furniture (standard)
