Product type	Electric deep fryer
Brand	Tomado
Model	TM1980
Dimensions (L x W x H)	355 x 290 x 250 mm
Net weight	3.96 kg
Mains voltage	230-240 V ~ 50 Hz
Power	2570-2800 W
Temperature control	Adjustable thermostat from 130 °C to 190 °C
Timer	Yes, with alarm (adjustable duration)
Indicator lights	Red light (power) and green light (temperature reached)
Frying basket	Removable, with lockable handle
Lid opening	Opening button
Safety devices	Thermal cut-out, overheat protection, RESET button
Housing material	Heat-resistant plastic
Cleaning	Damp cloth for exterior; basket and handle washable with soapy water (dishwasher not recommended)
Included accessories	Frying basket, handle, user manual
Warranty	2 years
Usage	For deep frying fresh or frozen foods

Frequently Asked Questions - TM1980 Tomado

How to use the Tomado TM1980 deep fryer?

Place the deep fryer on a stable surface. Fill with oil between the min and max levels. Plug in, press the On/Off button and set the desired temperature. Wait until the green light turns on (preheating 7-8 min). Place food in the basket, lower it gently. Set the timer if desired. Once cooked, lift the basket and drain. Turn off and unplug after cooling.

How much oil should I use?

Pour the oil until it is between the minimum level and maximum level marks indicated on the inside of the tank. Do not exceed the maximum to avoid overflow.

How to adjust the temperature?

Turn the temperature selector knob to the desired value (130 to 190 °C). Refer to the temperature table in the manual or on the food packaging. The green light turns off and then on again when the temperature is reached.

What to do if the deep fryer does not heat up?

Check that the appliance is plugged in and the On/Off button is pressed. If the thermal cut-out has tripped (overheating), unplug, let it cool completely, then press the RESET button located behind the right heating element with a pointed object.

How to clean the deep fryer?

Let it cool and unplug. Clean the exterior with a damp cloth and dry. The basket and handle can be washed with soapy water; rinse and dry thoroughly. Never immerse the housing. Dishwasher is not recommended.

Can I put the basket in the dishwasher?

No, dishwasher washing is not recommended as it may damage the coating. Hand wash with a soft sponge and dish soap.

How to replace the oil?

Make sure the oil is completely cooled. Unplug the appliance. Empty the used oil (do not pour down the drain). Clean the inside with paper towels then a soapy cloth. Replace the oil every 10 frying cycles or if it becomes dark or smells bad.

What does the green light mean?

The green light turns on when the set temperature is reached. It turns off during heating and turns on again when the temperature is stable. Only put food in when the green light is on.

How to reset after overheating?

Unplug the deep fryer and let it cool completely. Remove the cold heating elements with the control unit. Locate the small recess behind the right heating element and press the RESET button with a pointed object (paper clip). Reassemble and use normally.

Where to find after-sales service?

For repairs under warranty (2 years), contact your retailer or write to TOMADO Consumentenservice (postal address: Antwoordnummer 19016, 1000 VC Amsterdam, Netherlands). Keep your proof of purchase. Out-of-warranty repairs are possible but chargeable.

USER MANUAL TM1980 Tomado

Black and white photo of a modern toaster with digital display and control knobs (no visible text or symbols)

TM-1980

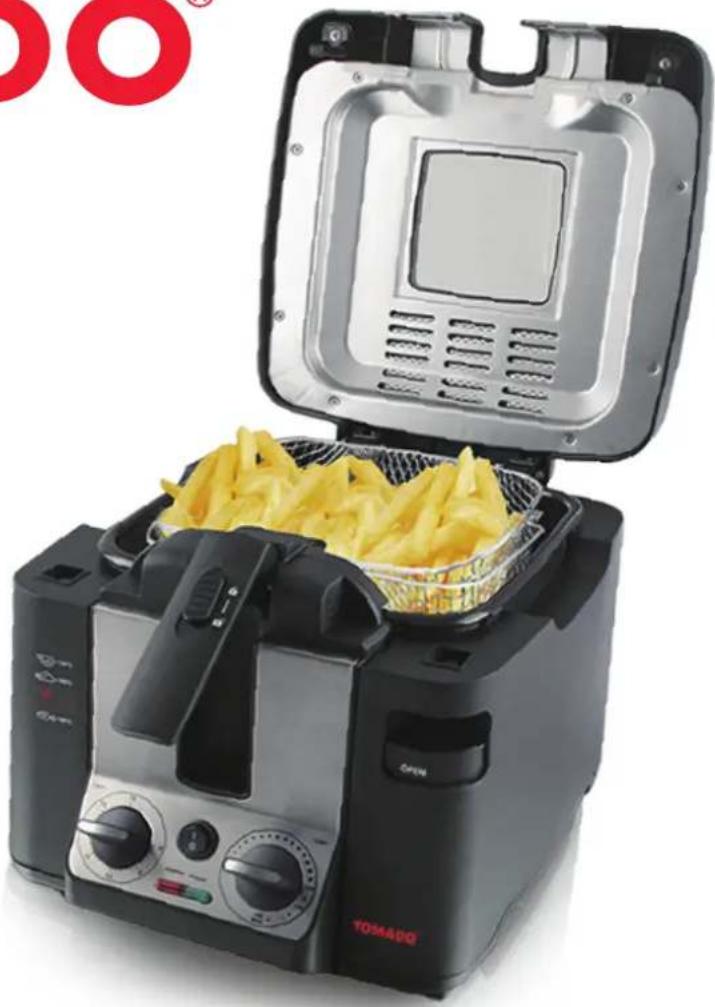

Black square kitchen air fryer with French fries being filled in a basket, open to reveal the oven (no text or symbols visible)

Gebruiksaanwijzing

Mode d'emploi

Instruction manual

Bedienungsanleitung

Deep fryer

TOMADO®

Labeled diagram of a cooking appliance with numbered parts for identification

Labeled diagram of a kitchen electric oven with numbered parts for identification

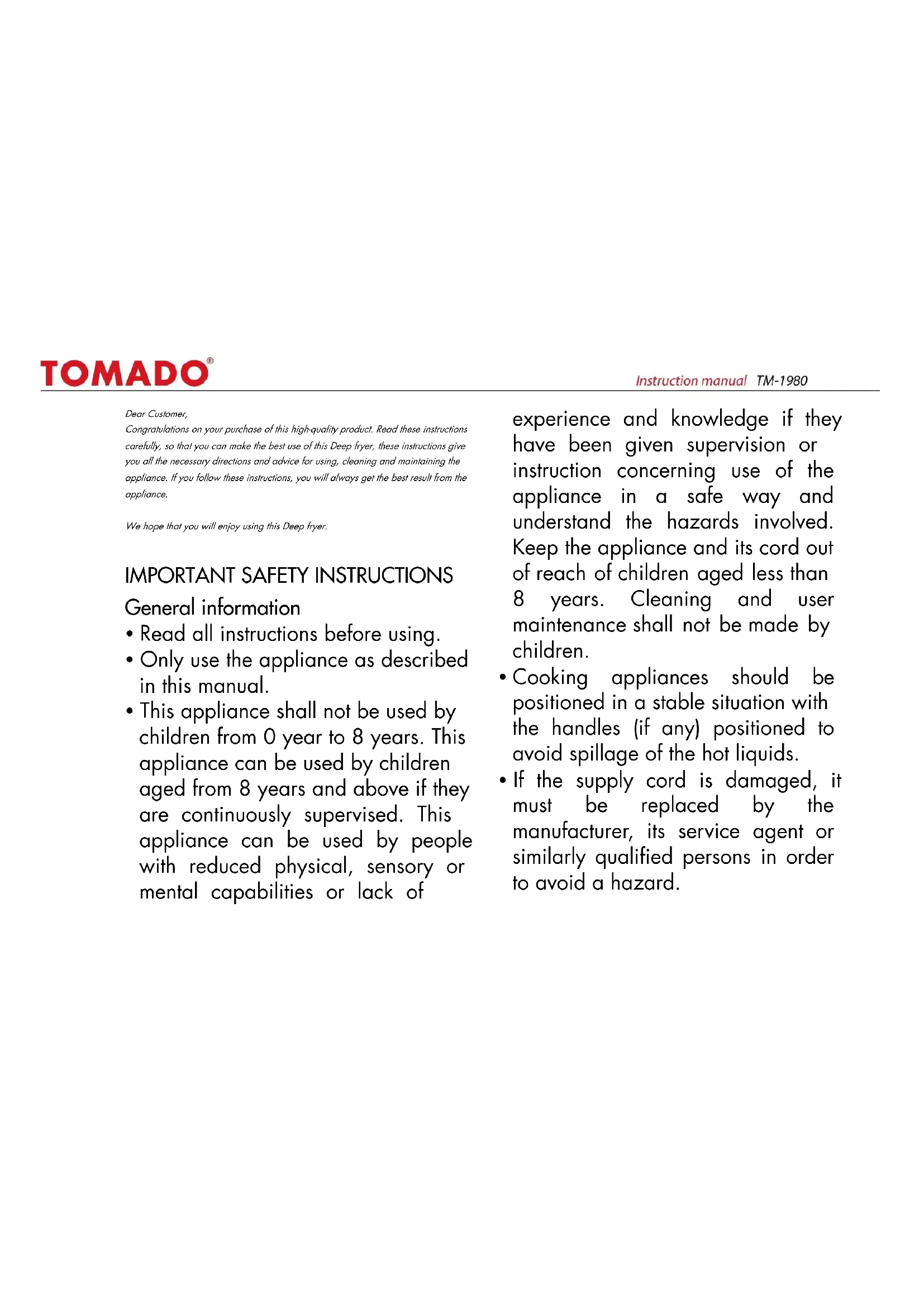

Congratulations on your purchase of this high-quality product. Read these instructions carefully, so that you can make the best use of this Deep fryer, these instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always get the best result from the appliance.

We hope that you will enjoy using this Deep fryer.

IMPORTANT SAFETY INSTRUCTIONS

General information

• Read all instructions before using.
• Only use the appliance as described in this manual.
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

• Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shop, offices and other working environment; - farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- the appliance must not be immersed;

○ only the appropriate connector must be used.

- In case of damage, caused through not paying attention to this instruction manual, the warranty expires at once. The manufacturer/importer does not accept any liability for damage caused as a result of ignorance of

the user manual, careless usage or the usage against the instructions in this manual.

• Always remove the power cord and let it cool:

○ Before moving the unit;

○ Before the unit is stored;

○ Before you go mounting or dismantle parts;

○ Before cleaning or maintenance work;

○ After use.

- Only have the appliance repaired by a qualified service centre*.

*Qualified service center: after-sales service of the manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

- Before use, check that the mains power supply voltage is the same as the voltage is the same as the voltage indicated on the appliance.

• Always plug the appliance into an earthed plug socket.

- Regularly check the power cord for damage.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.

• To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

• Make sure the power cord does not come into contact with hot surfaces or steam.

• Always remove the plug from the plug socket before you move the appliance.

- The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

- If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

TOMADO®

Instruction manual TM-1980

• To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
• To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
- Do not touch the appliance if it falls into water. Remove the plug from its socket, turn of the appliance and do not use it again.
- Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

- The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

- Only use the appliance indoors, in dry areas away from water.

• Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
  • To reduce the risk of electric shock, do not use the appliance outdoors or on wet surfaces.
• Place the appliance on a stable, level surface from which it cannot fall of.
• Use the appliance on a flat, dry and heat resistance surface, not on varnished furniture.
• Place the appliance at least 5cm of the wall or flammable objects (such as curtains, candles or towels).
• Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g.

hotplates).

- Disconnect the mains plug: after each time operating; if there is any interference with operation; before cleaning.

- Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

- Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the floor or has other parts been damage. In such cases take the appliance to a specialist for checking and repair is necessary.

• Children are unable to recognize the hazards associated with incorrect handling of electrical appliances.

Therefore, children should never use electric household appliances unsupervised.

- Close supervision is necessary for any appliance being used by or near children.

- Never leave the appliance unattended during use.

- It is necessary to keep this appliance clean because it is in direct contact with food.

- WARNING!!

Please do not touch surface while in use. The accessible surface may get hot when the appliance is operating.

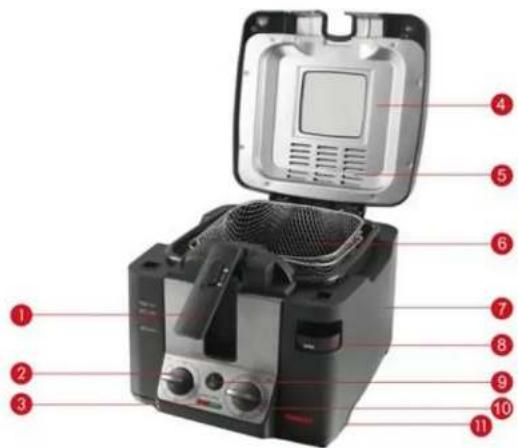

LIST OF COMPONENTS

Labeled diagram of a digital kitchen appliance with numbered parts for identification

1. Locking button/unlocking lever for frying basket handle
2. Timer switch
3. Red/green control lamps
4. Lid
5. Ventilation grille
6. Frying basket
7. Housing
8. Unlocking button for lid
9. On/off switch
10. Temperature control knob
11. Carrying handle (on both side)

USE

• Never switch on the deep fryer without oil or fat, as this could damage the machine. Also, do not place any other liquids such as water or other substances in the pan.
• Place the deep fryer on a dry, stable surface. Since the deep fryer becomes hot during use, make sure that it is not too close to other objects.
• Press the unlocking button to open the lid.
• Fold the handle of the frying basket upwards until it's fixed to lock position. Remove the frying basket from the appliance.
• Fill the deep fryer with the desired amount of oil or fat. Make sure that it is filled not less than minimum level and not higher than the maximum level as indicated on the inside of the appliance. For best results, we recommend that you do not mix different kinds of oil together.
• Connect the plug into a power outlet. Ensure the temperature control knob is set to "MIN".
• Press the On/off switch and both of the red & green control lamps will illuminate.
• Set the thermostat to the required temperature setting, which is suitable for what you are frying, the green lamp will go off. Consult the temperature table. (Cooking instructions on food packaging often state the temperature to use).
  • The oil fat is heated to the required temperature within 7-8 minutes.
• Use the handle to place the basket into the deep fryer.
• Place the food to be deep-fried into the basket. For best result, put dry food into the basket.
• Lower the basket into the oil slowly to prevent excessive bubbling.
• As soon as the fat has reached the set temperature, the green control lamp will illuminate again. Always wait until the selected temperature has been reached.
• If desired: set the frying duration using the timer switch. After the set time lapses, a signal will sound, but the heating element is not automatically switched off.
• Raise the basket again when the frying time has elapsed.
  • After frying let the product drip dry, never shake the basket.
• Set the thermostat to the lowest level.
• Switch off the appliance. Remove the plug from the outlet.

TOMADO®

Instruction manual TM-1980

• Rinse the handle and the basket after use, and dry thoroughly.
• Once the deep fryer has completely cooled off, you can replace the basket in the appliance and store it. Store the deep fryer, with the lid close, in a dark, dry place. In this way, you can leave the oil and the basket in the deep fryer when storing.

TEMPERATURE TABLE

The frying time and temperature always depend on the type and condition of the fried food. The following temperature can therefore only be guideline values. Always pay attention to the manufacture instructions on the food packaging. The following times relate to a quantity of 300 grams and do not include the heating-up time.

Food for frying	Recommended temperature (in °C)	Frying time (in minute)
Scampi	130	7 – 8
Frozen cod	190	3 – 4
Frozen meat patty	150	5
Breaded pork cops	150	12 – 15
Chips (frozen)	170	4 – 5
Chicken portion (small + medium – sized pieces)	170	8 – 10
Chicken portion (large pieces)	170	5
mushrooms	180	5

TO REPLACE THE OIL

Make sure that the deep fryer and the oil have totally cooled off before replacing the

oil (remove the plug from the socket!). Replace the oil regularly. This is definitely necessary if the oil becomes dark or takes on a different odour. In any case, replace the oil once after every 10 times' usage. Replace the oil all at once; do not mix old and new oil. Discarded oil is a burden to the environment. Do not throw on the normal rubbish bin, but follow the guidelines of the municipal waste collector in your area.

CLEANING AND MAINTENANCE

• Clean the deep fryer on both the inside and outside regularly.
• Clean the outside of the deep fryer with a damp cloth and dry with a soft, clean cloth.
• Never use abrasive cleaners or sponges.
• The basket and the handle can be cleaned in warm, soapy water. Dry well before using again.
• When replacing the oil you can also clean the inside of the deep fryer. Empty the deep fryer and first clean the inside with a paper towel and then with a cloth dipped in soapy water. Then wipe with a damp cloth and allow to dry thoroughly.
• All components, with the exception of the electrical parts, may be cleaned in warm soapy water. Dry thoroughly before use.
  • Dishwasher cleaning is not recommended.

TIPS

• Always place the deep fryer on a stable surface and keep all flammable materials away.
• Make sure that the deep fryer is not near or on a switched-on hot plate.
- Before use the deep fryer must be filled with the required amount of oil or fat.
- Never use the deep fryer without oil or fat because this could damage the unit.
- Never move the deep fryer during use. The oil becomes very hot and you can get burned. Wait to move the deep fryer until the oil has cooled off.

TOMADO®

Instruction manual TM-1980

• This deep fryer is protected with a thermal safety device, which switches the machine off automatically if it overheats.
• Never immerse the unit in water.
• Never leave the deep fryer unattended while in use. Always ensure the safety of children if they are near the deep fryer.
• If the deep fryer and/or cord are damaged, they must be repaired by a professional service department.
• Do not try to repair the unit by yourself, neither to replace a damaged cord. This requires special tools.
• Be sure not to damage the heating element. (Do not bend or dent.)

SAFETY THERMAL CUT-OUT

In the event of overheating, the thermal cut-off will switch off the deep fat fryer. This can happen if the deep fat fryer is not filled with sufficient oil or solid frying fat is melted in the deep fat fryer. In the case of solid fat, the heating element is unable to radiate the produced heat quickly enough. If the safety thermal cut-out switches off the deep fat fryer, proceed as follows:

• Unplug the fryer, allow the oil or fat to cool down completely;
  • The deep fat fryer is now ready to use again.

OVERHEATING PROTECTION

• If you should accidentally switch on your deep fat fryer when there is no oil or fat in it, the overheating protection is automatically turned on. The appliance is no longer ready to be used. Unplug the deep fryer and allow the deep fryer & all parts to cool down completely.
• Remove the cooled-down heating element from the appliance with the electric control unit. Place the heating element so that it is facing towards you.
• Press the RESET button with a pointed object. The RESET button is in a small indentation behind the right-hand heating bar.
• Reassemble the deep fryer. After this, the appliance is ready to use again.

TECHNICAL DATA

Type nr: TM - 1980

Power: 2570-2800W

Supply voltage: 230-240V \~ 50Hz

Dimensions:

Product measurements: 355 x 290 x 250 mm

Net weight: 3.96 kg

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
- The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
- The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
- The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
• TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.
• Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumentenservice

Antwoordnummer 19016

NL - 1000 VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Labeled diagram of a microwave oven with numbered parts for identification

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..

487
