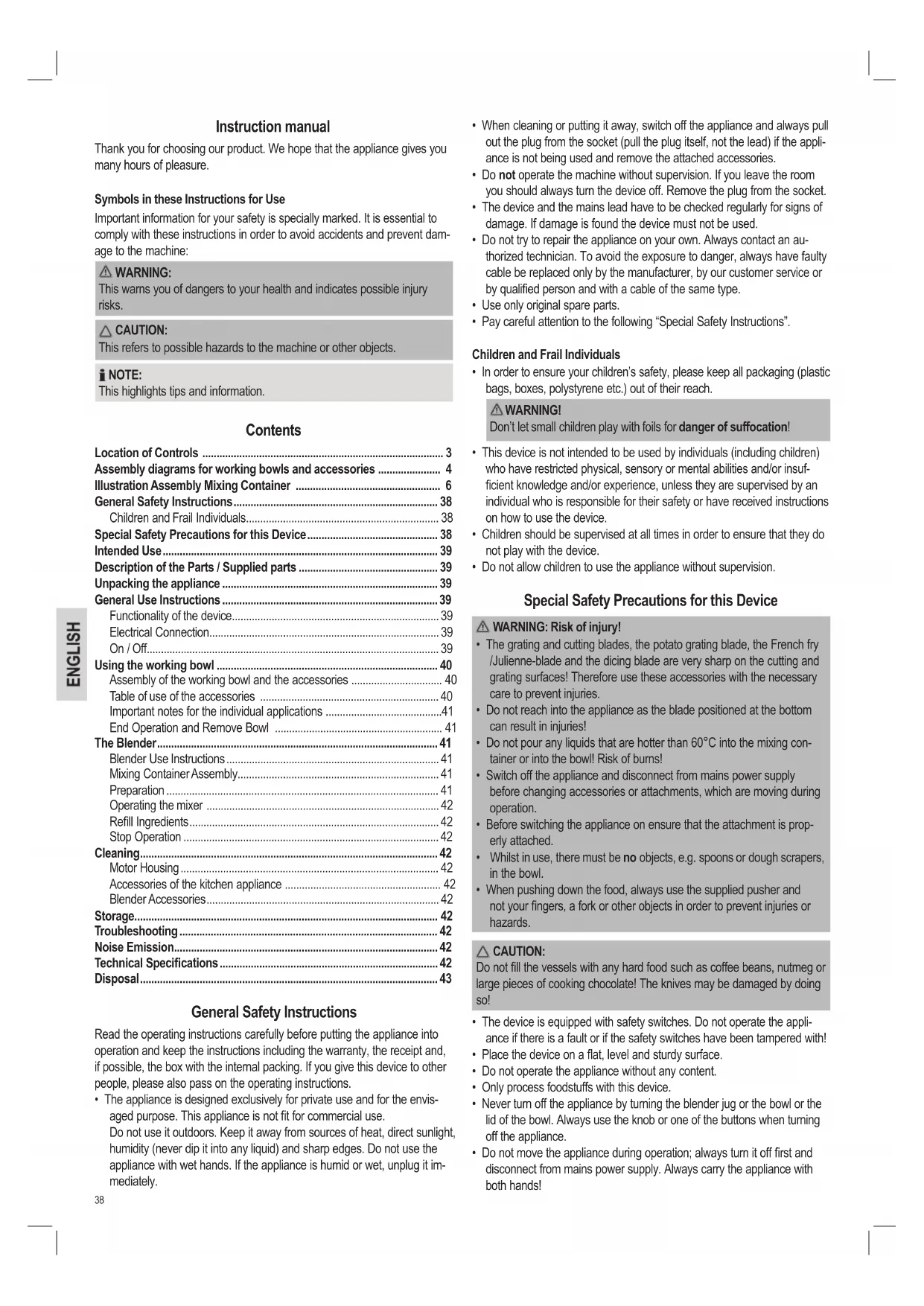

USER MANUAL PCKM 1025 PROFICOOK

• The appliance is designed exclusively for private use and for the envis- aged purpose. This appliance is not t for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it im- mediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appli- ance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.

• Do not try to repair the appliance on your own. Always contact an au- thorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualied person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions”. Children and Frail Individuals

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Don’t let small children play with foils for danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insuf- cient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

• Children should be supervised at all times in order to ensure that they do not play with the device.

• Do not allow children to use the appliance without supervision. Special Safety Precautions for this Device

WARNING: Risk of injury!

• The grating and cutting blades, the potato grating blade, the French fry /Julienne-blade and the dicing blade are very sharp on the cutting and grating surfaces! Therefore use these accessories with the necessary care to prevent injuries.

• Do not reach into the appliance as the blade positioned at the bottom can result in injuries!

• Do not pour any liquids that are hotter than 60°C into the mixing con- tainer or into the bowl! Risk of burns!

• Switch off the appliance and disconnect from mains power supply before changing accessories or attachments, which are moving during operation.

• Before switching the appliance on ensure that the attachment is prop- erly attached.

• Whilst in use, there must be no objects, e.g. spoons or dough scrapers, in the bowl.

• When pushing down the food, always use the supplied pusher and not your ngers, a fork or other objects in order to prevent injuries or hazards. CAUTION: Do not ll the vessels with any hard food such as coffee beans, nutmeg or large pieces of cooking chocolate! The knives may be damaged by doing so!

• The device is equipped with safety switches. Do not operate the appli- ance if there is a fault or if the safety switches have been tampered with!

• Place the device on a at, level and sturdy surface.

• Do not operate the appliance without any content.

• Only process foodstuffs with this device.

• Never turn off the appliance by turning the blender jug or the bowl or the lid of the bowl. Always use the knob or one of the buttons when turning off the appliance.

• Do not move the appliance during operation; always turn it off rst and disconnect from mains power supply. Always carry the appliance with both hands!39 Intended Use This appliance is designed as a

• kneading / mixing machine for preparing dough, crèmes, cream, whipped egg white;

• multi-chopper for the chopping of easy to cut food;

• citrus press for extracting the juice from citrus fruit;

• blender to puree, whip or mix It is designed solely for these purposes and may only be used for them. It may only be used in the manner described in this instruction manual. The appliance may not be used for commercial purposes. Any other use is considered not as intended and may lead to damage to property or even personal injury. The manufacturer assumes no liability for damage resulting from use other than the intended purpose. Description of the Parts / Supplied parts Overview controls on page 3: 1 Two-part pusher 2 Lid of the working bowl with feed shaft 3 Kneading / Stirring tool 4 Working bowl 5 Guide pin 6 Drive shaft 7 Control panel 8 Motor housing 9 Whisk attachment with whisks 10 Dicing blade 11 French fry /Julienne blade 12 Potato grating blade 13 Fine grating / cutting blade 14 Coarse grating / cutting blade 15 Citrus press cone 16 Filter sieve 17 Blender jug cap 18 Blender jug lid with ller hole 19 Blender jug 20 Knife block Not shown: Dough scraper Unpacking the appliance

WARNING: Risk of injury!

Some parts of the accessory are very sharp!

1. Remove the packaging of the appliance.

2. Remove all packaging material such as plastic lm, ller material, cable

ties and box packaging.

3. Check that all parts are in the box.

4. Do not operate the appliance if package contents is incomplete or ap-

pear damaged. Return it immediately to the dealer. NOTE: Dust or production residues may still be found on the appliance. We rec- ommend that you clean the appliance as described under “Cleaning”. General Use Instructions Functionality of the device

• The appliance is equipped with safety switches. The appliance can only be operated if you observe the following: - When tting onto the motor housing, the working bowl or the blender jug with the knife block must audibly click into place. - When using the working bowl, either the lid or the lter sieve must audibly click into place onto the bowl.

• The appliance is operated with either the function keys (SMOOTHIE, ICE, TURBO) or / and with the variably adjustable control knob.

• You can variably adjust the speed with the control knob. Always start slowly with a low speed. Slowly increase the speed.

• The function keys are disabled when you have turned on the appliance with the control knob.

• You turn on the standard programs with the function keys. The pro- grams do not turn off automatically

• While one standard program is active, you can switch to a different pro- gram or can change the speed with the control knob. Meanings of the keys Keys Functions POWER Ready to use SMOOTHIE Maximum speed, no automatic shutoff ICE Automatic pulse operation, no automatic shutoff TURBO Manual pulse operation. As long as you keep this key pressed down, the appliance will run at maximum speed. CAUTION: Do not use the appliance longer than 5 minutes continuously. Let it rst cool down for 10 minutes. Electrical Connection Ensure that your mains power corresponds with the specications on the type label. On / Off Connect the appliance to a properly installed earthed socket. The LED of the POWER button will ash blue.

1. Ensure that the control knob is set to the OFF position.

2. Press the POWER button. The appliance is operational. The LED of the

button will be lit up permanently blue. The LED’s of the function keys will ash red. Turning on and off with the control knob - Turning on: Turn the knob clockwise in the MAX direction to the desired speed. The blue LED’s between MIN and MAX display the speed setting (1 – 5). - Turning off: Turn the knob anticlockwise to the OFF position. The blue LED’s will go out. Turning on / off with the function keys - Turning on: Press the desired key once. The LED of the key will be lit up permanently red. - Turning off: Press the respective button one more time. The LED of the button will ash again.

3. If you want to cancel the operation, press the POWER button. The LED’s

of the function keys will go out. The LED in the POWER button will ash.

4. Disconnect the mains plug.40

Using the working bowl Assembly of the working bowl and the accessories Please refer to the gures 1 to 5 on pages 4 and 5 for this purpose.

The grating and cutting blades, the potato grating blade, the French fry / Julienne-blade and the dicing blade are very sharp on the cutting and grat- ing surfaces! Therefore use these accessories with the necessary care to prevent injuries.

1. Place the guide pin onto the drive shaft of the motor part.

2. Fig. 3: Place the working bowl onto the motor housing so that the marking

(a) on the lower edge of the bowl points to the marking (b) of the motor housing. Turn the working bowl clockwise until it audibly clicks into place. The marking (a) on the bowl and the marking (c) on the motor housing must be positioned exactly above each other.

3. Select an attachment. Place it onto the guide pin.

4. Close the working bowl with the lid. Tighten it by turning it clockwise until

it audibly clicks into the lock mechanism of the handle. Using the appliance as a citrus press Assemble the working bowl as described above.

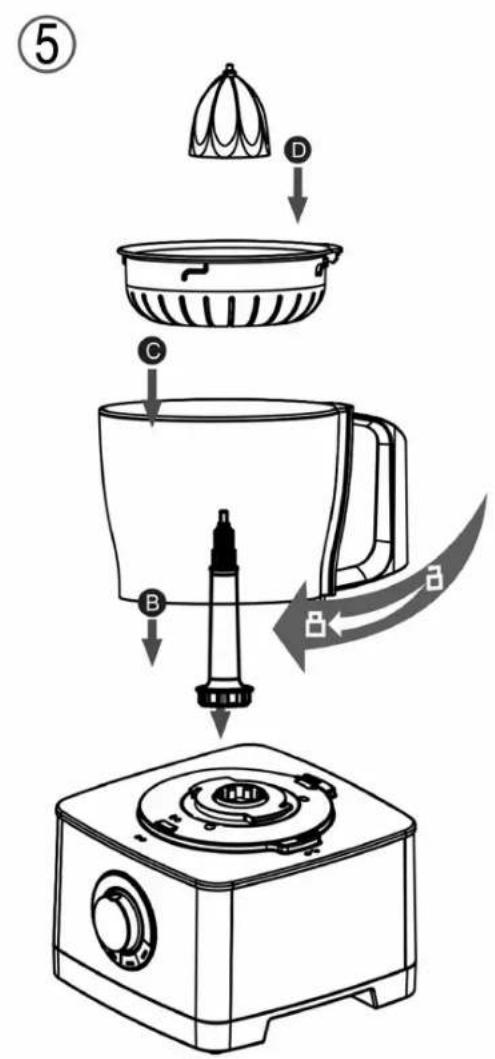

3. Place the lter sieve onto the guide pin. Turn it clockwise until it audibly

clicks into the lock mechanism of the handle.

4. Place the citrus press cone onto the guide pin.

Using the appliance with the whisks Assemble the working bowl as described above.

3. Insert the whisks as far as possible into the cross-shaped openings on the

5. Close the working bowl with the lid. Tighten it by turning it clockwise until it

audibly clicks into the lock mechanism of the handle. Table of use of the accessories The information in this chart serves as a guide only. Product / Type of preparation Quantity Tool Speed level / key Maximum operating time Heavy dough (e.g. yeast dough) Max. 1.0 kg Kneading / Stirring tool 1 2 Minutes Mixing dough (Biscuit dough or wafe dough) Max. 1.5 kg (1 Liter) Kneading / Stirring tool 1 - 2 2 Minutes Whipped egg white Minutes 2 egg whites Max. 8 egg whites Kneading / stirring tool 3 - 4 4 Minutes Scrambled eggs Min. 2 eggs Max. 7 eggs Kneading / stirring tool 1 – 4 1 Minutes Cream Min. 200 ml Max. 800 ml Kneading / stirring tool

• Do not chop up hard food such as coffee beans, nutmeg, turmeric or large pieces of cooking chocolate! The blade could be damaged as a result!

• Do not exceed the quantities and operating times listed in the table.

• Always t the kneading / stirring attachment or the dicing blade into the bowl before you add the ingredients. Press the attachment to the bottom of the bowl.

• If you are kneading heavy dough, do not add all the ingredients into the working bowl all at once. Only start the kneading process with ower, sugar, and eggs. Slowly add liquids through the feed shaft dur- ing the kneading process.

• First, cut the food that you want to chop into small pieces.

• If ingredients are stuck to the kneading/ stirring tool or the dicing blade or if they settle on the inside wall of the bowl, then proceed as follows:

1. Turn off the appliance. Wait for the attachment to stop running.

2. Remove the lid from the bowl.

3. Use the dough scraper to remove the ingredients from the at-

tachment or from the inside wall of the bowl.

• If you whip the egg whites, ensure that the bowl and the whisk are dry and completely free of grease. The egg white should be at room temperature.

• To grate chocolate, only use the dicing blade, not a grating blade. The chocolate must be well chilled.

• When you cut up hard cheese or chocolate, do not let the appliance run too long. These ingredients can melt through the warming of the appliance and may become lumpy.

• When chopping and grating, ll the ingredients into the feed shaft. Use the pusher to push the food down into the ller hole. Do not apply too much pressure to the pusher.

• The pusher consists of two parts. If you twist and pull off the top part, you will nd a smaller feed shaft. Then, press the ingredients down- wards with the inner pusher.

• If you use the appliance as a citrus press, please observe the follow- ing: - The press cone will start to turn as soon as you turn on the appliance. - Only turn on the appliance with the control knob. Only work at the lowest speed setting. - Cut the citrus fruits in half. Press half of the fruit onto the press cone. - Interrupt the process from time to time to remove the pulp from the lter sieve. - Turn off the appliance before you remove the bowl with the lter sieve and the press cone. - Chill the citrus juices for no longer than one day. - Never store the citrus juice in a metal container. The acid of the juice will corrode the metal surface. Metal ions will form that spoil the taste of the juice. End Operation and Remove Bowl

1. Turn the appliance off. Wait until the attachment stops running.

2. Disconnect the mains plug.

3. Turn the lid or the lter sieve anticlockwise from the lock to open the

4. Remove the attachment.

5. Twist the working bowl out of the lock by turning anticlockwise. Lift the

bowl upwards away from the motor housing. Watch out for the guide pin.

6. Use the dough scraper to remove the contents of the bowl.

7. Clean all the parts used as described under “cleaning”.

The Blender Blender Use Instructions

WARNING: The knife in the blender is sharp!

• Never reach with your hands into the assembled mixing container!

• Handle the blender knife with great care! Risk of injury, especially when removing the knife from the mixing container, emptying and cleaning the mixing container!

• Do not pour liquid ingredients hotter than 60°C into the mixing container! Danger of burns! CAUTION:

• Do not place hard ingredients such as nuts or coffee beans in the mix- ing container.

• The knife in the mixing container is not suitable for crushing ice cubes only. RECOMMENDATION:

• When preparing drinks with crushed ice only add the ice cubes dur- ing mixing. The ice cubes will be crushed during mixing. Only use the TURBO button for that purpose.

• Do not use the blender without ingredients!

• Do not exceed the maximum capacity (1500 ml) as indicated on the mix- ing container!

• If you are using lightly foaming liquids (e.g. milk), ll a pour it into the blender jug to a maximum of 900 ml.

• Only turn on the mixer with the lid and the tted cap. The lid will sit tightly on the blender jug when it has audibly clicked into place with a small twist clockwise.

• Do not remove the lid during operation! Wait until the blade comes to a stop before you open the lid.

• Should you not be satised with the mixing results, proceed as follows:

1. Turn off the appliance.

2. Remove the lid from the blender jug.

3. Loosen any stuck-on ingredients with the dough scraper. Stir the

ingredients with the dough scraper. Maintain a distance of at least approx. 2 cm to the blade while doing so.

4. Remove some of the contents. Process smaller quantities or add

some liquid. Mixing Container Assembly For this, please also refer to gures 6 and 7 on page 6.

1. Fit the gasket into the knife block.

2. Screw the blender jug onto the knife block.

3. Fig. 7: Fit the pre-assembled blender jug onto the motor housing so that

the marking (a) on the lower edge of the knife block points to the marking (b) of the motor housing. Turn the blender jug clockwise until it audibly clicks into place. The marking (a) on the knife block and the marking (c) on the motor housing must be aligned exactly above each other. CAUTION:

• Never forget to place the sealing ring on the knife assembly; otherwise the mixing container will leak.

• Do not attach the threaded coupling askew. Preparation

1. Cut all ingredients in small pieces.

2. Fill the ingredients into the mixing container. Observe the maximum

3. Fit the lid onto the blender jug. Tighten it until it audibly clicks into

Operating the mixer Turn the appliance on with a standard programming key SMOOTHIE / ICE / TURBO or with the control knob. Rell Ingredients

1. Switch the appliance off. Wait until the blade comes to a stop.

2. Fill in ingredients or spices through the stopper opening.

3. Close lid and stopper opening again.

4. Continue operation.

1. Switch the appliance off. Wait until the blade comes to a stop.

2. Disconnect from mains power supply.

3. Turn the blender jug anticlockwise from the motor housing.

4. Remove the lid before pouring out the contents.

5. Clean all used parts as described under “Cleaning”.

IMPORTANT NOTE: Do not store citrus juices or acidic foodstuffs in metal containers. Cleaning

• Always disconnect the mains plug before you remove the accessories and clean the appliance!

• Do not immerse the motor part in water for cleaning in any case. This may lead to electric shock or re.

• Some parts of the accessories are very sharp. There is risk of injury! CAUTION:

• Do not use a wire brush or other abrasive utensils for cleaning.

• Do not use aggressive or abrasive cleaning agents. Motor Housing

• Clean the housing only with a damp cloth and a squirt of washing-up liquid. Dry with a cloth. Accessories of the kitchen appliance

WARNING: Risk of injury!

Some parts of the accessory are very sharp! CAUTION:

• The attachments are not suitable for dishwasher. Heat and aggressive cleaning agents may warp or discolour the attachments.

• Do not rinse the whisk attachment in a bowl of hot water or under running water. If water penetrates inside the attachment, it cannot be removed.

• You may clean all other components that have come in contact with food in a bowl of hot water.

• Rinse with clean water and dry thoroughly.

• The two whisks can simply be pulled off from the attachment. Fit them back into the attachment after cleaning and drying. Check that the whisk is secure. Blender Accessories Pre-Cleaning Fill the mixing container half with water and run the appliance for approx. 10 seconds. Dispose of the liquid. General cleaning

• Remove the mixing container for thorough cleaning.

WARNING: Risk of injury!

Knife and knife assembly are sharp. Handle with great care during disassembly, cleaning and assembly.

• Always disassemble the mixing container after use.

• Detach the knife block from the blender jug.

• Remove the gasket from the knife block.

• Rinse the knife block and the gasket briey with hot water.

• You can clean the blender jug and the lid with cap in a bowl of hot water. Afterwards, rinse with clean water and dry the parts off.

• Assemble your mixing container in reverse order after cleaning and dry- ing. Storage

• Clean the appliance as instructed. Ensue that all accessories are com- pletely dry.

• We recommend that you keep the appliance in the original packaging if it will not be used for long periods.

• Always store the appliance out of the reach of children in a dry, well ventilated place. Troubleshooting The appliance does not function Possible cause: The appliance has no power supply. Remedy:

• Check the socket with another appliance.

• Plug in the mains plug correctly.

• Check the main circuit breaker. Possible cause: The appliance is faulty. Remedy:

• Contact our service center or a specialist. Further possible causes: Your appliance is equipped with safety switches. They prevent accidental motor start. Remedy:
