SSE038F2 - Safe Perel - Free user manual and instructions

USER MANUAL SSE038F2 Perel

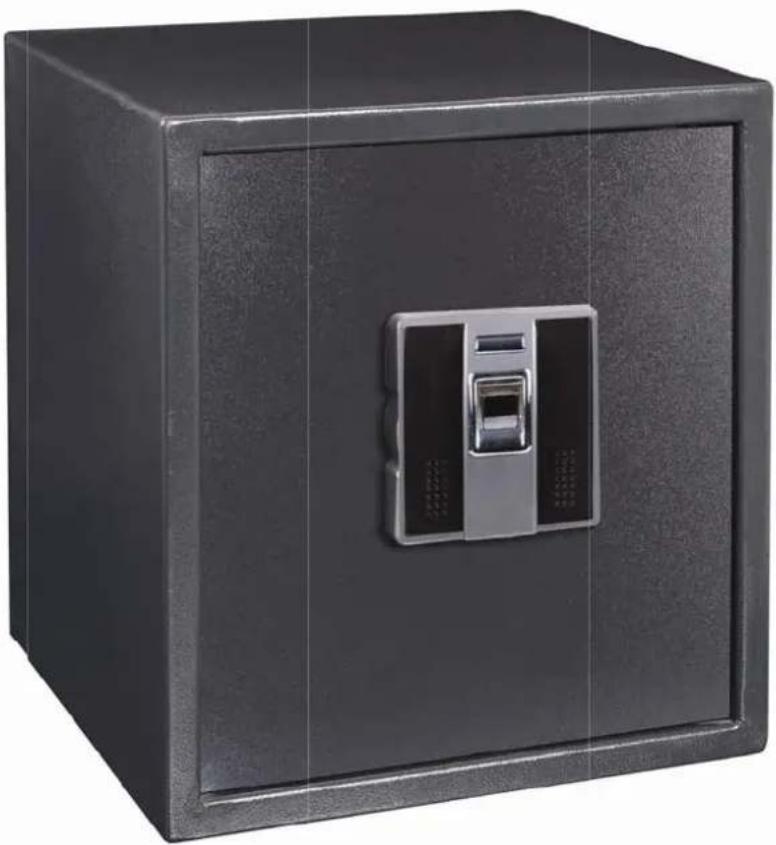

ELECTRONIC FINGERPRINT SAFE
ELEKTRONISCHE KLUIS MET VINGERAFDRUKHERKENNING
COFFRE-FORT À EMPREINTE DIGITALE ÉLECTRONIQUE
CAJA FUERTE CON IDENTIFICACION POR HUELLA DACTILAR
SAFE MIT FINGERABDRUCKERKENNUNG
COFRE-FORET COM CÓDIGO DIGITAL

USERMANUAL 3

GEBRUIKERSHANDLEIDING 6

NOTICE D'EMPLOI 9

MANUAL DEL USUARIO 12

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

!	Keep this device away from children and unauthorized users.
J	Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquid on top of or close to the device.
O	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of : certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Keep this manual for future reference.

4. Features

optical sensor
- fingerprint lock
can record up to 100 fingerprints
2 override keys included
powder coating
accommodates A4-size papers
- pre-drilled fixing holes (fixing bolts incl.)

5. Installation

Refer to the illustrations on page 2 of this manual.

To reduce the risk of theft, the safe can be secured to the floor, wall or in a cupboard. Refer to illustration [5]. Use the predrilled holes at the bottom and back to define the position of the drill holes. Fix the safe by the supplied expansion bolts. Install the safe horizontally.

6. Preparing the Safe

Opening the Safe for the First Time

Use the override key to manually open the safe for the first time.

1. Shift the cover plate [C] on the front panel.

2. Insert the key into the keyhole with the groove of the key upward [2], and turn it clockwise.

3. Open the safe.

Installing the Batteries

1. Remove the battery cover [F] located on the inside of the door.
2. Place 4 × AA 1.5 ~V alkaline batteries respecting the polarity.

Note: we recommend using alkaline batteries.

1. Close the battery compartment.
2. Close the door and turn the key counter-clockwise to bolt the door.
3. Remove the key from the keyhole. Make sure the plate [C] covers the keyhole.

Important: do not keep the override keys in the safe.

Note: When the batteries are low, you will hear a beep when you operate the safe. In that case, replace the batteries immediately.

Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispos of batteries in accordance with local regulations. Keep batteries away from children.

7. Programming and Deleting the Fingerprint Record

In the initial state any finger can open the safe, so program the fingerprints immediately. You can record up to 100 fingerprints.

Note: To enhance the identification rate for fingerprints, we suggest programming the same finger in 3 different angles as shown in the picture [4].

When programming the fingerprints, we suggest programming two or more different fingers of each hand in case your fingers or hands are injured. We do not recommend using your little finger.

To program the fingerprint record, proceed as follows:

1. Open the door and press the green button [E]. The red indicator will flash and the fingerprint reader is ready to read the input.
2. Put and hold your finger on the reader [A] within 5 seconds. Fully touch the fingerprint reader and keep your finger still.

Your fingerprint is recorded successfully when the display shows OK.

1. If the reading fails, repeat the first two steps.

To delete the fingerprint record, proceed as follows:

• Open the door and press the red button [D] 3 times (interval between two pressing actions must be within 5 seconds).

When the display shows OK, all fingerprints have been deleted. The safe will return to the original status.

Important: at this time, any finger can open the safe.

8. Use

Opening the Safe

1. Press the [B] button. The red indicator will flash.
2. Put your finger onto the fingerprint reader [A] within 5 seconds. If the fingerprint is recognised, the door opens.

Tips to improve fingerprint reading:

Use only clean fingers.
- Keep the fingerprint reader clean and free from grease and moisture.
- Fully touch the fingerprint reader and keep your finger still.
- Avoid very strong light on the fingerprint reader.

Closing the Safe

1. Shut the door.
2. Press the [B] button to bolt the door.

Using the Override Keys

In case of emergency, you can use the override keys to open the safe without fingerprint reading. See "Opening the Safe for the First Time".

Important: do not keep the override keys in the safe.

9. Technical Specifications

power supply 4 x 1.5V AA batteries
dimensions (W x H x D)
external 350 x 380 x 360mm
internal 340 x 370 x 310mm
packaging 370 x 410 x 400mm
weight
net 15kg
gross		16kg

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.

No part of this manual or may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

7. Programar e apagar as impressoes digitais

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally):

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
