Product type	Electronic safe
Brand	Perel
Model	BG90019
External dimensions (W x H x D)	30 x 38 x 30 cm
Internal dimensions (W x H x D)	29.7 x 37.7 x 24 cm
Weight	10.5 kg
Steel thickness (body)	1.5 mm
Steel thickness (door)	4 mm
Power supply	4 AA/LR6 batteries 1.5 V (not included)
Number of shelves	1 (removable)
Lock type	Electronic code lock + emergency key lock
Personal code	3 to 8 digits
Master code	Programmable separately
Automatic locking	Yes – after 3 wrong codes (20 s), then 4 min 30 s
Wall/floor mounting	Possible – expansion bolts included
Use	Indoor only
Minimum recommended age	8 years (under supervision)
Cleaning	Damp cloth, no aggressive products
Warranty	24 months (conditions apply)
Battery replacement	When red LED lights up – 4 AA alkaline batteries
Code reset	Reset button inside – deletes current code

Frequently Asked Questions - BG90019 Perel

How to program a personal code on the Perel BG90019 safe?

With the door open, press the reset button. When the yellow LED turns on, enter a code of 3 to 8 digits and press #. Two beeps confirm. Re-enter the code after the yellow LED flashes and three beeps confirm validation.

How to open the safe if I forgot the code?

Use the emergency key provided. Insert it into the emergency lock, turn it to the left, and simultaneously turn the lock clockwise. Never store the emergency key inside or near the safe.

How to change the batteries of the BG90019 safe?

Open the battery compartment (inside the door). Insert 4 AA/LR6 alkaline batteries respecting polarity. Close the compartment. The red LED lights up when batteries are low.

What to do if the safe does not open after entering the correct code?

Check that the batteries are not drained (red LED). If so, replace them. Otherwise, use the emergency key to open the door and reset the code. If the problem persists, contact customer service.

What are the dimensions of the Perel BG90019 safe?

External dimensions: 30 x 38 x 30 cm (W x H x D). Internal dimensions: 29.7 x 37.7 x 24 cm. Weight: 10.5 kg.

How to fix the safe to the wall or floor?

Use the pre-drilled holes at the back or bottom. Mark the positions, drill, then fix with the provided expansion bolts. The unit must be installed horizontally.

Can I use the safe without batteries?

No, electronic opening requires batteries. In case of drained batteries, use the emergency key to open the door and replace the batteries.

How many shelves does the BG90019 safe have?

It comes with one removable shelf, allowing you to organize the interior space as needed.

What to do in case of automatic locking after multiple wrong codes?

After 3 wrong codes, the keypad locks for 20 seconds. After 6 wrong codes (3+3), it locks for 4 minutes 30 seconds. Wait or open the safe with the emergency key and remove the batteries to deactivate the alarm.

What is the weight of the Perel BG90019 safe?

The safe weighs 10.5 kg, making it heavy enough to deter theft but easy to install.

USER MANUAL BG90019 Perel

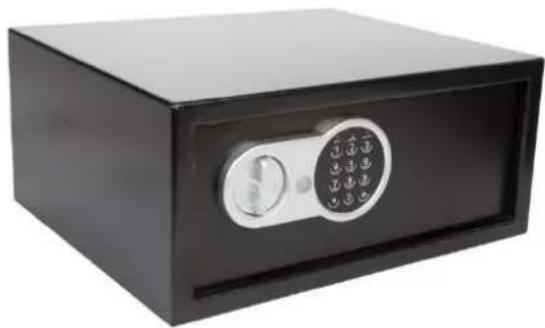

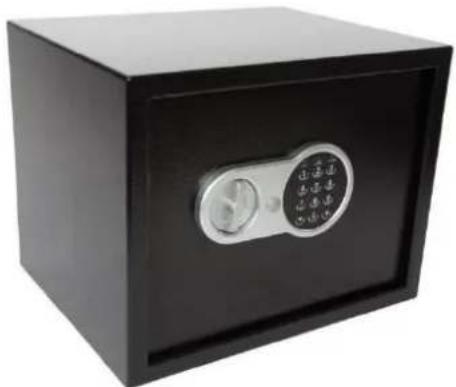

Black metal safe with a dial and control knob (no visible text or symbols)

BG90017

Black rectangular metal safe with a circular dial and control knob (no visible text or symbols)

BG90018

Black square metal safe with a circular dial and control knob (no visible text or symbols)

BG90019

Black metal safe with a circular dial and handle, no visible text or symbols

BG90020

USER MANUAL 3

HANDLEIDING 8

MODE D'EMPLOI 13

MANUAL DEL USUARIO 18

Diagram showing a safe with labeled components and a close-up of the internal device with numbered labels.

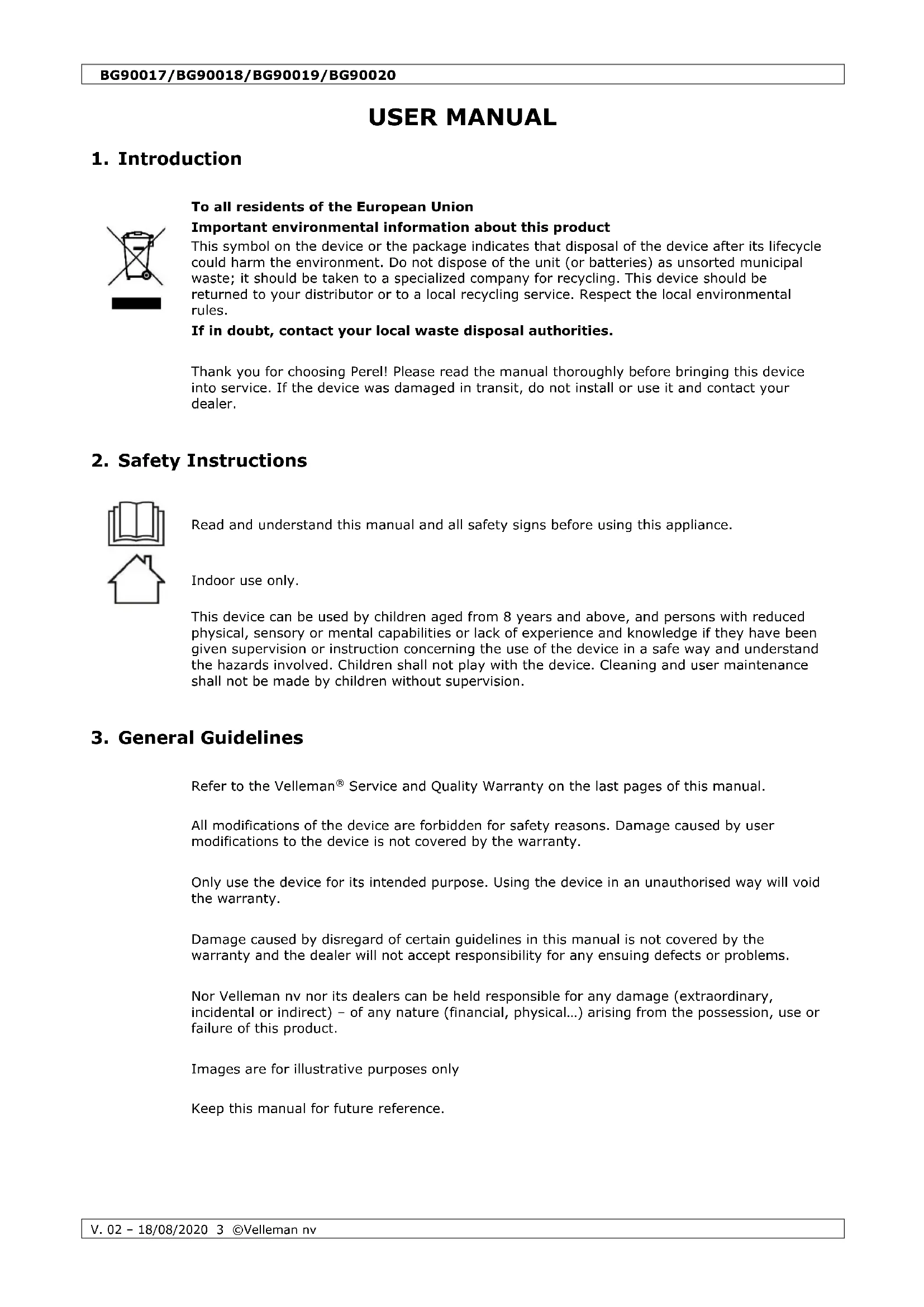

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

3. General Guidelines

Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

Images are for illustrative purposes only

Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	bolts
2	reset button
3	battery compartment
4	master lock
5	emergency lock

6	ready LED
7	low battery LED
8	proceed LED
9	confirming button

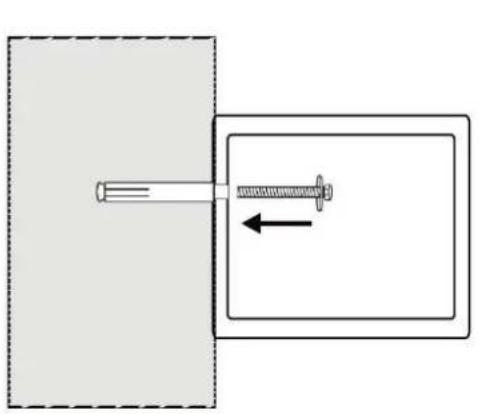

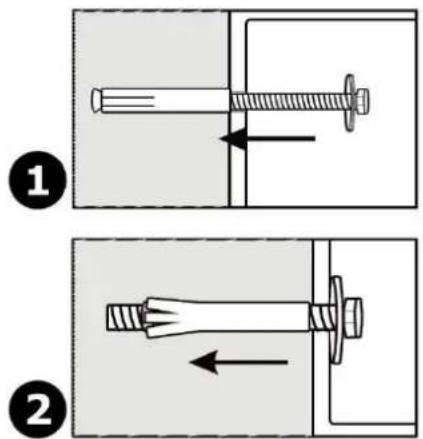

5. Installing the Safe

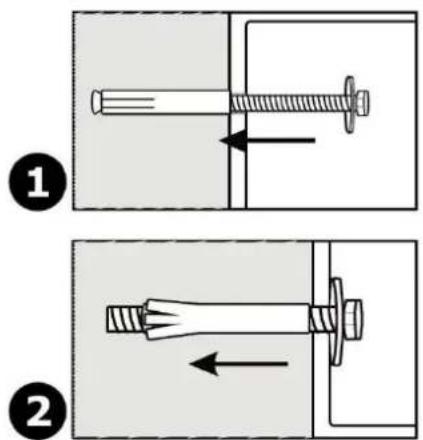

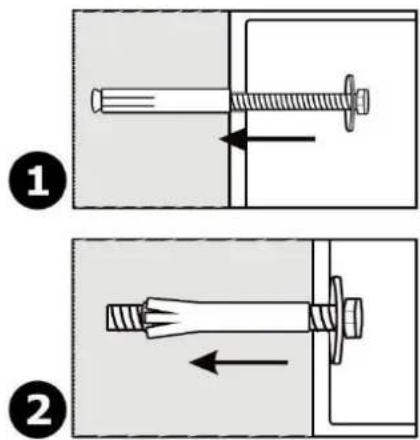

To reduce the risk of theft, the safe can be secured to the floor, wall or in a cupboard. Use the predrilled holes at the bottom and/or back to define the position of the drill holes. Fix the safe using the supplied expansion bolts. Install the safe in a horizontal position.

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement or force direction

6. Operation

6.1 First Use/Emergency Mode

The override key will open the safe without need of a code. It is therefore important never to store the override key inside or near the safe. The override key is also the only key with which you can open the safe in case of a lost code or empty batteries.

1. Insert the override key in the emergency lock and turn to the left.
2. At the same time, turn the master lock to the right.

6.2 Installing the Batteries

1. Open the battery compartment and install the batteries according to the indicated polarity. It is recommended to use alkaline batteries only.
2. Close the battery compartment.
3. Change the batteries as soon as the red low battery LED lights.

Removing the batteries will delete the code. Re-enter your personal code. Refer to Setting/Changing the Personal Code.

6.3 Setting/Changing the Personal Code

1. With the door open, press the reset button.
2. When the yellow LED burns, enter a personal code (3 to 8 digits) and press the confirming button (#). The two beeps mean that your code has been validated. Please re-enter your code and confirm if the yellow LED flashes and the safe beeps three times.
3. Proceed with programming the manager code.

6.4 Setting/Changing the Master Code

1. With the door open, press 0 (zero) twice and press the reset button.
2. When the yellow LED burns, enter a master code (3 to 8 digits) and press the confirming button (#). The two beeps mean that your code has been validated.
   Please re-enter your code and confirm if the yellow LED flashes and the safe beeps three times.

6.5 Closing the Door

Close the door and turn the master lock to the left.

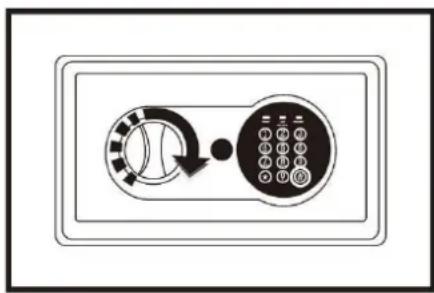

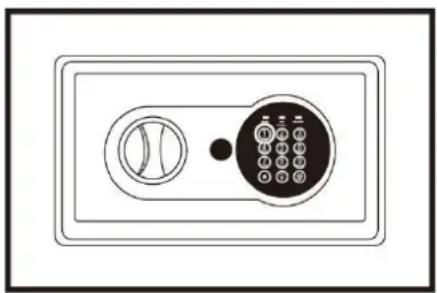

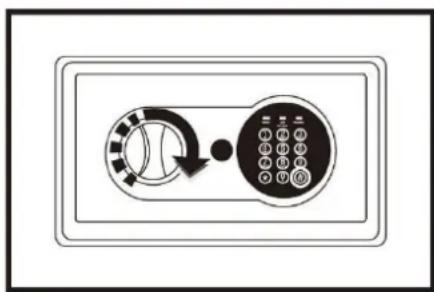

6.6 Opening the Door

1. Enter your personal code and press the confirming button (#).
2. As soon as the green LED burns, turn the master lock to the right and pull the door open. Please retry if the yellow LED flashes and the safe beeps three times.

Line drawing of a double door with control panel and keypad (no text or symbols)

Diagram of a door lock with a rotary dial and control panel (no text or symbols)

6.7 Auto Lock

The safe will disable the keypad automatically for 20 seconds after three erroneous code entries.

After three more erroneous code entries, the keypad will be locked for 4 minutes and 30 seconds.

Disabling the alarm can only be done by opening the safe with the override key and removing the batteries.

7. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

8. Technical Specifications

BG90017

outer dimensions....20 x 31 x 20 cm

inner dimensions 19.8 x 30.8 x 14 cm

steel thickness

body....1 mm

door 3 mm

weight....4 kg

power supply 4x AA/LR6 1.5 V batteries (not incl.)

capacity....8.5 L

shelves....0

BG90018

outer dimensions 19.5 x 43.2 x 37 cm

inner dimensions 19.2 x 42.9 x 31 cm

steel thickness

body....1.5 mm

door 3 mm

weight....9 kg

power supply 4x AA/LR6 1.5 V batteries (not incl.)

capacity....25 L

shelves....0

BG90019

outer dimensions 30 x 38 x 30 cm

inner dimensions 29.7 x 37.7 x 24 cm

steel thickness

body....1.5 mm

door 4 mm

weight.... 10.5 kg

power supply 4x AA/LR6 1.5 V batteries (not incl.)

capacity....27 L

shelves....1

BG90020

outer dimensions 50 x 35 x 31 cm

inner dimensions 49.7 x 34.7 x 25 cm

steel thickness

body....1.5 mm

door 4 mm

weight.... 14.5 kg

power supply 4x AA/LR6 1.5 V batteries (not incl.)

capacity....43 L

shelves....1

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.

No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

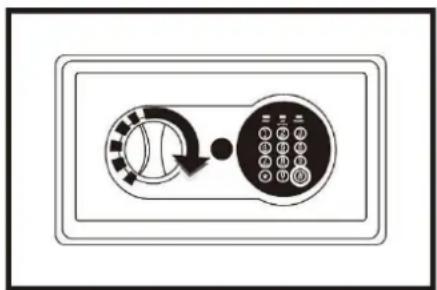

6. Gebruik

Line drawing of a double door with control panel and keypad (no text or symbols)

Diagram of a door lock with rotary dial and keypad (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

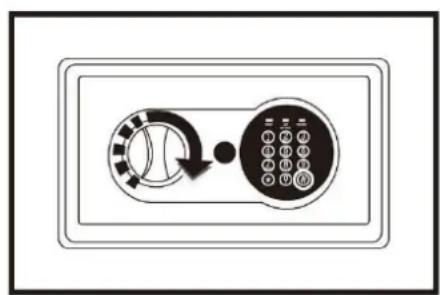

6. Emploi

Line drawing of a double door with a circular dial and control buttons (no text or symbols)

Diagram of a door lock with a rotary dial and control panel (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

6. Funcionamiento

Line drawing of a double door with control panel and keypad (no text or symbols)

Diagram of a rotary switch mechanism inside a container (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

6. Anwendung

Line drawing of a double door with control panel and keypad (no text or symbols)

Diagram of a rotary switch with circular dial and numeric keypad inside a rectangular frame (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

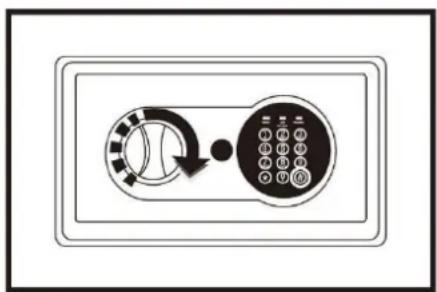

6. Obsługa

Line drawing of a double door with control panel and keypad (no text or symbols)

Diagram of a rotary switch mechanism inside a container (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

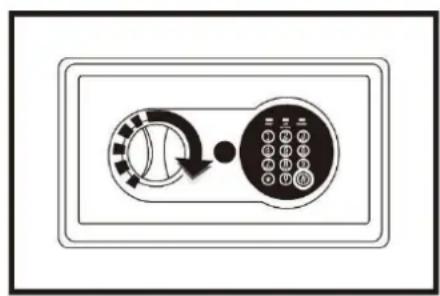

6. Utilização

6.2 Colocar as pilhas

Line drawing of a double door with control panel and keypad (no text or symbols)

Diagram of a rotary switch with a circular dial and numeric keypad, enclosed in a rectangular frame (no text or symbols)
