BG80021 - Safe Perel - Free user manual and instructions

Product type	Electronic safe
Brand	Perel
Model	BG80021
External dimensions	28 x 30 x 10 cm
Internal dimensions	27.8 x 29.8 x 4 cm
Weight	4.5 kg
Steel thickness (body)	1 mm
Steel thickness (door)	3 mm
Power supply	4 AA batteries (LR6, 1.5 V) not included
Locking type	Electronic code (3 to 8 digits) + emergency key
Number of codes	Personal code and master code
Low battery indicator	Red LED
Preheat indicator	Yellow LED
Confirmation indicator	Green LED
Automatic lockout	20 seconds after 3 incorrect codes, 4 minutes 30 seconds after 6 incorrect codes
Wall/floor mounting	Possible with supplied expansion bolts
Intended use	Indoor only
Cleaning and maintenance	Damp cloth, no harsh chemicals
Warranty	24 months (consumer)

Frequently Asked Questions - BG80021 Perel

How to open the safe if I forgot the code?

Use the supplied emergency key. Insert it into the emergency lock, turn it to the left, then turn the knob clockwise. Never store this key inside or near the safe.

How to program a new code?

With the door open, press the reset button. When the yellow LED lights up, enter a code of 3 to 8 digits and press the confirmation button (A or B). Two beeps confirm. Re-enter the code for validation (three beeps).

How to change the master code?

With the door open, press the '0' key and the reset button simultaneously. When the yellow LED lights up, enter a new code (3-8 digits) and confirm with the confirmation button. Re-enter to validate.

What to do if the red LED lights up?

The red LED indicates low batteries. Replace the four AA batteries with new alkaline batteries respecting polarity. Not replacing them could prevent electronic opening.

How to mount the safe to the wall or floor?

Use the pre-drilled holes on the back or bottom of the safe. Mark the positions, drill, then fix with the supplied expansion bolts. Ensure the safe is level.

What happens after several incorrect codes?

After 3 incorrect codes, the keypad automatically locks for 20 seconds. After 3 additional errors (6 total), the lockout extends to 4 minutes 30 seconds. Open the safe with the emergency key and remove the batteries to disable the alarm.

Can I use rechargeable batteries?

The manual recommends alkaline batteries. Rechargeable batteries (NiMH) can be used but their slightly lower voltage may affect operation. Prefer quality alkaline batteries.

How to clean the safe?

Clean with a damp cloth. Do not use solvents, harsh detergents, or chemicals. Avoid wetting the keypad or electronic parts.

What to do if the door does not open after entering the code?

Check that the green LED lights up after entering the code and pressing the confirmation button. If the yellow LED flashes, the code is wrong. If batteries are low (red LED), use the emergency key. Also ensure the lock turns to the right properly.

What is the warranty of this safe?

Perel offers a 24-month warranty for consumer products against manufacturing and material defects. The warranty does not cover damage caused by incorrect use, normal wear, or batteries.

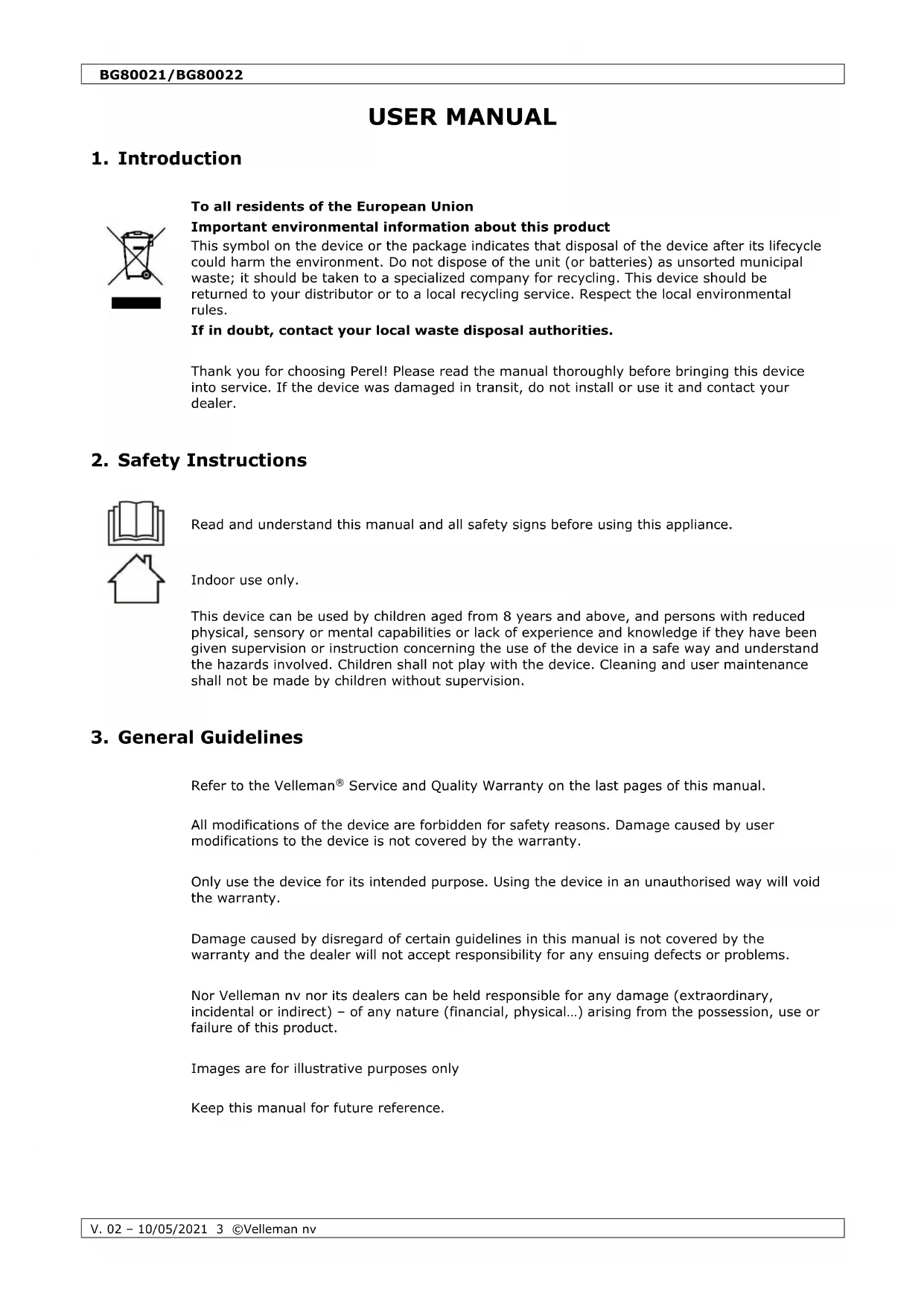

USER MANUAL BG80021 Perel

Black open safety safe with multiple keys in a grid (no visible text or symbols)

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

Indoor use only.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

3. General Guidelines

Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

Images are for illustrative purposes only

Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

1	bolts
2	reset button
3	battery compartment
4	master lock
5	emergency lock

6	ready LED
7	low battery LED
8	proceed LED
9	confirming button

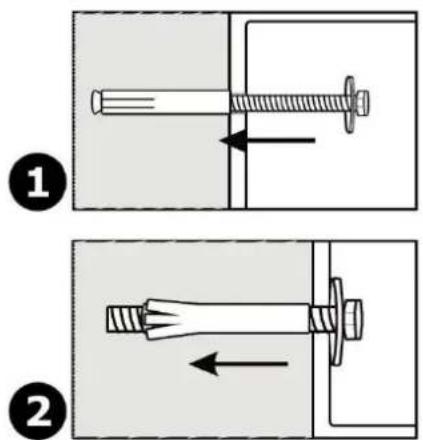

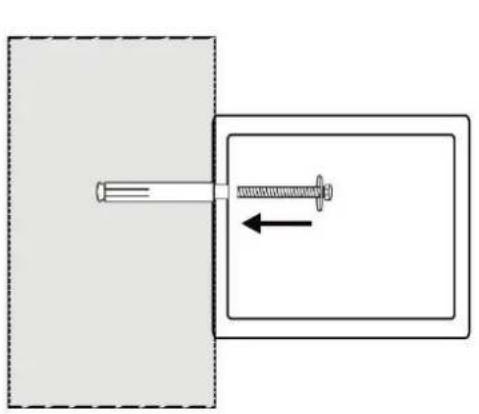

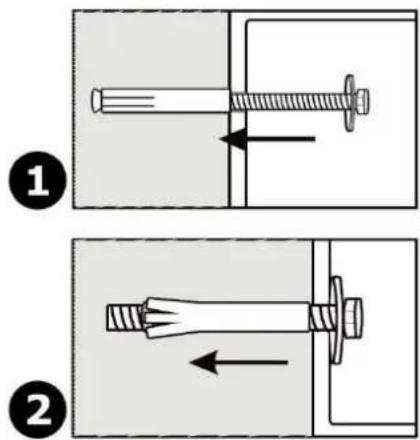

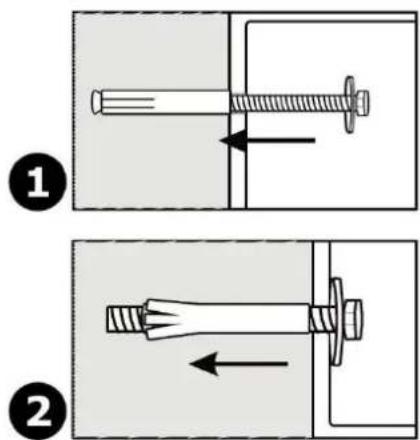

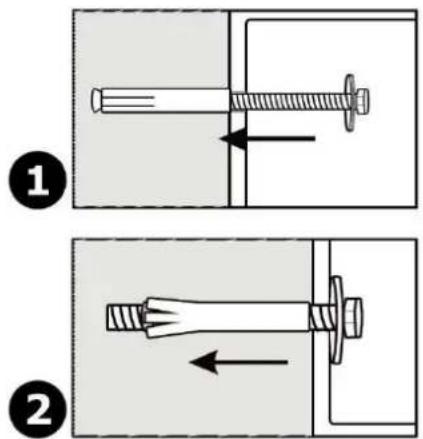

5. Installing the Safe

To reduce the risk of theft, the safe can be secured to the floor, wall or in a cupboard. Use the predrilled holes at the bottom and/or back to define the position of the drill holes. Fix the safe using the supplied expansion bolts. Install the safe in a horizontal position.

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement or force direction

6. Operation

6.1 First Use/Emergency Mode

The override key will open the safe without need of a code. It is therefore important never to store the override key inside or near the safe. The override key is also the only key with which you can open the safe in case of a lost code or empty batteries.

1. Insert the override key in the emergency lock and turn to the left.
2. At the same time, turn the master lock to the right.

6.2 Installing the Batteries

1. Open the battery compartment and install the batteries according to the indicated polarity. It is recommended to use alkaline batteries only.
2. Close the battery compartment.
3. Change the batteries as soon as the red low battery LED lights.

Removing the batteries will delete the code. Re-enter your personal code. Refer to Setting/Changing the Personal Code.

6.3 Setting/Changing the Personal Code

1. With the door open, press the reset button.
2. When the yellow LED burns, enter a personal code (3 to 8 digits) and press the confirming button (A, B). The two beeps mean that your code has been validated. Please re-enter your code and confirm if the yellow LED flashes and the safe beeps three times.
3. Proceed with programming the manager code.

6.4 Setting/Changing the Master Code

1. With the door open, press 0 (zero) twice and press the reset button.
2. When the yellow LED burns, enter a master code (3 to 8 digits) and press the confirming button (A, B). The two beeps mean that your code has been validated.
   Please re-enter your code and confirm if the yellow LED flashes and the safe beeps three times.

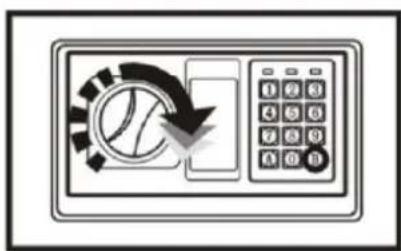

6.5 Closing the Door

Close the door and turn the master lock to the left.

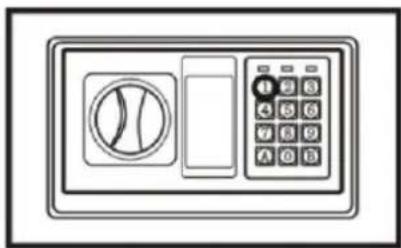

6.6 Opening the Door

1. Enter your personal code and press the confirming button (A, B).
2. As soon as the green LED burns, turn the master lock to the right and pull the door open. Please retry if the yellow LED flashes and the safe beeps three times.

Front view of a vintage-style alarm control panel with a circular dial indicator and keypad (no text or symbols visible)

Illustration of a control panel with a circular dial and directional arrow, no text or symbols present.

6.7 Auto Lock

The safe will disable the keypad automatically for 20 seconds after three erroneous code entries.

After three more erroneous code entries, the keypad will be locked for 4 minutes and 30 seconds.

Disabling the alarm can only be done by opening the safe with the override key and removing the batteries.

7. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

8. Technical Specifications

BG80021

outer dimensions....28 x 30 x 10 cm

inner dimensions 27.8 x 29.8 x 4 cm

steel thickness

body....1 mm

door 3 mm

weight 4.5 kg

power supply 4x AA/LR6 1.5 V batteries (not incl.)

BG80022

outer dimensions 45 x 36 x 12 cm

inner dimensions 44.8 x 35.8 x 6 cm

steel thickness

body....1 mm

door 3 mm

weight....9 kg

power supply 4x AA/LR6 1.5 V batteries (not incl.)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Diagram showing a screw being inserted into a rectangular housing, with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement or force direction

6. Gebruik

Front view of a vintage-style alarm box with a circular dial and keypad (no text or symbols visible)

Illustration of a control panel with gear mechanism and numeric keypad (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

6. Emploi

Front view of a vintage-style alarm control panel with a circular dial and keypad (no text or symbols visible)

Illustration of a control panel with gear mechanism and numeric keypad (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing, with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement or force direction

6. Funcionamiento

Front view of a portable air conditioner unit with control panel and display (no text or symbols visible)

Illustration of a digital control panel with gear and keypad (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing, with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and fastener component.

6. Anwendung

Front view of a portable air conditioner unit with control panel and circular vent (no text or symbols)

Illustration of a digital control panel with gear and keypad (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing, with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement of a bolt and nut assembly.

6. Obsługa

Front view of a portable air conditioner unit with control panel and circular vent (no text or symbols)

Illustration of a digital control panel with gear and keypad (no text or symbols)

Diagram showing a screw being inserted into a rectangular housing, with an arrow indicating direction (no text or symbols)

Technical diagram showing two mechanical assembly steps with arrows indicating movement or force direction

6. Utilização

6.2 Colocar as pilhas

Front view of a vintage-style alarm control panel with a circular dial and keypad (no text or symbols visible)

Illustration of a control panel with gear and numeric keypad (no text or symbols)

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
