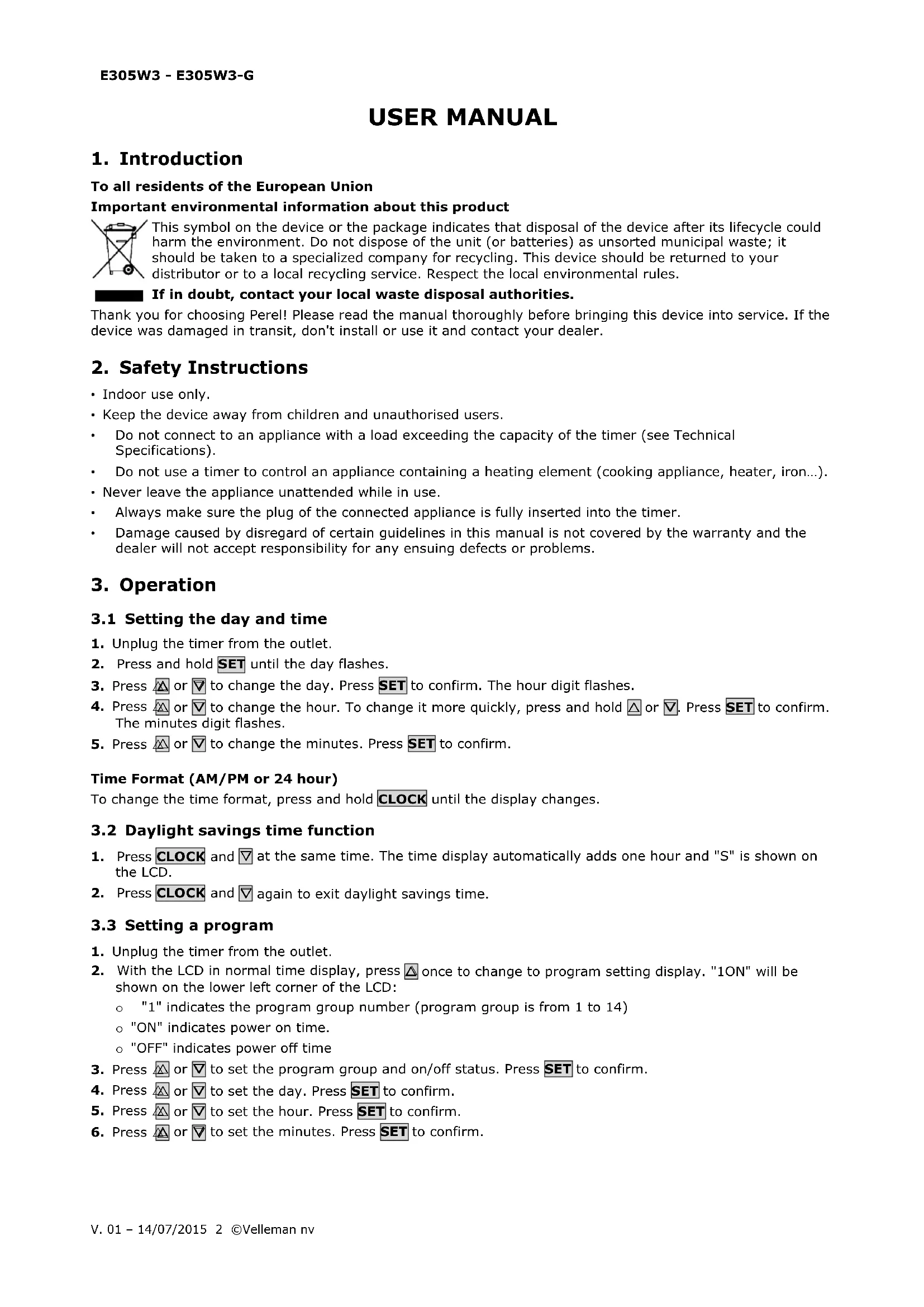

USER MANUAL E305W3G Perel

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

• Indoor use only.
• Keep the device away from children and unauthorised users.
• Do not connect to an appliance with a load exceeding the capacity of the timer (see Technical Specifications).
• Do not use a timer to control an appliance containing a heating element (cooking appliance, heater, iron...).
• Never leave the appliance unattended while in use.
  Always make sure the plug of the connected appliance is fully inserted into the timer.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

3. Operation

3.1 Setting the day and time

1. Unplug the timer from the outlet.
2. Press and hold SET until the day flashes.
3. Press or to change the day. Press SET to confirm. The hour digit flashes.
4. Press or to change the hour. To change it more quickly, press and hold or . Press SET to confirm. The minutes digit flashes.
5. Press or to change the minutes. Press SET to confirm.

Time Format (AM/PM or 24 hour)

To change the time format, press and hold CLOCK until the display changes.

3.2 Daylight savings time function

1. Press CLOCK and at the same time. The time display automatically adds one hour and "S" is shown on the LCD.
2. Press CLOCK and again to exit daylight savings time.

3.3 Setting a program

1. Unplug the timer from the outlet.
2. With the LCD in normal time display, press once to change to program setting display. "1ON" will be shown on the lower left corner of the LCD:

"1" indicates the program group number (program group is from 1 to 14)
"ON" indicates power on time.
"OFF" indicates power off time

1. Press or to set the program group and on/off status. Press SET to confirm.
2. Press or to set the day. Press SET to confirm.
3. Press or to set the hour. Press SET to confirm.
4. Press or to set the minutes. Press SET to confirm.

3.4 Countdown timer

1. Unplug the timer from the outlet.

2. With the LCD in normal time display, press to change to countdown setting display. d ON (or OFF) will be shown on the lower left corner of the LCD.

" d "indicates the program is in countdown mode
"ON" the appliance will be switched on after countdown
"OFF" the appliance will be switched off after countdown

1. Press SET until the on/off display flashes.
2. Press or to select on or off. Press SET to confirm.
3. Press 空 or 空 to set the hours. Press SET to confirm.
4. Repeat this step for minutes and seconds. Press SET to confirm.
5. Connect the timer to an outlet and set the timer to AUTO status in order to start /stop the countdown functions.
6. Press CD once to start the countdown function. "d ON" (or "d OFF") flashes to indicate countdown is in progress. Press CD again to stop the countdown function.

Notes

• When countdown is in progress, LCD is in normal time display. To view the countdown timer, press .
• When done, press CLOCK to display the clock. The clock displays automatically after 15 seconds.

3.5 Random function

The random function turns appliances on and off at irregular intervals.

1. Plug the timer into a wall socket and set the program to AUTO status.
2. Press RND. "r OFF" flashes. Power will be off for 26 to 42 minutes. The mode automatically changes to "r ON", the power will be on for 10 to 26 minutes.
3. Press RND again to stop the random function.

3.6 Override function

You can override the program presets in the timer.

Press ON/OFF to set the timer. The options are:
- AUTO appliance will be switched on or off according to settings
ON appliance is always on
OFF appliance is always ff

3.7 Resetting the timer

To reset the timer, press RESET with a needle or point. This will reset the time and clear all timer program settings.

3.8 Connecting an appliance to the timer

When the programs are set:

1. Switch off your electrical appliance.
2. Plug your appliance into the timer socket.
3. Plug the timer to the power outlet.
4. Switch on your appliance. The appliance will then be turned on/off according to your settings.

4. Cleaning and Maintenance

• Remove the timer from the mains before cleaning.
• Wipe with a dry cloth. Do not immerse in water or any liquid.

5. Battery

This device contains an internal rechargeable battery. When the device is end-of-life, it must be disposed of in accordance with local regulations. Keep batteries away from children. Do not puncture batteries or throw them in fire as they may explode.

6. Technical Specifications

power supply 230 V

backup battery 1 x Ni-MH 2.4 V 80 mAh (included, not replaceable)

max. power 3680 W / 16 A

dimensions 133 x 70 x 78 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
