USER MANUAL E305DDG Perel

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

• Indoor use only.
• Keep the device away from children and unauthorised users.
• Do not connect to an appliance with a load exceeding the capacity of the timer (see Technical Specifications).
• Do not use a timer to control an appliance containing a heating element (cooking appliance, heater, iron...).
• Never leave the appliance unattended while in use.
  Always make sure the plug of the connected appliance is fully inserted into the timer.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

3. Operation

Note: The internal battery will be fully charged after connecting to the mains power for about 4 hours.

Setting the Clock

1. Unplug the timer from the outlet.
2. In clock mode, press and hold to enter CLOCK setting mode. The hour digit flashes.
3. Press + or - to adjust the hour.
4. Press OK to confirm, the minutes digit flashes.
5. Press + or to adjust the minutes.
6. Press OK to confirm. The display shows the newly set time.

Setting a program

1. Unplug the timer from the outlet.

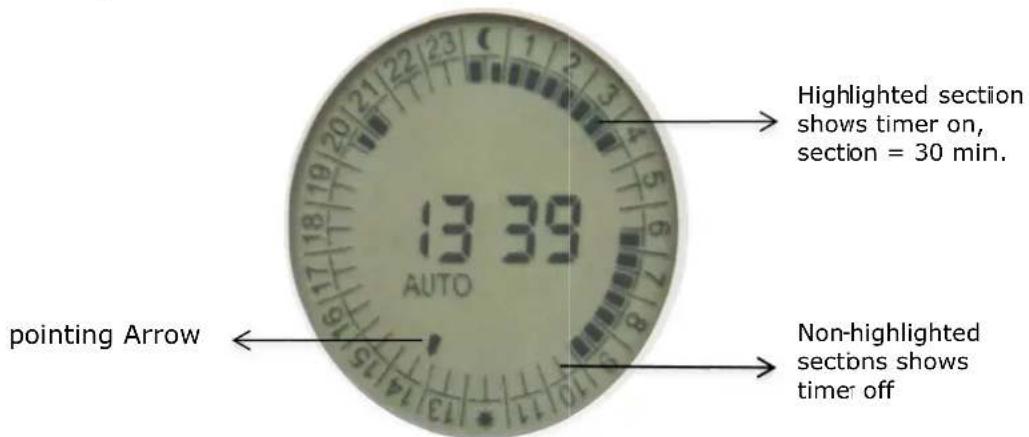

2. To enter PROGRAM mode, press and hold until the pointing arrow flashes.

3. Press + or - to move the arrow to a time section you want to program. Each section represents 30 minutes.

4. Press OK to confirm. The programmed section is shown in black.
5. To clear the section, press OK again.
6. To switch multiple sections on or off, press and hold +or
7. Press OK to confirm.
8. To save the settings, stop pressing the button s. The timer automatically exits program mode and saves the settings.

Resetting the timer

• To reset the timer, press the R button with a rneedle or point. This will reset the time and clear all timer program settings.

Switching the timer on or off

You can switch the timer and all programs on or off with the OK button. The setting is shown on the display.

• Auto: timer turns on/off appliance according to program settings.
  ON: the timer is always on.
  OFF: the timer is always off.

Connecting an appliance to the timer

When the programs are set:

1. Switch off your electrical appliance.
2. Plug your appliance into the timer socket.
3. Plug the timer to the power outlet.
4. Switch on your appliance. The appliance will then be turned on/off according to your settings

4. Cleaning and Maintenance

• Remove the timer from the mains before cleaning.
• Wipe with a dry cloth. Do not immerse in water or any liquid.

5. Battery

!	·This device contains an internal rechargeable battery. When the device is end-of-life, it must be disposed of in accordance with local regulations.
	·Keep batteries away from children..
	·Do not puncture batteries or throw them in fire as they may explode.

6. Technical Specifications

power supply	230 V
max. power	1800 W
backup battery 1	x Ni- MH 1.2 V 80 mAh (included, not replaceable)
dimensions	126 x 56 x 76 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu.

The information in this manual is subject to change without prior notice.

E305DD - E305DD-G
