USER MANUAL SB270 KENWOOD

SB260 series SB270 series

instructions

istruzioni

instrucciones

instructions and recipe ideas 2 - 9

HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Lane, Harvard, Hampshire PO0 2NH

kerwoodworld.com

KENWOOD

CREATE MORE

189664

smoothie

English

safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Switch off and unplug:
  • before fitting and removing parts
  • after use
  • before cleaning.
• Never let the power unit, cord or plug get wet.
• Keep hands and utensils, other than the stirrer out of the goblet when it's on the power unit.
• Never use a damaged machine. Get it checked or repaired: see 'service and customer care'.
• Never use an unauthorised attachment.
• Never leave the machine on unattended.
• When removing the Smoothie Blender from the power unit, wait until the blades have completely stopped.
• Only operate the Smoothie Blender with the lid and stirrer in place.
• Never use the stirrer unless the lid is fitted to the goblet.
• The unit may also be used for making soups but only blend cold ingredients.
• Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.
• Only use the Smoothie Blender with the blade assembly supplied.
• Always use the Smoothie Blender on a secure, dry, level surface.

- Never place this appliance on or near a hot gas or electric burner or where it could touch a heated appliance.

SB270 series Important - The skirt on the of the goblet is fitted during manufacture and no attempt should be made to remove it.

- Misuse of your Smoothie Blender can result in injury.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

You can use your Smoothie Blender for making delicious and nutritious cold drinks. It's easy to use and the smoothie drink can be dispensed directly into a cup or glass. We've also included a stirring device to assist with the blending.

A selection of recipes can be found at the back of the instructions, but the handy markings on the goblet allow you to mix ingredients of your choice. Combinations of fruit and yoghurt (both fresh and frozen), ice cream, ice cubes, juice and milk can be used.

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of the machine.
• This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

before using for the first time

- Wash the parts: see 'care and cleaning'.

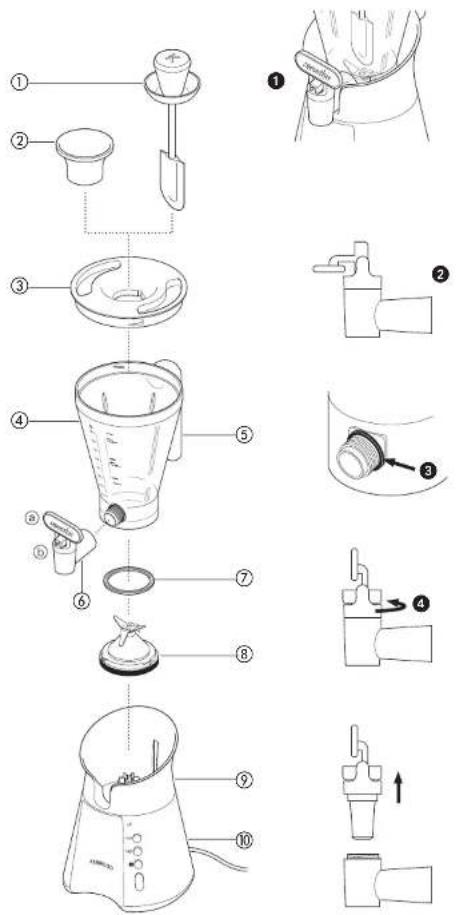

key

①stirrer
②cap
③lid
④goblet
⑤handle
⑥tap assembly - tap lever ⓐ - tap bodyb
⑦sealing ring
⑧blade assembly
⑨power unit
⑩cord storage

to use your smoothie blender

1 Fit the sealing ring over the blade assembly.
2 SB260 series

Screw the blade assembly onto the goblet.

SB270 series

To fit the blade assembly to the goblet, line up the symbol on the blade assembly with the symbol on the goblet. Then turn to the symbol to lock into place.

Pure diagram of a lock and switch symbols above a vertical bar with vertical stripes (no text or labels)

3 Screw the tap assembly onto the goblet. Check that the dispensing tap lever is in the off position ①.
4 Place the assembled goblet on the power unit.
5 Place the liquid ingredients into the goblet.

• This includes fruit (not frozen), fresh yoghurt, milk and fruit juices. These can be placed into the goblet to the level marked LIQUIDS for either 2 or 4 servings.
  6 Add ice or frozen ingredients to the goblet.
• This includes frozen fruit, frozen yoghurt, ice cream or ice. These can be added up to the level marked FROZEN INGREDIENTS for the corresponding number of servings.

7 SB260 series

Screw the lid onto the goblet.

SB270 series

Push the lid onto the goblet.

8 Either push the cap into the lid or place the stirrer in the hole.
- The stirrer can be used when blending thick mixtures or when large quantities of frozen foods with liquids are used.
9 Plug in. (SB270 series - the base will illuminate).
10 Press the low!' button for up to 30 seconds, this is to start the mixing process, then press the high 'II' button. Allow the ingredients to blend until smooth.
- Use the stirrer by moving it in an anti clockwise direction.
11 Place a glass underneath the tap, press the low I' button and pull forward the dispensing tap lever.
- Thinner drinks may dispense without having to switch on the power unit.
- Use the stirrer to assist when dispensing thick smoothie drinks.
- To help dispense the last amount of a thick smoothie drink, add a few tablespoons of liquid to increase the flow.
- When the glass is full, switch off and release the lever. Unplug after use.

OR

Switch off o', remove the goblet and pour the drink. Unplug after use.

hints

• To make a thinner smoothie drink add more liquid.
• To make a thicker smoothie drink add more frozen ingredients but do not exceed the frozen limit marked on the goblet.
• Before fitting the lid, push the solid ingredients into the liquid using the stirrer.
• Use the pulse 'P' button to operate the power unit in a start stop action to control the texture of your drink. Take care as this automatically selects the higher speed and may cause the drink to be thrown up the sides and onto the lid of the goblet.
• After blending, some drinks may not be completely smooth due to seeds or the fibrous nature of ingredients.
• Some drinks may separate on standing, therefore, it's best to drink them straight away. Separated drinks should be stirred before drinking.
• Never blend more than the maximum capacity of 1500ml marked on the goblet.
• Never blend dry ingredients (eg spices, nuts) or run the Smoothie Blender empty.
• Don't use the Smoothie Blender as a storage container. Keep it empty before and after use.
• Some liquids increase in volume and froth during blending eg milk, so do not overfill and ensure the lid _3 is correctly fitted.
• To ensure long life of your Smoothie Blender, never run it continuously for longer than 60 seconds.
• Never blend food that has formed a solid mass during freezing, break it up before adding to the goblet.

important

care and cleaning

• Always switch off, unplug and dismantle before cleaning.
• Never let the power unit, cord or plug get wet.
• Empty the goblet before unscrewing the blade unit.
• Always wash immediately after use. Don't let food dry onto the goblet assembly as this will make cleaning difficult.
• Don't wash any part in the dishwasher.
• Regularly dismantle the tap and clean the parts thoroughly.

Smoothie Blender unit

Before dismantling the Smoothie Blender, half fill the goblet with warm water. Fit the lid and stirrer then place on the power unit. Switch to low ' and whilst running open the tap and allow the water to drain into a container to clean the valve. This can be repeated until the water runs clear. If further cleaning is necessary dismantle the unit first.

power unit

• Wipe with a damp cloth, then dry.
• Push excess cord into the back of the power unit.

blade unit

1 Remove and wash the sealing ring.
2 Don't touch the sharp blades - brush them clean using hot soapy water, then rinse thoroughly under the tap. Don't immerse the blade assembly in water.

3 Leave to dry upside down away from children.

goblet, lid, cap and stirrer

Wash by hand, rinse with clean water then dry.

cleaning the tap

Remove the tap assembly from the goblet, then soak the tap in hot soapy water with the valve open

1. Wash thoroughly then rinse and dry. Wash and dry the goblet then refit the tap ensuring that the seal is correctly positioned on the goblet

3

dismantling the tap

1 Unscrew the tap lever from the tap body ④. Do not remove the clear plastic cover from the assembly.
2 Wash the components then rinse and dry thoroughly.
3 Reassemble the unit by reversing the above procedure.

service and customer care

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your Smoothie Blender
• servicing or repairs
- Contact the shop where you bought your Smoothie Blender.
- Designed and engineered by Kenwood in the UK.
- Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

recipes

strawberry lemon surprise

2 x 150g pots strawberry yoghurt 500ml lemonade 400g frozen strawberries Makes 4 large glasses

Place the yoghurt and lemonade into the goblet. Add the frozen strawberries. Switch to low I' for 10 seconds, then to high II' for 10 seconds. Serve immediately.

thick banana milkshake

3 medium bananas (cut into chunks)

500mls semi skimmed milk

6 small scoops vanilla ice-cream (approximate weight 300g)

Makes 4 large glasses

Place the bananas and milk into the goblet. Add the ice cream.

Switch to low I' for 10 seconds, then to high II' for 10 seconds.

Serve immediately.

pineapple and coconut refresher

1 can (425g) pineapple pieces in juice

250mls pineapple juice

8 x15ml spoons coconut milk

6 small scoops vanilla ice cream (approximate weight 300g)

Makes 4 large glasses

Place the contents of the can of pineapple in juice into the goblet together with the additional pineapple juice and coconut milk.

Add the ice cream. Switch to low

‘I’ for 10 seconds, then to high

‘11 for 30 seconds. Serve immediately.

raspberry cream

3 x 150g pots raspberry yoghurt

250ml orange juice

150g frozen raspberries

150g (approximately 2 scoops)

frozen yoghurt dessert, vanilla flavour

Makes 4 large glasses

Place the fresh yoghurt and orange juice into the goblet. Add the frozen raspberries and frozen yoghurt. Switch to low!' for 10 seconds, then to high!!' for 30 seconds.

Serve immediately.

choco mint shake

400ml semi skimmed milk

few drops peppermint essence to taste

4 small scoops chocolate ice

cream (approximate weight 200g)

Makes 2 large glasses

Place the milk and essence into the goblet. Add the ice cream.

Switch to low I' for 10 seconds, then to high I'll' for 10 seconds.

Serve immediately

ice cool fruity

3 peeled kiwi fruit, quartered

300g fresh strawberries

350ml orange juice

8 ice cubes

Makes 4 large glasses

Place the fruit and orange juice into the goblet. Add the ice cubes.

Switch to low I' for 20 seconds, then to high I'll' for 20 seconds.

Serve immediately

ginger smoothie

300ml milk

6 - 8 pieces of stem ginger or to taste

30 ml juice from stem ginger

4 small scoops vanilla ice cream (approximate weight 200g)

Makes 2 to 3 glasses

Place the milk, stem ginger and juice into the goblet. Add the ice

cream. Switch to low!' for 15

seconds, then to high 11' for 30

seconds. Serve immediately.

pineapple and apricot smoothie

200ml pineapple juice

200ml Greek yoghurt

200g fresh pineapple, cut into pieces

3 fresh apricots, stones removed and flesh cut up

10 ice cubes

Makes 3 to 4 large glasses

Place the pineapple juice, yoghurt, pineapple and apricot into the goblet. Add the ice cubes. Switch to low 1' for 20 seconds, then to high '11' for 30 seconds. Serve immediately.

breakfast in a glass

150ml skimmed milk

100ml low fat yoghurt

1 banana cut into chunks

1 apple, cored and cut up

10ml wheatgerm

15ml runny honey

4 ice cubes

Makes 2 large glasses

Place the milk, yoghurt, banana, apple, wheatgerm and honey into the goblet. Add the ice cubes.

Switch to low f' for 30 seconds, then to high fl' for 20 seconds.

Serve immediately.

coffee smoothie

200ml Espresso coffee

150ml milk

15ml Baileys liqueur (optional) sugar to taste

4 small scoops vanilla ice cream (approximate weight 200g)

Makes 2 large glasses

Place the coffee, milk, liqueur and sugar (if used) into the goblet. Add the ice cream. Switch to low ‘’ for

10 seconds, then to high!!' for

10 seconds. Serve immediately.

banoffee smoothie

2 bananas, cut up

200ml milk

4 small scoops toffee ice cream (approximate weight 200g)

Makes 2 large glasses

Place the banana and milk in the goblet. Add the ice cream. Switch to low 1' for 10 seconds, then to high 'll' for 20 seconds. Serve immediately.

fruit smasher

2 nectarines, stones removed and flesh cut up

100g fresh raspberries

100g fresh strawberries

100ml lemonade

100ml apple juice

6 ice cubes

Makes 3 large glasses

Place all the fruit and juice into the goblet. Add the ice cubes. Switch to low 1' for 10 seconds, then to high 'll' for 20 seconds. Serve immediately.

raspberry refresher

800ml cranberry juice

250g frozen raspberries

3 small scoops raspberry sorbet (approximate weight 225g)

Makes 5 large glasses

Place the cranberry juice into the goblet, then add the frozen raspberries and sorbet. Switch to low 'I' for 15 seconds, then to high 'II' for 15 seconds. Serve immediately.

tropical ginger

400ml ginger beer

300g mixture frozen pineapple, melon and mango

Makes 2 large glasses

Place the ginger beer into the goblet, then add the frozen fruit.

Switch to low I' for 15 seconds, then to high II' for 30 seconds.

Serve immediately.

fruits of the forest zinger

700ml lemonade

2 meringue shells, broken up

450g frozen black forest fruits

Makes 5 large glasses

Place the lemonade and meringue into the goblet, then add the frozen

fruit. Switch to low I' ' for 15

seconds, then to high 11' for 30

seconds. Serve immediately.

oriental splendour

1 can lychees, drained weight

200g (juice not required)

500ml orange juice

100g crème fraiche

10 ice cubes

Makes 3-4 large glasses

Place the drained fruit, orange juice and crème fraîche into the goblet, then add the ice cubes. Switch to low 'I' for 15 seconds, then to high 'II' for 15 seconds. Serve immediately.

cool as cucumber

450ml apple juice

half cucumber, cut up

2 kiwi fruit, cut up

4 mint leaves

10 ice cubes

Makes 4 large glasses

Place the apple juice, cucumber,

kiwi and mint leaves into the

goblet, then add the ice cubes.

Switch to 'low I' for 15 seconds,

then to high I'll' for 15 seconds.

Serve immediately.

berry blast

600ml cranberry juice

200g condensed milk

500g frozen mixed berries

Makes 4 large glasses

Place the cranberry juice and

condensed milk into the goblet,

then add the frozen fruit. Switch to

low 'I' for 15 seconds, then to

'high 'II' for 15 seconds. Serve

immediately.

Nederlands

Simple diagram showing two lock icons above a vertical bar with a triangle below, no text or symbols present.

⑧ensemble porte-lames
⑨bloc moteur
⑩compartment range-cordon

Simple diagram showing two lock icons above a vertical bar with a triangle at the bottom (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

fruits of the forest zinger

700 ml Zitronenlimonade

2 Meringues, zerbröselt

Simple diagram showing two lock icons above a vertical bar with striped pattern below (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Simple diagram showing two lock icons above a vertical bar with a triangle below (no text or symbols)

tjock bananmilkshake

3 medelstora bananer (skurna i bitar)

5 dl mellanmjölk

6 små kulor vaniljglass

(vikt ca 300 g)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Pure diagram of a lock and directional arrows above a vertical bar with striped pattern at bottom (no text or symbols)

Simple diagram showing two lock symbols with bidirectional arrows above a vertical bar, no text or labels present.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Pure diagram of a lock and double-headed arrow above a vertical bar with striped pattern (no text or symbols)

Pure diagram of two lock symbols with bidirectional arrows above a vertical striped pattern below (no text or labels)

Simple diagram showing two lock icons above a rectangular barrier with vertical stripes below (no text or symbols)

Simple diagram showing two lock icons above a vertical bar with a triangle at the bottom (no text or symbols)

Pure diagram of a lock and switch symbols above a vertical bar with vertical stripes (no text or labels)
