USER MANUAL HB681 KENWOOD

Line drawing of a BenWood brand blender with control buttons and base (no text or symbols on body)

English 2 - 5

Nederlands 6 - 9

Français 10 - 13

Deutsch 14 - 17

Italiano 18 - 21

Português 22 - 25

Español 26 - 29

Dansk 30 - 33

Svenska 34 - 37

Norsk 38 - 40

Suomi 41 - 44

Türkçe 45 - 48

Česky49 - 52

Magyar53 - 56

Polski57 - 61

Русский62 - 66

Ελληνικά67 - 71

Slovenčina 72 - 75

Українська 76 - 80

عربية ΛΣ - Λ1

HEAD OFFICE: Kenwood Limited, 1-3 Kenwood Business Park, New Linn, Hacard, Hemashire POG 2NH

kenwoodworld.com

KENWOOD

CREATE MORE

4086671

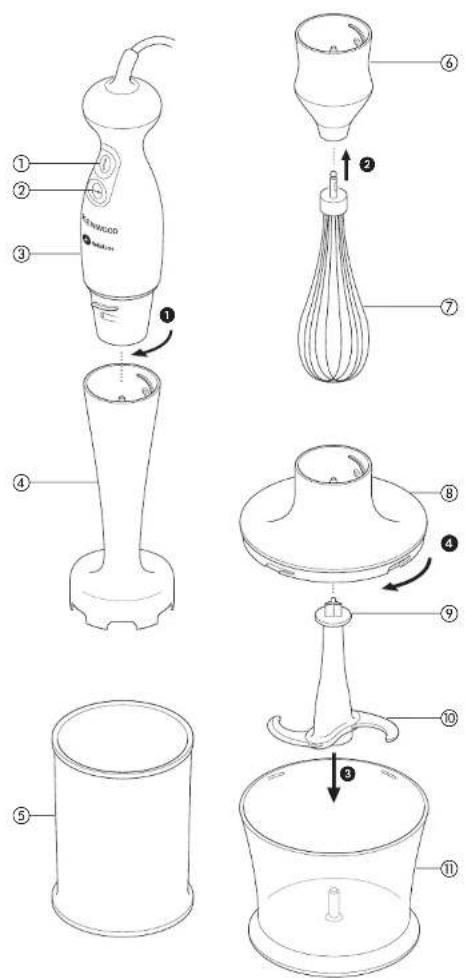

Exploded diagram of a blender with numbered parts for each step and component identification

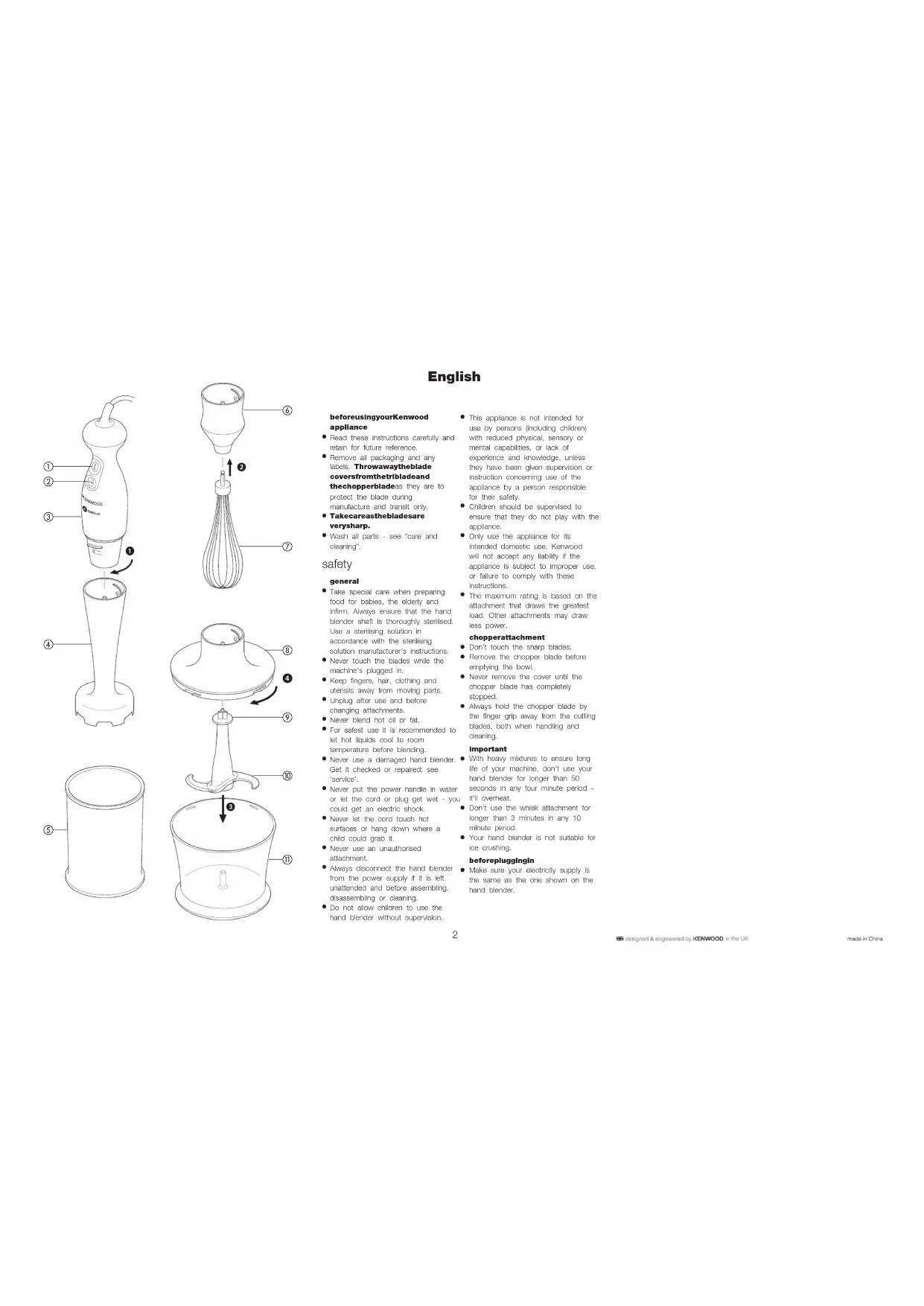

English

beforeusingyourKenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels. Throwawaytheblade coversfromthetribladeand thechopperbladeas they are to protect the blade during
  • Takecareasthebladesare verkehrn
• Wash all parts - see "care and cleaning".

safety

general

Take special care when preparing food for babies, the elderly and infirm. Always ensure that the hand blender shaft is thoroughly sterilised. Use a sterilising solution in accordance with the sterilising solution products instructions.
- Never touch the blades while the machine's plugged in.
- Keep fingers, hair, clothing and utensils away from moving parts.
- Unplug after use and before changing attachments
- Never blend hot oil or fat.
- For safest use it is recommended to let hot liquids cool to room temperature before blending.
- Never use a damaged hand blender. Get it checked or repaired: see 'service'.
- Never put the power handle in water or let the cord or plug get wet - you would get an electric shock
- Never let the cord touch hot surfaces or hang down where a child could grab it.
- Never use an unauthorised attachment.
- Always disconnect the hand blender from the power supply if it is left unattended and before assembling, disassembling or cleaning.
- Do not allow children to use the hand blender without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
• The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power.

chopperattachment

• Don't touch the sharp blades.
• Remove the chopper blade before complying the bowl.
• Never remove the cover until the chopper blade has completely stopped.
• Aways hold the chopper blade by the finger grip away from the cutting blades, both when handling and cleaning.

important

• With heavy mixtures to ensure long life of your machine, don't use your hand blender for longer than 50 seconds in any four minute period. It'll overheat.
• Don't use the whisk attachment for longer than 3 minutes in any 10 minute period.
• Your hand blender is not suitable for ice crushing.

beforepluggingin

- Make sure your electricity supply is the same as the one shown on the hand blender.

- This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

key

hand blender

①speed 1 button
②turbo button
③power handle
④removable blender shaft with fixed triblade.

⑤beaker (if supplied) whisk (if supplied)

⑥whisk collar

⑦wire whisk

chopper (if supplied)

⑧chopper cover

⑨finger grip

⑩chopper blade

⑪bowl

to use the hand blender

- You can blend baby food, soups, sauces, milk shakes and mayonnaise.

for beaker blending (if beaker supplied)

- Don't fill the beaker more than 2/3rds full.

Note

If no beaker is supplied in your pack, select a suitably sized container. We would recommend a tall, straight sided vessel with a diameter slightly larger than the foot of the hand blender to allow movement of the ingredients but tall enough to prevent splashing.

for saucepan blending

- For safest use it is recommended to take the pan off the heat and let hot liquids cool to room temperature before blending.

1 Fit the power handle inside the blender shaft and turn to lock ①.

2 Plug in.

3 Place the food into the beaker or a suitably sized container, then holding the container steady, press the required speed button. (Select speed 1 for slower blending and to minimise splashing and turbo for faster blending).

- To avoid splashing, place the blade in the food before switching on.

- Don't let liquid get above the join between the power handle and blender shaft.

- Move the blade through the food and use a mashing or stirring action to incorporate the mixture.

- Your hand blender is not suitable for ice crushing.

- If your blender gets blocked, unplug before clearing.

4 After use release the speed button. Unplug and dismantle.

to use the whisk (if supplied)

- You can whip light ingredients such as egg whites; cream and instant desserts.

- Don't whisk heavier mixtures such as margarine and sugar - you'll damage the whisk.

1 Push the wire whisk into the whisk collar ②.

2 Fit the power handle inside the whisk collar then turn to lock.

3 Place your food in a bowl.

- Don't whisk more than 4 egg whites or 400ml (pt) cream.

4 Plug in. To avoid splashing, press speed 1 button. To whisk on a faster speed press the Turbo button. Move the whisk clockwise.

- Don't let liquid get above the whisk wires.

5 After use release the speed button, unplug and dismantle.

to use the chopper (if supplied)

• You can chop meat, vegetables, herbs, bread, biscuits and nuts.
• Don't chop hard foods such as coffee beans, ice cubes, spices or chocolate - you'll damage the blade.

1 Remove any bones and cut food into 1-2cm ( 12 -1") cubes.

2 Fit the chopper blade over the pin in the bowl③.
3 Add your food.
4 Fit the chopper cover, turn and lock ④.
5 Fit the power handle inside the chopper cover - turn to lock.
6 Plug in. Hold the bowl steady. Then press the turbo button. Alternatively press the turbo button in short bursts to achieve a pulsing action.
7 After use, unplug and dismantle.

processing guide

food maximum approx. amount (in seconds)
Meat 300g	(10 12oz )	10-30
Herbs 20g	( 34oz ) 20
Nuts 200g	(7oz) 30
Cheese 150g	(5oz) 30
Bread 1 slice	20
Hardboiled eggs	25
Onions	100g ( 32oz )	10

care and cleaning

• Always switch off and unplug before cleaning.
• Don't touch the sharp blades.
• Take special care when preparing food for babies, the elderly and infirm. Always ensure that the hand blender shaft is thoroughly sterilised. Use a sterilising solution in accordance with the sterilising solution manufacturer's instructions.
• Some foods, eg carrot, may discolour the plastic. Rubbing with a cloth dipped in vegetable oil may help to remove discolouration.

power handle, whisk collar and chopper cover

• Wipe with a slightly damp cloth, then dry.
• Never immerse in water or use abrasives.
• Do not dishwash.

hand blender shaft

either

• Part fill a suitably sized container with warm soapy water. Plug into the power supply, then insert the hand blender shaft and switch on.
• Unplug, then dry, or
• Wash the blades under running water, then dry thoroughly whisk, beaker, chopper bowl and chopper blade
• Wash up, then dry.
• The following parts can be washed in a dishwasher: blender shaft, whisk (not whisk collar), chopper bowl, (not chopper cover), chopper blade and beaker.

service and customer care

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your appliance or
- servicing or repairs Contact the shop where you bought your appliance.
- Designed and engineered by Kenwood in the UK.
- Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
