USER MANUAL IR Comfort 2024 H AEG

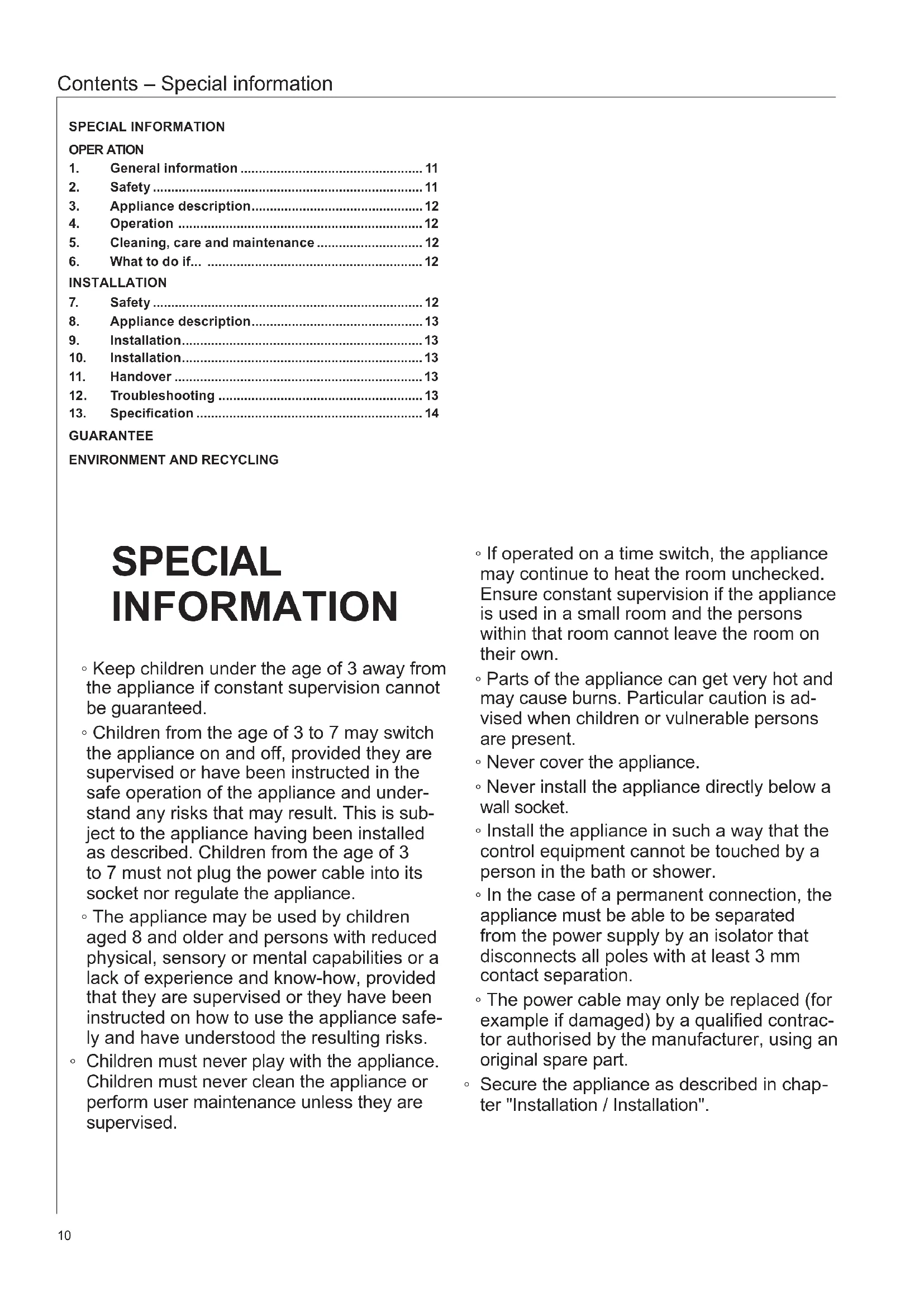

• Keep children under the age of 3 away from the appliance if constant supervision cannot be guaranteed.

• Children from the age of 3 to 7 may switch the appliance on and off, provided they are supervised or have been instructed in the safe operation of the appliance and under- stand any risks that may result. This is sub- ject to the appliance having been installed as described. Children from the age of 3 to 7 must not plug the power cable into its socket nor regulate the appliance.

• The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safe- ly and have understood the resulting risks.

• Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

• If operated on a time switch, the appliance may continue to heat the room unchecked. Ensure constant supervision if the appliance is used in a small room and the persons within that room cannot leave the room on their own.

• Parts of the appliance can get very hot and may cause burns. Particular caution is ad- vised when children or vulnerable persons are present.

• Never cover the appliance.

• Never install the appliance directly below a wall socket.

• Install the appliance in such a way that the control equipment cannot be touched by a person in the bath or shower.

• In the case of a permanent connection, the appliance must be able to be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation.

• The power cable may only be replaced (for example if damaged) by a qualied contrac- tor authorised by the manufacturer, using an original spare part.

• Secure the appliance as described in chap- ter "Installation / Installation".11 Operation – for users and qualied contractors OPERATION

1. General information

The chapters "Special Information" and "Operation" are intended for both the user and qualied contractors.The chapter "Installation" is intended for qualied con-tractors. Note Read these instructions carefully before using the appliance and retain them for future reference.Pass on the instructions to a new user if required.1.1 Safety instructions1.1.1 Structure of safety instructions

KEYWORD Type of riskHere, possible consequences are listed that may re-sult from failure to observe the safety instructions. » Steps to prevent the risk are listed.1.1.2 Symbols, type of riskSymbol Type of risk

Burns(burns, scalding) 1.1.3 KeywordsKEYWORD MeaningDANGER Failure to observe this information will result in seri-ous injury or death.WARNING Failure to observe this information may result in seri-ous injury or death.CAUTION Failure to observe this information may result in non-serious or minor injury.1.2 Other symbols in this documentation Note General information is identied by the adjacent symbol. » Read these texts carefully.Symbol Meaning

Material losses(appliance damage, consequential losses and envi-ronmental pollution)

Appliance disposal » This symbol indicates that you have to do something. The action you need to take is described step by step.1.3 Units of measurement Note All measurements are given in mm unless stated otherwise.

2.1 Intended useThe appliance heats inside and outside.This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.2.2 General safety instructions

• Keep children under the age of 3 away from the appliance if constant supervision cannot be guaranteed.
• Children from the age of 3 to 7 may switch the appliance on and off, provided they are super-vised or have been instructed in the safe opera-tion of the appliance and understand any risks that may result. This is subject to the appliance having been installed as described. Children from the age of 3 to 7 must not plug the power cable into its socket nor regulate the appliance.
• The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of expe-rience and know-how, provided that they are su-pervised or they have been instructed on how to use the appliance safely and have understood the resulting risks.
• Children must never play with the appliance. Children must never clean the appliance or per-form user maintenance unless they are super-vised.

• Never use the appliance as a heater for a baby or nappy changing table.
• Never look into the light for long. WARNING Electrocution
• Never insert any object into any aperture in the appliance. This can lead to fatal electric shocks and/or res.
• Never operate the appliance when it or its power cable are damaged.
• Only operate the lamps with the bulbs supplied.

• Isolate the power prior to changing the bulbs. WARNING BurnsNever operate this appliance...
• in areas at risk from re.

• in rooms where the appliance is at risk of re or explosion as a result of chemicals, dust, gases or vapours.
• near pipes or receptacles that carry or contain ammable or explosive materials.
• if work such as laying tiles, sanding or sealing is being carried out in the installation room.
• if naphtha, sprays, oor polish or similar prod- ucts are handled.

!12 Operation – for users and qualied contractors CAUTION BurnsObserve the minimum clearances (see chapter "Specication").Never place any objects on top of the appliance. Never lean any objects against it or place any ob-jects between the appliance and the wall.Never place any ammable, combustible or insulat-ing objects or materials, such as laundry, blankets, magazines, containers with oor polish or naphtha, spray cans or similar, near the appliance. CAUTION Burns ◦ Parts of the appliance can get very hot and may cause burns. Particular caution is advised when children or vulnerable persons are present. ◦ The grille also remains hot after the appliance is switched off. ◦ Never touch the quartz tubes. ◦ Never adjust the pivoting angle of the appliance in use.

Material losses ◦ Ensure that the power cable is never in contact with the hot appliance, other parts or sharp edges.

• The power cable may only be replaced (for ex- ample if damaged) by a qualied contractor au-thorised by the manufacturer, using an original spare part.Never cover the appliance.2.3 Test symbolsSee type plate. The type plate is located at the back of the appliance.

3. Appliance description

The appliance only warms the air slightly. It is only when it hits objects or the human body that the IR radiation is converted into heat. You will feel the heat after just a few seconds.The radiant heater body is made from aluminium. The protective grille and screws are made from stainless steel.

4.1 Starting the appliance without Hirschmann plug-in connection » Start the appliance by pushing the power plug into its socket.4.2 Switching the appliance on with Hirschmann plug-in connection » If not already in place, connect the power cable to the cable with mains plug. » Start the appliance by pushing the power plug into its socket.4.3 Switching OFF the appliance » Switch off the appliance by pulling the power plug from its socket.

5. Cleaning, care and

• Never spray the appliance with water. Never im- merse the appliance in water. ◦ Never touch the quartz rods with your ngers, otherwise spots can form or the quartz rods might be destroyed. » Isolate the appliance from the power supply and let it cool down. » A damp cloth is sufcient for cleaning the casing. Never use abrasive or solvent-based cleaning agents. Go over with a soft cloth. » Regularly clean the reector through the grille using a paint brush. Let a contractor clean the reector if it is heavily soiled to retain the full level of heat radia-tion of this appliance.The heating tube (gold tube) has a maximum service life of approx. 5000 hours. It is subject to the operating con-ditions, such as the relative humidity, switching frequency and the orientation of the radiant heater.

6.1 ... you notice a smell ◦ For a short time after rst taking the appliance into use as well as after longer breaks in use, a smell may develop.6.2 ... the appliance does not radiate any heat

• Check whether the fuses/MCBs have blown/tripped or are faulty.If you cannot remedy the fault, notify your qualied con-tractor. To facilitate and speed up your request, provide the number from the type plate (000000-0000-000000). INSTALLATION

Only a qualied contractor should carry out installation, commissioning, maintenance and repair of the appliance.7.1 General safety instructionsWe guarantee trouble-free function and operational relia-bility only if original accessories and spare parts intended for the appliance are used.7.2 Instructions, standards and regulations Note Observe all applicable national and regional regula-tions and instructions. Note When installing the appliance in rooms with a bath and/or shower, observe the safety zone in accord-ance with the details on the type plate.13 Installation – for qualied contractors

8. Appliance description

8.1 Standard deliveryThe following are delivered with the appliance: ◦ Wall mounting bracket (incl. xing screw and nut)8.2 Special accessories ◦ IR Dimmer 3600 S Schuko ◦ IR Dimmer 3601 ◦ IR Funk Dimmer 2000 ◦ IR Funk W ◦ IR Funk S ◦ IR Funk Multi BiDi

9.1 Installation conditions and preparations

CAUTION InjuryInstall the appliance out of the reach of children. ◦ Never install this appliance on or below combustible materials. ◦ Never install the appliance directly below a socket. ◦ Install the appliance on the wall or ceiling. ◦ Observe the specied minimum clearances (see chapter "Specication / Dimensions"). This appli- ance gives off radiated heat. Therefore ensure that there are no objects between the appliance and the person or objects to be heated, such as furniture, for example. ◦ Wood ceilings may become hot even if the minimum clearances are observed. Dark spots or ne shrink-age cracks on wooden ceilings may therefore occur.9.2 Power supply WARNING ElectrocutionCarry out all electrical connection and installation work in accordance with relevant regulations. » Only connect the appliance to a correctly installed mains socket.We recommend a dedicated fuse for this appliance (see chapter "Specication / Data table"). From 3600 W up- wards, only ever connect one appliance per fuse. Note Observe the type plate. The specied voltage must match the mains voltage. WARNING ElectrocutionThe appliance must be able to be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation.An external socket must be able to be isolated from the power supply across all poles.Equip the supplying power circuit of the appliance with an RCD (nominal earth leakage current ≤ 30 mA).

10.1 Appliance installation

Note Check in chapter "Specication / Data table" wheth-er you are able to install the appliance vertically or horizontally. » Secure the mounting bracket on the wall or ceiling using suitable xing materials. » Secure the appliance to the mounting bracket using the screw and nut provided. » Route the power cable from the appliance either to-wards the back, top or bottom.10.2 Adjusting the tilting angleThe tilting angle can be adjusted over a range of 100°. We recommend a setting of 45°. CAUTION BurnsIf the appliance is already in use, let it cool down before adjusting the tilting angle. » Undo both screws on the pivot hinge. » Set an appropriate tilting angle. » Retighten the two screws again.

Material lossesEnsure that the appliance does not come into con-tact with the power cable.10.3 DismantlingPull the mains plug out of the socket. CAUTION BurnsFirst allow the appliance to cool down before trans-porting or storing it.Remove the appliance from the wall mounting bracket.

Explain the functions of the appliance to the user. Draw special attention to the safety instructions. Hand over the operating and installation instructions to the user.

Only use an original spare part from us if you are replacing the power cable.14 Installation – for qualied contractors

26_07_31_0161 Appliance tilting angle Height Dimensions of the heated area (H) [m] (A) [m] (B) [m] (C) [m] (S) [m

IR Comfort IR Comfort IR Comfort 2024 H 229953 229954 229955Electrical detailsConnected load W 1500 2000 2000Phases 1/N/PE 1/N/PE 1/N/PE Rated voltage V 230 230 230 Frequency Hz 50 50 50 Power consumption A 6,5 8,5 8,5 Max. starting current A 64 85 85 Fuses A 16, slow 16, slow 16, slow Dimensions Height mm 145 145 145 Width mm 480 480 480 Depth mm 145 145 145 Weights Weight kg 2,5 2,5 2,5 Versions Type of installation Horizontal Horizontal Horizontal Application internal/ex- ternalinternal/ex-ternalinternal/ex-ternal IP-Rating IP24 IP24 IP24 Protection class I I I Colour white white white Values IR range nm IR-A (1200) IR-A (1200) IR-A (1200) Guarantee The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant- ed if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted. We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not aect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations. GUARANTEE
