Product type	Portable battery (Powerbank)
Brand	FRESH N REBEL
Model	1PB100WH
Battery capacity	2600 mAh
Battery type	Lithium-ion
Input voltage	5V / 1.5A (max.)
Output voltage	5V / 1A (5W)
Dimensions	31 × 95 × 24 mm
Weight	72 g
Battery level indicator	4 LED (25%, 50%, 75%, 100%)
Charging LED	Red (charging), off (complete)
Ports	1 USB-A port (output), 1 micro USB port (input)
Control button	Start charging and level display
Integrated protections	Overcurrent, overvoltage, overtemperature, overpower, short circuit
Operating temperature	5°C to 35°C
Warranty	2 years
Care and cleaning	Wipe with a soft, dry cloth. Do not use liquids.
Safety	Do not open, do not expose to moisture or extreme temperatures.
Spare parts and repairability	No user-repairable parts. Do not open.
General information	Compact portable battery to recharge your mobile devices.

Frequently Asked Questions - 1PB100WH FRESH N REBEL

How to charge the portable battery?

Use the provided micro USB cable and plug it into a USB charger (5V/1.5A max.). The battery fully charges in about 2 hours.

How to recharge my phone with this battery?

Plug your phone's USB cable into the battery's USB-A port, then press the button to start charging. The red LED lights up and turns off when charging is complete.

What do the LED indicators mean?

The 4 LEDs indicate the remaining charge level: 1 LED = 25%, 2 LEDs = 50%, 3 LEDs = 75%, 4 LEDs = 100%. During charging, the red LED is on.

How long does it take to charge the portable battery?

With a suitable charger (5V/1.5A), the charging time is about 2 hours for a full charge.

Can I charge multiple devices at the same time?

No, this battery only has one USB-A output port, it can only charge one device at a time.

Is the battery safe?

Yes, it has protections against overcurrent, overvoltage, overtemperature, overpower, and short circuits for safe use.

What to do if the battery does not work?

Check that the battery is charged (at least one LED on). If it is charged but still does not work, contact customer service. Do not attempt to open it.

Can I use the battery while it is charging?

Yes, you can use the battery to charge a device while it is recharging. However, this may extend the battery's charging time.

How to clean the portable battery?

Disconnect all cables and gently wipe the surface with a soft, dry cloth. Do not use liquid or abrasive products.

What is the battery lifespan?

The lithium-ion battery can withstand about 300 to 500 charge cycles before its capacity decreases significantly. Normal use provides several years of service.

USER MANUAL 1PB100WH FRESH N REBEL

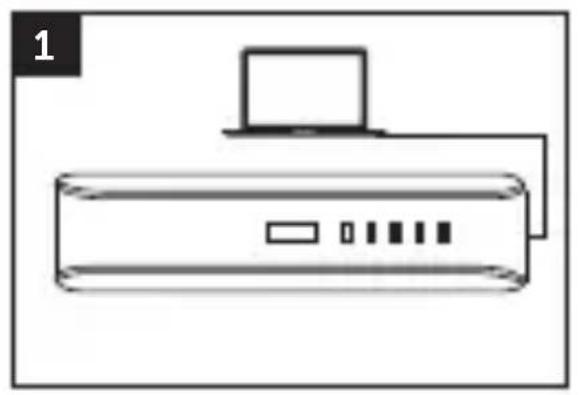

1. Fully charge your Powerbank before use.

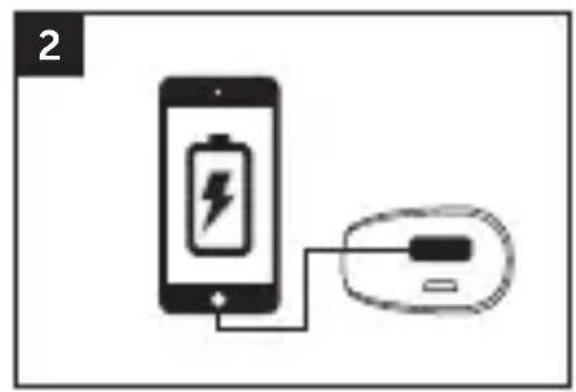

2. Connect the Powerbank to the device you would like to charge.

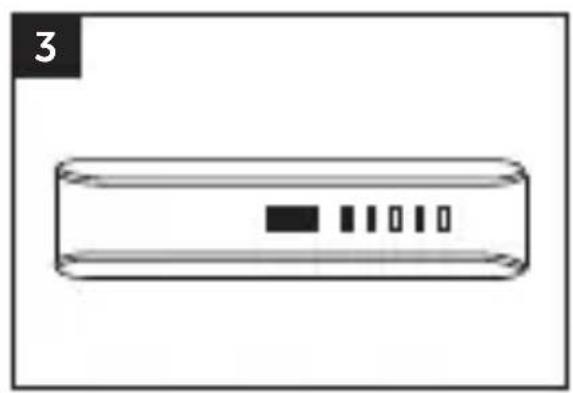

3. Push the button to start charging. The charging LED will light up red.

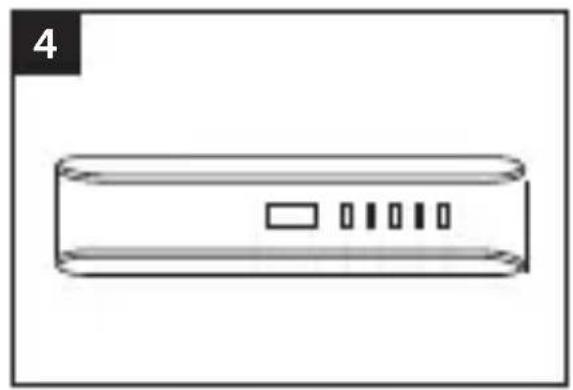

4. When your device is fully charged the charging LED will turn off.

Charge your Powerbank

1. Button

Push to start charging

Push to read battery status

1. Charging LED

Red = charging your Powerbank

Off = Powerbank is fully charged

1. Battery indicator

1 light = 25% battery power left

2 lights = 50% battery power left

3 lights = 75% battery power left

4 lights = 100% battery power left

IMPORTANT SAFETY INSTRUCTIONS

Warning!

The safety guidelines are designed for you to get the maximum performance from your Fresh 'n Rebel products safely. To ensure reliable operation:

Always follow all instructions and warnings closely.
- Read all instructions in the user manual carefully before operating the product
- Do not open the device; there are no serviceable parts inside and this will void your warranty.
- Do not use the product in a wet environment or conditions
- Do not operate the power adapter in or near a significant heat source, heat vent, or under direct sunlight for long durations. The product should be used between temperatures 5^ - 35^ (41^ - 95^) .
- Do not cover the product with paper or other materials. This may obstruct with the cooling capacity of the product.

Warranty & Limitations

We warranty the product against defects in material and workmanship under normal usage for a period of 2 year from the date of purchase. During that period, defective products may be offered for repair or replacement at the store where the product was bought. The warranty does not cover accidental damage, wear and tear, incidental loss, or use beyond the instructions in the user manual.

Product Specifications

• Battery Capacity: 2600mAh
  DC Input: 5V / 1.5A (max.)
  Output Power: 5W
• USB Output: 5V / 1A
• Dimensions: 31 × 95 × 24 mm
  Product Weight: 72 g
• Multiple Built-in Protection: Over Current Protection, Over Voltage Protection, Over Temperature Protection, Over Power Protection, Short Circuit Protection

POWER UP!

EC Declaration of Conformity

Sitecom Europe BV • Linatebaan 101 • 3045 AH • Rotterdam • The Netherlands

We declare under our sole responsibility that the following product:

Product number: 2PB100

Product description: Powerbank 2600mAh

Low Voltage Directive (LVD)

EN 60950-1:2006
EN 60950-1:2006/A12:2011
EN 60950-1:2006/A1:2010
EN 60950-1:2006/A11:2009
- UL 2919

Electromagnetic Fields (EMF)

EN 62311:2008

Electro-Magnetic Compatibility (EMC) Directive

ETSI EN 301489-1 V1.9.2

Radio and Telecom Terminal Equipment Directive (R&TTE)

EN300328V.1.7.1
EN300328V.1.8.1
ETSI EN 301489-17 V2.1.1
ETSI EN 301489-17 V2.2.1
ETSI EN 301489-1 V1.9.2
EN301489-9v.1.4.1

are fully in conformity with the essential requirements of the relevant EU Directives and other directives as listed below.

Sitecom Europe BV Rotterdam, 17-06-2013

M. Bergwerff,

Chief Operations Officer
