USER MANUAL Mobypack 5200 INTENSO

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

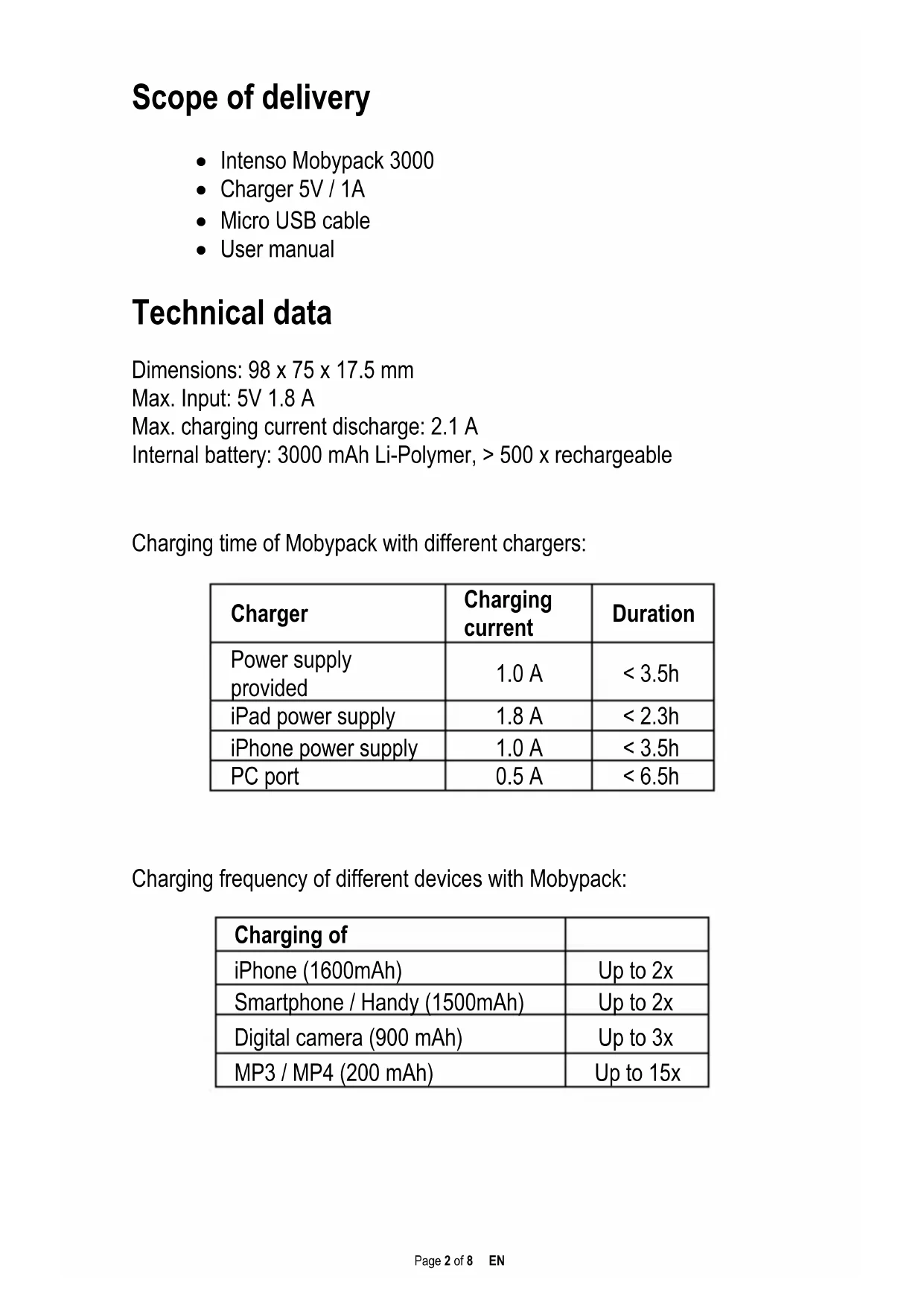

Charging time of Mobypack with different chargers:

Charger	Charging current	Duration
Power supply provided	1.0 A	< 3.5h
iPad power supply	1.8 A	< 2.3h
iPhone power supply	1.0 A	< 3.5h
PC port	0.5 A	< 6.5h

Charging frequency of different devices with Mobypack:

Charging of
iPhone (1600mAh)	Up to 2x
Smartphone / Handy (1500mAh)	Up to 2x
Digital camera (900 mAh)	Up to 3x
MP3 / MP4 (200 mAh)	Up to 15x

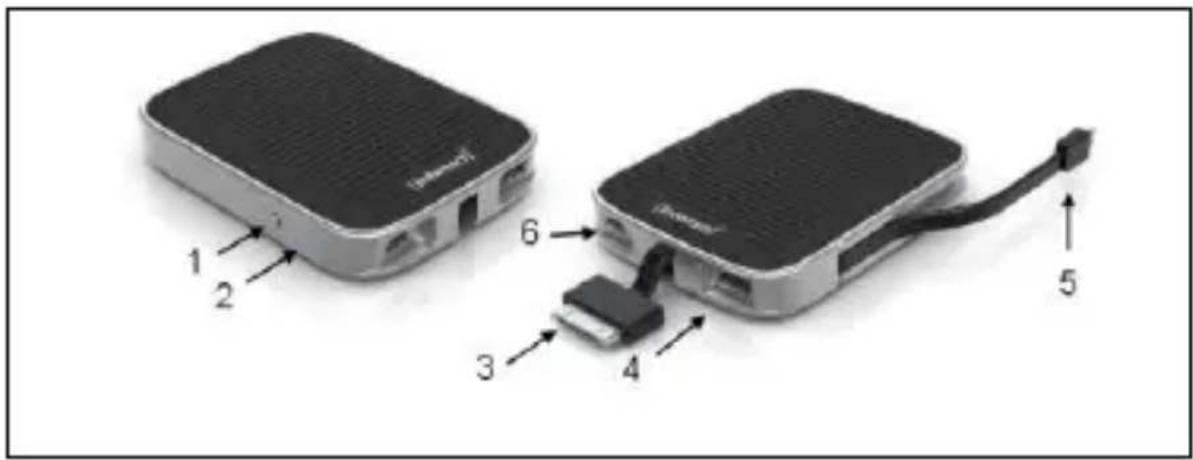

Operation

1 - On / Off Button

Output: 2 - Status LED

3 - Apple 30-pin Cable

4 - USB Port Type A

5 - Micro USB Cable

Input: 6 - Micro USB Port

Mobile devices such as iPod, iPhone, iPad as well as a variety of Smartphones and electronic devices can be charged with Intenso Mobypack using USB port.

Note:

The Mobypack switches on automatically as soon as you connect a device and switches off automatically as soon as the last device is disconnected. Hold the on-off button (1) down for at least 3 seconds to switch on or off the Mobypack manually.

The battery level will be displayed through Status LED (2) when the button is pressed briefly:

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

To charge your iPad, iPod, Smartphone or similar devices, please connect it to the corresponding port (3, 4, 5). Up to three devices can be charged at the same time.

SmartCharge

Smart Charge for rapid charging in conjunction with Apple devices:

The Intenso Mobypack charges devices based on their specifications. The total charging current is limited to 2.1A. The priorities of charging ports are as follows:

1. Apple - 30-pin Cable (3) max. 2.1 A
2. USB Port (4) max. 1 A
3. Micro USB Cable (5) max 1 A

If more than one device is connected, and the total charging current of 2.1A has been exceeded, the charging current will be distributed based on this prioritisation to avoid overloading the Intenso Mobypack.

Note:

It is possible to charge Mobypack and also charge the connected devices simultaneously from Mobypack.

Made for

iPod touch (4th generation), iPod touch (3rd generation), iPod touch (2nd generation), iPod touch (1st generation), iPod nano (6th generation), iPod nano (5th generation), iPod nano (4th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPad (3rd generation), iPad2 and iPad.

"Made for iPod", "Made for iPhone" and "Made for iPad" means that an electronic accessory has been designed for connecting to iPod, iPhone and iPad models and has been certified by the developers that it conforms to the Apple standards.

Apple is not responsible for the functionality of the device or its adherence to the safety standards and regulations.

Please note that the use of this accessory with an iPod, iPhone or iPad may impair the performance of cable-free transfer.

iPad, iPhone, iPod, iPod nano, and iPod touch are registered trademarks of Apple Inc. They are registered in USA and other countries.

Intended use

This Mobypack is meant solely for the purpose of power supply to devices with an operating voltage of 5V DC (mobile phones, MP3 player etc.). Any other use is considered as unintended use and may lead to damages and injuries. Claims of any type resulting from unintended use are ruled out.

Operating instructions

Operating conditions:

Operate the device at 0 to 40 degree Celsius at max. 90% relative humidity. If you do not use Mobypack for long periods of time, store the device at a temperature range of -10 to 45 degree Celsius at max. 90% relative humidity (for short period) and charge the device every three months to maintain the total performance of the device.

Shock, drop:

Please protect the device against shock and drops in all operating modes.

Electrostatic discharge:

This device is sensitive to electrostatic discharge. Please protect the device against any possible electrostatic discharge.

Disposal of old batteries

The devices marked with this symbol are subject to the European Directive 2002/96/EC. All the old batteries must be disposed separated from household garbage through the government agencies designated for that purpose.

By disposing the batteries in this prescribed manner, you can avoid environmental damages.

Limited warranty conditions

The warranty only covers the replacement of this Intenso product. The warranty is not applicable for normal wear & tear resulting from erroneous, improper use of the device, negligence, accident or incompatibility.

There are no warranty claims if the Intenso user manual is not followed and if the device is damaged through improper use or defects caused by other devices.

There are no warranty claims if the product is exposed to shocks, electrostatic discharges, heat or humidity effects beyond the product specifications.

Intenso is not liable for any collateral damages or consequential losses, for violation of warranty conditions or any other losses irrespective of the cause.

Important note:

Please note that any warranty claim shall expire if the housing of the Mobypack 3000 has been opened.

This product is not meant for a commercial use or for medical and special applications, where the failure of the product may cause injuries, death or significant material damages.

Intenso Warranty conditions

Dear Intenso customer,

Thank you for opting for a high-quality Intenso product. All Intenso products are subject to constant quality inspections and the legal warranty period applies, of course, from the date of purchase. Please be sure therefore to save the sales receipt as proof of purchase.

Warranty conditions

The warranty only covers material and production defects. Intenso GmbH is not liable for the loss of data in units sent to us. The free of charge warranty service covers the repair or replacement of defective parts. Please understand that we cannot render any warranty services, e.g. in case of:

• Misuse or improper handling, installation or use
• Damages, scratches or wear
• Modifications, manipulation or repairs by third parties
• Damages through force majeure or transport

Your Intenso GmbH

CLAIM PROCEDURE

In case of a claim, please proceed as follows:

1. Only returns accompanied with all accessories and sales receipt are accepted.
2. In addition, a RMA number is absolutely required for return shipments. You can request this RMA number via e-mail or through the service hotline.
3. Please package the product including all accessories and the sales receipt safe for transport. Please stamp the package.
4. Please affix the RMA number clearly visible on the outside of the package.

Please send to the following service address:

INTENSO GMBH Service Hotline: [phone]

Service Center (your RMA-No.) (0.39 € / min. from the landline in Germany.

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

Service Center (Votre referrerce RMA)

Service Hotline: [phone]

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

BbIXoI: 2-CBeToIOIObI COCTOHNIA

3-Ka6eIbApple30pin

4-USBpa3bem，TINA

5-Ka6eJb Micro-USB

Bxod: 6-Pa3bem Micro USB

При пош Intenso Mobypack можно заржатб такne мобиьные устpoиства, кak iPod, iPhone, iPad, a takke mhorne smapTфони и јелктонные устpoиства, ochaшиени USB-pa3beMOM.

PpumeyaHue:

Mobypack BKJIIOUaETcA ABTOMaTInueckn PpN NOcOeINHeHn Pnp6opa N BbIKJIIOUaETcPn OTCoEINHeHn NocJeHero Pnp6opa. YdepxNBaIte KHOKNy BKN./BbIKN. (1) HaxaToH He MeHee 3 cekyHd dIpyHoro BKJIIOUeHn/BlKJIIOUeHn Mobypack.

5 LED	81 - 100%
4 LED	61 - 80%
3 LED	41 - 60%
2 LED	21 - 40%
1 LED	0 - 20%

ДяЗардк iPad, iPod, cMapTфona nIи aHaIOnuHOro yCTpoiCTBa, NOДКЛЮчITE erO K COOTBeTcTByUошemy pa3bemy (3, 4, 5). OДнOBрemeHNO мОжно 3apЯKaTь до Трex yCTpoiCTB.

SmartCharge
