USER MANUAL TX555 PROFOON

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments.

D:ENTSORGUNG DES GERÄTS (UMWELTSHUTZ)

Declaration of networkcompatibility 12
Declaration of conformity 12
Installation 12
How to use 13
Memories 14
Voice Mail (Message waiting). 14
Maintenance. 15

connection DATA PORT TX-555

The Profoon TX-555 is designed for use on the 'public switched telephone networks (analogue single-line)' of telephone- and cable-companies inside the EU.

Each country and/or provider might require a different telephoneplug. The Profoon TX-555 complies with the essential requirements and provisions as described in the European Directive 1999/5/EC.

DECLARATION OF CONFORMITY

The declaration of conformity is available on the

website WWW.PROFOON.COM

INSTALLATION

TELEPHONECORD & HANDSETCORD:

1. Connect the supplied handsetcord between the handset and base
2. Connect the telephonecord to the backside of the telephone (TEL LINE)
3. Plug the telephone plug into your telephone outlet

WALL MOUNT:

1. Drill two holes in the wall with a distance of 8.3cm and insert two screws. Let the heads of the screws stick out a few millimeters of the wall
2. Hang the unit on the wall and fixate the telephone wire by means of cable-clips

DATA PORT:

The TX-555 is equipped with a second jack that allows you to connect a communication device, such as a computer modem, answering machine, Caller-ID, or fax-machine, to a telephone line. This jack is

connection DATA PORT TX-555

suited for 6P2C modular plugs (RJ11).

To use this feature connect a telephone line cord (not included) from the communication device to the second jack on the telephone.

Note: Because a computer modem and a fax machine transmit through the telephone line, you will not be able to use your telephone while these devices are in use in the second jack. Once you are done using the modem or fax machine, the telephone can be used.

TONE/PULSE DIALING:

The TX-555 is capable to dial telephonenumbers with TONE (DTMF dialing) or PULSE (rotary dialing). Use the TONE/PULSE switch on the backside of the telephone to set the required dial-mode.

HOW TO USE

INCOMING CALL:

Adjust the ringer volume with the HI-LO-OFF switch. Lift the handset and start the conversation.

OUTGOING CALL:

Lift the handset. Wait for the dial tone and key-in the desired telephone number. Replace the handset when the conversation is finished.

REDIAL:

In case the person you were calling was busy or you want to dial the last dialed number again, this number is stored in memory:

1. pick up the handset and wait for the dialtone
2. press the button P/REDIAL; the last dialed number will be redialed This number can be as long as 32 digits.

SPEAKERPHONE:

Press button HANDSFREE to switch on the speakerphone. The volume can be adjusted with the slider on the right side of the telephone. Press HANDSFREE again to switch-off the speakerphone.

PAUSE:

When dialing through a PABX, it is recommendable to insert a dialpause direct behind the prefix (mostly a 0). Use key P/REDIAL to insert a pause.

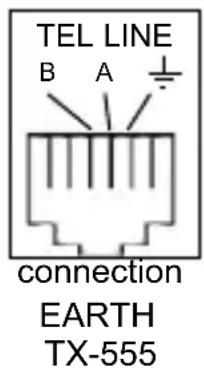

CALL TRANSFER:

Use the R-key to transfer a call in case you are connected through a

PABX.

Dependent on the used PABX, you may have to transfer a call with 'EARTH RECALL' or with 'TIMED BREAK RECALL'. Please consult the manual of the exchange.

Use the EARTH/FLASH switch on the bottomside to set the desired transfermode. The FLASH time is 100mS

TELESERVICES:

The buttons * and # are functionbuttons, needed for divers telecomservices (teleshopping, telebanking, etc) or to control divers telecom devices (PABX, answering machines, etc). Refer to the concerning manual.

RECEIVER VOLUME CONTROL:

The receiver volume control is located on the base of your phone. This enables you to adjust the receiver volume from normal to high for a more comfortable listening level.

MEMORIES

The TX-555 has an internal memory with the following specifications:
3 one-touch memories for frequently dialed numbers
10 two-touch memories for telephonenumbers
Each telephone number can be as long as 16 digits maximum

PROGRAMMING:

1. pick up the handset and put it aside
2. press the STORE button and release it
3. key in the telephone number on the keyboard (max 16 digits)

4. press STORE again

5. press one of the three memory buttons (M1, M2 or M3) or one of the keys (0-9) on the keyboard

6. repeat steps 2 to 5 for the other memory positions
7. replace the handset

DIALING FROM MEMORY:

1. pick up the handset or press the HANDSFREE button and wait for the dialtone
2. press one of the three memory buttons (M1, M2 or M3) or press button MEMO followed by one of the keys (0-9) on the keyboard
3. the programmed number will automatically be dialed

Remarks:

When your telephone is connected to a PABX system, it is advised to include a dialing-pause in the number. Refer to the chapter "PAUSE".

It's not possible to erase a memory position, just reprogram it to erase the present number.

VOICE MAIL (MESSAGE WAITING)

When you have activated your personal Voice Mail, after 5 rings the caller will be connected to your mailbox and has the possibility to leave a message.

The TX-555 has a LED lamp (☑) which starts to flash, indicating that someone might have left a message.

Please note that in case the caller does not leave a message or in case you have not activated the Voice Mail, after 5 rings this LED will flash anyway.

As soon as you lift the handset of this telephone, the LED will go OFF so it is recommendable to first dial the number of your Voice Mail to check whether someone has left a message for you.

If you have questions concerning the Voice Mail feature, please contact your telephone company.

MAINTENANCE

Do not locate the telephone in direct sunlight or in a moist environment.

Never use chemical cleansers to clean the cabinet, the cabinet may only be cleaned with a moist cloth.

Don't place the TX-555 on furniture with cellulose based coating; the rubber feet will leave stains on the cellulose.

Under certain circumstances the sound of the TX-555 might be influenced by electromagnetic fields of electronic devices like TV, computer or radio transmitters close to the telephone. Relocate the telephone to gain better results in such cases.

no website WWW.PROFOON.COM

INSTALAÇÃO

O TX-555 tem他们在线程中直接通过一个连接来实现通信。
3 times are made available to the public.
3 times are made available to the public.

Postcode / code postal:

Name / Name: Attach here your

Address / Adresse purchase ticket

You have a guarantee of 24 months after the date of purchase of this Telephone. We guarantee during this period the free repair of defects caused by material- and construction faults. This at the importers discretion. It is only possible to claim to the guarantee when you enclose your purchase ticket with the TX-555.

HOW TO ACT:

If you notice a defect, consult the manual first. If this manual gives you no definite answer, consult your dealer with a clear description of your complaint. He will collect the device together with this guarantee card and the dated purchase ticket and he will take care of a prompt repair, respectively free sending to the importer.

THE GUARANTEE EXPIRES:

When used inexpert, faulty connections, use of unoriginal parts or accessories, negligence and defects caused by fire, flood, stroke of lightning and natural disasters. With unqualified modifications or repairs by third persons. With incorrect transport without a suitable packing. If the device is not handed in with the correct filled in guarantee card and the purchase ticket.

NOT UNDER THIS GUARANTEE: cords and plugs. All further responsibilities, in particular subsequent damages, are excluded.
