USER MANUAL TX117 PROFOON

Black Profoon phone with coiled cord and keypad (no visible text or symbols on main body)

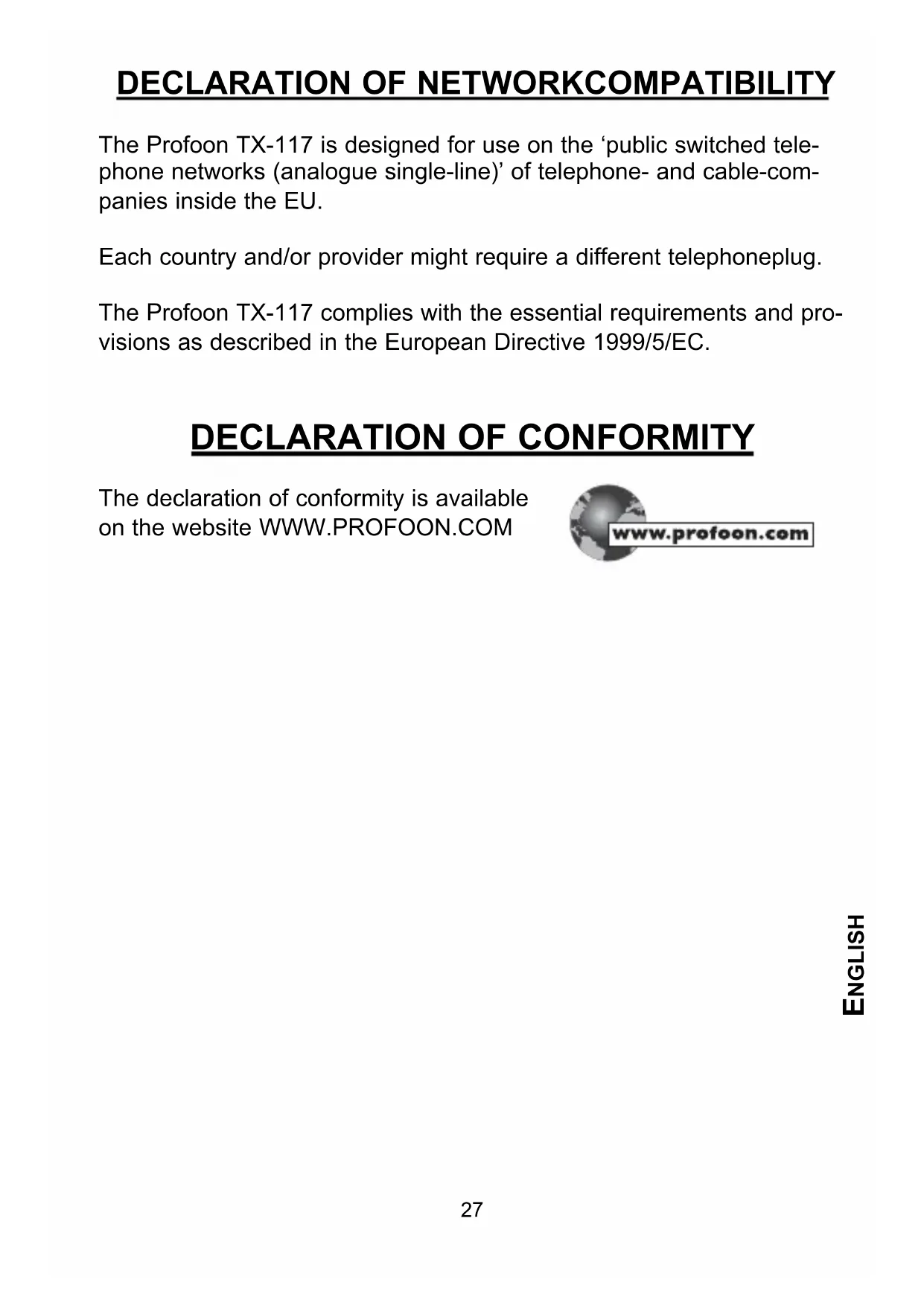

DÉCLARATION DE CONFORMITÉ

The Profoon TX-117 is designed for use on the ‘public switched telephone networks (analogue single-line)’ of telephone- and cable-companies inside the EU.

Each country and/or provider might require a different telephoneplug.

The Profoon TX-117 complies with the essential requirements and provisions as described in the European Directive 1999/5/EC.

DECLARATION OF CONFORMITY

The declaration of conformity is available on the website WWW.PROFOON.COM

www.profoon.com

INSTALLATION

TELEPHONECORD & HANDSETCORD:

1. connect the handset with the base
2. connect the telephonecord to the backside of the telephone; push the connector till you hear a click
3. plug the telephone plug into your telephone outlet

WALL MOUNT:

1. drill two holes in the wall with a distance of 10cm and insert two screws; let the heads of the screws stick out a few millimeters of the wall
2. remove the handsetholder, rotate it 180^ and replace it; this holder will hold the handset when wall mounted.
3. hang the unit on the wall and fixate the telephone wire by means of cable-clips

TONE/PULSE DIALING:

The TX-117 is capable to dial telephonenumbers with TONE (DTMF dialing) or PULSE (rotary dialing). Use the T/P switch on the bottom-side of the telephone to set the required dial-mode.

HOW TO USE

INCOMING CALL:

Lift the handset and start the conversation.

OUTGOING CALL:

Lift the handset. Wait for the dial tone and key-in the desired telephone number. Replace the handset when the conversation is over.

REDIAL:

In case the person you were calling was busy or you want to dial the last dialed number again, this number is stored in memory:

1. pick up the handset and wait for the dial tone
2. press the button REDIAL; the last dialed number will be redialed. This number can be as long as 31 digits.

CALL TRANSFER AND NETWORK SERVICES:

Use the R/FLASH-key to activate special services from your telephone-company or to transfer a call in case you are connected through a PABX. The FLASH time of this feature is 100mS.

TELESERVICES:

The buttons * and # are function buttons, needed for divers telecom-services (teleshopping, telebanking, etc) or to control divers telecom devices (PABX, answering machines, etc). Refer to the concerning manual.

RINGERSIGNAL

The TX-117 offers 3 different ringer-rhythms and each rhythm has 3 volume levels. It is also possible to switch-OFF the ringer on a temporarily base or to switch it OFF continue.

RINGER-RHYTHMS:

1. slide the REDIAL/STORE switch (bottom side telephone) into position [STORE]
2. lift the handset
3. press button PROGRAM
4. press button #
5. press one of the buttons 1/9
6. press button PROGRAM
7. replace the handset
8. slide the REDIAL/STORE switch (bottom side telephone) back into position [REDIAL]

1	2	3	rhythm	1
4	5	6	rhythm	2
7	8	9	rhythm	3
Lo	Mid	Hi

RINGER-OFF ON A TEMPORARILY BASE:

In case of option -0- (see instruction 5 here above) the ringer will be switched OFF. After lifting the handset and replacing it again, the programmed rhythm will be restored.

RINGER-VOLUME:

Next to the different ringer-volumes you can set with the Ringer-rhythms settings, you can control the volume with the ringer-switch at the bottomside of the telephone.

MEMORIES

The TX-117 has a memory capacity of 10 telephone numbers, each with a maximum of 21 digits.

PROGRAMMING:

1. slide the REDIAL/STORE switch (bottom side telephone) into position [STORE]
2. lift the handset
3. press button PROGRAM
4. press button MEMO
5. press one of the buttons 0-9
6. key in the telephonenumber through the keyboard
7. press button PROGRAM
8. replace the handset
9. slide the REDIAL/STORE switch (bottom side telephone) back into position [REDIAL]

DIALING:

1. lift the handset.
2. press button MEMO and one of the buttons 0/9 to select the required memory
3. the selected number will be dialed automatically.

MAINTENANCE

Do not locate the telephone in direct sunlight or in a moist environment.

Never use chemical cleansers to clean the cabinet, the cabinet may only be cleaned with a moist cloth.

Don't place the TX-117 on furniture with cellulose based coating; the rubber feet will leave stains on the cellulose.

Under certain circumstances the sound of the TX-117 might be influenced by electromagnetic fields of electronic devices like TV, computer or radio transmitters close to the telephone. Relocate the telephone to gain better results in such cases.

You have a guarantee of 24 MONTHS after the date of purchase of this Telephone. We guarantee during this period the free repair of defects caused by material- and construction faults. This at the importers discretion. It is only possible to claim to the guarantee when you enclose your purchase ticket with the TX-117.

HOW TO ACT:

If you notice a defect, consult the manual first. If this manual gives you no definite answer, consult your dealer with a clear description of your complaint. He will collect the device together with this guarantee card and the dated purchase ticket and he will take care of a prompt repair, respectively free sending to the importer.

THE GUARANTEE EXPIRES:

When used inexpert, faulty connections, leaking and faulty placed batteries, use of unoriginal parts or accessories, negligence and defects caused by fire, flood, stroke of lightning and natural disasters. With unqualified modifications or repairs by third persons. With incorrect transport without a suitable packing. If the device is not handed in with the correct filled in guarantee card and the purchase ticket.

NOT UNDER THIS GUARANTEE: cords and plugs.

All further responsibilities, in particular subsequent damages, are excluded.

GARANTIESCHEIN

Connector telephone line-cord Rotate for wall-mount PROGRAM and REDIAL button R/FLASH function button MEMO Memory-button Connector handsetcord

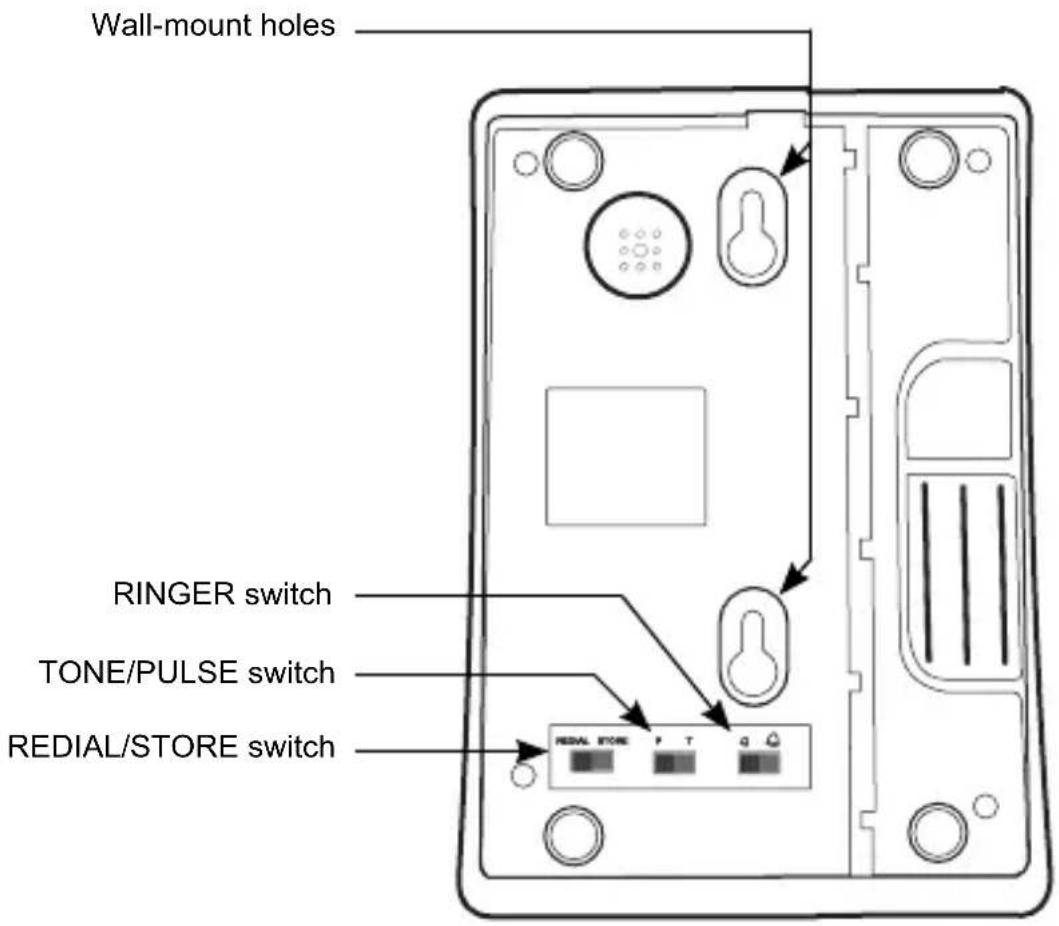

Wall-mount holes RINGER switch TONE/PULSE switch REDIAL/STORE switch
