USER MANUAL BS 968CB BOMANN

Overview of the Components.. 3

Instruction Manual 25

Technical Data.. 27

9 Guarantee.. 27

FRANÇAIS

JEZYK POLSKI

Sommaire

D-47906 Kempen/Germany

Symptoms Cause Solution

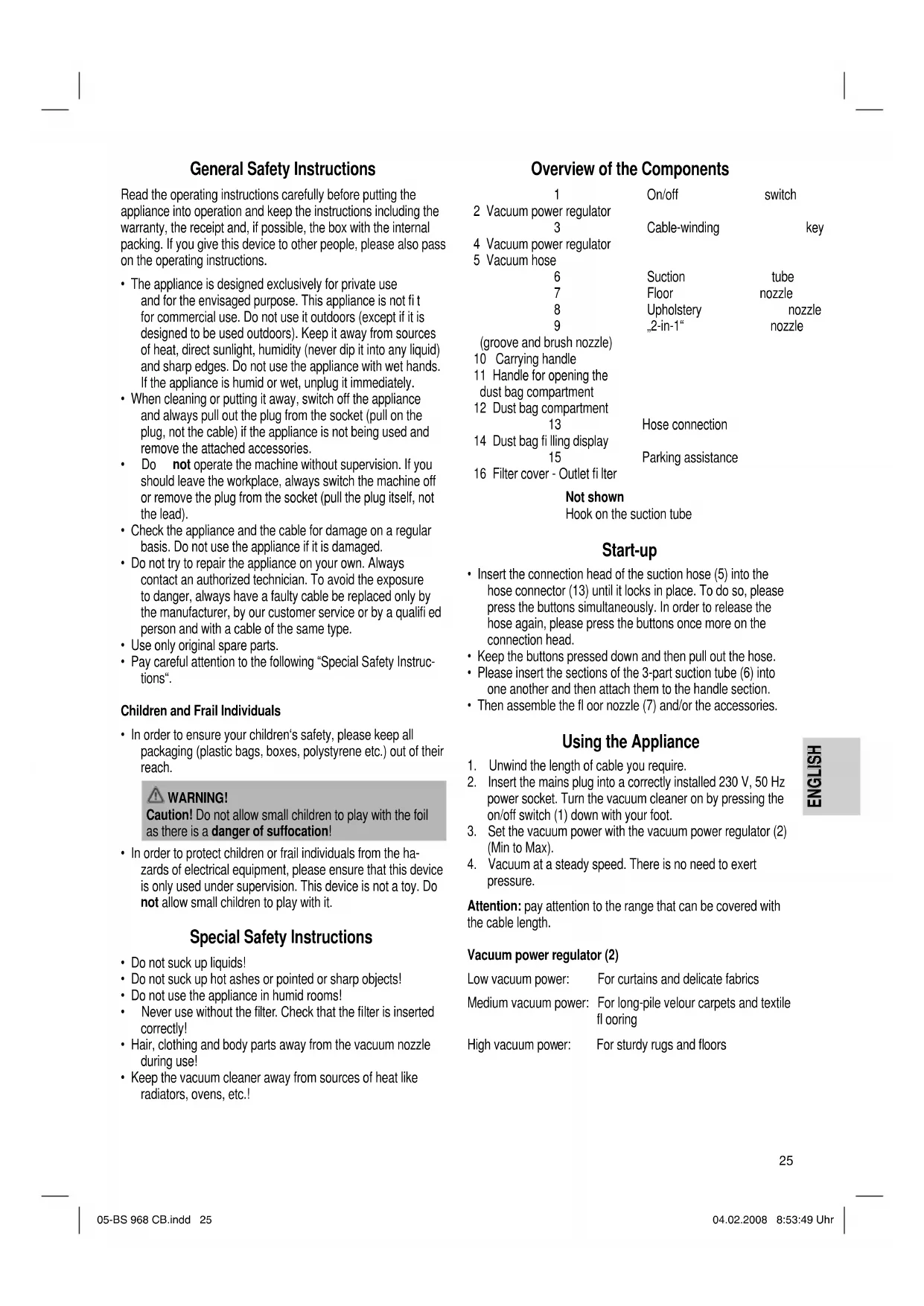

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Special Safety Instructions

• Do not suck up liquids!
• Do not suck up hot ashes or pointed or sharp objects!
• Do not use the appliance in humid rooms!
• Never use without the filter. Check that the filter is inserted correctly!
• Hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!.

Overview of the Components

1

2 Vacuum power regulator 3
4 Vacuum power regulator
5 Vacuum hose

6
7
8
C

On/off

Cable-winding

Suction
Floor
Upholstery
2-in-1

switch

key

tube

nozzle

nozzle

nozzle

(groove and brush nozzle)

10 Carrying handle
11 Handle for opening the dust bag compartment
12 Dust bag compartment 13
14 Dust bag fi lling display 15
16 Filter cover - Outlet filter

Hose connection

Parking assistance

Not shown

Hook on the suction tube

Start-up

• Insert the connection head of the suction hose (5) into the hose connector (13) until it locks in place. To do so, please press the buttons simultaneously. In order to release the hose again, please press the buttons once more on the connection head.
• Keep the buttons pressed down and then pull out the hose.
• Please insert the sections of the 3-part suction tube (6) into one another and then attach them to the handle section.
• Then assemble the floor nozzle (7) and/or the accessories.

Using the Appliance

1. Unwind the length of cable you require.
2. Insert the mains plug into a correctly installed 230V 50Hz power socket. Turn the vacuum cleaner on by pressing the on/off switch (1) down with your foot.
3. Set the vacuum power with the vacuum power regulator (2) (Min to Max).
4. Vacuum at a steady speed. There is no need to exert pressure.

Attention: pay attention to the range that can be covered with the cable length.

Vacuum power regulator (2)

Low vacuum power: For curtains and delicate fabrics

Medium vacuum power: For long-pile velour carpets and textile flooring

High vacuum power: For sturdy rugs and floors

Cable winding device

Pull out the cable up to the maximum length indicated with the yellow mark. Never pull the cable out up to the red mark as the cable winding can be damaged. Said damages are not covered by the warranty.

Winding

Press the cable (3) winding button and guide the cable. Hold the cable to avoid wrapping.

Nozzle Attachment

Crevice and jointed nozzle:	For vacuuming upholstery,curtains and in corners and crevices etc. "2-in-1" nozzle: When they are joined together you can use them as a brush nozzle. If you would like to use the crevice nozzle,pull the brush section off
Upholstery nozzle: For cleaning upholstery,curtains etc.
Floor nozzle:	To clean carpets or smooth surfaces
Releasing the nozzles:	Pull these off while turning slightly

Air Slide (4)

Open the air slide on the hose handle in order to regulate the airflow or to clear any particles sticking to the nozzle.

Dust bag replacement display (14)

Hold the hose up into air. If the display is red the bag is full. Please replace it.

Changing the dust bag

• Pull the plug out of the socket.
• Open the lid of the dust bag compartment by the handle (11) (the cover must click into place).
• Remove the bag by carefully pulling the clamp towards the front so that the bag becomes more accessible. Then remove the dust bag by pulling it upwards.
• Insert a new bag. Please ensure that the bag is located correctly in the guide mechanism. Then reinsert the retainer. Close the cover so that it snaps into place.

Filter

Your appliance has two fi filters.

Motor protection fi iter (inlet fi iter)

The inlet filter is located in the dust bag compartment. The filter is located vertically in the rear section of the dust housing.

• Remove the grille by pulling it upwards and then take out the motor protection filter.

• Clean the engine protection fi tter after 10 dust bag changes. If necessary, the fi tter can also be washed in warm water without any additives.

• Place it back into place only once it is completely dry!

• Please push the grille back down into the guide mechanism so that it is correctly positioned.

Outlet filter

The appliance is also equipped with an outlet fi liter. This fi liter is to be found under the fi liter cover (16).

• Press the lever above the ventilation grille downwards in order to open it.
• Then pull the grille out towards the front.
• Remove the filter and clean as described above.
• Please re-insert the filter correctly and close the ventilation grille (until it clicks in place).

Cleaning and storage

Cleaning

• Pull the plug out of the socket before cleaning!
• Clean the casing with a dry cloth.

Storage

• Let the iron cool down completely.
• Wind the cable completely.
• If you position the device horizontally: Please suspend the hook of the floor nozzle in the parking assistant (15) on the back of the device.

Troubleshooting

Symptoms Course Solution
The Device Does Not Work		Check the connec-tion to the mains
		Check the position of the switch
The device does not suck up anything	The suction power is set too low	Check the position of the control switch
	The dust bag is full	Renew the dust bag
	The fi Iters are dirty	Clean the compo-nents
	There is a foreign body in the suction tube or the nozzle	Check the acces-sories for foreign bodies

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 82.0dB(A) no limit

Technical Data

Model: BS 968 CB

Power supply: 220-240 V, 50/60 Hz

Power consumption:

Pnom: 1000W
P max: 1500W

Protection class: II

Net weight: 3,4 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Regulator sily ssania (2)

Niski stopien ssania: Do fi ranek, materialow delikatnych.

He noIb3yIteB nbIeCocm dny ydaeneHn BnaKHO nnn nn nnndkOCTe!

He bIineocOeTe TOpRyUo 30Jy, octpble nn peKyuune npedMeTb!
He noJIb3yIteCb 3JIeKTPoPnPbOpOM BO BnaJHHbIX NOMUeHINx!
HnB KOem Cnyae He pa6oTaIe 6e3 FInbTpa. Iocne KaKdoi CmEHbl FInbTpO 683aTeJIbHO npOBepbTe erOpabNbHyNo nocdky!
BoBpMa paObI depKHe TbeNecCHyTOpy6Ha pacCToHHN OT BONOC, OeKDb N aCteTena!
-ДерхнTe nbIeNOC Ha pacCTOHaHm OT NcTOHnKOB TeIIa TaKnx KaK: paDInaTOpbl, Neu n T.D.

O63op detae np6opa

1

BbIIOHoyateInb

BKL/BbIKI

2

Perynatop

MOUHOCHTI

3 KhoNkma MexaHn3Ma CmTaB

4

CETEBORO

Perynatop

MOUHOCHTN

5Пьлесснышланr

6 OTeK dIa MeIka-tnlenc6OpHnKa

7

Tbilecocha

tpy6a

8 Conno dIa UcSTKu TkaHei

PerynTrop MOUHOCTHN (2)

CnaabMa MoHocb:Дla 3aHaBceN,TOHKoMATEpnn

CpeHRA MOUHOCTb: IJI BEnIPOBbIX IN TeKCTINbHBIX NOIOB C DInHHbIM BOPCOM

MexaHn3m cMaTbIbAHnCeTeBOrO shHypa

IoxaIyIcTa He BbITnBaIte CTeBOI UHyp DaIeE JeIToI MetKIn. HN B KOem Clyuae He BbITrBnBaIte ERO Do KpaCHOn MetKIn, 3TO MOKe TpNBecT N NOlOMKe MExaHn3Ma CMatbIbAHII. IIOObHle NOLoMKn He NonaJaIOT nOraPaHTnIO.

CmTaBHaHne

HaKMnTe Ha KhoNkY (3) MexaHn3Ma CmTaBbAHn H nOMaIeHbKy NOdaBaTne Ka6eNb. DepeKnte Ka6eNb KpeNko B pykax, YTO6bl IpeoTbPaTb erO xNecTaHne.

Hacaia-coTIO

3JIeKTPoNtTaHHe: 220-240B,50/60Tc

TIpTe6JIeMaM MOUHOCtB:

P 1000baTT
P max: 1500BaT

Klacc 3aunTbI: II

Bec HeTIO: 3,4 K

3To n3deneHne npoJIO BCE Heo6xOINMbIe n AKTyAInbHBe npOBepKn, npEINnCaHbIe DnpeKTHBOI CE, K npM. Ha 3JIeKTPOMaHTNHTHYIO COBMeCTNMOCTb N COOTBETCTBNE Tpe6oBaHm K Hn3KOBoTbTHOH TexHKe, OHO bIo TAKKe COKHOPTpynpoBaHO IN NOCTpoEO H yyeTOM NOcNeHNX Tpe6oBaHm NO TEXHKe 6e3OnaNCHOTN.

MblOCTaBnAeM 3a C06oI npBaO Ha TeXHueCKeN I3MeHeHnI

TapaHTHnHOe 683aTeIbCTBO

TapaHnHbI cPOk HaTeppITOpH NPOccNcKo FedepaunnyCTaHaBnBaetcNONHOOMOHyIMN PpeCTaBHTeAMM.

Kaccobby uek yBnreTcra paretnHbIM TaHOH. Be3 Hero HeBO3MOKeH 6ecnIaTHbpeMOHT HIN 3aMeHa N3dEInr.

B clyae Bo3HNKHOBJHn npTeH3n no rapaHTn, npeIbRbTE 13JeJIe B NOHIOKOMNKeTauHH, C opHnHaJIbHOJ yNAKOBOH N KACCobBIM YekOM TOPROB IO TQHe, PpOdaBWeJ 3TO H3dJIe.

DepeKtby 3HaawBaembIX npHnAaJeKHOCTe HIN TpyuNXcR detalei, a TaKHe YnCTKa, Texo6CnyKnBAHne HIN 3aMeHa TpyuNXcR detalei He NOnaJaiOT NOI rapaHTNIO, IN NO3TOMy PPOBOrTcra 3a OTdEhHyO ONnATy!

IapaHTnTepETcR npB BCKpbITn H3JeJIIN NOCTOPOHHIMN IINaMn.

IocJe rapaHTMn

Iocne OKoHuaHnCpoka rapaHTnn,peMOHTn3deHn Ipon3BOIDTCa 3a OIIaTy,C0OTBETCTByIOUmmM MactepckmN INIpyHKtAMN CepBnCHOrO O6cnyKbAHn.

BOMANN

C. Bomann GmbH

Heinrich-Horten-Str. 17 - 47906 Kempen

Tel.: [phone]·Fax: [phone]

e-mail: [e-mail] · Internet: www.bomann.de
