USER MANUAL WA 525 CB BOMANN

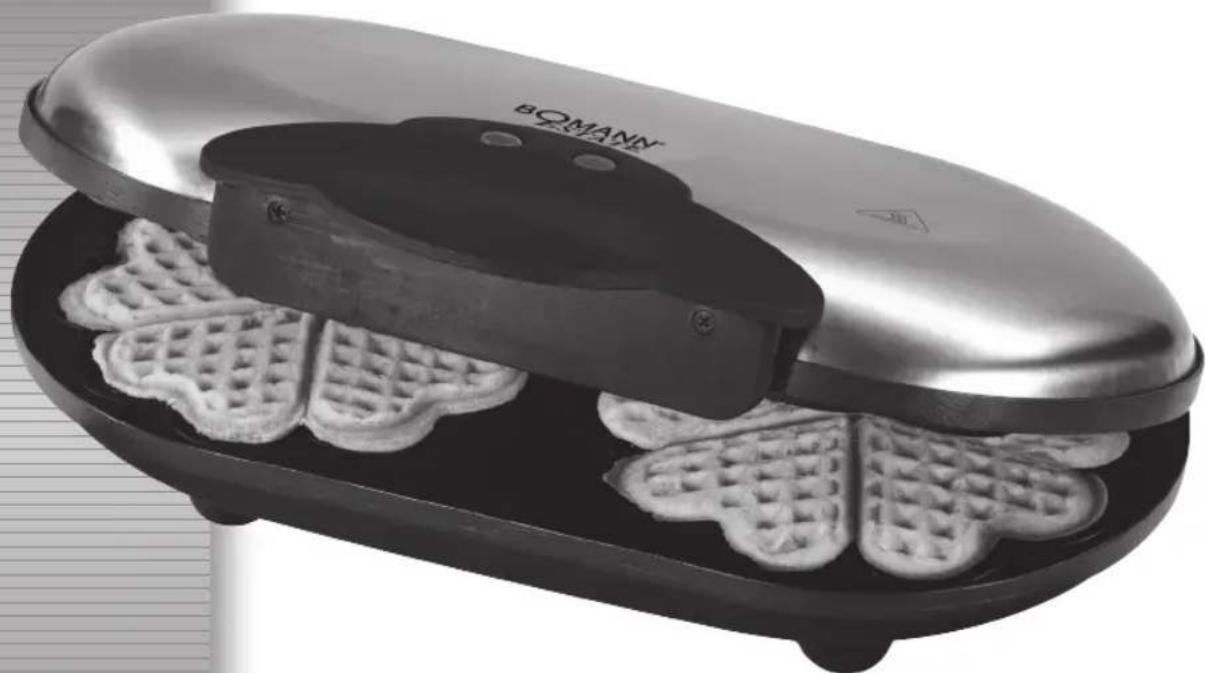

WAFFELAUTOMAT WA 525 CB

Wafelautoaat · Gaufrier electrique · Aparato para hacer waffels · Maquina automática de wafers Macchina automatica per cialde · Vaffeljern · Wafer making machine · Automat do wafi Automat na vyrobu wafi · Ostyasutó automata · ABtomatueeckn BaefenbHnua

Overview of the Components.. Page 3

Instruction Manual 24

Technical Data.. 25

8 Guarantee.. Page 25

FRANÇAIS

JEZYK POLSKI

Sommaire

Consommation: 1400 W

Classe de protection: I

Poids net: 1,9 kg

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Overview of the Components

1 Lid
2 Heat-insulated handle
3 Green power-on light
4 Red control lamp

Special safety notes

• Place the device on a non-slip, heat resistant and easy-to-clean surface!
• In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around.

• Do not move the device when it is working.

• Beware of any steam coming out of the sides of the device during the baking process and when opening the baking surfaces. Danger of burns!

• For this reason you should never use the device near or below curtains and other combustible materials!
• Please ensure that the mains lead does not come into contact with the hot sections of the device.
• Do not touch the hot parts of the device. If necessary, you should use an oven cloth and hold the device only by the handle or the recessed grip.
• Allow the device to cool down before cleaning it and putting it away.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION: This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Starting-up the unit

Please read these operating instructions carefully and keep them in a safe place. If you sell or give this article to other people please also pass on these instructions.

Non-stick coating

Lightly grease the baking surfaces before the unit is used for the first time.
- Use the appliance for about 10 minutes with the toasting surfaces closed (see ,Using the unit".
- Remove the mains plug from the socket and allow the device to cool down. Then wipe it down with a damp cloth.
- Do not eat the first waffle.

NOTE: Any smoke or smells produced during this procedure are normal. Please ensure suffi cient ventilation.

Using the unit

1. Please unwind the lead completely.
2. Insert the plug in a duly installed 230V / 50Hz protective contact socket. The green control lamp lights up.
3. Keep the baking surfaces closed while heating. Once the heating-up phase has ended both control lamps are on.
4. Open the lid and pour the dough in the middle of the baking surface. To obtain even waffles, spread the dough. Please put in only enough dough so that the lower baking surface is covered. The dough should be filled in quickly as otherwise the wafers will not brown evenly.

INC

• Do not put in too much mixture or mixture that is too liquid as otherwise excessive steam and possibly also mixture may be expelled in the area of the baking surfaces.
  Only fill in the mixture (or additional mixture) when the red control lamp is on. This will provide better baking results.

• The degree of browning on the underside of the waffle will always be greater than on the top. This is because the mixture is first baked from the bottom and the top is only baked after the mixture has risen.

• Close the lid gently and keep it pressed together for a short time. Be careful of the emitted steam, danger of burns.

• When the red control lamp goes off the baking process is finished (It can vary depending on the thickness and consistency of the waffle). The baking time depends on your individual taste. Normal browning is achieved however when the control lamp goes off again. The green lamp remains on and shows that the device is switched on.
• Open the lid and remove the waffle es with a wooden fork or a similar tool. Do not use sharp objects to avoid ruining the coating of the baking surface. Serve the waffle es on a tray or in a disk and coat with some powdered sugar.
• Lightly grease the baking surfaces again as required after each baking process.
• The baking surfaces must always be kept closed during pauses in the baking.

Switching Off

If you would like to interrupt operation or switch the device off, remove the plug from the socket. The control lamps go off.

Recipe for waffles

5 egg yolks, 5 dessertspoons of hot water, 100 g sugar and 1 grated lemon peel should be mixed together until frothy and then a mixture of 1/2 teaspoon baking powder and 150 g fl our should be stirred in. Beat the 5 egg whites stiff and fold them into the batter.

You can find further recipes in our recipe books or else you can use a ready-made baking mix.

Cleaning

• Pull out the mains plug and allow the unit to cool down.
• Brush off the crumbs or residues from the baking surfaces and the edges.
• Clean the machine only with a slightly damp cloth.
• Do not use abrasive detergents.
• The machine must never be immersed in water!

Troubleshooting

Malfunction	Possible Causes	Remedy
The device does not work.	The device has no power supply.	Check the socket with another device and insert the mains plug properly.
The green mains control lamp does not light up.	The power supply has been interrupted.	Insert the plug into the socket.
		The device is broken.
The waffles are varying degrees of brown.	The lid is not correctly attached as too little batter has been poured in.	Fill in and distribute the correct amount of batter.
The batter has overfl ow.	You have poured into much batter.	Fill in and distribute the correct amount of batter.

Technical Data

Model: .WA 525 CB

Power supply: 230 V, 50 Hz

Power consumption: 1400 W

Protection class: I

Net weight: 1.9 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
