CB 615 - Kettle BOMANN - Free user manual and instructions

Product type	12 V car kettle
Brand	Bomann
Model	CB 615
Power supply	12 V DC, 15 A (cigarette lighter socket)
Power	180 W
Capacity	0.5 L (estimated)
Dimensions (approx.)	20 x 15 x 20 cm
Weight (approx.)	0.8 kg
Material	Plastic and metal (stainless steel for heating element)
Color	Black and white (not specified)
Main functions	Water boiling, interior lighting, on/off switch
Safety	Automatic power reduction at boiling, lockable lid, manual shut-off
Maintenance and cleaning	Exterior: damp cloth without detergent; tank: soft sponge and mild detergent, rinse with clear water
Descaling	With citric acid-based descaling product, do not use vinegar
Warranty	24 months
Included accessories	Base with 12 V cable, optional wall mount
Use in car	Only with engine running to protect battery

Frequently Asked Questions - CB 615 BOMANN

How to use the Bomann CB 615 kettle for the first time?

Before first use, boil twice fresh water without additives, then discard the water.

Can I use the kettle in my car without the engine running?

No, it is essential to use the appliance with the engine running to avoid draining the car battery.

What type of electrical supply is needed?

The kettle works on a 12 V DC (direct current) socket with a 15 A fuse, e.g., a cigarette lighter.

How to clean the exterior and interior of the kettle?

For the exterior, use a slightly damp cloth without detergent. For the tank, wash it with a soft sponge and a few drops of detergent, then rinse with clean water and wipe dry.

How to descale the kettle?

Use a citric acid-based descaling product available commercially. Never use vinegar. Follow the quantities indicated on the product.

What to do if the kettle does not heat up?

Check that the 12 V plug is properly inserted, the switch is on I (On), the kettle is correctly placed on its base, and inspect the glass fuse in the plug.

Does the kettle turn off automatically when water boils?

No, it does not turn off automatically. However, the heating element temperature is automatically reduced at boiling. You must manually turn it off with the switch.

What is the maximum water capacity?

The water level should be between the MIN and MAX marks. Do not exceed the MAX line to avoid splashing boiling water.

Can I mount the kettle in my car?

Yes, the appliance can be securely mounted using the optional wall mount provided. Make sure it is securely attached and does not obstruct airbags or seatbelts.

What does the 24-month warranty cover?

The warranty covers material or manufacturing defects for 24 months from the date of purchase. Wear parts (e.g., carbon brushes) and damage to glass/plastic parts are not covered. Keep your receipt.

USER MANUAL CB 615 BOMANN

Black BOMANN coffee maker with glass lid and connected power cord (no visible text or symbols)

CB 615

CE

D

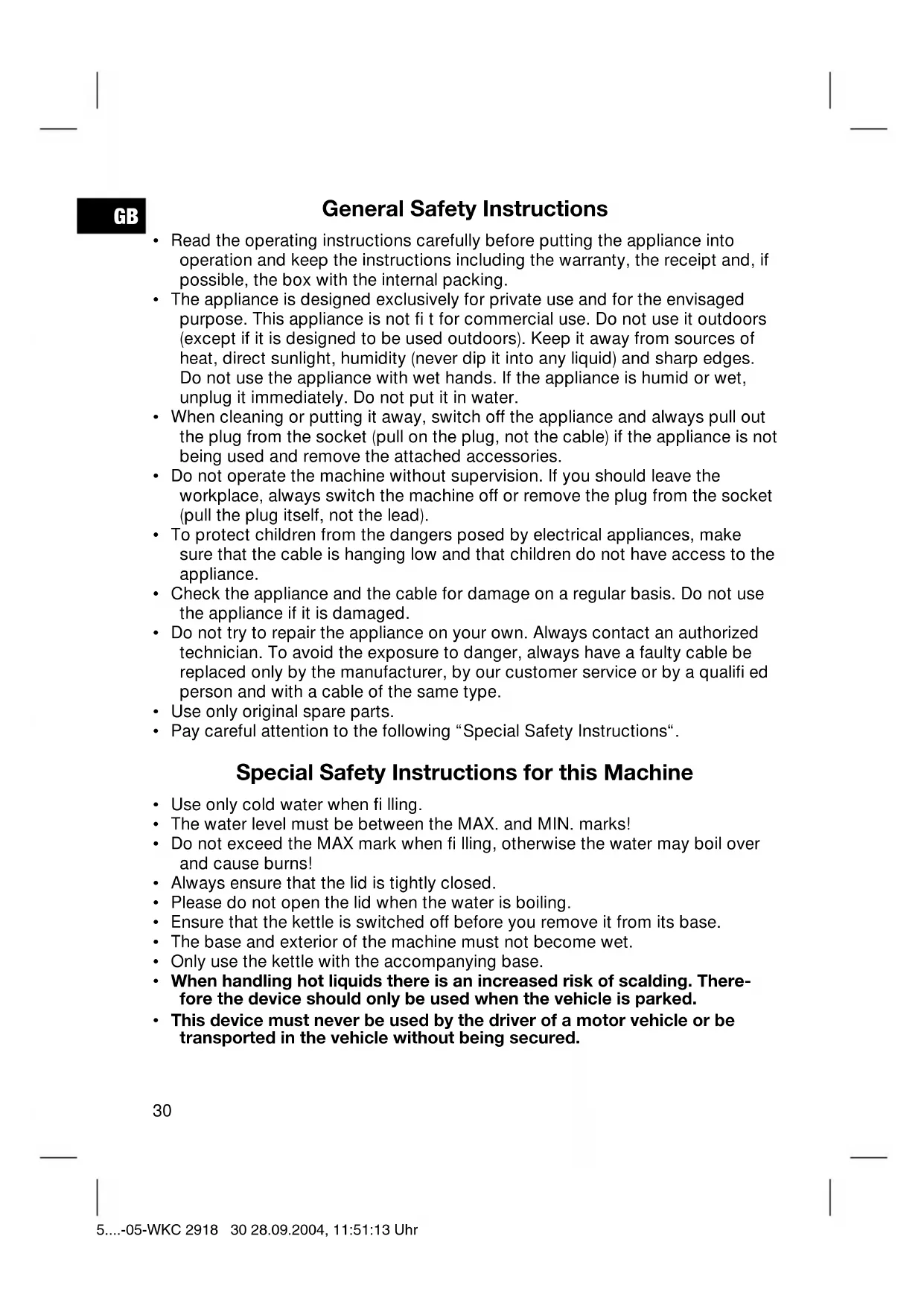

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• Use only cold water when fi lling.
• The water level must be between the MAX. and MIN. marks!
• Do not exceed the MAX mark when fi lling, otherwise the water may boil over and cause burns!
  • Always ensure that the lid is tightly closed.
• Please do not open the lid when the water is boiling.
• Ensure that the kettle is switched off before you remove it from its base.
• The base and exterior of the machine must not become wet.
• Only use the kettle with the accompanying base.
• When handling hot liquids there is an increased risk of scalding. Therefore the device should only be used when the vehicle is parked.
• This device must never be used by the driver of a motor vehicle or be transported in the vehicle without being secured.

- When the device is mounted in your vehicle please ensure that it is secured and firmly fixed in place. It must not be allowed to obstruct safety devices such as airbags or seat belts.

Important Remark

We would like to point out expressly that the relatively long boiling time of this product (CB 615) is due to its type of construction. As the power of your car battery is limited (12 volts) this is unavoidable and does not mean that the product is not working correctly.

First Use of the Machine

Please read these operating instructions carefully and keep them in a safe place. Before using for the first time, boil fresh water at least twice in the appliance. Use only water without any additives or ingredients.

Operation

1. Place the machine on a fl at surface. Note: The device can also be secured firmly in place with the help of the wall holder. Please ensure safe and correct installation.
2. Open the kettle by pulling the lid upwards. Then fi ll in the water. Please only fi ll up to the maximum (MAX) mark. You can read off the water level in the water level display.
3. Close the lid until you hear it lock in place.
4. Place the kettle flush on the base.
5. Electrical connection

- Check whether the electrical voltage that you intend to use is the same as that of the machine. Details are to be found on the label on the base.

- Connect the power cable to a 12V/15A direct current (DC) socket such as the cigarette lighter. The control lamp in the plug lights up.

1. Turn on the device with the switch (O/I). The internal light in the kettle and the control lamp in the on/off switch light up.

Important note on operating the kettle:

The kettle does not switch itself off after the water has boiled. However, thanks to the internal light you can observe the boiling process at all times. Once the boiling temperature has been reached the heating element automatically reduces the power consumption.

The device must only be used in the car with the engine running in order to save the battery.

GB

After Use

If you would like to stop using the kettle, first turn the on/off switch to O (off) and then remove the plug from the socket.

Cleaning

• Always remove the plug from the mains supply before cleaning the machine!
- The exterior of the machine should be cleaned, if necessary, with a slightly damp cloth without additives.
- The water container can be washed off with a soft sponge and a little washing up liquid. Then rinse out with clear water and dry with a soft cloth.
- The machine must never be immersed in water!

Decalcifi cation

• The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.
• If the machine switches off before the water boils, it probably needs to be decalcified. Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

Troubleshooting

The device does not work

• Check that the 12V DC plug is firmly in place.
• Check the position of the switch.
• Check that the kettle is firmly in position on its base.
• Check the fuse in the 12V DC plug.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
