WKS 3002 CB - Kettle BOMANN - Free user manual and instructions

Product Type	Electric Kettle
Brand	Bomann
Model	WKS 3002 CB
Capacity	1.5 liters (max)
Power	1850 - 2200 W
Voltage	220-240 V ~ 50 Hz
Net Weight	Approx. 0.8 kg
Protection Class	I
Material	Stainless steel and plastic
Water Level Indicator	Yes, with MIN and MAX marks
Automatic Shut-off	Yes, at boiling
Operating Light	Yes
Base with Cord Storage	Yes
Lid Opening	By button on handle
Safety Function	Overheat protection and automatic shut-off
Maintenance	Clean with a damp cloth; descale with citric acid
Package Contents	Kettle, base, instruction manual

Frequently Asked Questions - WKS 3002 CB BOMANN

How to use the kettle for the first time?

Before first use, boil fresh water 3 times and discard it. Use only clear water without additives. This removes production residues.

Why does the kettle turn off before the water boils?

This indicates a need for descaling. Use a descaling agent based on citric acid according to the instructions, then rinse several times with clear water.

How to clean and descale the kettle?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. For descaling, use a commercial descaling agent based on citric acid. Never immerse the appliance or base in water.

What to do if the kettle does not turn on?

First check the power outlet with another appliance. Ensure the plug is fully inserted and the household fuse has not blown. If the problem persists, contact the after-sales service.

Can the lid be opened during boiling?

No, risk of burns. Never open the lid when the water is boiling. Wait for the appliance to cool down.

What is the maximum capacity of the kettle?

The maximum capacity is 1.5 liters. The water level should be between the MIN and MAX marks.

How to store the kettle?

Clean and dry it completely. Wind the power cord on the bottom part. Store in a dry, well-ventilated place, out of reach of children.

Is the appliance suitable for all types of outlets?

It must be plugged into a power outlet with properly installed protective contact. Check that the mains voltage matches that indicated on the rating plate.

Why does the indicator light not come on?

If the appliance is on and the light remains off, this may indicate a power supply issue or an appliance defect. Check the outlet and fuse, otherwise contact customer service.

How to wind the power cord?

The cord can be wound on the bottom part of the base. Unwind it completely before use to avoid overheating.

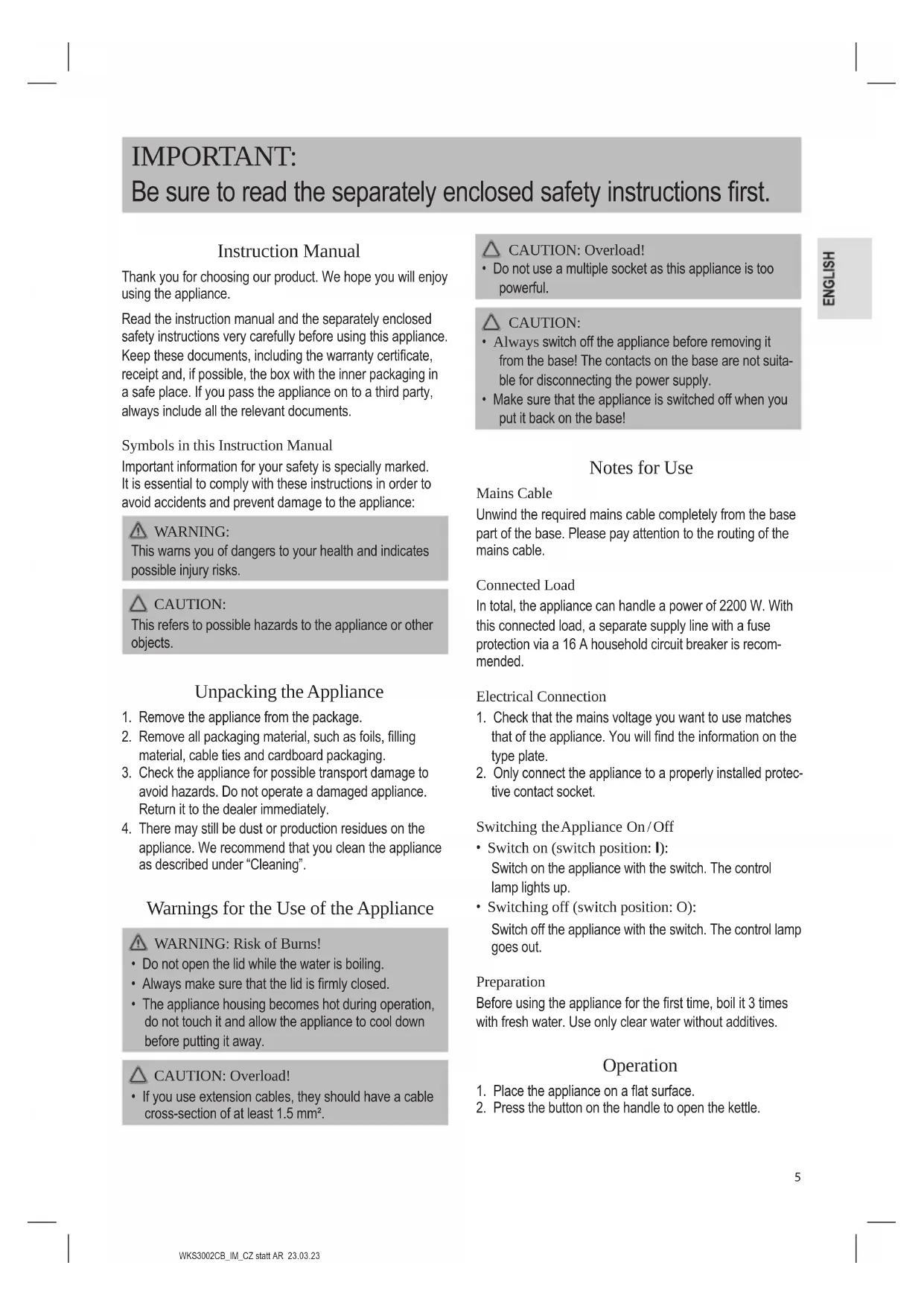

USER MANUAL WKS 3002 CB BOMANN

Exterior view of a modern stainless steel water heater with black handle and blue water droplet (BOMANN) branding (no other text or symbols)

Bedienungsanleitung

CE

Be sure to read the separately enclosed safety instructions first.

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Unpacking the Appliance

1. Remove the appliance from the package.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the appliance for possible transport damage to avoid hazards. Do not operate a damaged appliance. Return it to the dealer immediately.
4. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Warnings for the Use of the Appliance

WARNING: Risk of Burns!

• Do not open the lid while the water is boiling.
  • Always make sure that the lid is firmly closed.
• The appliance housing becomes hot during operation, do not touch it and allow the appliance to cool down before putting it away.

CAUTION: Overload!

- If you use extension cables, they should have a cable cross-section of at least 1.5 ~mm^2 .

CAUTION: Overload!

- Do not use a multiple socket as this appliance is too powerful.

CAUTION:

• Always switch off the appliance before removing it from the base! The contacts on the base are not suitable for disconnecting the power supply.
• Make sure that the appliance is switched off when you put it back on the base!

Notes for Use

Mains Cable

Unwind the required mains cable completely from the base part of the base. Please pay attention to the routing of the mains cable.

Connected Load

In total, the appliance can handle a power of 2200 W. With this connected load, a separate supply line with a fuse protection via a 16 A household circuit breaker is recommended.

Electrical Connection

1. Check that the mains voltage you want to use matches that of the appliance. You will find the information on the type plate.
2. Only connect the appliance to a properly installed protective contact socket.

Switching the Appliance On/Off

• Switch on (switch position: I): Switch on the appliance with the switch. The control lamp lights up.
• Switching off (switch position: O):
• Switch off the appliance with the switch. The control lamp goes out.

Preparation

Before using the appliance for the first time, boil it 3 times with fresh water. Use only clear water without additives.

Operation

1. Place the appliance on a flat surface.

2. Press the button on the handle to open the kettle.

3. Fill in clear water through the filler opening (maximum 1.5 litres). You can read the fill level on the appliance's water level indicator.

4. Always use fresh, cold water.

5. The water level must be between the MIN and MAX marks.

6. Close the lid. Always make sure that the lid is firmly closed.

7. Place the kettle flush on the base.

8. Switch on the appliance with the switch. The control lamp lights up.

Interrupting/Ending Operation

There are two ways to interrupt or end the cooking process:

1. The appliance switches off automatically after the cooking process. The control lamp goes out.

2. To end or interrupt the cooking cycle prematurely, set the switch to the O position.

3. Always switch off the appliance before removing it from the base! The contacts on the base are not suitable for disconnecting the power supply.

4. Make sure that the appliance is switched off when you put it back on the base!

- Unplug the mains plug from the socket.

• Empty the water container.

• Only hold the appliance by the handle.
• Keep the lid closed when pouring out.
• Open the lid only with the button on the handle.

- The appliance becomes hot during operation, do not touch it and allow the appliance to cool down before putting it away.

Cleaning

WARNING:

• Always switch off the appliance and disconnect the mains plug from the socket before cleaning. Wait until the appliance has cooled down.
• Do not immerse the appliance or the base in water or other liquids. It could cause an electric shock or fire.

CAUTION:

• Do not use a wire brush or other abrasive objects.

• Do not use sharp or abrasive cleaning agents.

• Clean the perforated area in the spout with a nylon brush from the inside.

• Rinse the water reservoir with clean water. Dry it with a cloth.
• Clean the housing with a slightly damp cloth after use.

Descaling

• The intervals for descaling depend on the hardness of the water and the frequency of use.
• If the appliance switches off before the water boils, descaling is necessary.
• Do not use vinegar, but a commercially available descaling agent based on citric acid. Dose according to the instructions.

• After descaling, boil fresh water several times (approx. 3 to 4 times) to remove residues. Do not use this water for consumption.

• Clean the appliance as described and allow it to dry completely.

• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.
  • Always store the appliance out of the reach of children in a well-ventilated and dry place.

Storage

Winding Device for Mains Cable

You can wind up the mains cable at the bottom part.

Troubleshooting

Problem Possible Cause	Remedy
The appliance does not switch on.	The appliance has no power supply. Check the power socket with another appliance.
	The appliance is defective. Contact our service department or a specialist.
	After operating without water or with too little water, the appliance has not yet cooled down sufficiently.	Let the appliance cool down for 15 minutes.
The appliance switches off before cooking.	The inside of the kettle is heavily calcified or the power socket circuit is overloaded.	Descale according to instructions.
		Check the mains connection.
The appliance does not switch off.	The lid is not closed. Close the lid until it clicks into place.

Technical Data

Model: WKS 3002 CB

Power supply: 220–240 V\~, 50 Hz

Power consumption: 1850–2200 W

Protection class: I

Filling capacity: max. 1.5 litres

Net weight: .... approx. 0.8 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
