WKR 1162 CB - Kettle BOMANN - Free user manual and instructions

Product Type	Electric Kettle
Brand	Bomann
Model	WKR 1162 CB
Capacity	0.1 to 0.5 liters
Power	1000 W
Supply Voltage	120 / 230 V~, 50/60 Hz
Voltage Selector	Yes (120 V / 230 V)
Net Weight	Approx. 1.25 kg
Dimensions (approx.)	Height 22 cm, Width 18 cm, Depth 16 cm
Body Material	Heat-resistant plastic
Heating Element Material	Stainless steel
Main Functions	Heats and boils water, automatic shut-off after boiling, overheating protection
Automatic Shut-off	Yes
Dry Boil Protection	Yes (automatic shut-off if water is missing)
Power Indicator Light	Yes
Ergonomic Handle	Yes, with insulated grip
Lid	With handle, secure closure
Rotating Base	No (fixed cord)
Included Accessories	2 cups, 1 small spoon, 1 carry bag
Care and Cleaning	Do not immerse, clean with a damp cloth, regular descaling with citric acid
Safety	Protection class I, automatic shut-off, hot surface indication
Recommended Use	Water only, no other liquids
Warranty	Refer to the warranty certificate provided

Frequently Asked Questions - WKR 1162 CB BOMANN

What is the maximum capacity of the Bomann WKR 1162 CB kettle?

The maximum capacity is 0.5 liters, with a minimum of 0.1 liters. Do not exceed the MAX mark to avoid burns.

How do I descale the kettle?

Use a commercial descaling product based on citric acid. Follow the recommended doses, then boil fresh water 3 to 4 times to rinse. Do not consume this water.

Why does the kettle shut off before the water boils?

This may be due to needed descaling or an overload of the electrical circuit. Perform descaling and check the outlet.

The kettle does not turn on, what should I do?

First check the power supply: try a different outlet, check the circuit breaker. If nothing works, contact customer service.

Can I heat milk or other liquids?

No, this appliance is designed only for water. Never heat other liquids or foods.

How do I clean the exterior of the kettle?

Use a slightly damp cloth without abrasive detergent. Never immerse the appliance in water.

Which voltage to select on the selector?

In Europe, select 230 V AC. Elsewhere, set according to local voltage (120 V or 230 V) to avoid damaging the appliance.

The kettle continues to heat after boiling, is this normal?

No, the automatic shut-off should cut the heating. If not, check that the lid is properly closed (handle inserted). Otherwise, contact customer service.

Can I use the kettle without water?

No, this would damage the appliance. The dry boil protection will shut it off, but allow it to cool for 10 minutes before refilling.

What to do if the water takes a long time to boil?

Check the voltage selector: it must match your network. If the voltage is correct, descaling may be necessary.

USER MANUAL WKR 1162 CB BOMANN

Exterior view of a BOMANN ESTATE brand water heater with black handle and white body (no text or symbols on the device itself)

CE

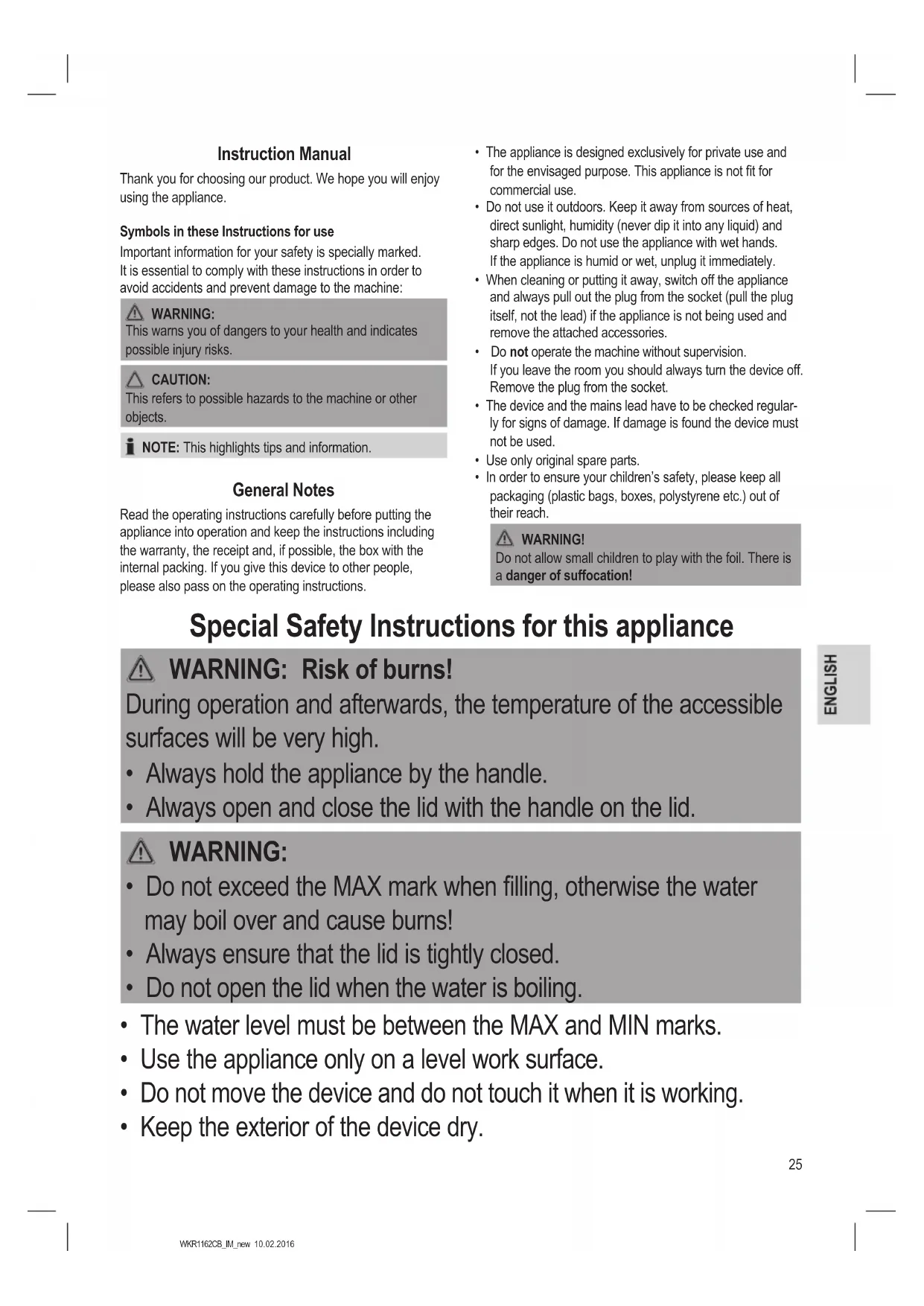

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this appliance

WARNING: Risk of burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

• Always hold the appliance by the handle.
• Always open and close the lid with the handle on the lid.

WARNING:

• Do not exceed the MAX mark when filling, otherwise the water may boil over and cause burns!
  • Always ensure that the lid is tightly closed.

• Do not open the lid when the water is boiling.

• The water level must be between the MAX and MIN marks.

• Use the appliance only on a level work surface.
• Do not move the device and do not touch it when it is working.

• Keep the exterior of the device dry.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.

• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is used for heating and boiling water. Never use to heat up other fluids or foodstuffs.
• Only use the appliance in a dry, indoor area. It is intended for domestic use and similar areas of use such as e.g.
• in staff kitchens in shops, offices and other commercial areas;
• by guests in hotels, motels and other accommodation facilities.
  It is not intended for use in farm accommodation or Bed & Breakfast establishments.

CAUTION:

Do not immerse the device into water for cleaning. Please follow the instructions as stipulated in the chapter “Cleaning”.

Scope of Delivery

1 x Kettle with lid

1x Teaspoon

2x Cup

1x Transport bag

Instructions

Electrical connection

CAUTION:

Check the setting of the voltage selector on the bottom of the appliance before each use! A wrong voltage setting can destroy the appliance or can trip the house fuse.

NOTE:

In the European countries, the mains voltage is 230 V AC.

• Set the voltage to the mains voltage provided by your electricity supplier: AC 120 V or AC 230 V.
• Connect the appliance to a grounded outlet only after you have filled water into the container.

Preparation

Before using for the first time, boil fresh water at least three times in the appliance. Use only water without any additives or ingredients.

Use

CAUTION:

When the pilot lamp lights on connection to the mains, the appliance is operating. Accordingly, observe the order of the operation steps.

NOTE: Always use fresh water.

1. Place the machine on a flat surface.
2. In addition, hold the appliance at the handle and remove the lid.
3. Then fill in the water (max 0.5 litre). The markings MIN and MAX are inside the water container.
4. Set the lid so onto the water container that the grip on the lid and the grip on the appliance are joined.
5. Only connect the machine to a properly installed safety socket.
6. Set the switch to I. The control lamp will light up.

NOTE:

Is the pilot lamp off? Switch on the device with the button ON.

Pausing / terminating operation

There are two options to interrupt the boiling process or to terminate it:

• The appliance will shut off automatically after the boiling process. The indicator lamp will go out.
  • To stop the boiling process, set the switch to O.

WARNING: Danger of scalding!

• When pouring the water out, keep the lid closed.

• During operation the housing becomes hot. Do not touch it and allow the device to cool down before storing it away.
  • Hot steam may escape when you open the appliance!

• Set the switch to 0. Disconnect the power cord.
  • Emptying the water container.

Cleaning

WARNING:

• Always turn the device off before cleaning it and remove the mains plug. Wait until the device has cooled down.
• Do not immerse the appliance in water or other liquids.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Rinse the water container out with clean water. Then dry it off with a cloth.
• Clean the housing after use with a slightly damp cloth.

Decalcification

- The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.

• If the machine switches off before the water boils, it probably needs to be decalcified.
• Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

NOTE:

After descaling the device boil fresh water in it several times (approximately 3 - 4 times) in order to remove any residues. Do not consume this water.

Troubleshooting

- It is not possible to switch the machine on.

Possible Cause:

The appliance has no power supply.

Remedy:

• Check the socket with another appliance.
• Plug in the mains plug correctly.
• Check the main circuit breaker.

Possible Cause:

The appliance is faulty.

Remedy:

Contact our service center or a specialist.

Possible Cause:

After being used without or with too little water the machine has not cooled down sufficiently.

Remedy:

Allow the machine to cool down for 10 min.

- The machine switches off before the water has boiled.

Possible Cause:

The heating base is severely calcified or the electric circuit of the socket is overloaded.

Remedy:

• Descale the machine as instructed.
• Check the mains connection.

• The machine does not switch off.

Possible Cause:

The lid is not set correctly onto the container.

Remedy:

Set the lid so onto the water container that the grip on the lid and the grip on the appliance are joined.

• The boiling process takes unusually long.

Possible Cause:

The voltage selector is not set correctly.

Remedy:

1. Set the switch to O. Unplug the mains plug!
2. Pour out the water.
3. Set the voltage selector to the correct voltage.

Technical Data

Model: WKR 1162 CB

Power supply: 120 / 230 V\~, 50 / 60 Hz

Power consumption: 1000 W

Protection class: I

Filling quantity: 0.1 - max. 0.5 l

Net weight: ....approx. 0.52 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
