USER MANUAL Nitro Joie
Accessories (not included in purchase)
Welcome to Joie
Congratulations on becoming part of the Joei family! We are so excited to be part of your journey with your little one. While traveling with the Joei Nitro®, you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2012. This product is suitable for use with children weighing under 15kg. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.
IMPORTANT - Keep these instructions for future reference.
Visit us at Joliebaby.com to download manuals and see more exciting Jolie products!
Contents
Figures 1-6
Product Information 8
Parts List 8
WARNING 9-10
Stroller Assembly 10
Assemble Front Wheels 10
Assemble Bear Wheels 10
Assemble Hood 10
Stroller Operation 11
Adjust Recline 11
Use Buckie 1
Use Shoulder & Waist Harnessed 11
Adjust Calf Support 1
Use Front Swivel Lock 12
Use Brake 12
Use Hood 12
Fold Stroller 12
Ose Carry Swap 12
ACCESSIONS
Care and Maintenance 12
Emergency
In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.
Product Information
Read all the instructions in this manual before using this product. If you have any further questions, please consult the retailer. Some features may vary depending on model.
Product Nitro Stroller
Suitable for Child weighing under 15kg (birth - 36 months) Material: Plantar metel fabrics
Materials Plastics, metal, fabrics Patent No. Patents pending
Made In China
Brand Name Jol
Website www.Jolebaby.com
Manufacturer Jole Children's Products (UK) Limited
Parts List
Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.
1 Stroller Frame 6 Storage Latch
2 Front Wheel (X2) 7 Carry Strip
3 Rear Wheels 8 Rear Wheel
4 Hoo 9 Front Wheel 10
5 Handle 10 Footrest
11 Calf Support
12 Buckle
13. Safety Harness
14 Haod Stretcher
16 Foot Plate
17 Brake Lever
18 Folding Pedal
19 Folding Plate
D
Accessories (Non-included)
Rain Cover (on certain models)
WARNING
! WARNING Always use the crotch combination with the waist belt. The shoulder harnesses should be used as well.
!WARNING Ensure that all the locking devices are engaged before use.
!WARNING Do not let your child play with this product.
!WARNING Check that the pram body or seat unit attachment devices are correctly engaged before use.
! Adult assembly required.
! Use the stroller with a child weighing less than 15kg . It will cause damage to the stroller with an unfitted child.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave child unattended. Always keep child in view while in stroller.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.
Overloading, folding incorrectly, or using component parents from other manufacturers may cause the stroller to be damaged, broken or unsafe. Please read the instruction manual carefully.
! Never use it along with component parts from other manufacturers.
Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.
! Safety belts and restraint systems must be used correctly.
! To avoid serious injury from falling or sliding out, always use seat belt.
! Make sure your child's body is clear from the moving parts when adjusting the stroller.
! Child may slip into leg openings and be strangled if the harness is not used.
! Never use stroller on stairs or escalators.
! Keep away from high temperature objects, liquids, and electronics.
! Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.
! Never place the stroller on roads, slopes or dangerous areas.
! Do make sure all mechanisms are fixed before using the stroller.
! To avoid strangulation, DO NOT place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.
! To prevent tipping DO NOT put anything on the handle.
I DO NOT lift stroller while child is in stroller.
! DO NOT use storage basket as a child carrier.
! To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.
! To avoid finger entrapment, use care when folding and unfolding the stroller.
! Be sure the stroller is fully open or folded before allowing child near the stroller.
! To ensure your child's safety, please make sure all parts are assembled and fastened properly before using the stroller.
! To avoid strangulation, do make sure your child is clear from the hood.
! Always engage the brakes when parking the stroller.
! Discontinue using stroller if it is damaged or bro
! Stroller to be used only at walking speed. This product is not intended for use while jogging.
! To avoid suffocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing children.
Stroller Assembly
Please read all the instructions in this manual before assembling and using this product.
Open Stroller
Separate storage latch from storage mount 1, and then lift the handle upwards. -1, push the foot plate downwards with foot -2, a click sound means the stroller is open completely.
1 Check that the stroller is completely open before continuing.
Assemble Front Wheels
Assemble front wheels to front legs. Check that wheels are securely attached by pulling on wheel assemblies. 3
To disassemble front wheel, detach front wheel from front leg 4 - 2 while pressing the release tabs outwards.
4-1
Assemble Rear Wheels
Assemble rear wheels to rear legs. Check that wheels are securely attached by pulling on wheel assemblies.
Snap the brake cable into the fixing tabs under square tubes to fix it.
Assemble Hood
Align the holes of the hood mounts with the posts on the tubes, and then insert to assemble the hood 7, stick
the hook and loop fasteners, snap the buttons to attach the rear hood to backrest.
The completely assembled stroller is shown as
Stroller Operation
Adjust Recline
There are 5 angles for the backrest.
Squeeze the adjust button 10-1, and then adjust the backrest to a desired angle. 10-2
To raise the backrest, push up.
Make sure the recline is set properly for use.
Use Buckle
Release Buckle
Press the center button to release the buckle.
Lock Buckle
Match the waist belt buckle with the shoulder buckle 1, and click into the center buckle.
A click sound means the buckle is locked completely. 3
To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
1 Do not cross the shoulder belts. This will cause pressure on child's neck.
Use Shoulder & Waist Harnesses
In order to protect your child from falling out, after your child is placed into the seat, check whether the
shoulder and waist harnesses are at proper height and length.
15-1 Shoulder harness anchor A
-2 Shoulder harness anchor B
13-3 Slide adjuster
For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.
To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. Retrhead it through the slot that is closest to child's shoulder height.
Use slide adjuster to change the harness length.
Press the button 6-2, while pulling the waist harness to proper length. 5-3
Adjust Calf Support
The calf support has 2 positions.
Raise Calf Support
To raise the calf support, just push it upwards.
Lower Calf Support
Press the adjustment buttons on both sides of the call support 山 ^ - 1 , and rotate the call support downwards.
-2
Use Front Swivel Lock
Push up the front swivel locks to maintain the moving direction.
Tip It is recommended to use swivel locks on uneven surfaces.
Use Brake
To lock wheels, step the brake lever downwards.
To release wheels, just lift the brake lever upwards.
Tip Always apply brake when stroller is in stopped position.
Use Hood
To open the hood, pull hood forwards and press stretchers down on both sides.
To fold the hood, pull up the stretchers on both sides - 1 and pull hood toward back.
Fold Stroller
Please fold the hood before folding the stroller.
Lift the folding plate , step the folding pedal downwards - 1, push the stroller forward to fold - 2 . The
storage latch will automatically hook onto the storage mount, then the stroller is folded and locked completely.
Use Carry Strap
You can carry the stroller with ease by lifting the carry strap.
Accessories
Accessories may be sold separately or may not be available depending on region.

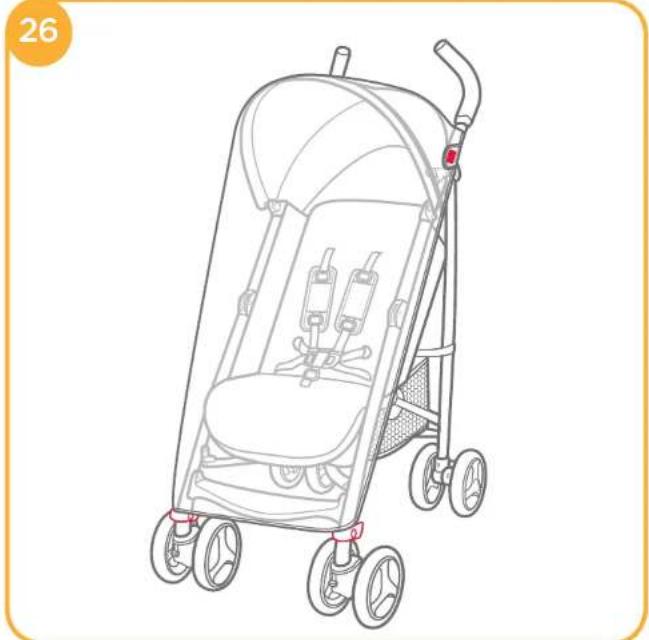

Use Rain Cover
To assemble the rain cover, place it over the stroller, and then attach the 2 pairs of hook and loop fasteners and 2 pairs of snaps on the rain cover.
When using the rain cover, please always check its ventilation.
When not in Use, please check that the rain cover has been cleaned and dried before folding.
Do not fold the stroller after assembling the rain cover.
Do not place your child into the stroller assembled with rain cover during hot weather.
Care and Maintenance
Removable seat pad may be washed in cold water and drip-dried. No bleach.
To clean stroller frame, use only household soap and warm water. No bleach or detergent.
From time to time, check your stroller for loose screws, worn parts, torn material or stitching, Replace or repair the parts as needed.
Excessive exposure to sun or heat could cause fading or warping of parts.
If stroller becomes wet, open hood and allow to dry thoroughly before storing.

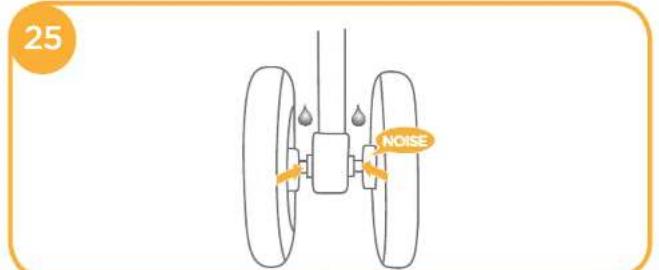

1 If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.
