USER MANUAL CA9011154NA CORSAIR

PREMIUM GAMING HEADSET WITH DOLBY HEADPHONE 7.1

CORSAIR COMPONENTS, INC.

47100 BAYSIDE PARKWAY • FREMONT • CALIFORNIA • 94538 • USA

TABLE OF CONTENTS

ENGLISH 2

FRANÇAIS....10

DEUTSCH 18

PORTUGUÊS 26

ESPAÑOL 34

РУССКИЙ 42

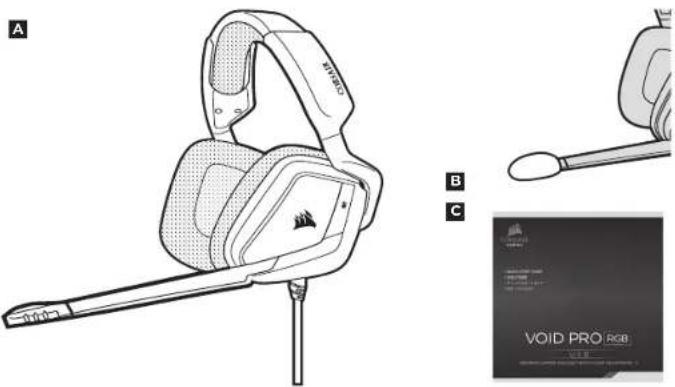

PACKAGE CONTENTS

2

ENGLISH

A Corsair VOID PRO RGB USB Headset
B microphone foam windscreen (removable)
c Quick start guide

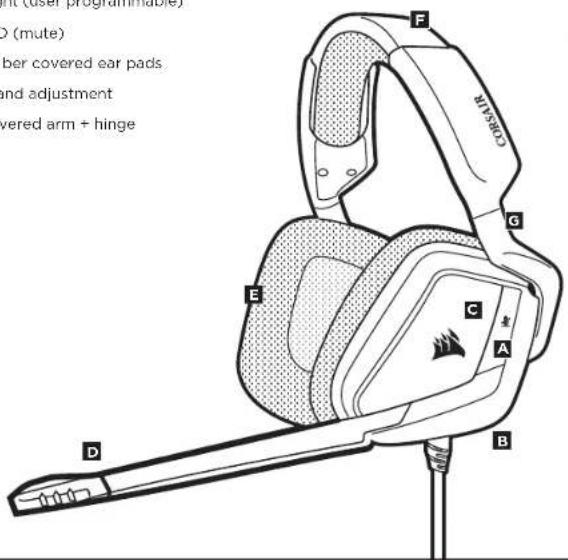

CONTROLS AND FEATURES

A Mute button
B Jog Dial (volume + EQ/Dolby)
RGB light (user programmable)
D Mic LED (mute)
E Microfi ber covered ear pads
F Headband adjustment
G Cantilevered arm + hinge

CS-SSAH F G E C A B D (user programmable) O (mute) ber covered ear pads and adjustment vered arm + hinge

3

ENGLISH

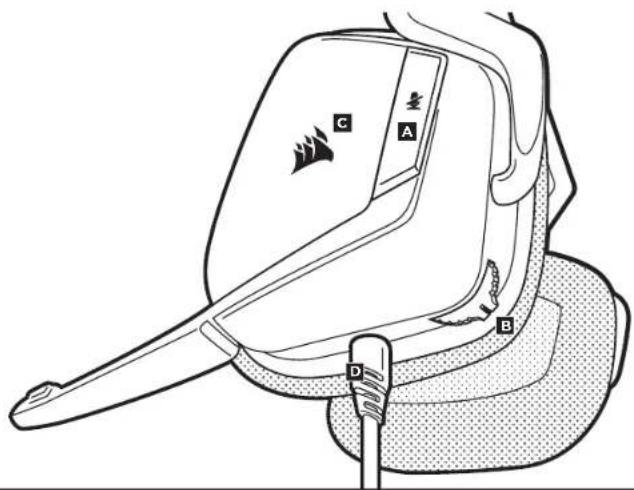

PRODUCT DETAIL (CONTROLS)

GETTING STARTED

A Mute button
B Jog Dial (volume + EQ/Dolby)
c RGB light (user programmable)
D USB Cable (Non detachable)

C A B D

Remember that powering the headphones over the USB cable requires a high power (USB 2.0 or better) port. Some USB ports on older keyboards and monitors do not support high-power devices.

Place the headset on your head and adjust the headband for a comfortable fit. The extra-large ear pads and deep earcups enable the Corsair VOID PRO RGB Headset to fit comfortably so you can play for hours without fatigue.

CORSAIR UTILITY ENGINE

GENERAL TIPS

6

ENGLISH

- Go to corsair.com/support/downloads to download the Corsair Utility Engine ('CUE') Software

Using the CUE software will enable the full feature set of the VOID PRO RGB USB Headset. Note: if the headset is used without software, some features will be disabled.

• Install the software on a PC running Windows 7, Windows 8.1, Windows 10 or later

• After installation is complete, reboot your PC, a nd launch CUE.

You can use it to:

• Choose your RGB color preference and light intensity
• Select and customize audio equalizer (EQ) settings
• Adjust headset volume, microphone input volume, and microphone feedback
• Set Dolby Headphone 7.1 surround sound on or off

The software's built-in documentation explains how to use the VOID PRO RGB USB Headset features in greater detail.

For the best audio performance:

• Download the Corsair Utility Engine software from corsair.com/support/downloads
• Don't be afraid to use the software equalizer to adjust the audio quality to your liking. EQ presets have been provided for popular gaming and media types.

Prolonged listening at high volumes may adversely affect your hearing. Take breaks between sessions and always begin with the volume at the lowest possible level before increasing.

Headset audio settings

Short key press (.1-.5 seconds) on JOG DIAL toggles EQ Medium key press (.6-2 seconds) on JOG DIAL toggles Dolby Headphone 7.1 surround sound

Headset mic control

Short key press (.1-.5 seconds) on mic mute button toggles mute on and off Long key press (2-4 seconds) on mic mute button toggles sidetone on and off

Note: CUE software can also be used to control these features.

7

ENGLISH

ADJUSTMENT

MICROPHONE ADJUSTMENT

8

ENGLISH

As with any audio product, reduce the volume before trying it with an audio source the first time.

You can adjust the volume with:

• The "CUE Control" is the digital volume controller on the headset at the bottom corner of your left earcup: hold or repeatedly toggle it downwards to reduce volume, and upwards in short increments to increase volume.
• The standard Windows audio controller can also be used to adjust volume.
• Once the audio source is playing, set the volume to a comfortable level.

Your new VOID PRO RGB USB Headset features a high performance "unidirectional" microphone designed to reject noise other than your voice, but it must be pointed directly at your mouth to function correctly.

• Bend the flexible microphone boom to best fit near to the left corner of your mouth.
• For improved voice quality, the included microphone foam windscreen may be applied over the microphone head.
• We've found that about a 30 degree bend is a good place to start, but feel free to increase or decrease this if your mic is too loud or too soft.

Enjoy your Corsair VOID PRO RGB USB Headset! If you have any questions or comments, see the back panel of this guide for contact information.

9

ENGLISH

10

FRANÇAIS

CONTENU DU PAQUET

Line drawing of a white Sony 3.0 headset with head strap and cable, shown from front and side (no text or symbols)

B
C

STEUERELEMENTE UND FUNKTIONSMERKMALE

Line drawing of a headboardless computer with a microphone and tower (no text or symbols)

B C

Scanned document page with a hand holding a brush and a 'VOID' label, likely from a presentation or report.

Line drawing of a white headboard with black plastic head and microphone, no text or symbols present

B C

VOLIME VOID USE

Line drawing of a computer head with a microphone and earpiece, no text or symbols present

B C

Scanned document page with a hand holding a brush and a 'VOID' label, likely from a presentation or report.

Note on environmental protection

After the implementation of the European Directive 2002/96/EU, in the national legal system, the following applies:

- Electrical and electronic devices may not be disposed of with domestic waste.

- Consumers are obligated by law to return electrical and electronic devices at the end of their service lines to the public collecting points set up for this purpose of point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.

Umweltschutzhinweis

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other antenna or transmitter.

Operation is subject to the following two conditions:

1. this device may not cause harmful interference,

2. this device must accept any interference received, including interference that may cause undesired operation.

EMAIL

[e-mail]

WEB

corsair.com

BLOG

corsair.com/blog

FORUM

forum.corsair.com

FACEBOOK

facebook.com/Corsair

TWITTER

twitter.com/Corsair

YOUTUBE

youtube.com/Corsair

© 2017 Corsair Components, Inc.

All rights reserved

Corsair and the sails logo are registered trademarks, and Corsair Gaming and the Corsair Gaming logo are trademarks of Corsair in the United States and/or other countries. All other trademarks are the property of their respective owners. Product may vary slightly from those pictured.

P/N: 49-001561 Rev AA
