USER MANUAL CD99350 CONSTRUCTA

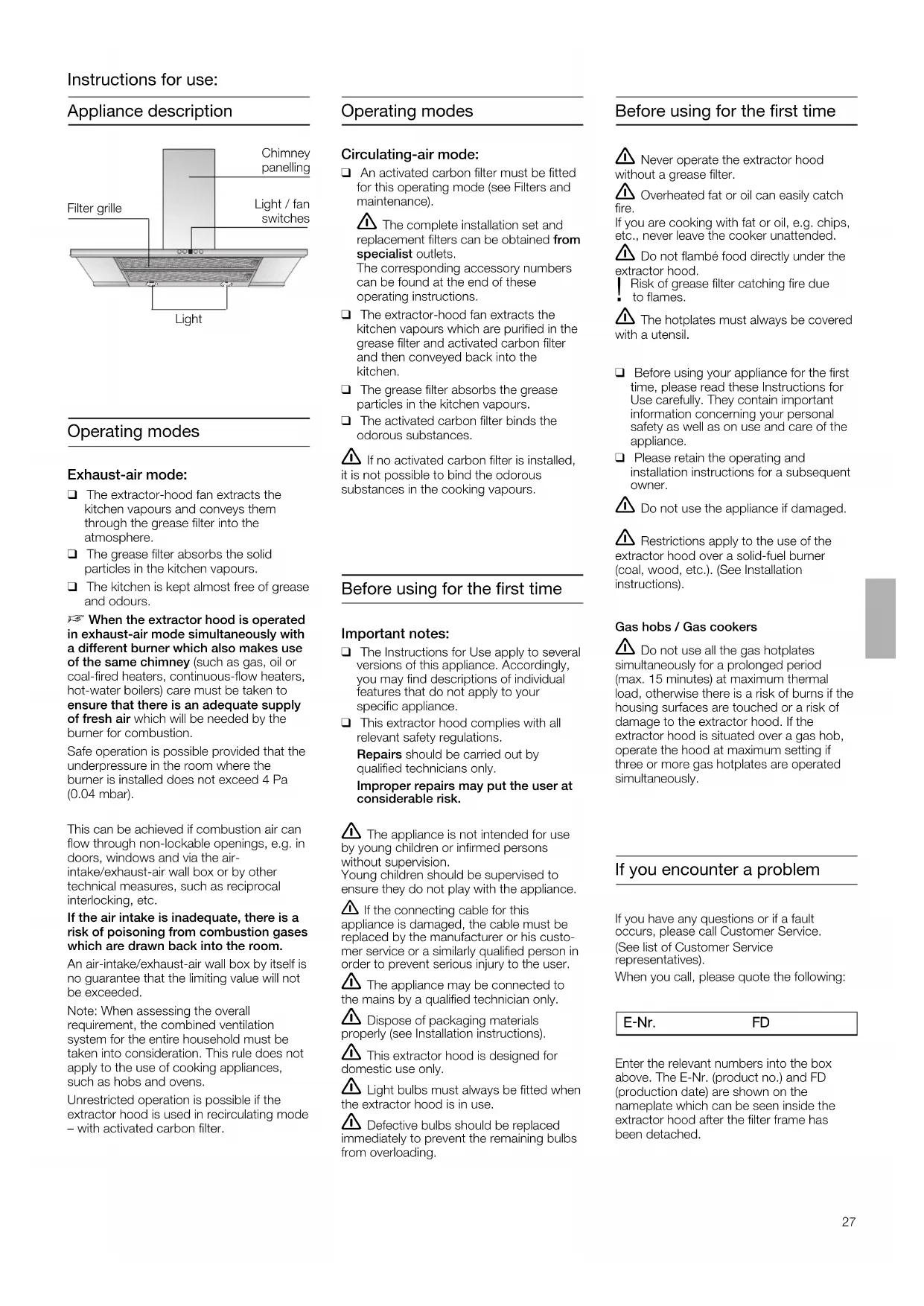

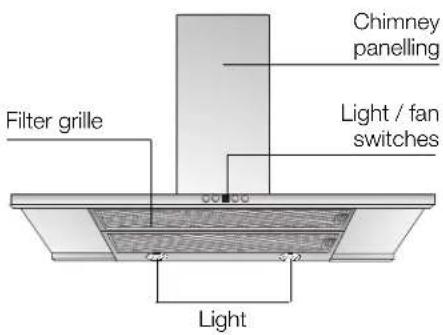

Appliance description Operating modes Exhaust-air mode:q The extractor-hood fan extracts the kitchen vapours and conveys themthrough the grease filter into the atmosphere.q The grease filter absorbs the solid particles in the kitchen vapours.q The kitchen is kept almost free of greaseand odours. When the extractor hood is operatedin exhaust-air mode simultaneously witha different burner which also makes useof the same chimney (such as gas, oil orcoal-fired heaters, continuous-flow heaters,hot-water boilers) care must be taken toensure that there is an adequate supplyof fresh air which will be needed by theburner for combustion.Safe operation is possible provided that theunderpressure in the room where theburner is installed does not exceed 4 Pa(0.04 mbar). Operating modes This can be achieved if combustion air canflow through non-lockable openings, e.g. indoors, windows and via the air-intake/exhaust-air wall box or by othertechnical measures, such as reciprocalinterlocking, etc.If the air intake is inadequate, there is arisk of poisoning from combustion gaseswhich are drawn back into the room.An air-intake/exhaust-air wall box by itself isno guarantee that the limiting value will notbe exceeded.Note: When assessing the overallrequirement, the combined ventilationsystem for the entire household must betaken into consideration. This rule does notapply to the use of cooking appliances,such as hobs and ovens.Unrestricted operation is possible if theextractor hood is used in recirculating mode– with activated carbon filter. Instructions for use: Light Filter grilleChimneypanellingLight / fan switchesCirculating-air mode:q An activated carbon filter must be fittedfor this operating mode (see Filters andmaintenance). 몇 The complete installation set and replacement filters can be obtained from specialist outlets.The corresponding accessory numberscan be found at the end of these operating instructions.q The extractor-hood fan extracts the kitchen vapours which are purified in thegrease filter and activated carbon filterand then conveyed back into the kitchen.q The grease filter absorbs the grease particles in the kitchen vapours.q The activated carbon filter binds theodorous substances. 몇 If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours. Before using for the first time Before using for the first time If you encounter a problem If you have any questions or if a faultoccurs, please call Customer Service. (See list of Customer Service representatives).When you call, please quote the following: E-Nr. FD Enter the relevant numbers into the boxabove. The E-Nr. (product no.) and FD(production date) are shown on the nameplate which can be seen inside theextractor hood after the filter frame hasbeen detached.Important notes:q The Instructions for Use apply to severalversions of this appliance. Accordingly,you may find descriptions of individualfeatures that do not apply to your specific appliance.q This extractor hood complies with all relevant safety regulations.Repairs should be carried out by qualified technicians only.Improper repairs may put the user atconsiderable risk.q Before using your appliance for the firsttime, please read these Instructions forUse carefully. They contain importantinformation concerning your personalsafety as well as on use and care of theappliance.q Please retain the operating and installation instructions for a subsequentowner. 몇 Do not use the appliance if damaged. 몇 The appliance is not intended for use by young children or infirmed persons without supervision.Young children should be supervised toensure they do not play with the appliance. 몇 If the connecting cable for this appliance is damaged, the cable must bereplaced by the manufacturer or his custo-mer service or a similarly qualified person inorder to prevent serious injury to the user. 몇 The appliance may be connected to the mains by a qualified technician only. 몇 Dispose of packaging materials properly (see Installation instructions). 몇 This extractor hood is designed for domestic use only. 몇 Light bulbs must always be fitted when the extractor hood is in use. 몇 Defective bulbs should be replaced immediately to prevent the remaining bulbsfrom overloading. 몇 Restrictions apply to the use of the extractor hood over a solid-fuel burner(coal, wood, etc.). (See Installation instructions).Gas hobs / Gas cookers 몇 Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermalload, otherwise there is a risk of burns if thehousing surfaces are touched or a risk ofdamage to the extractor hood. If the extractor hood is situated over a gas hob,operate the hood at maximum setting ifthree or more gas hotplates are operatedsimultaneously. 몇 Never operate the extractor hood without a grease filter. 몇 Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips,etc., never leave the cooker unattended. 몇 Do not flambé food directly under the extractor hood.Risk of grease filter catching fire due ! to flames. 몇 The hotplates must always be covered with a utensil.Operating procedure Filters and maintenance Grease filters: Metal filters are used to trap the greasyelement of the vapours that developduring cooking.The filter mats are made from non-combustible metal.Caution:As the filter becomes more and more saturated with grease, not only does therisk of it catching fire increase but the efficiency of the extractor hood can also beadversely affected.Important:By cleaning the metal grease filters atappropriate intervals, the possibility of themcatching fire as a result of a build-up of heatsuch as occurs when deep-fat frying or roasting is taking place, is reduced.Cleaning the metal grease filters:q In normal operation (1 to 2 hours daily),the metal grease filter must be cleaned 1 x a month.q The filters can be cleaned in a dish-washer. It is however possible that theywill become slightly discoloured.q The filter must be placed loosely, andNOT wedged, in the dishwasher.Important:Metal filters that are saturated with grease should not be washed togetherwith other dishes etc.q When cleaning the filters by hand, soakthem in hot soapy water first of all.Do not use aggressive, acidic or causticcleaners.Then brush the filters clean, rinse themthoroughly and leave the water to drain off. 몇 The most effective method of removing vapours produced during cooking is to:q Switch the ventilator ONas soon as you begin cooking.q Switch the ventilator OFFa few minutes after you have finishedcooking.Switching the fan ONq Press the + button.Setting the required fan speed:q Press the + button.The fan speed is increased by one step.q Press the – button.The fan speed is reduced by one step.Switching the fan OFF:q Press the 0 button. Or: q Keep pressing the – button until the fanswitches off.Intensive setting:Maximum power is obtained at the intensive setting. It is only required for shortintervals. q Keep pressing the + button until a ç appears in the display.q If the intensive setting is not cancelled byhand, the fan will automatically switchback to step } after 10 minutes.Lighting:q The light can be switched on at anytime, even though the fan is switched off.Fan OFFLightON / OFF

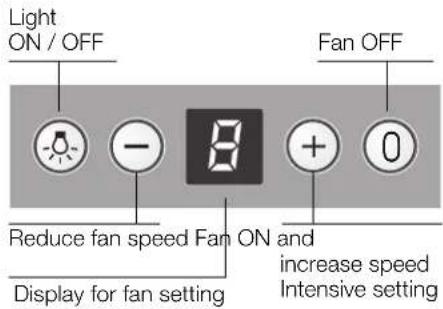

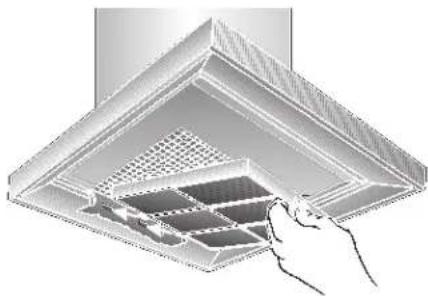

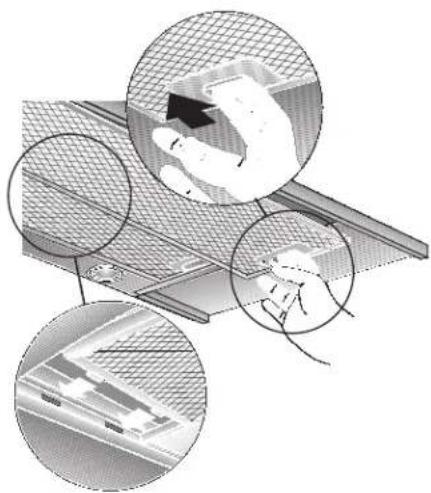

Reduce fan speed Fan ON andincrease speedIntensive settingDisplay for fan setting Removing and inserting the metal greasefilters:Warning: The halogen bulbs must be switched off and cool.1. Press the catch on the grease filtersinwards and fold the filters down.At the same time take hold of the under-side of the grease filters with your otherhand.2. Clean the filters.3. Insert the clean filters back into thehood. Activated carbon filter: For neutralizing odours in recirculatingmode.Caution:As the filter becomes more and more saturated with grease, there is an increasedrisk of fire and the function of the extractorhood may be impaired.Important:Change the activated carbon filter promptlyto prevent the risk of fire from the accumulation of heat when deep-fat fryingor roasting.3. Engage the lug at the front.4. Insert the metal grease filters(see "Removing and inserting the metalgrease filters").Replacing the activated carbon filter:q During normal operation (1 to 2 hoursper day) the activated carbon filtersshould be replaced approximately 1 xyear.q A replacement filter can be obtainedfrom any authorized dealer (see optional accessories).q Use original filters only.By doing so you will obtain maximumperformance from your extractor hood.Disposing of the old activated carbon filter:q There are no pollutants in the activatedcarbon filters. They can therefore be disposed of as part of your normaldomestic refuse.Installation and removal:Warning: The halogen bulbs must be switched off and cool.1. Remove the metal filters(see "Removing and inserting the metalgrease filters").2. Insert the activated carbon filter.29 Cleaning and care Isolate the extractor hood by pulling out the mains plug or switching off the fuse. 몇 Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine! q Clean the extractor hood with a hot soap solution or a mild window cleaner. q Do not scrape off dried-on dirt but wipe off with a damp cloth. q When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency. q Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear. Caution: Ensure that the kitchen is ade- quately ventilated. Avoid naked flames! 몇 Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons. Stainless steel surfaces: q Use a mild non-abrasive stainless steel cleaner. q Clean the surface in the same direction as it has been ground and polished. q We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address. Aluminium and plastic surfaces: q Do not use dry cloths. q Use a mild window cleaning agent. q Do not use aggressive, acidic or caustic cleaners. Observe the warranty regulations in the enclosed service booklet.

4. Re-insert the bulb ring.

5. Plug the appliance into the mains or

switch it on at the fuse box. Note: If the light does not function, check that the bulbs have been inserted correctly. Replacing the light bulbs

1. Switch off the extractor hood and pull

out the mains plug or switch off the electricity supply at the fuse box. 몇 When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

2. Remove the bulb ring with a screwdriver

(conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap). Caution: Refer for plug-in lampholder. Take hold of the bulb with a clean cloth. Important information Installation Instructions: Additional information concerning gas cookers: 몇 When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI). 몇 Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer. 몇 Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm. 몇 Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1. 몇 Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable. 몇 You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal. 몇 The extractor hood can be used in exhaust air or circulating air mode. 몇 Always mount the extractor hood over the centre of the hob. 몇 Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1. 몇The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed. 몇 The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.Prior to installation Exhaust-air mode The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located. Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations). Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air- intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens. Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter. If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall. For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise. 몇 The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes: We recommend Internal diameter: 150 mm (at least 120 mm).

Flat ducts must have an internal cross- section that equates to that of round pipes. There should be no sharp bends. l 120 mm approx. 113 cm

If pipes have different diameters: Insert sealing strip.

For exhaust-air mode, ensure that there is an adequate supply of fresh air. Circulating-air mode q With activated carbon filter if exhaust-air mode is not possible. Connecting a l 150 mm exhaust-air pipe:

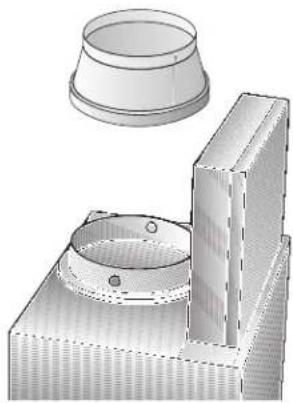

Mount the pipe directly onto the air outlet on the hood. Connecting a l 120 mm exhaust-air pipe: q Attach the reducing connector directly to the air pipe. 몇 The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these opera- ting instructions. q Attach the exhaust-air pipe to the reducing connector. Preparing the wall

The wall must be flat and perpendicular.

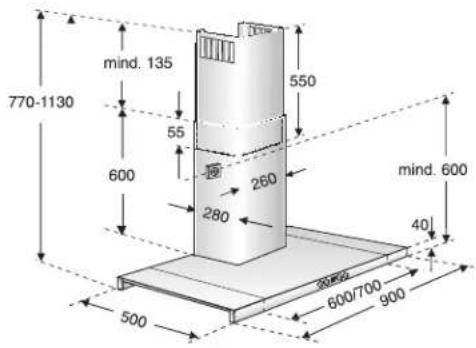

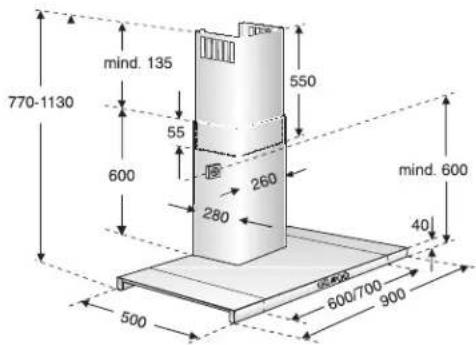

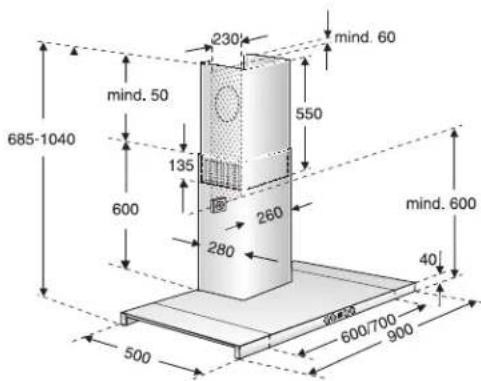

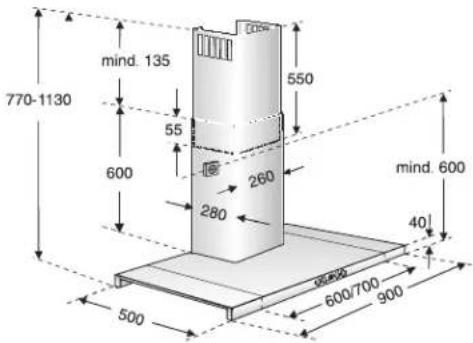

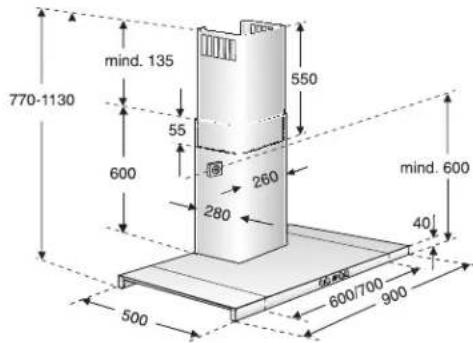

Ensure that the wall is capable of providing a firm hold for mounting screws and plugs. Weight in kg: We reserve the right to construction changes within the context of technical development. Exhaust air Recirculating air 19,218,760 cm 19,819,370 cm 20,920,490 cm31 The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations. If possible, site the earthed socket directly behind the chimney panelling.

The earthed socket should be connected via its own circuit.

If the earthed socket is no longer accessible following installation of the extractor hood, ensure that there is a permanently installed disconnector. If it is necessary to wire the extractor hood directly into the mains: The extractor hood should only be connected to the electricity supply by a properly qualified electrician. A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors. 몇 If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user. Electrical data: Are to be found on the name plate inside the appliance after removal of the filter frame. 몇 Before undertaking any repairs, always disconnect the extractor hood from the electricity supply. Length of the connecting cable: 1.30 m. This extractor hood corresponds to EC regulations concerning RF interference suppression. Electrical connection

WARNING: THIS APPLIANCE MUST BE

EARTHED IMPORTANT: Fitting a Different Plug: The wires in the mains lead are coloured in accordance with the following code: Green and Yellow – Earth Blue – Neutral Brown – Live If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals. This is what you have to do: 1.Connect the green and yellow (Earth) wire to the terminal in the plug marked ‘E’ or with the symbol ( ), or coloured green or green and yellow. 2.Connect the blue (Neutral) wire to the terminal in the plug marked ‘N’ or coloured black. 3.Connect the brown (Live) wire to the terminal marked ‘L’, or coloured red. Installation This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter

(refer to Operating Instructions).

2. Draw a line on the wall from the ceiling

to the lower edge of the hood at the centre of the location where the hood is going to be mounted.

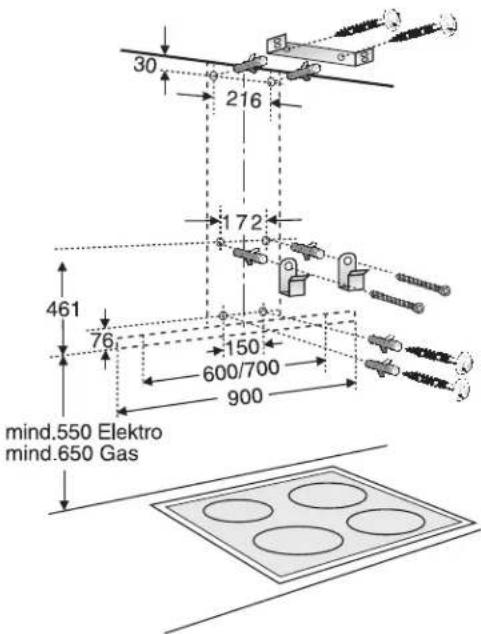

3. Use the template to mark the points on

the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached. 몇 Ensure that the minimum distance bet- ween the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.

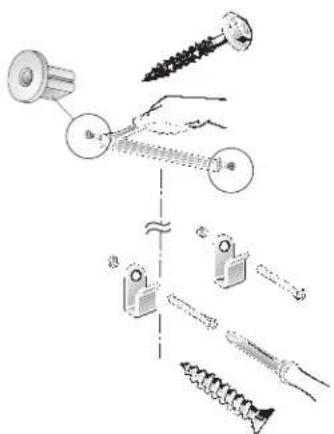

4. Drill 4 x l 8 mm holes for the extractor

hood and 2 x l 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

7. Attach the extractor hood.

Adjust the height and align horizontally with the adjusting screws. Note: Take into account any special accessories that are going to be fitted.

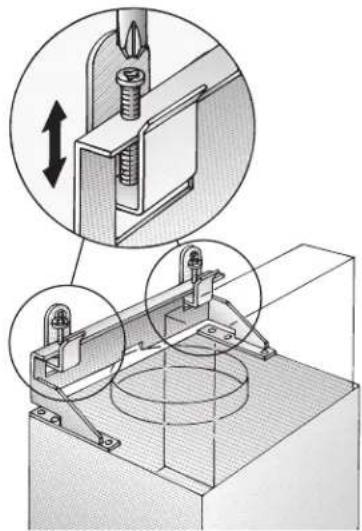

5. Attach the 2 enclosed spacers to the

fixing bracket for the flue duct panelling.

6. Screw on the upper and the two lower

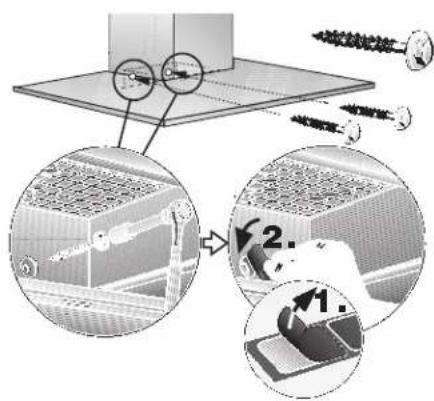

08. Screw in lower screws (hex screws).

09. Stick protective film over the holes of

the 2 lower mounting bolts in the protective grid.

10. Connect up the air outlet pipe.

11. Connect the hood to the electricity

12. Remove the protective film from the two

flue ducts. 몇 Take care not to damage the stainless steel surfaces which are susceptible to scratches etc.

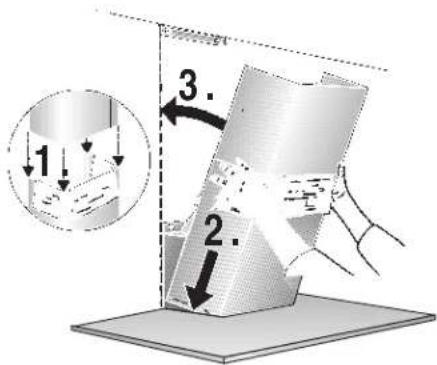

13. Insert the upper flue duct (slots

downwards) into the lower flue duct. 몇 Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

angle into the glass shield and swivel backwards.

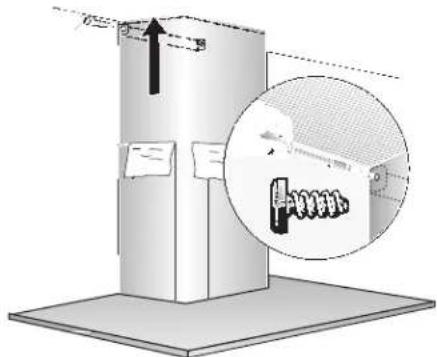

15. Carefully pull the upper flue duct

upwards and screw the sides to the fixing bracket with 2 screws.

16. Insert the grease filter (refer to
