USER MANUAL XCM32BTK PIONEER

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

Operating Instructions

Mode d'emploi

Bedienungsanleitung

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3 A1 En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 25 cm at top, 15 cm at rear, and 5 cm at each side).

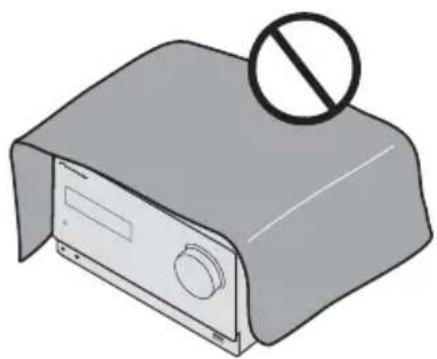

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_En

Illustration of a gray electronic device with a circular symbol and prohibition sign (no text or symbols on the device itself)

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*A1_En

CAUTION

The ⬆STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a ^* _A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002* A1 En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples) for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).

- Pioneer is not responsible for any malfunction of the compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.

- A separate contract with/payment to an Internet service provider is required to use the Internet.

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box 5

Loading the batteries in the remote control .....5

Using the remote control 5

02 Part names and functions

Remote control 6

Speaker system 7

Detatching and replacing the front grille ....7

Attaching the Non-skid pads 8

Rotating the Speaker Badge....8

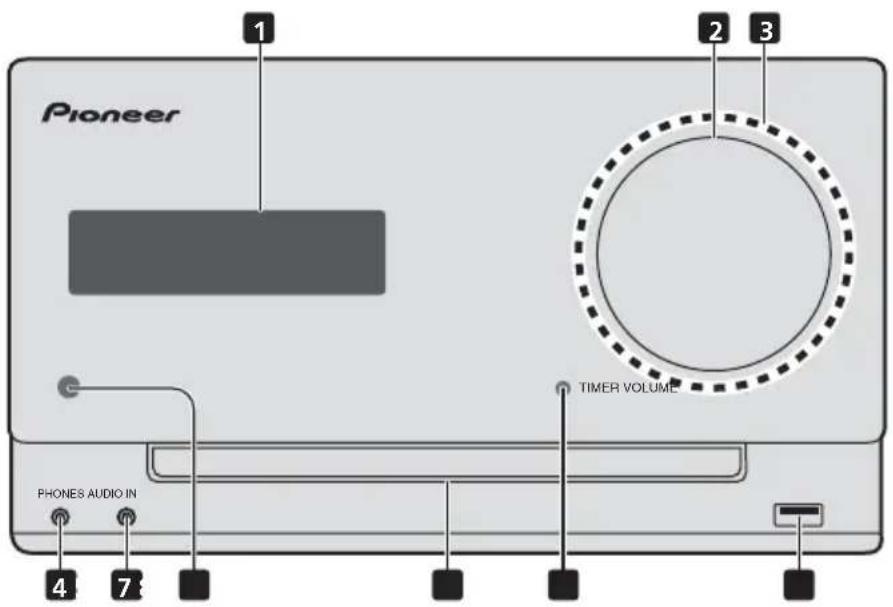

Front panel 9

Top panel 10

03 Connections

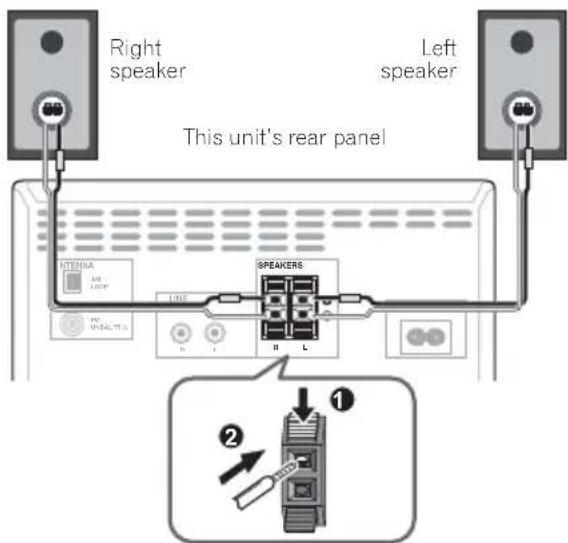

Speaker connection 11

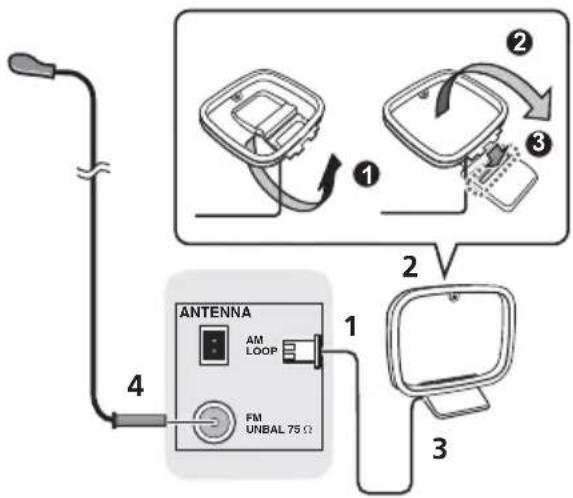

Connecting antennas 12

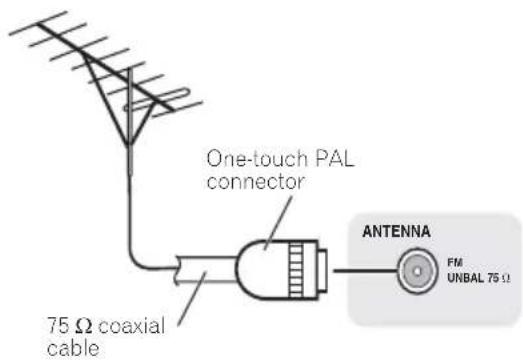

Using external antennas 12

Plugging in 12

04 Getting started

To turn the power on 13

Setting the clock 13

General control....13

Input function.... 13

Display brightness control 13

Volume auto set-in. 13

Volume control.... 13

Muting.... 13

Sound controls 14

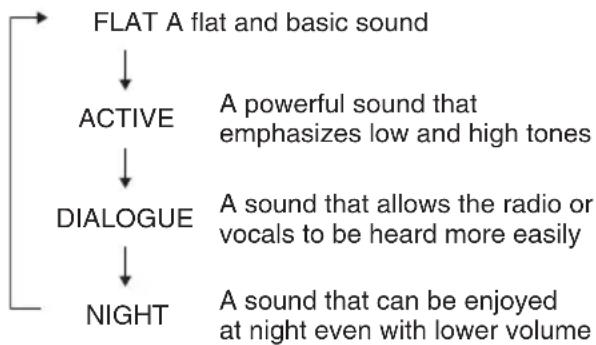

Equalizer.... 14

P.bass control 14

Bass/treble control 14

Setting the wake-up timer....14

Calling the wake-up timer 15

Cancelling the wake-up timer.... 15

Using the wake-up timer.... 15

Using the sleep timer 15

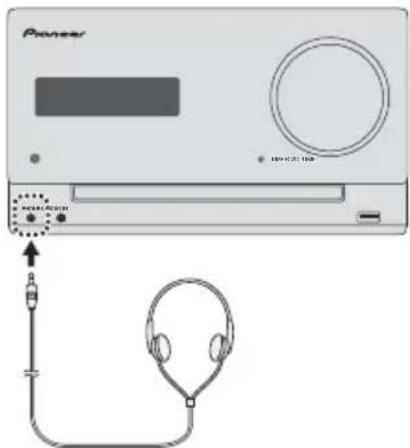

Using Headphones 15

05 iPod/iPhone/iPad playback

Confirming what iPod/iPhone/iPad models are supported 16

Connecting your iPod/iPhone/iPad .....16

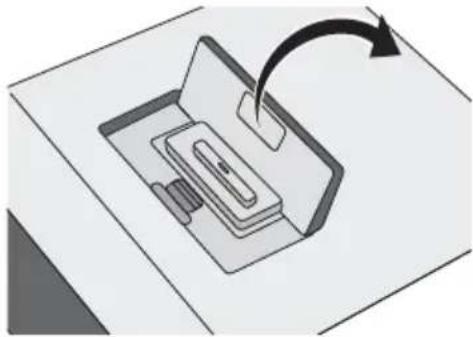

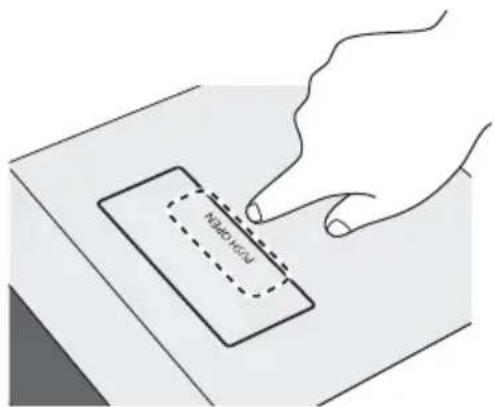

Connecting iPod/iPhone to the top panel (X-CM42BT only). 17

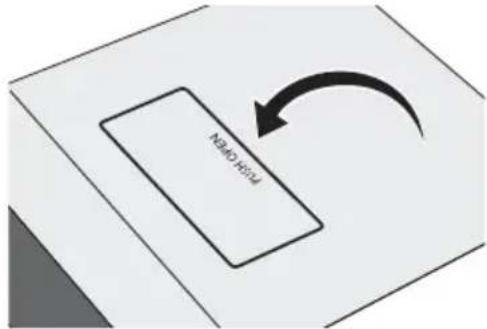

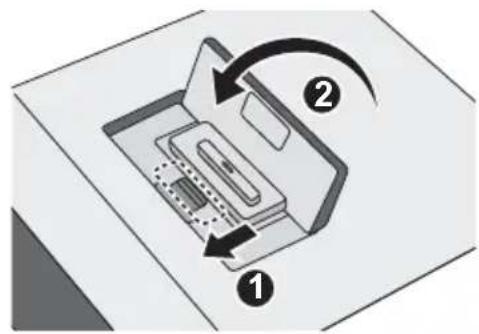

Close the iPod/iPhone connector port (X-CM42BT only). 17

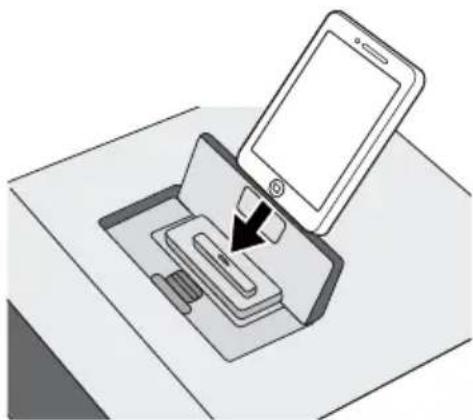

Connecting iPod/iPhone/iPad using supplied stand . . . 17

Playing iPod/iPhone 18

Playing iPad 18

06 Disc playback

Playing discs or files 19

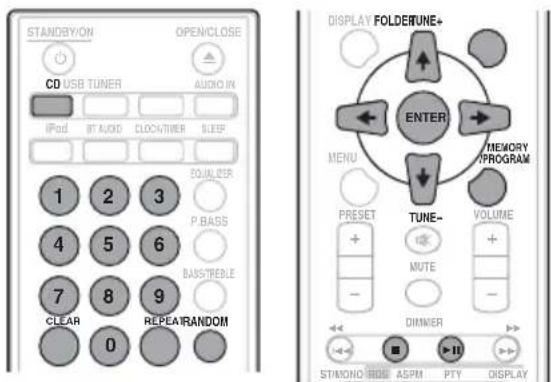

Advanced CD or MP3/WMA disc playback .....20

Direct track search 20

Repeat play.... 20

Random play 20

Programmed play (CD or MP3/WMA) 21

About downloading MP3/WMA 21

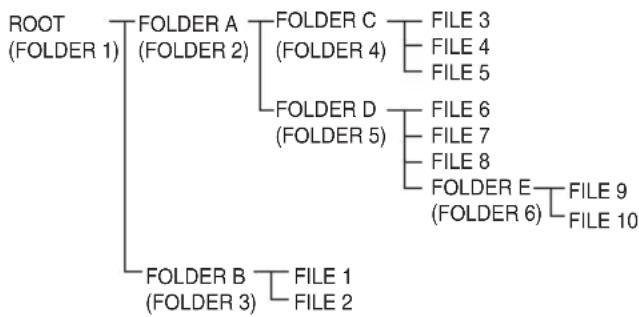

About folder playback order 21

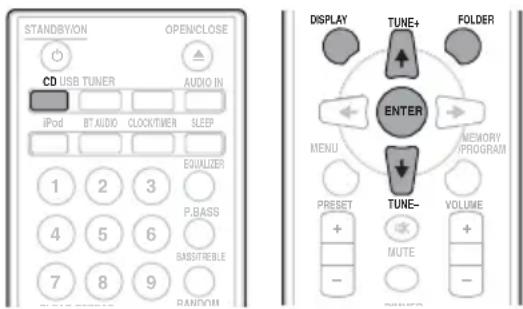

Specify the folder to play.... 22

Switch the display contents 22

07 USB playback

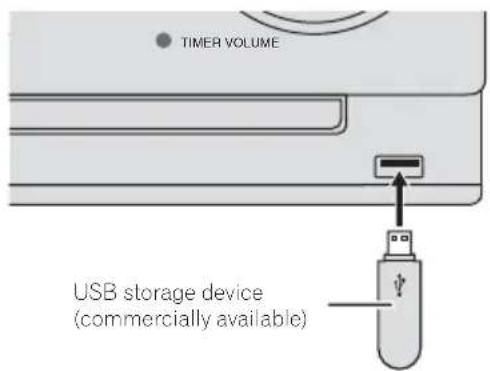

Playing USB storage devices 23

Repeat play. 23

Random play 23

Specify the folder to play.... 24

Switch the display contents 24

Playing in the desired order (Programmed Play) ..... 24

08 Using the tuner

Listening to the radio broadcasts 25

Tuning.... 25

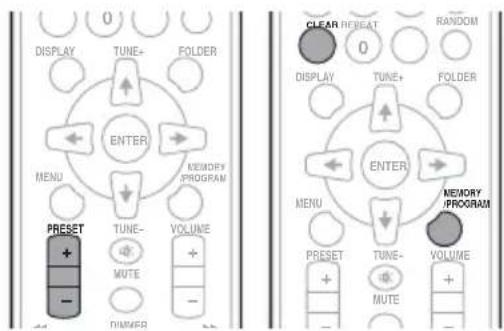

Saving station presets.... 25

To recall a memorised station 26

To scan the preset stations. 26

To erase entire preset memory.... 26

Using the Radio Data System (RDS) .....26

An introduction to RDS. 26

Searching for RDS programs.... 26

Information provided by RDS 27

Using the Auto Station program Memory (ASPM).... 27

Notes for RDS operation.... 27

09 Other connections

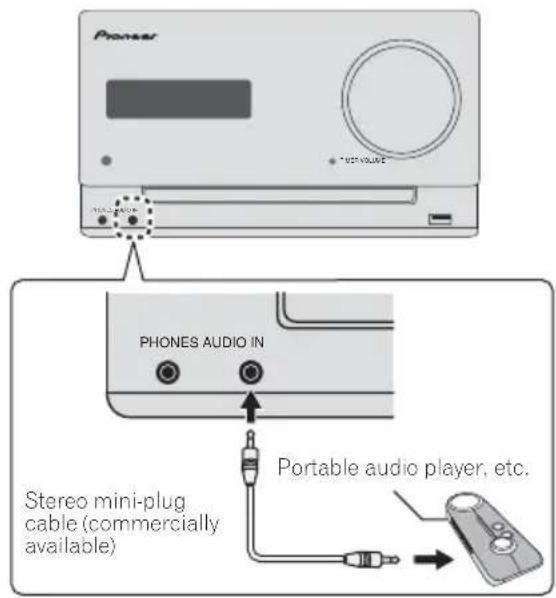

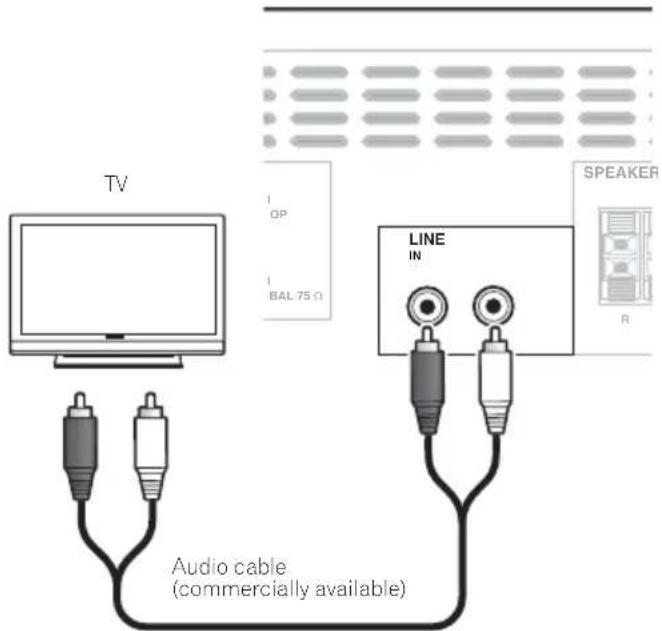

Connecting auxiliary components 28

10 Bluetooth® Audio playback

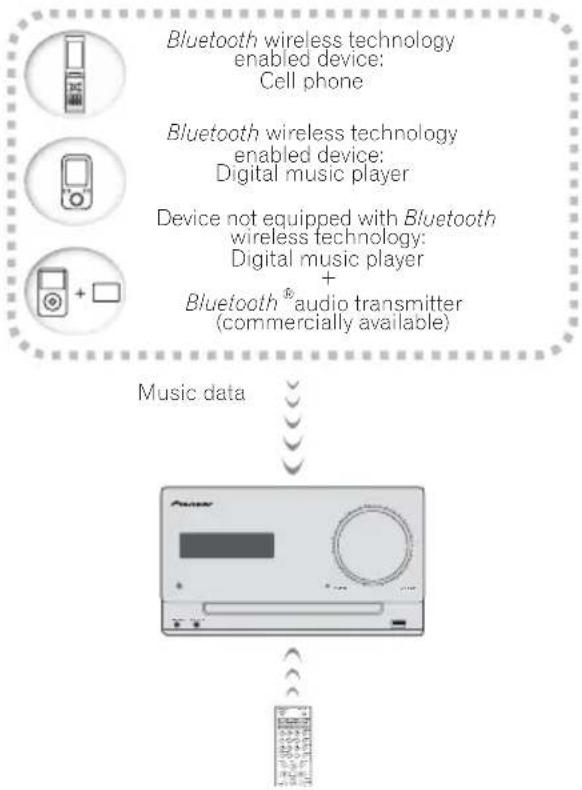

Music playback using Bluetooth wireless technology ....29

Remote control operation 29

Pairing with the unit (Initial registration) 29

Listen to music on the unit from a Bluetooth capable

device 30

BT STANDBY 30

Radio wave caution 31

Scope of operation 31

Radio wave reflections 31

Precautions regarding connections to products

supported by this unit 31

11 Additional information

Troubleshooting 32

Playable discs and formats ....34

Regarding copy protected CDs 34

Supported audio file formats 34

Cautions on use 35

When moving this unit 35

Place of installation.... 35

Do not place objects on this unit 35

About condensation 35

Cleaning the product. 35

Cleaning the lens. 35

Handling discs 36

Storing 36

Cleaning discs 36

About specially shaped discs. 36

About iPod/iPhone/iPad 36

Auto power off setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Restoring all the settings to the defaults .....36

Specifications 37

Chapter 1:

Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

• Remote Control
• AAA batteries (R03) x 2
• Powercord
• Speaker wire x 2
• AM antenna cable
• FM wire antenna
• Non-skid pads x 8
• iPhone/iPad stand
• Warranty card
• Operating instructions (this document)

Loading the batteries in the remote control

1 Open the rear lid and load the batteries as illustrated below.

Diagram of a simple electrical switch with battery and resistor components, no text or symbols present

2 Close the rear lid.

Simple line drawing of a mechanical component or tool with no text or symbols

CAUTION

• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.

• When inserting the batteries, make sure not to damage the springs on the battery's terminals. This can cause batteries to leak or over heat.

• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (⊕ and ⊖).

• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

WARNING

- Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

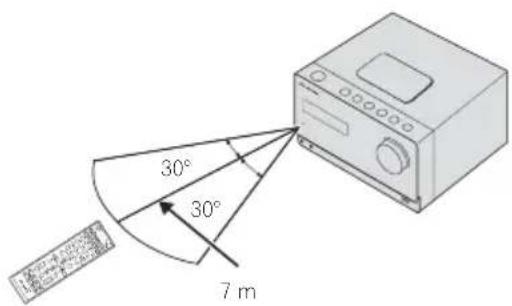

The remote has a range of about 7 m at an angle of about 30° from the remote sensor.

30° 30° 7 m

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

Chapter 2:

Part names and functions

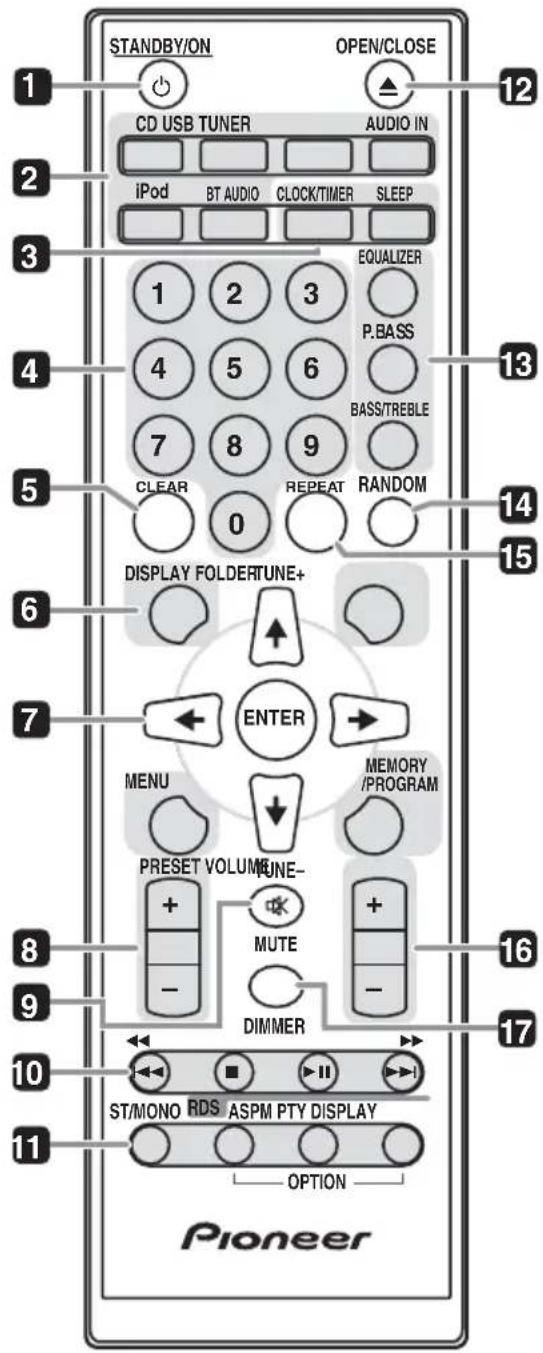

Remote control

STANDBY/ON OPEN/CLOSE CD USB TUNER AUDIO IN iPod BT AUDIO CLOCK/TIMER SLEEP EQUALIZER P.BASS 4 5 6 BASS/TREBLE 7 8 9 CLEAR REPEAT RANDOM 0 DISPLAY FOLDERTUNE+ ENTER MENU MEMORY /PROGRAM PRESET VOLUME- MUTE DIMMER ST/MONO RDS ASPM PTY DISPLAY OPTION Pioneer

1 ⏻ STANDBY/ON

Switches the receiver between standby and on (page 19).

2 Input function buttons

Use to select the input source to this receiver (page 19).

iPod (X-CM42BT only)

Use to switch between the iPod controls and the receiver controls (page 16).

BT AUDIO

Use to set up or play the audio file using the Bluetooth network (page 29).

3 CD Receiver control buttons CLOCK/TIMER

Use for setting the clock, as well as for setting and checking the timers (page 13).

SLEEP

See Using the sleep timer on page 15.

4 Numeric buttons (0 to 9)

Use to enter the number (page 20).

5 CLEAR

Use to clear the programmed play (page 21).

6 CD Receiver control buttons DISPLAY

Press to change the display for songs playing back from CD or USB (page 22).

FOLDER

Use to select the folder of the MP3/WMA disc or USB mass storage device (page 21).

MENU

Use to access the menu.

MEMORY/PROGRAM

Use to memory or program the MP3/WMA disc (page 21).

7 ↑/↓/←/→ (TUNE +/-), ENTER

Use to select/switch system settings and modes, and to confirm actions.

Use TUNE +/- can be used to find radio frequencies (page 25).

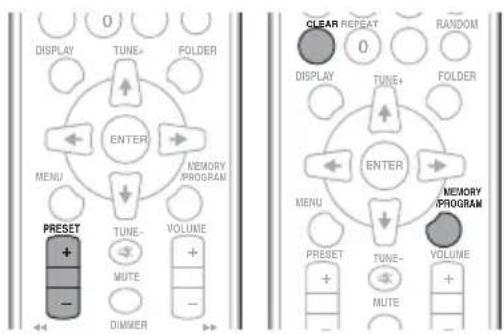

8 PRESET control buttons

Use to select preset radio stations (page 25).

9 MUTE

Mutes/unmutes the sound (page 13).

10 Playback control buttons

Use to control each function after you have selected it using the input function buttons (page 19).

11 Tuner control buttons ST/MONO

Use to switch the sound mode between stereo and monaural. (page 25)

RDS ASPM

Use to search for RDS Auto station program memory (page 26).

RDS PTY

Use to search for RDS program types (page 26).

RDS DISPLAY

Press to change the RDS display for information mode (page 26).

12 OPEN/CLOSE

Use to open or close the disc tray (page 19).

13 Sound control buttons

Adjust the sound quality (page 14).

14 RANDOM

Press to randomize order play setting from a CD, iPod or USB (page 20).

15 REPEAT

Press to change the repeat play setting from a CD, iPod or USB (page 20).

16 Volume control buttons

Use to set the listening volume (page 13).

17 DIMMER

Dims or brightens the display. The brightness can be controlled in four steps (page 13).

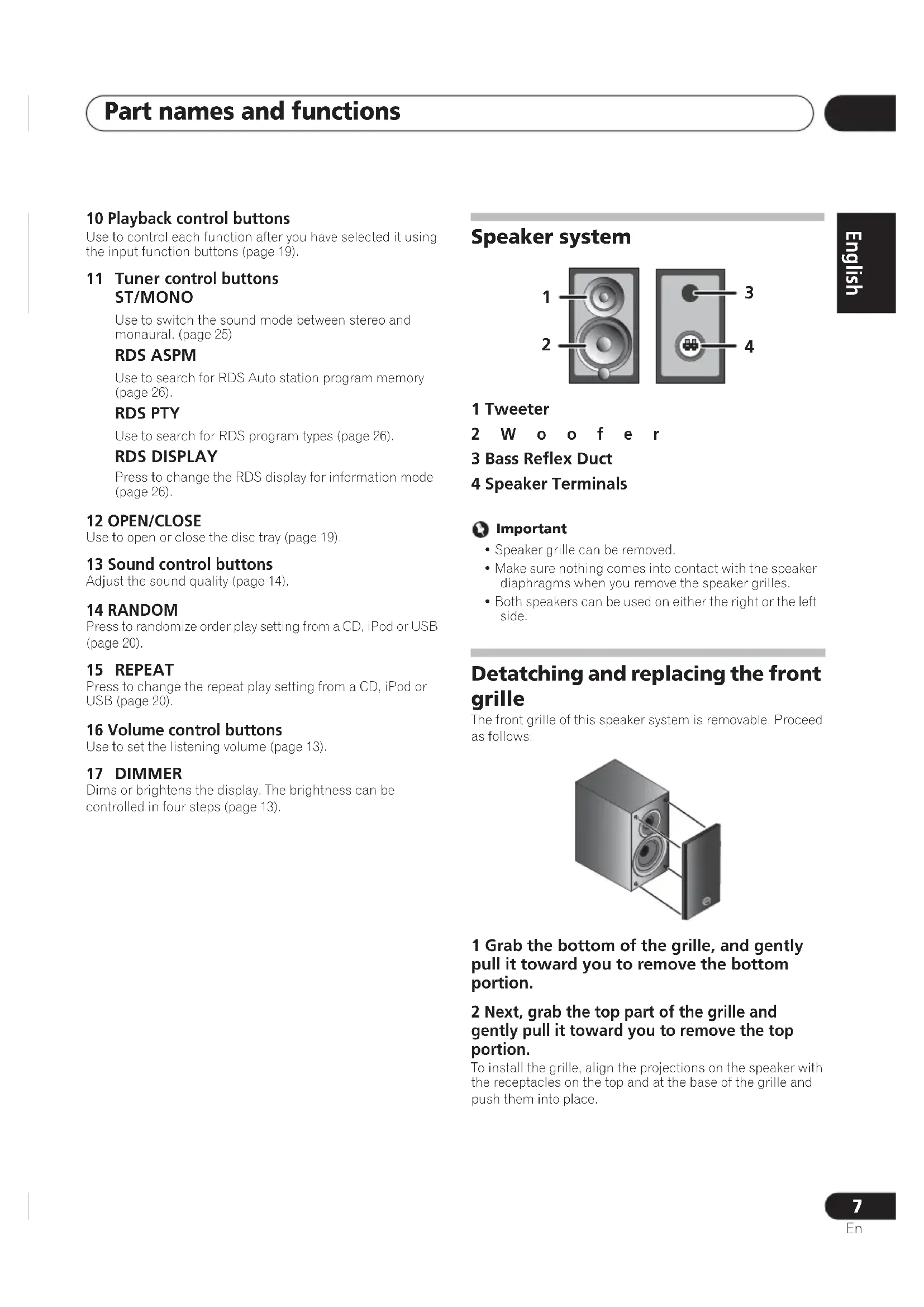

Speaker system

1 2 3 4

1 Tweeter

2 W o o f e r

3 Bass Reflex Duct

4 Speaker Terminals

Important

• Speaker grille can be removed.
  • Make sure nothing comes into contact with the speaker diaphragms when you remove the speaker grilles.
• Both speakers can be used on either the right or the left side.

Detatching and replacing the front grille

The front grille of this speaker system is removable. Proceed as follows:

3D diagram of a speaker unit with two speakers and a door, showing internal structure (no text or symbols)

1 Grab the bottom of the grille, and gently pull it toward you to remove the bottom portion.
2 Next, grab the top part of the grille and gently pull it toward you to remove the top portion.

To install the grille, align the projections on the speaker with the receptacles on the top and at the base of the grille and push them into place.

Part names and functions

Attaching the Non-skid pads

Apply the accessory non-skid pads to the bottom surfaces of the speakers.

Important

- Use the speaker is usually in an upright position.

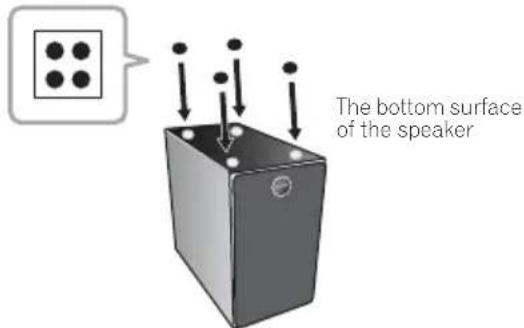

When placing speakers upright

When placing the speakers vertically upright, attach the non-skid pads to the bottom surface of the speakers.

The bottom surface of the speaker

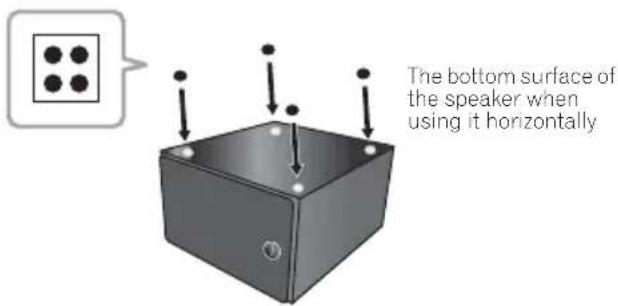

When placing speakers horizontally

When placing the speaker horizontally, attach the non-skid pads to what will be the bottom surface of the speakers.

The bottom surface of the speaker when using it horizontally

Rotating the Speaker Badge

The grill frame speaker badge can be rotated. Operate as follows.

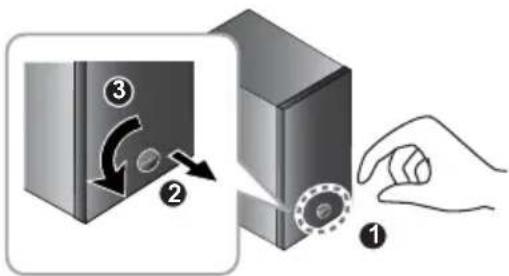

1 Grasp the speaker badge (1), pull forward (2), and turn left (3).

The speaker badge will rotate.

Diagram illustrating a door lock operation with numbered steps and directional arrows indicating rotation or movement.

If the speaker badge does not rotate doing the above step 1, try the following steps 2 to 3.

2 Detach the speaker grill.

3D diagram of a speaker unit with two speakers and a door, showing internal components (no text or symbols)

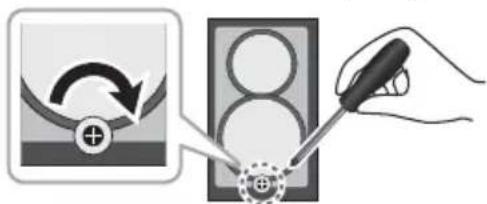

3 Rotate the screws on the backside of the grill in a clockwise direction using a plus driver.

Backside of speaker grill

Diagram illustrating a hand-drawn electrical switch operation with labeled components and directional arrows

Important

- Do not rotate the screw in a counter-clockwise direction as it may cause the badge to fall off.

Front panel

Pioneer 1 2 3 TIMER VOLUME PHONES AUDIO IN 4 7

1 Main display

2 Volume control

Use to set the listening volume (page 13).

3 Volume illumination

Light when the power on.

4 Headphone socket

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.

5 AUDIO IN socket

Use to connect an auxiliary component using a stereo minijack cable (page 28).

6 Remote sensor

Receives the signals from the remote control.

7 D i s c t r a y

Place the disc, label side up (page 19).

8 TIMER indicator

Lights when the receiver is power off with timer setting.

9 USB terminal

Use to connect your USB mass storage device or Apple iPod/iPhone/iPad as an audio source (page 23).

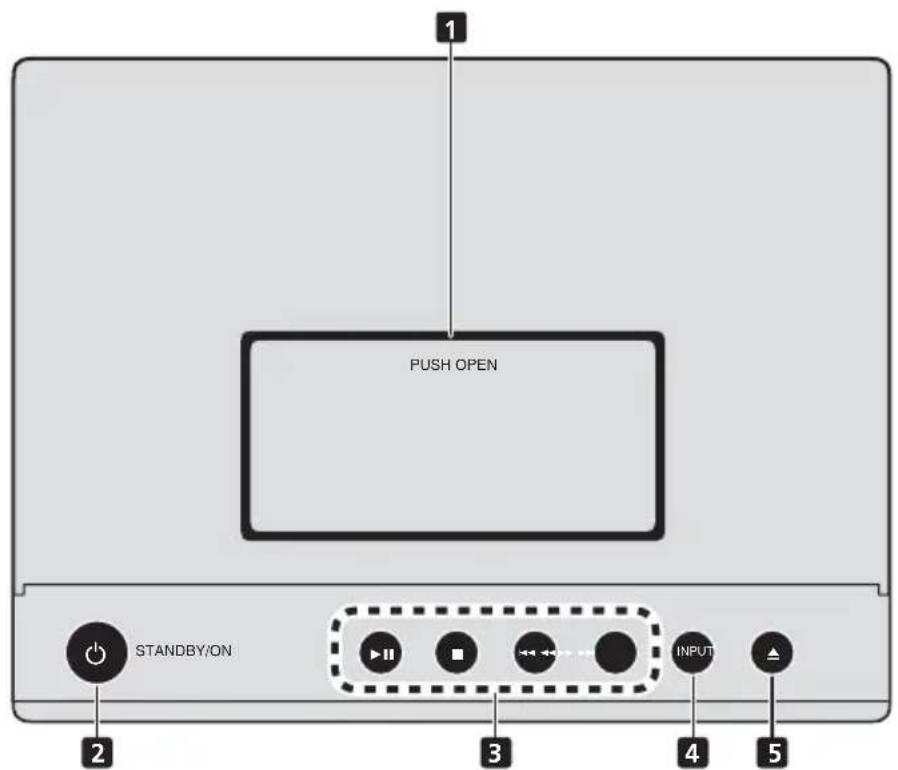

Top panel

1 PUSH OPEN STANDBY/ON 2 3 4 5

1 iPod/iPhone connector port (X-CM42BT only)

To connect the iPod/iPhone, press the PUSH OPEN tab (page 17).

2 ⏻ STANDBY/ON

Switches the receiver between standby and on (page 19).

3 Playback control buttons

Selects the desired track or file to be played back. Use to stop the playback. Stops playback or resumes playback from the pause point.

4 INPUT

Selects the input source.

Long press to change to BT STANDBY mode.

5 Disc tray open/close button

Use to open or close the disc tray (page 19).

Chapter 3:

Connections

CAUTION

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

Speaker connection

• Push open the tabs and insert exposed wire.
• The provided speaker wire with red tube is for the (+) terminal. Connect the wire with red tube the (+) terminal, and other wire to the (−) terminal.
• Both speakers can be used on either the right or the left side.

Right speaker Left speaker This unit's rear panel POTENIA AM LOOP LINE R L SPEAKERS 2 ①

Supplied speaker wire

CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
- Do not connect any speakers other than those supplied to this system.

• Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• Do not attach these speakers to the wall or ceiling. They may fall off and cause injury.
• Do not install your speakers overhead on the ceiling or wall. The grill is designed to be detachable, and as such it may fall and cause damage or personal injury if installed overhead.
  • These speakers are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television set, and then turn it on after 15 to 30 minutes. If the problem persists, move the speaker system away from the television set.
• Make sure that the speaker cable cores do not become exposed and make contact with other cable cores. This may cause malfunction of the product.
• Do not allow the speaker cable core to come into contact with the receiver body.

Illustration of a cable plugged into a wall socket with a explosion effect (no text or symbols)

- If the speaker cable core comes into contact with any metal portion of the receiver's body, it may damage the speakers and cause smoke and fire. Insert speaker cables securely into the terminals and check that the cable does not come out of easily.

Note

• There is no difference between L and R speakers.

Connecting antennas

• Connect the AM loop antenna and the FM wire antenna as shown below.
  • To improve reception and sound quality, connect external antennas (see Using external antennas).

ANTENNA AM LOOP FM UNBAL 75 Ω 1 2 3 4

1 Connect the AM antenna wires.

Holding the connector to connect.

2 Fix the AM loop antenna to the attached stand.

3 Place the AM antenna on a flat surface and in a direction giving the best reception.

4 Connect the FM wire antenna into the FM antenna socket.

For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave coiled up.

Using external antennas

To improve FM reception

Use a PAL connector (not supplied) to connect an external FM antenna.

One-touch PAL connector 75 Ω coaxial cable ANTENNA FM UNBAL 75 Ω

Plugging in

Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

After you've finished making all connections, plug the unit into an AC outlet.

This unit's rear panel

LINE n SPEAKER NCN Power cord

To AC outlet

CAUTION

• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described above.

Chapter 4:

Getting started

To turn the power on

Press the ⏻ STANDBY/ON to turn the power on.

After use:

Press the Ⓧ STANDBY/ON to enter the power stand-by mode.

Note

- In standby mode, if iPod/iPhone/iPad is connected, the unit turns charge mode.

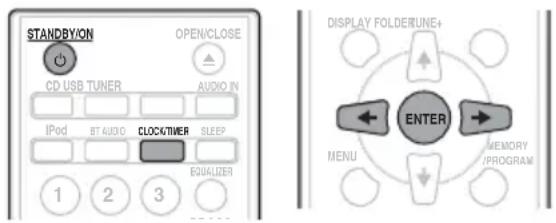

Setting the clock

STANDBY/ON OPEN/CLOSE CD USB TUNER AUDIO IN IPoD BT AUDIO CLOCK/TIVER SLEEP EQUALIZER 1 2 3 DISPLAY FOLDERUNE+ ENTER MENU MEMORY PROGRAM

1 Press ⏻ STANDBY/ON to turn the power on.

2 Press CLOCK/TIMER on the remote control.

"CLOCK" is shown on the main display.

3 Press ENTER.

4 Press / to set the day, then press ENTER.

5 Press ←/→ to set the hour, then press ENTER.

6 Press ←/→ to set the minute, then press ENTER to confirm.

7 Press ENTER.

To confirm the time display:

Press the CLOCK/TIMER. The time display will appear for about 10 seconds.

To readjust the clock:

Perform "Setting the clock" from step 1.

Note

- When power supply is restored after unit is plugged in again or after a power failure, reset the clock.

General control

Input function

When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatedly to select desired function.
    (X-CM42BT only)

Display brightness control

Press DIMMER to dims the display brightness. The brightness can be controlled in four steps.

Volume auto set-in

If you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30 and sets in to the last set level.

Volume control

Turn the volume knob towards VOLUME (on main unit) or press VOLUME +/- (on remote control) to increase or decrease the volume.

CAUTION

- The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Muting

The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.

Sound controls

Equalizer

When the EQUALIZER is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER repeatedly until the desired sound mode appears.
    note1["A powerful sound that emphasizes low and high tones"]
    note2["A sound that allows the radio or vocals to be heard more easily"]
    note3["A sound that can be enjoyed at night even with lower volume"]

P.bass control

When the power is first turned on, the unit will enter the P.bass mode which emphasises the bass frequencies. To cancel the P.bass mode, press the P.BASS on the remote control.

Bass/treble control

Press the BASS/TREBLE, then press / to adjust the bass or treble.

Note

• The EQUALIZER and P.BASS cannot operate simultaneously. The most recently selected of these two functions will be the one used.
• BASS/TREBLE can operate alongside either the EQUALIZER or P.BASS.

When one of the above two functions is selected, the function that is not selected will be displayed as follows.

1 When P.BASS setting (ON/OFF) is changed

• EQUALIZER : FLAT

2 When EQUALIZER setting is changed

• P.BASS : OFF

Setting the wake-up timer

Used to change the existing timer setting, or to set a new timer.

1 P r ⏻ STANDBY/ON to turn the power on.

2 Press and hold CLOCK/TIMER.

3 P r ←e→ to select "ONCE" or "DAILY", then press ENTER.

ONCE – Once timer play works for one time only at a preset time.

DAILY – Daily timer play works at the same preset time and days of week.

4 P r ←e→ to select "TIMER SET", then press ENTER.

5 P r ←→ sto select the timer playback source, then press ENTER.

CD, FM, AM, USB/IPOD, IPOD (X-CM42BT only), BT AUDIO, AUDIO IN and LINE can be selected as the playback source.

6 P r ←e→ sto select the timer day, then press ENTER.

7 P r ←e→ to set the hour, then press ENTER.

8 P r ←e→ to set the minute, then press ENTER.

Set the time to finish as in steps 7 and 8 above.

9 Adjust the volume press VOLUME +/- , then press ENTER.

10 Press ⏻ STANDBY/ON to enter the power standby mode.

The TIMER indicator lights up.

Calling the wake-up timer

It can be used to re-use an existing timer setting.

1 As well as steps 1 through 3 in "Setting the wake-up timer".

2 Press ←/→ to select "TIMER ON", then press ENTER.

Cancelling the wake-up timer

It can be used to turn off the timer setting.

1 As well as steps 1 through 3 in "Setting the wake-up timer".

2 Press ←/→ to select "TIMER OFF", then press ENTER.

Using the wake-up timer

1 Press ⏻ STANDBY/ON to turn the power off.

2 At the wake-up time, this unit will turn on automatically and play the selected input function.

Note

• If at the wake-up time iPod/iPhone/iPad is not connected to this unit or a disc is not inserted, this unit will be turned to on and not play back the track.
• Some discs may not be played automatically at the wake-up time.
• If you set the timer, take one minute or more between the start and end time.

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

1 Press SLEEP repeatedly to select a switch off time.

Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 150 min, 180 min or OFF. The newly set value displays for 3 seconds, and then the setting is completed.

Note

- The sleep timer can be set by pressing SLEEP while the remaining time is displayed.

Using Headphones

Connect to the jack plug of the headphones.

When the headphones are connected, there is no sound output from the speakers.

Pioneer NATIONAL ACCESS

• Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.
• Before plugging in or unplugging the headphone, reduce the volume.
• Be sure your headphone has a 3.5 mm diameter plug and impedance between 16 Ω and 50 Ω. The recommended impedance is 32 Ω.

Chapter 5:

iPod/iPhone/iPad playback

Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad.

Confirming what iPod/iPhone/iPad models are supported

The iPod/iPhone/iPad playable on this unit are shown below.

iPod/iPhone/iPad	Lightning connector (X-CM42BT only)	USB Terminal
iPod nano 3G/4G/5G/6G — √
iPod nano 7G √	√
iPod touch 1G/2G/3G/4G — √
iPod touch 5G √	√
iPhone — √
iPhone 3G — √
iPhone 3GS — √
iPhone 4 — √
iPhone 4s — √
iPhone 5 √	√
iPhone 5c	√	√
iPhone 5s	√	√
iPad mini	— √
iPad mini with Retina display	— √
iPad	— √
iPad 2	— √
iPad (3rd generation)	— √
iPad (4th generation)	— √
iPad Air	— √

Note

• Pioneer does not guarantee that this unit plays iPod/iPhone/iPad models other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone/iPad is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.

• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.

• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.
• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ios/eu/).
• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.
• This unit cannot be used to record CD, tuner or other content on an iPod/iPhone/iPad.

Connecting your iPod/iPhone/iPad

CAUTION

• When connecting iPod/iPhone/iPad devices, use the iPod/iPhone/iPad cable provided with iPod/iPhone/iPad devices, or a commercially available iPod/iPhone/iPad cable designed to support iPod/iPhone/iPad.
• An iPod/iPhone/iPad cable is not supplied with this unit.

Important

- If you are mounting the protective cover of a commercially available iPod/iPhone/iPad, you may not be able to connect iPod/iPhone/iPad to this unit.

Connecting iPod/iPhone to the top panel (X-CM42BT only)

1 Press the PUSH OPEN.

NEEHEH

2 Open the iPod/iPhone connector port.

Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

3 Connect your iPod/iPhone.

Illustration of a smartphone inserting into a device with an arrow indicating the process (no text or symbols present)

Close the iPod/iPhone connector port (X-CM42BT only)

- While pull the PULL CLOSE knob (1), close the iPod/iPhone/iPad connector port firmly (2).

Diagram showing a mechanical or electronic component with labeled parts 1 and 2, indicating directional movement or assembly.

- When iPod/iPhone is not connected to the unit, close the iPod/iPhone connector port firmly.

Focalize

Connecting iPod/iPhone/iPad using supplied stand

1 Connect the unit to an iPod/iPhone/iPad with the iPod/iPhone/iPad cable.

iPod/iPhone/iPad cable

2 Set up to stand the iPod/iPhone/iPad.

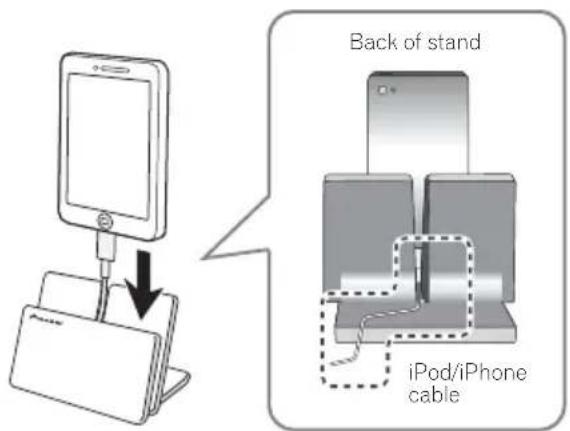

When using an iPod/iPhone

Make sure the iPod/iPhone cable is aligned along the groove for it on the back of the stand that comes with the unit.

Back of stand iPod/iPhone cable

When using iPad

Make sure to place the iPad in a horizontal direction on the stand.

Diagram showing a tablet connected to a device via cable, with a downward arrow indicating download or upload (no text or symbols present)

Playing iPod/iPhone

1 Connect your iPod/iPhone.

If an iPod/iPhone is connected when this unit is on, playback of the iPod/iPhone will not begin.

2 Press iPod or USB as the input source.

"IPOD" or "USB/IPOD" is shown on the main display.

3 When the recognition is completed, will begin playing automatically.

Playing iPad

1 Connect your iPad.

If an iPad is connected when this unit is on, playback of the iPad will not begin.

2 P r USB as the input source.

"USB/IPOD" is shown on the main display.

3 When the recognition is completed, will begin playing automatically.

CAUTION

- When your iPod/iPhone/iPad is connected to this unit and you wish to operate the iPod/iPhone/iPad directly, be sure to steady the iPod/iPhone/iPad with the other hand to prevent malfunctions due to faulty contacts.

Note

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/ iPhone/iPad.
• iPod/iPhone/iPad recharging occurs whenever an iPod/iPhone/iPad is connected to this unit. (This function is supported in standby mode as well.)
• When input is switched from iPod to another function, iPod/iPhone/iPad playback is temporarily stopped.
• When iPod/iPhone/iPad is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON.
  • Auto power off can be switched to ON/OFF (page 36).

Important

• If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:
• Check whether the iPod/iPhone/iPad is supported by this unit.
• Reconnect the iPod/iPhone/iPad to the unit. If this doesn't seem to work, try resetting your iPod/iPhone/iPad.
• Check the iPod/iPhone/iPad software is supported by this unit.
• If the iPod/iPhone/iPad cannot be operated, check the following items:
• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.
• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

Chapter 6:

Disc playback

This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

MP3:

MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality.

• This system supports MPEG-1/2 Audio Layer 3 (Sampling rates: 8 kHz to 48 kHz; Bit rates: 32 kbps to 320 kbps).
- During VBR file playback, time counter in the display may differ from its actual playback time.

WMA:

WMA (Windows Media Audio) files are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player.

• This system supports WMA (Sampling rates: 32 kHz/44.1 kHz/48 kHz; Bit rates: 64 kbps to 320 kbps).
• During VBR file playback, time counter in the display may differ from its actual playback time.

Playing discs or files

1 Press ⏻ STANDBY/ON to turn the power on.

2 Press CD on the remote control or INPUT repeatedly on the main unit to select CD input.

3 Press ▲ OPEN/CLOSE to open the disc tray.

4 Place the disc on the disc tray, label side up.

Illustration of a hand holding a circular object above a square base with a curved arrow indicating rotation (no text or symbols)

5 Press ▲ OPEN/CLOSE to close the disc tray.

6 Press ▶II to start playback.

After the last track is played, the unit will stop automatically.

CAUTION

• Do not place two discs in one disc tray.
• Do not play discs of special shapes (heart, octagon, etc). It may cause malfunctions.
• Do not push the disc tray whilst it is moving.
• If the power fails whilst the tray is open, wait until the power is restored.
• Be sure to place 8cm disc in the middle of the disc tray.

Note

• Due to the structure of the disc information, it takes longer to read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).
• When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode (only for CD).
• If TV or radio interference occurs during CD operation, move the unit away from the TV or radio.

Tip

• When no operation has done in CD mode and the audio file is not played for more than 20 minutes, the power will automatically turn off. In this case it is required that the Auto power off is switched to ON.
  • Auto power off can be switched to ON/OFF (page 36).

Various disc functions

Function	Main unit	Remote control	Operation
Play			Press in the stop mode.
Stop			Press in the playback mode.
Pause			Press in the playback mode. Press ▶II to resume playback from the paused point.
Track up/ down			Press in the playback or stop mode. If you press the button in the stop mode, press ▶II to start the desired track.
Fast forward/ reverse			Press and hold down in the playback mode. Release the button to resume playback.

Advanced CD or MP3/WMA disc playback

STANDBY/ON OPEN/CLOSE CD USB TUNER AUDIO IN iPod BT AUDIO CLOCK/TIMER SLEEP EQUALizer 1 2 3 P.BASS 4 5 6 BASSTRELE 7 8 9 CLEAR REPEAIRANDOM 0 DISPLAY FOLDERUNE+ ENTER MENU MEMORY /\PROGRAM TUNE- VOLUME + - MUTE - DIMMER STANDARD ASPM PTY DISPLAY

Direct track search

By using the numeric buttons, the desired tracks on the current disc can be played.

Use the numeric buttons on the remote control to select the desired track whilst playing the selected disc.

Note

- A track number higher than the number of tracks on the disc cannot be selected.

To stop playback:

Press ■

Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press REPEAT repeatedly until "RPT ONE" appears. Press ENTER.

To repeat all tracks:

Press REPEAT repeatedly until "RPT ALL" appears. Press ENTER.

To repeat desired tracks:

Perform steps 1 - 5 in "Programmed play" section on next page and then press REPEAT repeatedly until "RPT ALL" appears. Press ENTER.

To cancel repeat play:

Press REPEAT repeatedly until "RPT OFF" appears. Press ENTER.

Note

• After performing repeat play, be sure to press ■. Otherwise, the disc will play continuously.
- During repeat play, random play is not possible.

Random play

The tracks on the disc can be played in random order automatically.

To random play all tracks:

Press RANDOM repeatedly until "RDM ON" appears. Press ENTER.

To cancel random play:

Press RANDOM repeatedly until "RDM OFF" appears. Press ENTER.

Note

• If you press the ▶▶ during random play, you can move to the track selected next by the random operation.
• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
• During random play, repeat play is not possible.

Programmed play (CD or MP3/WMA)

You can choose up to 32 selections for playback in the order you like.

1 Whilst in the stop mode, press MEMORY/PROGRAM on the remote control to enter the programming save mode.

2 Press |◀◀▶▶| or the numeric buttons on the remote control to select the desired tracks.

3 Press ENTER to save folder and track number.

4 Repeat steps 2 - 3 for other folder/tracks. Up to 32 tracks can be programmed.

• If you want to check the programmed tracks, press MEMORY/PROGRAM.
• If you make a mistake, the last programmed tracks will be canceled by pressing CLEAR.

5 Press ▶II to start playback.

To cancel the programmed play mode:

To cancel the programmed play, press twice ■ on the remote control. The display will show "PRG CLR" and all the programmed contents will be cleared.

Adding tracks to the program:

Press the MEMORY/PROGRAM. Then follow steps 2 - 3 to add tracks.

Note

• When a disc is ejected, the program is automatically cancelled.
• If you press the ⏻ STANDBY/ON to enter the standby mode or change the function from CD to another, the programmed selections will be cleared.
• During the program operation, random play is not possible.

About downloading MP3/WMA

There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc.

- Your downloaded song/files are for personal use only. Any other usage of the song without owner's permission, is against the law.

About folder playback order

If MP3/WMA files are recorded in several folders, a folder number will be set to each folder automatically.
These folders can be selected by the FOLDER on the remote control. If there is no supported file formats inside the selected folder, the folder is skipped and the next folder will be selected.
Example: How to set folder number if MP3/WMA format files are recorded as below figure.
1 ROOT folder is set as folder 1.
2 As for folders inside ROOT folder (Folder A and Folder B), the folder which is recorded earlier on the disc will be set as folder 2 and folder 3.
3 As for folder inside Folder A (Folder C and Folder D), the folder which is recorded earlier on the disc will be set as folder 4 and folder 5.
4 Folder E that is inside Folder D will be set as folder 6.

- The folder and file order information which is recorded on the disc depends on the writing software. There maybe possibilities that this unit will playback the files not according to our expected playback order.

- From a disc with MP3/WMA files up to 255 folders and 999 files (including non playable files) can be read.

Specify the folder to play

Specify the folder to play, do the following steps.

STANDBYION OPEN/CLOSE CD USB TUNER AUDIO IN iPod BT AUDIO CLOCK/TWER SLEEP EQUALIZER 1 2 3 P.BASS 4 5 6 BASS/TREBLE 7 8 9 RANDOM DISPLAY TUNE+ FOLDER ENTER MENU MEMORY/ PROGRAM PRESET TUNE- VOLUME + MUTE - + - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - DISPLAY TUNE+ FOLDER ENTER MENU MEMORY/ PROGRAM PRESET TUNE- VOLUME + MUTE - - - - - - - - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - *

1 Press CD, and load an MP3/WMA disc.
2 Press FOLDER, and press ↑/↓ to select desired playback folder.

3 Press ENTER.

Playback will start from the first song of the selected folder.

- In case of stop, press / , and the folder can be selected.

Switch the display contents

1 P r DISPLAY.s

If the title, artist and album name has been written to the file, that information will be displayed. (You can view this unit is only alphanumeric characters. Non-alphanumeric character are displayed in the "*".)

Note

• "Copyright protected WMA file" or "Not supported playback file" can not be playback. In this case, will be skipped automatically.
• There may be cases where no information can be displayed.
• Displaying title, artist and album name is only supported for MP3 files.

Chapter 7:

USB playback

Playing USB storage devices

It is possible to listen to two-channel audio using the USB interface on the front of this receiver.

- Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

1 Press USB as the input source.

"USB/IPOD" is shown on the main display.

2 Connect the USB storage device.

The number of folders or files stored on the connected USB storage device appear on the main display automatically.

• This receiver does not support a USB hub.

TIMER VOLUME USB storage device (commercially available)

3 When the recognition is completed, press ▶II to start playback.

When changing to a different input source, stop the USB memory playback first, before changing.

4 Disconnect USB storage device from the USB terminal.

Turn the power off before removing the USB storage device.

Note

• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 33.
• When a USB storage device is not playing and the unit has not been operated for 20 minutes or more, the power will automatically turn off. In this case it is required that the Auto power off is switched to ON (page 36).

Repeat play

Repeat play can play one track, all tracks or a programmed sequence continuously.

To repeat one track:

Press REPEAT repeatedly until "RPT ONE" appears. Press ENTER.

To repeat all tracks:

Press REPEAT repeatedly until "RPT ALL" appears. Press ENTER.

To repeat desired tracks:

Perform steps 1 - 5 in Programmed play (CD or MP3/WMA) on page 21 and then press REPEAT repeatedly until "RPT ALL" appears. Press ENTER.

To cancel repeat play:

Press REPEAT repeatedly until "RPT OFF" appears. Press ENTER.

Note

• After performing repeat play, be sure to press ■. Otherwise, the file of USB storage device will play continuously.
- During repeat play, random play is not possible.

Random play

The file of USB storage device can be played in random order automatically.

To random play all tracks:

Press RANDOM repeatedly until "RDM ON" appears. Press ENTER.

To cancel random play:

Press RANDOM repeatedly until "RDM OFF" appears. Press ENTER.

Note

• If you press the ▶▶▶ during random play, you can move to the track selected next by the random operation.
• In random play, the unit will select and play tracks automatically. (You cannot select the order of the tracks.)
• During random play, repeat play is not possible.

Specify the folder to play

Specify the folder to play, do the following steps.

1 Press USB, and connect the USB storage device.

2 Press FOLDER, and press ↑/↓ to select desired playback folder.

3 Press ENTER.

Playback will start from the first song of the selected folder.

- In case of stop, press / , and the folder can be selected.

Switch the display contents

This unit can switch the information recorded in the USB storage device. For details, see Switch the display contents on page 22.

Playing in the desired order (Programmed Play)

• This unit can play repeatedly folders stored in the USB storage device.
• From a USB storage device with MP3/WMA files up to 255 folders and 999 files (including non playable files) can be read.

Chapter 8:

Using the tuner

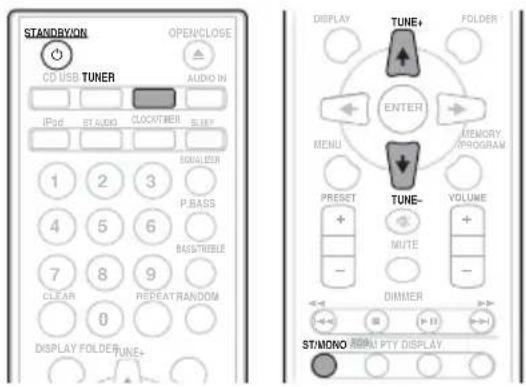

Listening to the radio broadcasts

The following steps show you how to tune in to FM and AM radio broadcasts using the automatic (search) and manual (step) tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this.

STANDBYON OPENCLOSE CD USB TUNER AUDIO IN IPD6 ST AUDIO CLOCK/TINER BLUE SIGNALER 1 2 3 P.BASS 4 5 6 BASIK/TINERLE 7 8 9 CLEAR REPEAT RANDOM 0 DISPLAY FOLDER/TUNE+ DISPLAY TUNE+ FOLDER ENTER MEMU MEMORY/PROGRAM TUNE- VOLUME + MUTE - DIMMER ST/MONO ROMAN PTY DISPLAY

Tuning

1 Press the ⏻ STANDBY/ON to turn the power on.

2 Press TUNER repeatedly to select desired frequency band (FM or AM).

3 Press TUNE +/- on the remote control to tune in to the desired station.

Automatic tuning:

Press and hold TUNE +/- , scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Manual tuning:

Press the TUNE +/- repeatedly to tune in to the desired station.

Note

• When radio interference occurs, automatic tuning may stop automatically at that point.
  • Automatic tuning will skip weak signal stations.
  • To stop the automatic tuning, press ■.

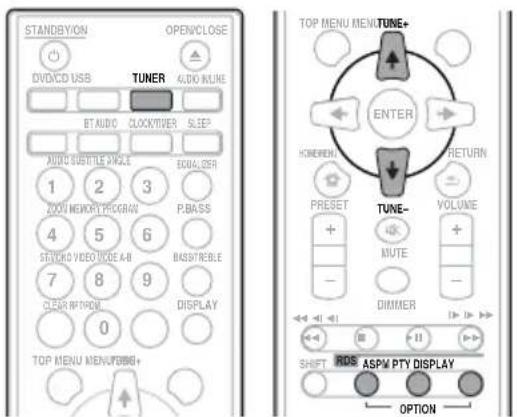

• When an RDS (Radio Data System) station is tuned in, the frequency will be displayed first. Finally, the station name will appear.
• Full auto tuning can be achieved for RDS stations using Auto Station Program Memory (ASPM) mode, see page 27.

To receive an FM stereo transmission:

Press ST/MONO to select stereo mode and "AUTO" will be displayed.

Improving poor FM reception:

1 Press ST/MONO repeatedly to select MONO.

This will change the tuner from stereo to mono and usually improve the reception.

Saving station presets

If you often listen to a particular radio station, it's convenient to have the receiver store the frequency for easy recall whenever you want to listen to that station (Preset tuning). This saves the effort of manually tuning in each time. This unit can memorize up to 45 stations. (FM 30 stations/AM 15 stations)

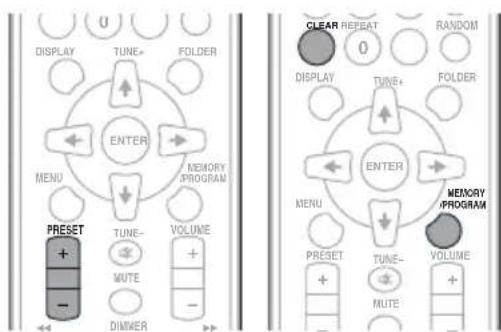

DISPLAY TUNE+ FOLDER ENTER MENU NEADY PROGRAM PRESET TUNE- VOLUME MUTE DINNER CLEAR REPEAT 0 RANDOM DISPLAY TUNE+ FOLDER ENTER MENU MEMORY PROGRAM PRESET TUNE- VOLUME MUTE -

1 Tune to a station you want to memorize.

See Tuning above for more on this.

2 Press MEMORY/PROGRAM.

The preset number will flash.

3 Press PRESET +/- to select the preset channel number.

4 Press MEMORY/PROGRAM to store that station in memory.

If the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2.

- Repeat steps 1 - 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased.

Note

- The backup function protects the memorised stations for a few hours should there be a power failure or the AC power cord become disconnected.

To recall a memorised station

1 Press PRESET +/- to select the desired station.

To scan the preset stations

The stations saved in the memory can be scanned automatically. (Preset memory scan)

1 Press and hold PRESET +/-.

The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press PRESET +/- again when the desired station is located.

To erase entire preset memory

1 Press TUNER on the remote control.

2 Press CLEAR until "MEM CLR" appears.

Note

- All stations will be erased.

Using the Radio Data System (RDS)

An introduction to RDS

Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information—the name of the station and the kind of show they're broadcasting, for example.

One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ.

You can search the following program types:

NEWS – News

AFFAIRS – Current Affairs

INFO - General Information

SPORT - Sport

EDUCATE – Educational

DRAMA – Radio plays, etc.

CULTURE – National or

regional culture, theater, etc.

SCIENCE – Science and technology

VARIED – Usually talk-based material, such as quiz shows or interviews.

POP M - Pop music

ROCK M - Rock music

EASY M - Easy listening

LIGHT M – 'Light' classical music

CLASSICS – 'Serious' classical music

OTHER M – Music not fitting above categories

WEATHER – Weather reports

FINANCE – Stock market reports, commerce, trading, etc.

CHILDREN – Programs for children

SOCIAL – Social affairs

RELIGION – Programs concerning religion

PHONE IN – Public expressing their views by Phone

TRAVEL – Holiday-type travel rather than traffic announcements

LEISURE – Leisure interests and hobbies

JAZZ - Jazz

COUNTRY – Country music

NATION M – Popular music in a language other than English

OLDIES – Popular music from the '50s and '60s

FOLK M – Folk music

DOCUMENT – Documentary

TEST – Broadcasting when testing emergency broadcast equipment or receivers.

ALARM – Emergency announcement made under exceptional circumstances to give warning of events causing danger of a general nature.

Searching for RDS programs

You can search a program type listed above.

1 P r TUNER on the remote control.

RDS is only possible in the FM.

2 Press RDS PTY on the remote control.

"SELECT" will appear for about 6 seconds.

3 P r ←e→sto select the program type you want to hear.

Each time the button is pressed, the program type will appear. If the button is held down, the program type will appear continuously.

4 Whilst the selected program type is displayed (within 6 seconds), Press RDS PTY again.

After the selected program type has been lit for 2 seconds, "SEARCH" will appear, and the search operation will start.

Note

- If the display has stopped flashing, start again from step 2. If the unit finds a desired program type, the corresponding channel number will lit for about 8 seconds, and then the station name will remain it.

- If you want to listen to the same program type of another station, press the RDS PTY whilst the channel number or station name is flashing. The unit will look for the next station.

- If no station can be found, "NO FOUND" will appear for 4 seconds.

Information provided by RDS

Each time the RDS DISPLAY is pressed, the display will switch as follows:

STANDBYION OPENCLOSE DVD/CD USB TUNER AUDIO KLINE BTAUDIO CLOCKTIVER SLEEP AUDIO SUSTILE ANGLE EQUALizer 1 2 3 200 NEWRY PROGRAM P.BASS 4 5 6 SECOND VIDEO CODE A-B BASISTREBLE 7 8 9 CLEAR OUTPUT DISPLAY 0 TOP MENU MENUBISH+ TOP MENU MEN.TUNE+ ENTER HONEMIN RETURN TUNE- VOLUME + - MUTE - DIMMER SHIFT RDS ASPW PTY DISPLAY OPTION

When tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

Using the Auto Station program Memory (ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 30 stations can be stored.

If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press TUNER on the remote control.

2 Press and hold down RDS ASPM on the remote control.

After "ASPM" has flashed for about 4 seconds, scanning will start (87.5 - 108 MHz).

After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then "END" will appear for 4 seconds.

To stop the ASPM operation before it is complete:

Press ■ whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

Note

• If the same station is broadcasting on different frequencies, the strongest frequency will be stored in memory.
• Any station which has the same frequency as the one stored in memory will not be stored.
• If 30 stations have already been stored in memory, the scan will be aborted. If you want to redo the ASPM operation, erase the preset memory.
• If no station have been stored in memory, "END" will appear for about 4 seconds.
• If the RDS signals are very weak, station names may not be stored in memory.
• The same station name can be stored in different channels.
• In a certain area or during certain time periods, the station names may temporarily be different.

Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

• "PS", "No PS" and a station name appear alternately, and properly.
• If a particular station is not broadcasting properly or a station is conducting tests, the RDS reception function may not work properly.
• When you receive an RDS station whose signal is too weak, information like the station name may not be displayed.
• "No PS", "No PYT" or "No RT" will flash for about 5 seconds, and then the frequency will be displayed.

Notes for radio text:

• The first 8 characters of the radio text will appear and then they will scroll across the display.
• If you tune in to an RDS station which is not broadcasting any radio text, "No RT" will be displayed when you switch to the radio text position.
• Whilst radio text data is received or when the text contents change, "RT" will be displayed.

Chapter 9:

Other connections

CAUTION

- Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Connecting auxiliary components

Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component.

- This method can be used to play music on this unit from iPods/iPhones/iPads that do not support use of the iPod/ iPhone connector and USB terminal.

Pioneer * 10V AC/DC PHONES AUDIO IN Stereo mini-plug cable (commercially available) Portable audio player, etc.

1 Press AUDIO IN as the input source.

When AUDIO IN is selected, "AUDIO IN" is displayed on the main display.

Note

- If AUDIO IN mini-plug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

Connect the rear panel LINE IN audio jacks to your auxiliary playback component.

This unit's rear panel

TV I OP I BAL 75 Ω SPEAKER LINE IN Audio cable (commercially available)

1 P r AUDIO INstwice as the input source.

When LINE is selected, "LINE" is displayed on the main display.

Chapter 10:

Bluetooth® Audio playback

Music playback using Bluetooth wireless technology
    BPBgI["Gearner Wireless Technology"]

The unit is capable of playing back music stored on Bluetooth capable devices (cell phones, digital music players etc.) wirelessly. You can also use a Bluetooth audio transmitter (sold separately) to enjoy music from devices that do not have Bluetooth functionality. Please refer to the user's manual for your Bluetooth capable device for more details.

Note

• The Bluetooth® mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
• The Bluetooth wireless technology enabled device must support A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.

Remote control operation

The remote control supplied with this unit allows you to play and stop media, and perform other operations.

Note

• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

Pairing with the unit (Initial registration)

In order for the unit to playback music stored on a Bluetooth capable device, pairing must first be performed. Pairing should be performed when first using the unit with the Bluetooth capable device, or when the pairing data on the device has been erased for any reason.

Pairing is a step required to allow communication using Bluetooth wireless technology to be carried out.

• Pairing is only performed the first time that you use the unit and the Bluetooth capable device together.
• In order to allow communication using Bluetooth wireless technology to take place, pairing must be performed on both the unit and the Bluetooth capable device.
  • After pressing the BT AUDIO and switching to BT AUDIO input, perform the pairing procedure on the Bluetooth capable device. If pairing has been performed correctly, you will not need to perform the pairing procedures for the unit as shown below.

Please refer to the user's manual for your Bluetooth capable device for more details.

1 Press the ⏻ STANDBY/ON and turn the power to the unit on.

2 Press the BT AUDIO.

The unit switches to BT AUDIO and "PAIRING" will be displayed.

3 Turn on the power to the Bluetooth capable device that you wish to pair with, and perform pairing procedure on it.

Note

- This unit will be displayed as "X-CM32" or "X-CM42" on all Bluetooth capable devices that you have. Pairing will start.

- Place the Bluetooth capable device close to the unit.

- Please refer to the user's manual for your Bluetooth capable device for details on when pairing can be performed and the procedures required for pairing.

- When PIN code entry is requested, enter "0000." (This unit does not accept any PIN code setting other than "0000.")

4 Confirm on the Bluetooth capable device that pairing has been completed.

If pairing with the Bluetooth capable device has been completed correctly, the name of the Bluetooth capable device will be displayed on the front panel of the unit. (Only single-byte alphanumeric characters can be displayed. Any character that cannot be displayed will be indicated by a “*”).

Listen to music on the unit from a Bluetooth capable device

1 Press the BT AUDIO.

The unit will switch to BT AUDIO input.

2 A Bluetooth connection will be created between the Bluetooth capable device and the unit.

Procedures for connecting to the unit should be performed from the Bluetooth capable device.

- Please refer to the user's manual for your Bluetooth capable device for details of the connection procedures.

3 Playback music from the Bluetooth capable device.

Note

- When Bluetooth capable devise is not connected and no operations have been performed for more than 20 minutes, the unit will automatically power off. In this case it is required that the Auto power off is switched to ON.

• Auto power off can be switched to ON/OFF (page 36).

BT STANDBY

• The following can be done when the unit is on standby with the BT STANDBY switched ON.
• By selecting a Bluetooth capable device that already has a connection history (pairing has already been nit. conducted) with this unit, this unit will automatically turn on with the BT AUDIO function.

BT STANDBY settings

• Switch ON/OFF by long pressing the INPUT button located on the top of the unit for 3 seconds.
• When the power is ON, long press the INPUT button. This cannot be operated if the power is not on.
• The setting operation can only be performed by using the INPUT button on the unit. The setting cannot be performed using the remote control.

Note

• When the BT STANDBY is ON, "BT STANDBY ON" is displayed on the main display.
• When the BT STANDBY is OFF, "BT STANDBY OFF" is displayed on the main display.

Connection while in BT STANDBY mode with Bluetooth capable device

When connection history (pairing has already been conducted) with a Bluetooth capable device exists for the unit during BT STANDBY, the unit can receive a connection request directly from the connection history.

The unit will start using the BT AUDIO function, and connect with a Bluetooth capable device.

Even devices that have already been paired with this unit will not connect during BT STANDBY in the following cases.

In such cases, delete pairing history from the Bluetooth wireless technology device and perform pairing again.

• Up to 8 pairing history can be recorded with this unit. If connecting to a Bluetooth wireless technology device over 8 units, the oldest pairing history will be deleted.
• If the settings are reset to the factory setting, all pairing history will be deleted.

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (see list below). To prevent noise or interrupted communication, do not use this unit nearby such devices, or make sure these devices are switched off during use.

• Cordless phones
• Cordless facsimiles
• Microwave ovens
  • Wireless LAN devices (IEEE802.11b/g)
• Wireless AV equipment
• Wireless controllers for game systems
  • Microwave-based health aids
• Some baby monitors

Other, less common, equipment that may operate on the same frequency:

• Anti-theft systems
• Amateur radio stations (HAM)
• Warehouse logistic management systems
  • Discrimination systems for train or emergency vehicles

Note

- In the event noise appears in your television image, there is the possibility that a Bluetooth wireless technology enabled device or this unit (including products supported by this unit) are causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and the Bluetooth wireless technology enabled device or this unit (including products supported by this unit).

- If there is something obstructing the path between this unit (including devices supported by this unit) and the device equipped with Bluetooth wireless technology (such as a metal door, concrete wall, or insulation containing tinfoil), you may need to change the location of your system to prevent signal noise and interruptions.

Scope of operation

Use of this unit is limited to home use. (Transmission distances may be reduced depending on communication environment).

In the following locations, poor condition or inability to receive radio waves may cause the audio to be interrupted or stopped:

• In reinforced concrete buildings or steel framed or iron-framed buildings.
  • Near large metallic furniture.
  • In a crowd of people or near a building or obstacle.
• In a location exposed to the magnetic field, static electricity or radio wave interference from radio communication equipment using the same frequency band (2.4 GHz) as this unit, such as a 2.4 GHz wireless LAN device (IEEE802.11b/g) or microwave oven.

- If you live in a heavily populated residential area (apartment, townhouse, etc.) and if your neighbor's microwave is placed near your system, you may experience radio wave interference. If this occurs, move your unit to a different place. When the microwave is not in use, there will be no radio wave interference.

Radio wave reflections

The radio waves received by this unit include the radio wave coming directly from the device equipped with Bluetooth wireless technology (direct wave) and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. If the audio cannot be received properly due to this phenomenon, try moving the location of the device equipped with Bluetooth wireless technology a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between this unit and the device equipped with Bluetooth wireless technology.

Precautions regarding connections to products supported by this unit

• Complete connections for all devices supported by this unit, including all audio cords and power cables before connecting them to this unit.
• After completing connections to this unit, check the audio and power cables to confirm that they not twisted together.
• When disconnecting this unit, confirm that you have sufficient working space in the surrounding area.
• When changing connections of audio or other cables for products supported by this unit, confirm that you have sufficient working space in the surrounding area.

Chapter 11:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

- If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem Check Remedy
Settings you have made have been cleared.	Was the power cord unplugged? When power cord is unplugged, the settings you have made is cleared. Please set the clock again. If you do not want to clear the settings, do not unplug the power cord.
Difference in volume between CDs, MP3, WMA, iPod/iPhone/iPad, Tuner, AUDIO IN and LINE.	This is not a problem with this unit. The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away? Operate within 7 m, 30° of the remote sensor on the front panel (page 5).
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead? Replace the batteries (page 5).
Disc cannot be played or disc is ejected automatically.	Is the disc scratched? Scratched discs may not play.
	Is the disc dirty? Wipe the dirt off the disc (page 36).
	Is this unit placed in a humid location?	There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an air-conditioner, etc. (page 35).
Folder or file names are not recognized.	Have you exceeded the maximum number of folder or file names this unit can recognize?	Up to 255 folders can be recognized on one disc. Up to 999 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognize certain folders or files.
The unit turns off automatically.		If no play back and no operation has done for 20 minutes or more, the unit turns off automatically.In this case it is required that the Auto power off is switched to ON (page 36).

When a USB storage device is connected

Problem Check Remedy
USB storage device is not recognized.	Is the USB storage device properly connected?	Connect the device securely (all the way in).
	Is the USB storage device connected via a USB hub?	This unit does not support USB hubs. Connect the USB storage device directly.
		This unit only supports USB mass storage class devices.
		This unit supports portable flash memory and digital audio playback devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (exFAT, NTFS, HFS etc.) are not supported.
		This device does not support the use of external hard disc drives.
	This is not a problem with this unit. Turn the power off then back on.
File cannot be played. Is the file copyright-protected (by DRM)?		Copyright-protected files cannot be played.
		This is not a problem with this unit. Files stored on a computer cannot be played.
		It may not be possible to play some files.
Folder or file names are not displayed or are not properly displayed.	Do the folder of file names contain more than 30 characters?	The maximum number of characters displayable for the folder and file names is 30.
Folder or file names are not displayed in alphabetical order.	This is not a problem with this unit. The order of the folder and file names displayed depends on the order in which the folders or files were recorded on the USB storage device.
Much time is required to recognize the USB storage device.	What is the USB storage devices capacity?	Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).
Power is not supplied to the USB storage device.	Is “AUTH ERR” displayed on the front panel display? No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB storage device.
		Press INPUT to switch to the other mode, then switch again to the USB mode.

When an iPod/iPhone/iPad is connected

Problem Remedy
Can't operate the iPod/iPhone/iPad by the remote control.	Make sure the iPod/iPhone/iPad is connected correctly (page 17).
Can't operate the iPod/iPhone/iPad.	Make sure the iPod/iPhone/iPad is connected correctly (page 17).If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

When the Bluetooth wireless technology device is connected or operated

Problem Remedy

The Bluetooth wireless technology device cannot be connected or operated.Sound from the Bluetooth wireless technology device is not emitted or the sound is interrupted.

Check that no object that emits electromagnetic waves in the 2.4 GHz band (microwave oven, wireless LAN device orBluetooth wireless technology apparatus) is near the unit. If such an object is near the unit, set the unit far from it. Or, stop using the object emitting the electromagnetic waves.

Check that the Bluetooth wireless technology device is not too far from the unit and that obstructions are not set between the Bluetoothwireless technology device and the unit. Set the Bluetooth wireless technology device and the unit so that the distance between them is less than about 10 m* and no obstructions exist between them.

* The distance given is to be used as a rough guide. The actual allowable distance between devices may vary depending on conditions in the surrounding environment.
The Bluetooth wireless technology device may not be set to the communication mode supporting the Bluetooth wireless technology. Check the setting of the Bluetooth wireless technology device.

playable discs and formats

Audio CD	• Commercially available audio CDs• CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format
WMA	WMA files recorded on CD-R/ -RW/ -ROM discs or USB storage devices
MP3	MP3 files recorded on CD-R/ -RW/ -ROM discs or USB storage devices

• Only the discs that have been finalized can be played.
• Discs recorded in packet write mode (UDF format) are not compatible with this unit.
• Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.
• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.
• Files protected by DRM (Digital Rights Management) cannot be played.

Note

• This unit does not support multisession discs or multiborder recording.
• Multisession/multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A "session" or "border" is one recording unit, consisting of a complete set of data from lead-in to lead-out.

Regarding copy protected CDs

This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.

Supported audio file formats

This unit does not support lossless encoding.

Cautions on use

When moving this unit

When moving this unit, be sure to first check that there is no disc loaded and disconnect the iPod/iPhone/iPad. Then press Ⓧ STANDBY/ON, wait for "STANDBY" disappears on main display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the iPod/iPhone/iPad connector port, USB terminal, or AUDIO IN mini-plug jack.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight
  • Humid or poorly ventilated places
  • Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchens, etc.)

Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

About condensation

If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. If this happens, move this unit to a different place.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Cleaning the lens

This unit's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs

Storing

• Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
- Be sure to read the cautions included with the disc.

Cleaning discs

- Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

Illustration of hands using a tool to clean or restore a circular object (no text or symbols visible)

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label's glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

Two circular objects with a diagonal line and a circle, no text or symbols present

About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

About iPod/iPhone/iPad

Made for

"Made for iPod" and "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Lightning is a trademark of Apple Inc.

Auto power off setting

Long press the ■ on the unit for 3 seconds to switch auto power off setting ON/OFF.

• The operation can be conducted using only the ■ on the unit.
• No need to set this using the remote control.
• Initial setting is set to ON.

Note

• When the auto power off is set to ON, "APD ON" will be displayed on the main display.
• When the auto power off is set to OFF, "APD OFF" will be displayed on the main display.

Restoring all the settings to the defaults

Use the steps below to restore the all settings to their defaults.

1 P r ⏻ STANDBY/ON to turn the power on.
2 P r CDe onsthesremote control or INPUT repeatedly on the main unit to select CD input.
3 P r ▲ OPEN/GLOSE to open the disc tray.
4 P r ⏻ STANDBY/ON on the unit for 3 seconds while pressing ■.

• "DEFAULT" is displayed while the settings are being restored. Power is turned off.
• No need to set this using the remote control.

Specifications

- Amplifier section

RMS Power Output: 15 W + 15 W

(1 kHz, 10 %, T.H.D., 8 Ω)

- Tuner section

Frequency Range (FM)....87.5 MHz to 108 MHz

Antenna Input (FM) 75 Ω unbalanced

Frequency Range (AM) 522 kHz to 1620 kHz

Antenna (AM) .... Loop antenna

- Bluetooth

Version .... Bluetooth Specification Ver. 3.0

Output.....Bluetooth Specification Class 2

Estimated line-of-sight transmission distance* About 10 m

Frequency range. 2.4 GHz

Modulation ....FH-SS (Frequency Hopping Spread Spectrum)

Supported Bluetooth profiles....A2DP, AVRCP

Supported Codec .... SBC (Subband Codec)

Supported contents protection .... SCMS-T

* The line-of-sight transmission distance is an estimate. Actual transmission distances supported may differ depending on surrounding conditions.

- Miscellaneous

iPod/iPhone connector port ....5 V, 1 A

USB terminal 5 V, 2.1 A

Power source ..... AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption

Power on (X-CM32BT)....30 W

Power on (X-CM42BT)....37 W

Power stand-by 0.5 W or less

Power stand-by (BT STANDBY ON) ..... 0.5 W or less

Dimensions . . . 200 mm (W) x 123 mm (H) x 257 mm (D)

Weight (without package) 2.0 kg

- Speaker

Enclosure .... Bass-reflex, book-shelf type

(Magnetically shielded)

Configuration....2-way

Tweeter. 5 cm cone

Woofer 9.4 cm cone

Maximum input power....15 W

Impedance 8Ω

Dimensions.....121 mm (W) x 201 mm (H) x 235 mm (D)

Weight 2.0 kg/each

- Accessories

Remote control....1

AAA batteries (R03) 2

AM antenna cable 1

FM wire antenna 1

Non-skid pads....8

Power cord

Speaker wire

iPhone/iPad stand

Warranty card

Operating instructions (This document)

Note

• The specifications are applicable when the power supply is 230 V.
• Specifications and the design are subject to possible modifications without notice, due to improvements.
• iOS is a trademark on which Cisco holds the trademark right in the US and certain other countries.

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

All rights reserved.

ATTENTION

POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR NE SE TROUVE À L'INTÉRIEUR. CONFIER TOUT ENTRETIEN À UN PERSONNEL QUALIFIÉ UNIQUEMENT.

D3-4-2-1-1_B1_Fr

AVERTISSEMENT

Illustration of a gray electronic device with a circular symbol and a prohibition sign (no text or symbols on the device itself)

Diagram of a mechanical device with four labeled components and an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

ATTENTION

30° 30° 7 m

3D diagram of a speaker unit with sound waves and an open door, showing internal components (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled steps and directional arrows indicating rotation or movement.

3D diagram of a speaker unit with two speakers and a door, showing internal components (no text or symbols)

Diagram illustrating a step-by-step procedure for using a device to interact with a screen, showing curved arrow and plus/minus symbols.

Important

Diagram of a cable installation with a starburst impact on the wall (no text or symbols)

Pioneer + 100% 100%

Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

Illustration of a smartphone inserting a device into a device (no text or symbols visible)

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Cble iPod/iPhone/iPad

2 Placez l'iPod/iPhone/iPad sur le support.

Diagram showing a tablet connected to a stack of documents via a cable (no text or symbols present)

Illustration of a hand pressing down on a circular component with a pointer (no text or symbols)

(30 stations FM / 15 stations AM)

U DISPLAY TUNE+ FOLDER ENTER MENU MEMORY PROGRAM PRESET + TUNE- MUTE - DIMMER VOLUME + - CLEAR REPEAT 0 RANDOM DISPLAY TUNE+ FOLDER ENTER MENU MEMORY PROGRAM PRESET + TUNE- MUTE + - VOLUME

Illustration of hands cleaning a CD or DVD disc (no text or symbols)

Two circular objects with a diagonal line and a circle, no text or symbols present

Poids (sans emballage)....2,0 kg

• Enc e i n t e s

Illustration of a gray electronic device with a circular symbol above it, no text or symbols present.

Betriebsumgebung

RDS-INFORMATIONEN.... 27

Verwendung des Auto Station Program Memory (ASPM)

Diagram of a soldering iron being inserted into a sample holder, showing electrode placement and wire connection (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

ACHTUNG

30° 30° 7 m

3D diagram of a speaker unit with sound waves and an open door, showing internal components (no text or symbols)

Diagram illustrating a door lock operation with numbered steps and directional arrows indicating rotation and adjustment.

3D diagram of a speaker unit with two speakers and a door, showing internal components (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a magnified view of the component being processed.

Wichtig

Diagram of a cable installation with a starburst impact on the wall (no text or symbols)

LSE D SPEAKERS R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R R a n Steckdose Netzkabel

ACHTUNG

Diagram of a mechanical component with an arrow indicating rotation or movement (no text or symbols present)

Illustration of a smartphone inserting into a device into a tray (no text or symbols)

Diagram showing a device with labeled components and directional arrows, likely illustrating a process or assembly.

iPod-/iPhone-/iPad- Kabel

Diagram showing a tablet connected to a device via cable, with a downward arrow indicating download or connection (no text or symbols present)

Illustration of a hand holding a circular object above a mechanical component (no text or symbols)

Illustration of hands using a tool to clean or restore a circular object (no text or symbols visible)

Two diagrams showing a food item with a prohibition symbol, next to a CD or DVD disc (no text or labels present)

Illustration of a gray electronic device with a circular symbol above it, no text or symbols present.

Diagram of a soldering iron being inserted into a sample holder (no text or symbols present)

Simple line drawing of a mechanical component or tool (no text or symbols)

ATTENZIONE

30° 30° 7 m

3D diagram of a speaker unit with two speakers and a door, showing internal components (no text or symbols)

Diagram illustrating a door lock operation with numbered steps and directional arrows indicating rotation and adjustment.

3D diagram of a speaker unit with two speakers and an open door, showing internal structure (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a magnified view of the component being processed.

Importante

Illustration of a cable installation with a starburst impact effect (no text or symbols)

Pioneer HAPPLENT 100 HAPPLENT 100 HAPPLENT 100

Diagram of a mechanical component with an arrow indicating rotation or movement (no text or symbols present)

Illustration of a smartphone inserting into a device into a tray (no text or symbols)

Diagram showing a mechanical or electronic component with labeled parts and directional arrows indicating motion or flow.

Cavo iPod/iPhone/ iPad

Diagram showing a tablet connected to a device via cable, with a downward arrow indicating download or connection (no text or symbols present)

Illustration of a hand holding a circular object above a mechanical component (no text or symbols)

EDUCATE – Programmi educativi

COUNTRY – Musica country

Usare il programma Auto Station Memory (ASPM)

Illustration of hands using a tool to cut a plate (no text or symbols visible)

Two diagrams showing a landfill with no restrictions on the left and a CD or DVD on the right, both without any text or symbols.

Illustration of a gray electronic device with a circular symbol above it, no text or symbols present.

Gebruiksomgeving

KLASSE 1 LASERPRODUCT

D58-5-2-2a_A1_NI

WAARSCHUWING NETSNOER

Auto Power Off-instelling 36

Alle instellingen op de beginstand terugzetten .....37

Specifications 37

Hoofdstuk 1:

Voordat u begint

Inhoud van de doos

Diagram of a soldering iron being inserted into a sample holder, showing terminals and wire connection (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

WAARSCHUWING

30° 30° 7 m

3D diagram of a speaker unit with sound waves and an open door, showing internal components (no text or symbols)

Diagram illustrating a mechanical or electrical process with numbered steps and directional arrows indicating rotation or movement.

3D diagram of a speaker unit with two speakers and an open door, showing internal components (no text or symbols)

Diagram illustrating a step-by-step procedure for using a device to adjust or install a circular component, with a magnified view showing the process.

Belangrijk

Illustration of a fuse with a explosion effect on a wall socket (no text or symbols)

Pioneer HOLDEN HOLDEN

Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

Illustration of a smartphone inserting a device into a device slot (no text or symbols visible)

Diagram showing a mechanical or electronic component with labeled parts 1 and 2, indicating directional movement or assembly.

Diagram showing a tablet connected to a device via cable, with a downward arrow indicating download or connection (no text or symbols present)

Illustration of a hand holding a circular object above a mechanical component (no text or symbols)

(FM 30 stations/AM 15 stations)

0 DISPLAY TUNE- FOLDER ENTER MENU MEMORY PROGRAM PRESET TUNE- VOLUME MUTE DIMMER CLEAR REPEAT 0 RANDOM DISPLAY TUNE+ FOLDER ENTER MEMORY PROGRAM MENU PRESET TUNE- VOLUME MUTE DIMMER

quizzen of interviews

POP M – Popmuziek

ROCK M – Rockmuziek

EASY M – 'Easy listening' rustige populaire muziek

CLASSICS – 'Serieuze'

klassieke muziek

Illustration of hands using a tool to clean or restore a circular object (no text or symbols visible)

Two icons showing a disc with a prohibition symbol, one open and one closed, both without any text or labels.

Auto Power Off-instelling

Power On (X-CM32BT).... 30 W

Power On (X-CM42BT)....37 W

Powerstand-by 0,5 W of minder

Power stand-by (BT STANDBY ON) .....0,5 W of minder

Afmetingen. . . . . . 200 mm (B) x 123 mm (H) x 257 mm (D)

Gewicht (zonder verpakking)....2,0 kg

- Luidspreker

Bijlage .... Bassreflex, shelf-luidspreker (Magnetisch beschermd)

Configuratie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tweeweg

Tweeter 5 cm conus

Woofer 9,4 cm conus

Maximum invoervermogen 15 W

Impedantie 8 Ω

Afmetingen. . . . . . 121 mm (B) x 201 mm (H) x 235 mm (D)

Illustration of a gray electronic device with a circular symbol above it, no text or symbols present.

Diagram of a soldering iron being inserted into a tray using a power supply (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

PRECAUCIÓN

30° 30° 7 m

3D illustration of a speaker unit with sound waves and an open door (no text or symbols)

Diagram showing a 3D box with four dots and arrows pointing to it, accompanied by a speech bubble containing four dots.

Superficie inferior del altavoz

3D diagram of a cube with four black dots and four arrows pointing to its faces (no text or symbols)

Diagram illustrating a door switch mechanism with numbered steps and directional arrows indicating rotation or movement.

3D diagram of a speaker unit with two speakers and an open door, showing internal structure (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a hand holding a tool.

Importante

Illustration of a cable plugged into a wall socket with a explosion effect (no text or symbols)

Diagram of a mechanical device with an arrow indicating rotation or movement (no text or symbols present)

3 Conecte el iPod/iPhone.

Illustration of a smartphone inserting into a device with an arrow indicating the process (no text or symbols present)

Diagram showing a mechanical or electronic component with labeled parts and directional arrows indicating motion or flow.

Diagram showing a tablet connected to a device via cable, with a downward arrow indicating download or connection (no text or symbols present)

Illustration of a hand holding a circular object above a square with a curved arrow indicating rotation (no text or symbols)

5 P u ▲ OPEN/©LOSE para cerrar la bandeja del disco.

EDUCATE – Material educativo

DRAMA – Radionovelas, etc.

CULTURE – Cultura nacional o regional, teatro, etc.

Illustration of hands using a tool to clean or restore a fish (no text or symbols visible)

Two icons showing a landfill container with a prohibition symbol, next to a CD or DVD disc (no text or labels)

Illustration of a gray electronic device with a circular symbol above it, no text or symbols present.

Diagram of a soldering iron being inserted into a tray using a power supply (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

30° 30° 7 M

3D diagram of a speaker unit with an open door and speaker, showing internal components (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled steps and directional arrows indicating rotation or movement.

3D diagram of a speaker unit with two speakers and an open door, showing internal structure (no text or symbols)

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a hand holding a tool.

ВАЖНО

Diagram of a cable installation with a explosion effect (no text or symbols)

Pioneer HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLE HAPPLET

Diagram of a mechanical component with an arrow indicating rotation or movement (no text or symbols present)

3 Подключите ваш iPod/iPhone.

Illustration of a smartphone inserting a device into a device slot (no text or symbols visible)

Diagram showing a mechanical or electronic component with labeled parts 1 and 2, indicating directional movement or assembly.

Nikko Kink

Diagram showing a tablet connected to a device via cable, with a downward arrow indicating download or connection (no text or symbols present)

Illustration of a hand holding a circular object above a mechanical component (no text or symbols)

ngfefebinge xxilug the llghely

4 Hiyeshy gaihchaoquy lhiyltzi

USB it iəgnyhə USB.

The 13th ed. 16th ed.

The image may be written in the

Illustration of hands using a tool to clean or restore a circular object (no text or symbols visible)

Two circular objects with a diagonal line crossing, one shaded and the other partially filled (no text or symbols)

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

Все права защищены.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

PIONEER HOME ELECTRONICS CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

EU Representative's:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

http://www.pioneer.eu

CE

[*] X-CM32BT-K, X-CM32BT-W, X-CM32BT-R, X-CM32BT-L, X-CM32BT-N, X-CM32BT-D, X-CM32BT-Y X-CM42BT-K, X-CM42BT-W, X-CM42BT-R, X-CM42BT-L

English:

Hereby, Pioneer, declares that this [*] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Suomi:

http://www.pioneer.co.uk

http://www.pioneer.fr

http://www.pioneer.de

http://www.pioneer.it

http://www.pioneer.nl-http://www.pioneer.be

http://www.pioneer.es

http://www.pioneer-rus.ru

http://www.pioneer.eu

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

All rights reserved.

© 2014 PIONEER HOME ELECTRONICS CORPORATION.

PIONEER HOME ELECTRONICS CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002* B5 Ru

Сделано в Китае

Printed in China / Imprimé en Chine
